Ultimate OEM Toyota Parts Thread for 2nd gens (2007-21)

Discussion in 'Toyota of Cool Springs Parts' started by Roman, Feb 16, 2017.

  1. Feb 16, 2017 at 2:49 PM
    #1
    Roman

    Roman [OP] Toyota Parts Master Vendor

    Joined:
    Jan 14, 2015
    Member:
    #876
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Roman
    Franklin, TN
    This is a thread to hopefully make things a little easier on you guys, and a LOT easier for me, when needing some of the popular parts for the Tundra. If you received a link to this thread from a PM response from me, just know that I have the answer you're looking for below. I receive PMs all day everyday for the same few parts, and it will save me quite a bit of time by linking to this thread. I still love you, I'm just saving some key strokes. :D

    What if the store says "This part does not fit your Toyota Tundra"? If you are following the part numbers and instructions I have posted below, do not pay any attention to what the online store says. It is not the Toyota parts master. I am. :D What is happening is you selected your year/model Tundra, but the part is not from your year/model. You are swapping it from a different year/model, so the store thinks it will not fit. But we know it will because I have decreed so below.


    If you have any questions about anything PLEASE send me a PM or an email through the store. It's not that I don't like talking on the phone, but it is very inefficient and takes up a lot of time/interrupts work flow. Thanks in advance.

    On to the good stuff. Below you will find links to various popular parts in our store with information about each part to hopefully answer any questions that you have. I'll probably be editing this thread with new information, or information that is pertinent that I may have forgotten.

    Comprehensive thread discussing the grille on the Tundra. If you have any questions, this is a great place to start: https://www.tundras.com/threads/tundra-grille-how-to-get-what-you-want.26577/

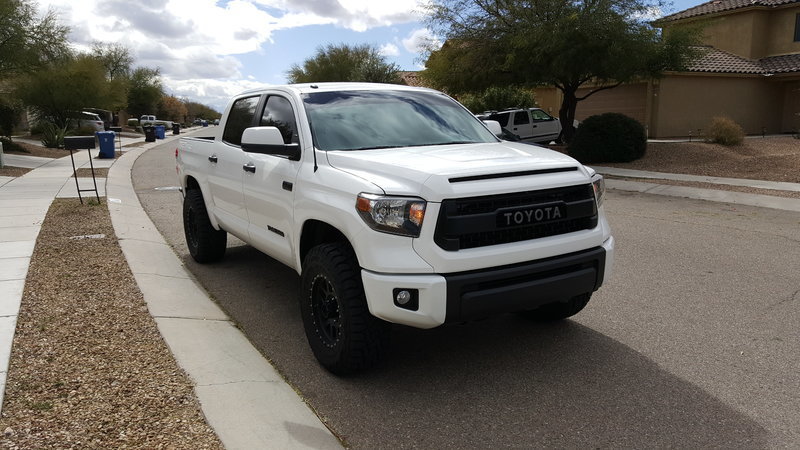

    TRD Pro grilles (2014-17 models only)

    [​IMG]


    The big one. Here is a link to the Pro grille with the hood bulge in our store:

    https://parts.toyotaofcoolsprings.com/p-genuine-toyota-pro-grille-w-hood-bulge-progrillesetup

    I have every color option available from Toyota in the drop down menu. WE ARE NO LONGER OFFERING CUSTOM COLORS. If you are needing a color that is not listed, I recommend ordering the black Pro grille listed below, and taking it to your local body shop to have it painted. You will also need the painted hood bulge, and you will find part numbers for those below. If you have Midnight black/Attitude black (paint code 218), order a black Pro grille. The color difference between the two paint codes is hardly noticeable, and lots of people have installed the grille on their 218 painted Tundra and are happy. If you install it and can't live with it, you can always have a local body shop paint it.

    If you have a Platinum model, you do not need the hood bulge. If you have a chrome grille and are wanting to keep the chrome surround, you do not need the hood bulge. You can order the grille by itself from one of these links.

    If you have a 2018+ model but still want this grille, you will have to come up with a solution for mounting the TSS sensor that is currently bolted to your existing grille. I do not currently have any recommendations for doing this.

    2014-17 Pro grilles

    White - 040
    https://parts.toyotaofcoolsprings.c...-grille-assembly-super-white-040-531000c260a0

    Magnetic Gray Metallic - 1G3
    https://parts.toyotaofcoolsprings.c...e-assy-trd-pro-magnetic-gray-1g3-531000c260b1

    Cement - 1H5
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-trd-pro-grille-cement-1h5-531000c260b2

    Onyx Black - 202
    https://parts.toyotaofcoolsprings.c...rd-pro-grille-assembly-black-202-531000c260c0

    Barcelona Red - 3R3
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-trd-pro-grille-barcelona-red-3r3-531000c260d0

    Inferno - 4X0
    https://parts.toyotaofcoolsprings.c...-pro-grille-assembly-inferno-4x0-531000c260e0

    Quicksand - 4V6
    https://parts.toyotaofcoolsprings.c...le-assembly-quicksand-4v6-531000c260e1?c=az0x

    Hood bulges

    White - 040
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-super-white-040-761800c030a0

    Silver - 1D6
    https://parts.toyotaofcoolsprings.c...od-bulge-silver-sky-metallic-1d6-761800c030b0

    Magnetic Gray - 1G3
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-magnetic-gray-1g3-761800c030b1

    Cement - 1H5
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-cement-1h5-761800c030b2

    Attitude/Midnight Black - 218
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-attitude-black-218-761800c030c0

    Onyx Black - 202
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-onyx-black-202-761800c030c1

    Barcelona Red - 3R3
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-barcelona-red-3r3-761800c030d0

    Sunset Bronze - 4U3
    https://parts.toyotaofcoolsprings.c...bulge-sunset-bronze-metallic-4u3-761800c030e0

    Inferno - 4X0
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-inferno-4x0-761800c030e1

    Smoked Mesquite - 4X4
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-smoked-mesquite-4x4-761800c030e3

    Quicksand - 4V6
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-quicksand-4v6-761800c030e2

    Army Green - 6V7
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-army-green-6v7-761800c030g0

    Lunar Rock - 6X3
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-lunar-rock-6x3-761800c030g1?c=az0x

    Blue Ribbon - 8T5
    https://parts.toyotaofcoolsprings.c...d-bulge-blue-ribbon-metallic-8t5-761800c030j0

    Blazing Blue - 8T0
    https://parts.toyotaofcoolsprings.c...ood-bulge-blazing-blue-pearl-8t0-761800c030j1

    Cavalry Blue - 8W2
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-cavalry-blue-8w2-761800c030j2

    Voodoo Blue - 8T6
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-bulge-voodoo-blue-8t6-761800c030j3

    Don't see your color listed and you have a Platinum or want to keep the chrome? You can pick any of them and order away. The painted portion of the grille will separate from the grille insert, and you can use what you have. All people with the chrome grille will have to do this. Platinum owners without one of the listed colors will have to do this.

    "But Roman, you mean you can't get the insert by itself?"

    NO. THE INSERT IS NOT SOLD BY ITSELF. THE SURROUND IS NOT SOLD BY ITSELF. YOU MUST PURCHASE THE GRILLE AS AN ASSEMBLY. SAME WITH ALL OTHER GRILLES. :D

    Have a 2018+, but want the Pro grille from the 2015-17? You will need to come up with a bracket of some sort to mount the TSS sensor.

    2019+ TRD Pro Grille

    [​IMG]

    The 2019+ TRD Pro grille is available with four color options for the surround. White - 040, Attitude black - 218, Magnetic Gray - 1G3, and Voodoo blue - 8T6. I will only be stocking white, Magnetic Gray, and black for now. If you have a Tundra that is not one of these three colors, but still want to add the Pro grille, you will need to order one and take it to a local body shop for paint. If you have a painted grille already, or just want to keep the chrome surround, you can swap the surround from what you have onto this grille just like all of the other grilles.

    White - 040
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-trd-pro-grille-040-super-white-531010c070a0

    Black - 218
    https://parts.toyotaofcoolsprings.c...rd-pro-grille-218-attitude-black-531010c070c0

    Magnetic Gray - 1G3
    https://parts.toyotaofcoolsprings.c...trd-pro-grille-magnetic-gray-1g3-531010c070b0

    Army Green - 6V7
    https://parts.toyotaofcoolsprings.c...o-grille-assembly-army-green-6v7-531010c070g0

    Lunar Rock - 6X3
    https://parts.toyotaofcoolsprings.c...o-grille-assembly-lunar-rock-6x3-531010c070g1

    Voodoo Blue
    https://parts.toyotaofcoolsprings.c...9-trd-pro-grille-voodoo-blue-8t6-531010c070j1

    There is a hole for the sensor in the middle of the insert under the word Toyota. If you look at some close ups pictures of the grille, you will see the faux cover piece that Toyota has designed to fit there. It does NOT come with the grille. You can purchase the Toyota cover piece here:

    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-2019-trd-pro-grille-sensor-cover-5314134010

    You will also need two of these push nuts:

    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-filler-plate-nut-9018306044

    The grille does have a hole in the top portion, just like the 2018+ Platinum/Sport grilles. If you have a 2018+ Tundra, you do not need this. You can use the one on your existing grille. Here is a link to that cover, in case you want to grab it as well:

    https://parts.toyotaofcoolsprings.c...panel-cover-for-2018-tundra-grille-531130c010

    If you have a 2018+ Tundra, you do not need a new sensor. Your sensor will swap over to this one.


    2018+ Grille options

    YOU MUST DETERMINE WHICH EMBLEM YOU CURRENTLY HAVE TO FIND OUT IF YOU NEED TO PURCHASE A NEW EMBLEM WHEN SWAPPING OUT YOUR GRILLE. CHECK OUT THE FOLLOWING THREAD FOR INFORMATION FIRST.

    https://www.tundras.com/threads/differences-in-emblems-on-2018-grilles.71405/

    Got a 2018+ model Tundra and want to swap the grille out? This section is for YOU. I'm going to list what options are available and the differences between them. There will also be links to each one below.

    Differences between the grilles are shown in pictures below. I can not see a difference with the Sport grille and the Platinum grille. Check post # 611 for a close up comparison. To me, they are identical. Also, if you do not see a color that matches your Tundra, you will have to order the grille of your choice, and have the surround painted to match at a local body shop. If you are only wanting to swap the surround and keep the current insert you have now, I would go with the cheapest grille option (most likely the Pro) in your color and swap it over. Remember, the Pro grille was not available in all colors, so you may have to paint the surround anyway.

    And, just to reiterate:

    NO. THE INSERT IS NOT SOLD BY ITSELF. THE SURROUND IS NOT SOLD BY ITSELF. YOU MUST PURCHASE THE GRILLE AS AN ASSEMBLY.:D

    Do not pay attention to the online store telling you the grille does not fit your truck. Yes, it does. The only reason it is saying that is because it is not smart enough to figure out that a Platinum grille will fit on an SR5, or a TRD Pro on a Limited. All grilles are interchangeable, and I can't make the store understand that. Also, the images in the store of the grille are stock photos from the Toyota catalog. They are not an exact representation of the part being ordered. Go by the description I have posted here, or the description of the part in the store. Remember, if you do not see the grille listed here in your color, order a black one and take it to a local body shop for paint.

    2018 Platinum grille

    Super white - 040
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-platinum-grille-super-white-040-531010c041a0

    Platinum White - 089
    https://parts.toyotaofcoolsprings.c...-grille-platinum-white-pearl-089-531010c041a1

    Silver Sky - 1D6
    https://parts.toyotaofcoolsprings.c...atinum-grille-classic-silver-1d6-531010c041b0

    Magnetic Gray 1G3
    https://parts.toyotaofcoolsprings.c...latinum-grille-magnetic-gray-1g3-531010c041b1

    Attitude or Midnight black - 218
    https://parts.toyotaofcoolsprings.c...atinum-grille-attitude-black-218-531010c041c0

    Barcelona Red - 3R3
    https://parts.toyotaofcoolsprings.c...latinum-grille-barcelona-red-3r3-531010c041d0

    Smoked Mesquite - 4X4
    https://parts.toyotaofcoolsprings.c...tinum-grille-smoked-mesquite-4x4-531010c041e0

    Army Green - 6V7
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-platinum-grille-army-green-6v7-531010c041g0

    Blazing Blue - 8T0
    https://parts.toyotaofcoolsprings.c...um-grille-blazing-blue-pearl-8t0-531010c041j0

    [​IMG]

    2018 SR grille
    (No, that is NOT MGM on the surround)

    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-grille-sub-assembly-rad-531010c011

    [​IMG]

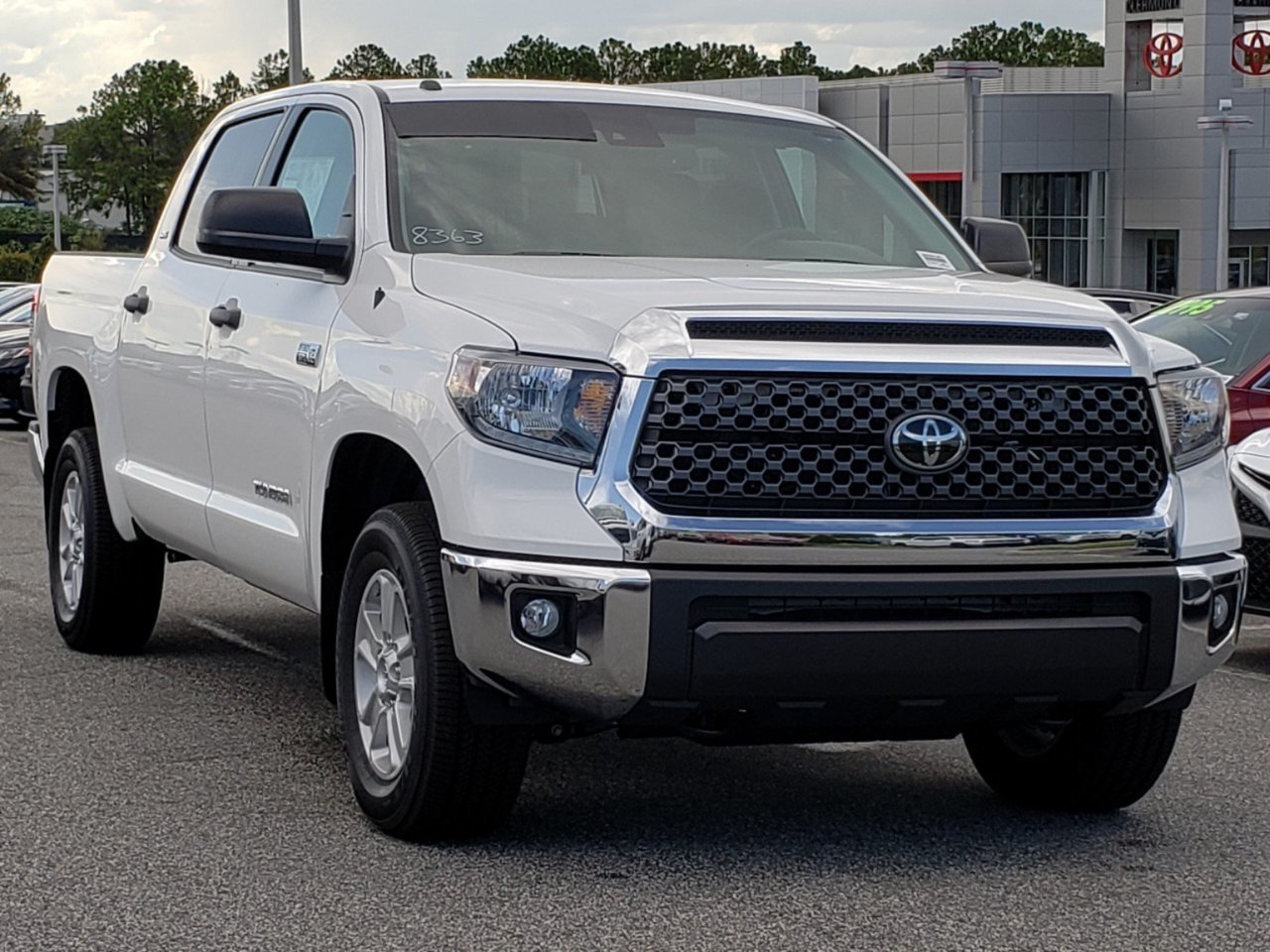

    2018 SR5 grille (chrome)

    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-grille-assembly-531010c021

    [​IMG]

    Limited grille

    THERE HAVE BEEN CHANGES MADE TO THE LIMITED AND 1794 GRILLES. The emblem being used on the current 2018+ models will NOT swap over to the Limited/1794 grille. The Land Cruiser emblem also will not fit this grille. If you are swapping to this grille, you will need part number 90975-02159 as well.

    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-grille-assembly-531010c051


    [​IMG]

    2018 TRD Sport grille

    Super white - 040
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-trd-sport-grille-super-white-040-531010c031a0

    Magnetic Gray Metallic - 1G3
    https://parts.toyotaofcoolsprings.c...d-sport-grille-magnetic-gray-1g3-531010c031b1

    Attitude or Midnight black - 218
    https://parts.toyotaofcoolsprings.c...-sport-grille-attitude-black-218-531010c031c0

    Barcelona Red - 3R3
    https://parts.toyotaofcoolsprings.c...d-sport-grille-barcelona-red-3r3-531010c031d0

    Army Green - 6V7
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-trd-sport-grille-army-green-6v7-531010c031g0

    Blazing Blue - 8T0
    https://parts.toyotaofcoolsprings.c...rt-grille-blazing-blue-pearl-8t0-531010c031j0

    Cavalry Blue - 8W2
    https://parts.toyotaofcoolsprings.c...rd-sport-grille-cavalry-blue-8w2-531010c031j1

    Voodoo Blue
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-trd-sport-grille-voodoo-blue-8t6-531010c031j2

    [​IMG]

    If you are a 2014-17 Tundra owner, and want to use the 2018 grille on your truck, you will need two extra parts. One is a small cover that goes on top of the grille that is not included with the grille itself:

    https://parts.toyotaofcoolsprings.c...panel-cover-for-2018-tundra-grille-531130c010

    And an emblem. I do not currently have a recommendation for the emblem, other than the stock one that comes on the grilles, which is pretty expensive:

    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-grille-emblem-front-9097502159

    I'll update this if I find another option, but I don't think there will be.


    TRD Sport Hood Scoop

    [​IMG]

    Wanting to add a little more scoopiness to the hood of your Tundra? Here's what you'll need to make it happen:

    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-scoop-7618134900
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-scoop-gasket-7618334010
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-protector-hood-bulge-no-2-7618434010 x2
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-hood-scoop-gasket-7618534010
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-engine-air-intake-hose-7618234900
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-clip-75868aa020?c=az0x x4
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-nut-9008017189?c=az0x x8

    There are studs (8) and clips (4) that go through the hood, so you will need to either purchase a new hood from the TRD Sport (we do not ship these) or you'll have to drill into your existing hood. Also, the hood scoop does not come painted.

    Front Bumper Ends

    [​IMG]

    Another big one. The front bumper ends are a big seller. These parts do not come painted from Toyota and WE ARE NO LONGER SELLING THEM PAINTED. You will need to take them to a local body shop to have them painted. The sensor holes may require slight trimming to get the sensors to fit properly. Below are the part numbers for everything you will need. Order both bumper ends (with or without sensors) and both seals. They come in a flat black, textured finish that is similar to the center section of the bumper on SR, SR5, and Limited models.


    With sensors
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-end-cap-with-parking-sensor-hole-521120c908
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-end-cap-with-parking-sensor-hole-521130c908

    Without sensors
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-end-cap-without-sensor-hole-521120c080
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-end-cap-without-sensor-hole-521130c080

    Seals you will need:
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-fender-liner-seal-right-front-538820c060
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-fender-liner-seal-left-front-538830c050

    Fog light clips: https://parts.toyotaofcoolsprings.com/oem-parts/toyota-side-molding-retainer-clip-753920r010 x2

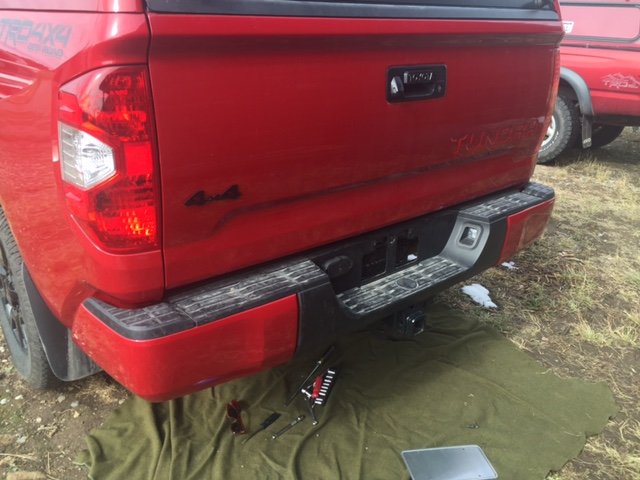

    Rear Bumper Ends

    [​IMG]

    Same thing for the rear bumper ends, EXCEPT they require a lot more parts to install. Again, WE ARE NO LONGER OFFERING CUSTOM PAINTED PARTS. Here are links to the unpainted parts:

    Caps with sensors:
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-end-cap-with-parking-sensor-521550c903
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-end-cap-with-parking-sensors-521560c903

    Caps without sensors:
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-end-cap-without-parking-sensor-521550c030
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-end-cap-without-parking-sensor-521560c030

    Other parts you WILL need:
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-side-reinforced-521530c040
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-side-reinforced-521540c030
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-retainer-plate-clip-9046804059 x6
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-clip-9046707215?c=az0x x14
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-lower-center-pillar-trim-clip-9046706165c0 x2

    "Roman, that's a lot more expensive than the front. Do I really need all of those extra parts?"

    Yes, you do. Here's a link to a thread showing the reason why:

    https://www.tundras.com/threads/color-matched-bumper-swap.7635/

    It's also a great how-to on installing the rear bumper ends with pictures.


    The A-Pillar Grab Handle AKA the Oh S#!T Handle


    I convinced Toyota to take these out of the Tundras for the 2014+ models so you would all have to buy them from me. :devil:

    You need to make sure which color your A-Pillar is first, and then make your selection from the links below.

    GRAY
    https://parts.toyotaofcoolsprings.c...y-a-pillar-trim-panel-left-front-622200c050b0
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-interior-grab-bar-front-746100c082b0

    TAN
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-windshield-pillar-trim-622200c050e0
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-assist-strap-746100c082e0

    Here is a link to the pdf one of the guys put together on installing them:

    https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=1&cad=rja&uact=8&ved=0ahUKEwiilYaV05XSAhWo6YMKHVlOALYQFggcMAA&url=https://www.tundras.com/attachments/adding-the-driver-side-grab-handle-to-the-2014-toyota-tundra-pdf.14404/&usg=AFQjCNGvwIVOxazsPidSuy5BOVkfarv3Kg&sig2=Dhz0TDirPyFQAcvTycplSg

    I do not have the hardware, but it is listed in the installation pdf. Your local hardware store is your best bet.

    2018+ OEM Tundra LED Headlamps

    [​IMG]

    These are the OEM LED Tundra headlights that are on the 2018+ models. They're quite popular, and for good reason. Just look at them! There is some information you need to know before placing your order, though.

    They are not plug and play with your 2014-17 Tundra. Don't cheap out on the harness you buy either. You want your brand new headlights to work properly. Order from @iHacker using this thread:

    https://www.tundras.com/threads/201...ls-no-motocontrol-required.24416/#post-592632

    All headlights come with the leveling motors. All headlights come with all bulbs. The high and low beam is an integrated LED within the housing and is not replaceable. Make sure to acquire your harness from a reputable vendor. If the high/low beam goes out, you must replace the entire headlight.

    They come in three flavors. Right above and below the yellow reflector on the outside edge is where the difference is. As seen in this picture, it is black:

    [​IMG]

    Your other option is chrome. EVERY OTHER PART OF THE HEADLAMP IS THE SAME. ONLY THIS SECTION (above and below the yellow reflector) OF THE HEADLIGHT IS DIFFERENT, AND IT IS EITHER BLACK OR CHROME.

    The 2019 TRD Pro LED headlights are now available. You can check out pictures of the differences in these headlights by looking at the following thread:

    https://www.tundras.com/threads/2019-tundra-trd-pro-parts.29476/

    There are pictures of the differences in the OP, and I have included links to the 2019 TRD Pro LED headlights below.

    Here are links to them in the store:

    Black 2018 LED Tundra headlights:
    https://parts.toyotaofcoolsprings.c...embly-right-hand-led-black-housing-811100c210
    https://parts.toyotaofcoolsprings.c...sembly-left-hand-led-black-housing-811500c210

    Chrome 2018 LED Tundra headlights:
    https://parts.toyotaofcoolsprings.c...mbly-right-hand-led-chrome-housing-811100c140
    https://parts.toyotaofcoolsprings.c...embly-left-hand-led-chrome-housing-811500c140

    2019 TRD Pro LED Tundra headlights:
    https://parts.toyotaofcoolsprings.c...ssembly-right-hand-led-drl-trd-pro-811100c211
    https://parts.toyotaofcoolsprings.c...assembly-left-hand-led-drl-trd-pro-811500c211

    They fit exactly in place of the headlights you have now. There is no physical difference between the housings. You will have to have an adapter harness for them. They do have an LED DRL along the top and bottom, and their light out put is better than the halogen lights, in my opinion. All bulbs are included with the headlights when purchased.

    2018 LED Fog lights

    If you would like to swap out your fog lights for a brighter option without having to do any weird wiring, here's your answer. The 2018 LED fog lights are completely identical to the 2014-17 halogen fog lights. Simply remove the old ones, and pop these in their place.

    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-fog-lamp-assembly-812100e050
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-fog-lamp-assembly-812200e030

    2019 TRD Pro fog lights from Rigid

    [​IMG]

    Here are links to them in the store:

    https://parts.toyotaofcoolsprings.c...-bezel-right-hand-tundra-trd-pro-pt22834190aa
    https://parts.toyotaofcoolsprings.c...t-bezel-left-hand-tundra-trd-pro-pt22834190ab
    https://parts.toyotaofcoolsprings.c...g-lamp-right-hand-tundra-trd-pro-pt22834190ac
    https://parts.toyotaofcoolsprings.c...og-lamp-left-hand-tundra-trd-pro-pt22834190ad

    You will need all four parts, which consist of one bezel for each side and one fog light for each side. They are plug and play, and no other parts are needed.

    2015-17 TRD Pro Headlights

    6D9039B9-37FC-4904-AF0C-948FB244C2B4_zps_112547c5881ebd4ebe08424defbfbe975ef614fd.jpg

    Here are the links to these in the store:

    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-headlamp-assembly-811100c111
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-headlamp-assembly-811500c111

    These are the black housing headlights that come on the Pro models. They do not have LED running lights in them. If you have a Platinum/1794, and want a set of these, you will lose the LED running lights. These headlights do have the leveling motors in them. No other parts are required to install these. They are a direct swap.

    Tow Mirrors

    [​IMG]

    For these, there are two options. One with power fold, and one without. If you do not have power fold as an option now, you can add it, but it is a difficult process having to basically wire the power folding part up yourself. Plus, the mirrors with power folding are about twice as much. I wouldn't recommend it unless you have wiring and/or mechanic experience.

    All options on the mirrors (heater, turn signal, power, etc) will work, except for the blind spot monitoring, and the small clearance lights do not stay on for certain models. Also, for 2018+ models, anything that has to do with the Toyota Safety Sense features that run through the mirrors will be lost. There are no tow mirrors that Toyota makes to keep these features.

    "Come on, Roman. My truck doesn't even have some of those options. How are they going to work?"

    It's witchcraft. They just work.

    What will NOT work are the blind spot monitoring or memory features for your current mirrors.

    Links to the parts:

    Power fold
    https://parts.toyotaofcoolsprings.c...mirror-power-folding-driver-s-side-879400c281
    https://parts.toyotaofcoolsprings.c...ror-power-folding-passenger-s-side-879100c281

    Non power fold
    https://parts.toyotaofcoolsprings.c...non-power-folding-passenger-s-side-879100c221
    https://parts.toyotaofcoolsprings.c...or-non-power-folding-driver-s-side-879400c221

    Mirror caps

    [​IMG]

    If you're wanting to swap out the mirror caps you have now, you can pick up a set from this link:

    https://parts.toyotaofcoolsprings.com/p-mirror-caps-mirrorcaps

    I have every color available from Toyota listed, including the flat black and chrome mirror caps. WE ARE NO LONGER OFFERING CUSTOM PAINTED PARTS. If you are needing a different color other than what is listed, I recommend grabbing the Onyx Black mirror caps, and taking them to a local body shop of your choice.

    Here is an excellent thread on how to swap the mirror caps out:

    https://www.tundras.com/threads/diy-mirror-caps-and-door-handle-swap-out.884/

    Door Handles

    These will not work on 2020 models with push to start.

    [​IMG]

    And here is a link to the painted door handles in the store:

    https://parts.toyotaofcoolsprings.com/p-door-handles-doorhandles

    Make sure to select whether or not you have a Crewmax, and what your paint code is from the menus. WE ARE NO LONGER OFFERING CUSTOM PAINTED PARTS. I recommend getting a set of the Onyx Black handles and taking them to your local body shop for paint.

    These will not work on 2020 models with push to start.

    For flat/matte black handles you will need the following:

    Regular cab/Double cab
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-handle-outside-black-692100c010 x2
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-handle-cover-with-keyhole-black-692170c010 x1
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-handle-cover-without-keyhole-black-692170c030 x1

    Crewmax
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-handle-outside-black-692100c010 x4
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-handle-cover-with-keyhole-black-692170c010 x1
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-handle-cover-without-keyhole-black-692170c030 x3

    For chrome handles you will need the following:

    Regular cab/Double cab
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-handle-outside-chrome-692100c020 x2
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-handle-cover-with-keyhole-chrome-692170c020 x1
    https://parts.toyotaofcoolsprings.c...andle-cover-without-keyhole-chrome-692170c040 x1

    Crewmax
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-handle-outside-chrome-692100c020 x4
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-handle-cover-with-keyhole-chrome-692170c020 x1
    https://parts.toyotaofcoolsprings.c...andle-cover-without-keyhole-chrome-692170c040 x3

    2020+ Door Handles for models with push button start

    I have come up with a couple of kit part numbers for the 2020+ door handles for Tundras with the push button start. These handles come from the Sequoia SR5 models with painted handles that will bolt up to your Tundra. Because they are from a Sequoia, not all colors are available. In fact, the only colors that are available currently are Super White, Magnetic Gray, and Attitude (Midnight) Black. These are the only Sequoia SR5 models that share the same color as the Tundra. This is not likely to change until the next model year, and even then Toyota may not introduce a new color. If you are needing a different color, I would suggest ordering the black handles and having them painted at a local body shop. Also, for Crewmax owners, when you purchase a set of handles and you need to get them painted, please include the color of your truck in the notes with your order. The rear handles are the same from the previous models, and I can try to send the rear door handles and lock covers that match your truck IF that color is available.

    I have just added a matte black option for the handles from the TRD Pro model as well. They are a little cheaper than the painted handles.

    The door panel must come off to install the front handles. The harness on the handle must be unplugged from what you have, and the new handles have a harness to plug back into the truck. Only way to get to it is by removing the door panel. Check out this write up on the installation:

    https://www.tundras.com/threads/202...door-handle-swap-write-up.58551/#post-1532733

    Crewmax
    https://parts.toyotaofcoolsprings.c...tton-start-models-tundradoorhandlessmartentry


    Double Cab
    https://parts.toyotaofcoolsprings.c...tundradoublecabdoorhandleswithpushbuttonstart

    TRD Pro Emblems

    Here are a few links to the TRD Pro emblems.

    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-door-emblem-right-front-rear-754720c070
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-door-emblem-left-front-rear-754740c050
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-door-emblem-right-rear-754710c160
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-door-emblem-left-rear-754710c170
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-tailgate-emblem-rear-754730c050


    The "TUNDRA", "iForce V8", and "4X4" emblems are the only emblems available in black from Toyota. None of the other emblems (SR5, Limited, etc.) are available in black because they did not come on the Pros.

    Here are miscellaneous links to popular parts:

    Black Limited Emblem

    This is the black Limited emblem from the Nightshade 4Runner. Works perfectly in place of the Tundra Limited emblem:

    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-black-limited-emblem-pz31660052

    TRD Rear Sway Bar
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-trd-rear-sway-bar-ptr1134070?c=bD0xJm49U2VhcmNoIFJlc3VsdHM=

    TRD Front sway bar
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-trd-sway-bar-front-red-ptr620c180

    TRD Exhaust

    You will need a muffler section AND the tailpipe section. The tailpipe section is available with either chrome or black exhaust tips.

    Muffler section
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-trd-performance-dual-exhaust-system-muffler-section-ptr0334191?c=bD0xJm49U2VhcmNoIFJlc3VsdHM=

    Tailpipe section with chrome exhaust tips
    https://parts.toyotaofcoolsprings.c...ystem-tailpipe-section-chrome-tips-ptr0334161

    Tailpipe section with black exhaust tips
    https://parts.toyotaofcoolsprings.c...system-tailpipe-section-black-tips-ptr0334190

    TRD Shift knob - Silver
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-shift-knob-automatic-trd-ptr5734141?c=bD0xJm49U2VhcmNoIFJlc3VsdHM=

    TRD Shift knob - All black
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-trd-shift-knob-a-t-all-black-version-ptr573414102?c=bD0yJm49U2VhcmNoIFJlc3VsdHM=

    TRD Pro center caps (2015-17)
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-wheel-center-cap-trd-pro-pt28034150

    TRD Intake - 5.7L
    https://parts.toyotaofcoolsprings.com/oem-parts/toyota-trd-cold-air-intake-system-ptr0300140?c=bD0xJm49U2VhcmNoIFJlc3VsdHM=


    As I said, I'll be updating this with new information as it becomes available. If you see anything that needs to be added, feel free to comment below.

    Thanks, fellas.

    You have made it to the end. Congratulations. For your diligence in reading all of this masterful thread, here is a promo code for 20% off of the shipping cost when you place your order through the store: FORUM20



    HAVE ANY OTHER QUESTIONS BECAUSE YOU THINK MY WRITE UP SUCKS AND WASN'T THOROUGH ENOUGH? :D PLEASE ONLY CALL AS A LAST RESORT. EMAIL OR PM ME FIRST/ONLY.


    Attached Files:

    Last edited: May 2, 2022
  2. Feb 16, 2017 at 3:52 PM
    #2
    tomsinamerica

    tomsinamerica New Member

    Joined:
    Jul 20, 2016
    Member:
    #3927
    Messages:
    1,020
    Gender:
    Male
    First Name:
    Tom
    Wilmington, NC
    Vehicle:
    White 2016 Tundra DC ltd
    how about adding color mirror caps & door handles too? Great post btw... i was just going through to price up what i need and noticed the handles & mirror caps weren't in the list for dummies.

    Dude, you deserve a medal for your patience. I've often wondered whether you're on a valium drip when i see your calm, collected responses to the same questions. If you're not, I need some of your breakfast cereal or something.... patience isn't my forte.

    5150bronco, khunk, AggiePhil and 8 others like this.
  3. Feb 16, 2017 at 3:56 PM
    #3
    Krezz

    Krezz Doesn't want to be new member

    Joined:
    Aug 8, 2016
    Member:
    #4132
    Messages:
    2,283
    Gender:
    Male
    First Name:
    Kevin
    Southern Ontario, Canada
    Vehicle:
    2022 Tundra Crewmax Hybrid TRD Pro
    Thanks for this @Roman - the TRD shifter states that the part is discontinued?

    Roman[OP] likes this.
  4. Feb 16, 2017 at 4:22 PM
    #4
    Motor71

    Motor71 teufel hunden

    Joined:
    Jul 31, 2016
    Member:
    #4048
    Messages:
    1,216
    Gender:
    Male
    First Name:
    Rob
    New Jersey
    Vehicle:
    2016 tundra platinum
    TRD sway bar, matching mirror cover, 20% tint, esp aluminum box, Line-X premium, Undercover Flex tonneau cover, led interior lights, winjet smoked tail lights. Road armor rear bumper w/ road armor shackles, go rhino front bumper.
    Color matching door handles please :)

  5. Feb 16, 2017 at 4:25 PM
    #5
    TheBeast

    TheBeast The Beach

    Joined:
    Apr 27, 2016
    Member:
    #3246
    Messages:
    12,492
    Gender:
    Male
    SoCal
    Vehicle:
    2012
    perfect !

    Roman[OP] likes this.
  6. Feb 16, 2017 at 4:31 PM
    #6
    SMILE

    SMILE Drink, Smoke, and Smile!

    Joined:
    Jan 11, 2017
    Member:
    #5909
    Messages:
    166
    Gender:
    Male
    SOUTHEAST PA
    Vehicle:
    2016 TUNDRA CREWMAX SR5 5.7L V8
    Weather tech mats, to be continued.........
    I am sure this thread will be referenced ALOT! My order will be coming soon. Thank you Roman.


    update: order placed - Damn you, You made it too easy.

    Last edited: Feb 16, 2017
    ryanwgregg and Roman[OP] like this.
  7. Feb 16, 2017 at 5:03 PM
    #7
    T-Rex266

    T-Rex266 Moderator Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    157,976
    Gender:
    Male
    First Name:
    Elon
    Stickied for ya

  8. Feb 16, 2017 at 6:56 PM
    #8
    BlueBottle

    BlueBottle not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,069
    Vehicle:
    '16 Platinum 4x4
    See fine print
    @Roman. Bunch of members bank account just got depleted!

    ryanwgregg, Mhorst1, Beesta and 8 others like this.
  9. Feb 16, 2017 at 7:38 PM
    #9
    MotoTundra

    MotoTundra The Ocho

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    7,645
    Gender:
    Male
    First Name:
    Don
    -TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) -Baja Designs Squadron R Sport Aux lights. -TRD Pro Grill -TRD Rear Sway Bar -BakFlip VP Tonneau w/BakBox -Dipped wheels & bumpers -Iron Cross HD steps -Undercover Swingcase -SunTek Paint Protection film -Tinted glass -Bedmat -OEM Towing Mirrors
    That black Tundra with the TRD Pro grill looks very familiar. ;)

    Guys if you haven't already heard, @Roman is a stand up guy.

  10. Feb 16, 2017 at 7:42 PM
    #10
    Dworm7770

    Dworm7770 New Member

    Joined:
    Feb 16, 2017
    Member:
    #6407
    Messages:
    6
    Gender:
    Male
    Vehicle:
    2015 Tundra SR5
    Just getting started
    040 super white crew max door handles?

    ryanwgregg likes this.
  11. Feb 16, 2017 at 9:11 PM
    #11
    veg hed

    veg hed Thug

    Joined:
    May 12, 2016
    Member:
    #3350
    Messages:
    305
    Utah
    Vehicle:
    2016 Ta-Tundra Barcelona Red
    Awesome @Roman. I'm honored you referenced my write up on the rear bumper ends.:thumbsup:

    ryanwgregg and Roman[OP] like this.
  12. Feb 16, 2017 at 10:42 PM
    #12
    831Tun

    831Tun heartless Bastrd

    Joined:
    Jun 7, 2016
    Member:
    #3549
    Messages:
    11,582
    Gender:
    Male
    First Name:
    Warren
    Santa Cruz
    Vehicle:
    '16 CM limited
    TC long travel. Deaver 420 SU leaf packs.
    Thanks Roman, You Da Man. I liked this: I convinced Toyota to take these out of the Tundras for the 2014+ models so you would all have to buy them from me. :devil: :rofl:

  13. Feb 17, 2017 at 6:24 AM
    #13
    Roman

    Roman [OP] Toyota Parts Master Vendor

    Joined:
    Jan 14, 2015
    Member:
    #876
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Roman
    Franklin, TN
    Fixed. :)

  14. Feb 17, 2017 at 6:26 AM
    #14
    Roman

    Roman [OP] Toyota Parts Master Vendor

    Joined:
    Jan 14, 2015
    Member:
    #876
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Roman
    Franklin, TN
    Definitely going to work on mirror caps and handles next. Will be added soon.

    Edit - Mirror caps added. If you have a good picture of your mirror caps, feel free to PM them to me as I need a good pic for this thread and our website. :)

    Last edited: Feb 17, 2017
    ryanwgregg and (deleted member) like this.
  15. Feb 17, 2017 at 2:10 PM
    #15
    Roman

    Roman [OP] Toyota Parts Master Vendor

    Joined:
    Jan 14, 2015
    Member:
    #876
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Roman
    Franklin, TN
    That is correct. I'm working on figuring out how I'm going to do the handles in the store.

  16. Mar 6, 2017 at 4:27 AM
    #16
    cbrock01

    cbrock01 New Member

    Joined:
    Dec 24, 2016
    Member:
    #5661
    Messages:
    19
    Gender:
    Male
    Vehicle:
    2017 Silver Sky Tundra 4WD
    @Roman. Great idea. Should save you some time..for sure! :thumbsup:.

    A follow-up on the information posted here.

    TRD Exhaust: Do you have a compatibility chart for this kit?
    For example, this kit is for 2014+ Tundra 5.7 Crew Max, Short Bed...etc.

    ryanwgregg and Roman[OP] like this.
  17. Mar 6, 2017 at 5:01 AM
    #17
    winemule

    winemule New Member

    Joined:
    Mar 1, 2017
    Member:
    #6580
    Messages:
    68
    Gender:
    Male
    First Name:
    Jerry
    Cincinnati OH
    Vehicle:
    14 Tundra Crew Max
    thanks for all of the info

  18. Mar 6, 2017 at 3:08 PM
    #18
    Roman

    Roman [OP] Toyota Parts Master Vendor

    Joined:
    Jan 14, 2015
    Member:
    #876
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Roman
    Franklin, TN
    For the exhaust, I am showing those two parts are compatible with regular cab/long beds, double cab/standard beds, and Crewmax models from 2009+.

    ryanwgregg likes this.
  19. Mar 6, 2017 at 3:09 PM
    #19
    17LimitedTRD

    17LimitedTRD New Member

    Joined:
    Feb 24, 2017
    Member:
    #6514
    Messages:
    9
    Gender:
    Male
    First Name:
    Steve
    Texas
    Vehicle:
    2017 Quicksand Limited TRD
    Thank you Roman!!

  20. Mar 7, 2017 at 3:23 AM
    #20
    Hasteen

    Hasteen To be continued...

    Joined:
    Dec 6, 2016
    Member:
    #5467
    Messages:
    129
    Gender:
    Male
    First Name:
    Justin
    Providence, RI
    Vehicle:
    2004 DC SR5 Texas edition 2016 CM 1794 edition
    1ST GEN Toytec 3/1 lift kenda 33s on 17x9 RockTrix RT107 BruteForceFab front bumper ----------------------------------- 3RD GEN rough country 6" Toyo 35's on 22x10 Fuel Assault TRDPro Grille
    Trd pro suspension... is that the price for each or is this a bundle containing all four shock/strut assemblies?

    ryanwgregg likes this.
  21. Mar 7, 2017 at 3:29 PM
    #21
    Roman

    Roman [OP] Toyota Parts Master Vendor

    Joined:
    Jan 14, 2015
    Member:
    #876
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Roman
    Franklin, TN
    It is a complete kit for all four corners.

    ryanwgregg and Hasteen like this.
  22. Mar 9, 2017 at 7:01 AM
    #22
    MotoTundra

    MotoTundra The Ocho

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    7,645
    Gender:
    Male
    First Name:
    Don
    -TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) -Baja Designs Squadron R Sport Aux lights. -TRD Pro Grill -TRD Rear Sway Bar -BakFlip VP Tonneau w/BakBox -Dipped wheels & bumpers -Iron Cross HD steps -Undercover Swingcase -SunTek Paint Protection film -Tinted glass -Bedmat -OEM Towing Mirrors
    Hey @Roman how about the OEM wiper blade refills?

    ryanwgregg and Roman[OP] like this.
  23. Mar 9, 2017 at 1:56 PM
    #23
    Roman

    Roman [OP] Toyota Parts Master Vendor

    Joined:
    Jan 14, 2015
    Member:
    #876
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Roman
    Franklin, TN
    No refills to be had on the Tundra wipers, though I would definitely recommend the Toyota Sightline wiper blades. I have them on both of my vehicles, and they are fantastic.

  24. Mar 9, 2017 at 2:25 PM
    #24
    Maddsilence

    Maddsilence New Member

    Joined:
    Feb 22, 2017
    Member:
    #6481
    Messages:
    87
    Gender:
    Male
    Vehicle:
    2017 MGM SR5 Tundra
    Thank you Roman, this saved us a pm in about 4 weeks when my Tundra arrives.

    Roman[OP] likes this.
  25. Mar 9, 2017 at 6:38 PM
    #25
    Fly'n Family

    Fly'n Family New Member

    Joined:
    Dec 13, 2016
    Member:
    #5547
    Messages:
    430
    Gender:
    Male
    TX / CO
    Vehicle:
    2014 CM Limited
    Subscribed.....

    Thanks for posting this thread, makes the search much easier.

    Order on its way...

    MotoTundra and Roman[OP] like this.
  26. Mar 9, 2017 at 8:26 PM
    #26
    17LimitedTRD

    17LimitedTRD New Member

    Joined:
    Feb 24, 2017
    Member:
    #6514
    Messages:
    9
    Gender:
    Male
    First Name:
    Steve
    Texas
    Vehicle:
    2017 Quicksand Limited TRD
    @Roman - Could you please verify the quantities of the following parts for a complete set of Door Handles (Unpainted) for a '17 Crewmax? 69217-0C030 (?), 69217-0C010 (?), 69210-0C010 (4)

    Thanks

  27. Mar 10, 2017 at 6:10 AM
    #27
    Roman

    Roman [OP] Toyota Parts Master Vendor

    Joined:
    Jan 14, 2015
    Member:
    #876
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Roman
    Franklin, TN
    For the Crewmax you will need:

    69210-0C010 x4
    69217-0C010 x1
    69217-0C030 x3

    For the double cab:

    69210-0C010 x2
    69217-0C010 x1
    69217-0C030 x1

    ryanwgregg likes this.
  28. Mar 11, 2017 at 11:12 AM
    #28
    AKJ78

    AKJ78 New Member

    Joined:
    Feb 19, 2017
    Member:
    #6442
    Messages:
    157
    Gender:
    Male
    First Name:
    Aaron
    San Diego
    Vehicle:
    2016 Silver Platinum 4X4
    3/1.5 lift. TRD sway bar. Bakflip V1 cover. Fuel wheels w/BFG A/T.
    @Roman your thoughts on the center console tray for a 2016?
    And shipped price to 91915. Thanks!

  29. Mar 11, 2017 at 11:15 AM
    #29
    Roman

    Roman [OP] Toyota Parts Master Vendor

    Joined:
    Jan 14, 2015
    Member:
    #876
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Roman
    Franklin, TN
  30. Mar 14, 2017 at 3:43 AM
    #30
    Reel Irie

    Reel Irie New Member

    Joined:
    Mar 13, 2017
    Member:
    #6762
    Messages:
    22
    Gender:
    Male
    FLA
    Vehicle:
    2017 Tundra CrewMax SR5 2wd
    Can you get the 2014 black SR5 grill center? Thinking about keeping the chrome surround


Products Discussed in

To Top
