DIY: Bed Tie-Down Ring Addition

Discussion in 'General Tundra Discussion' started by csuviper, Sep 1, 2014.

  1. Sep 1, 2014 at 8:42 PM
    #1
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    The bed of most Tundras lack tie-down rings. This mod adds the much needed tie-downs for things like dirt bikes and camping gear. I did not create this mod, actually found in on Tacomaworld and installed these when i had my Tacoma.

    Parts you will need:
    Tools you will need:
    • Step drill bit with a Drill
    • Cut off wheel with an Angle Grinder
    • Vice or Vice Grips
    • T-55 Torx with a ratchet
    Directions
    1. Place the tie-down rings in a vice or clamp them tight in vice grips. It is much easier if they are placed in a vice. If you purchased tie-down rings with a 1/2" diameter hole already, you can skip step 1 and 2.
    2. Use the step drill to open up the holes in all of the tie-down rings to 1/2" diameter. If you purchased tie-down rings with a 1/2" diameter hole already, you can skip step 1 and 2.
    3. Add some black paint of your choosing to the holes that you opened up to avoid rust.
    4. Remove the truck bed retaining bolts. You only need to remove the ones that you plan to add tie-down rings to.
    5. There are two options for this step.
      1. Option 1: Clamp down the washer on the bolt in the vice. Use the grinder with cut off wheel to cut or notch a part of the washer off to the bolt head.
      2. Option 2: Grind down the bolt retention ridges or use a hammer to remove the washer from the bolt.
    6. Place the bolt into the tie-down rings and install them back into the bed of the truck.
    Simple as that you now have additional locations to tie down what you want.

    Removal of the bed retaining bolts

    T-55 Torx socket

    Step drill bit used to open up the holes to 1/2" diameter

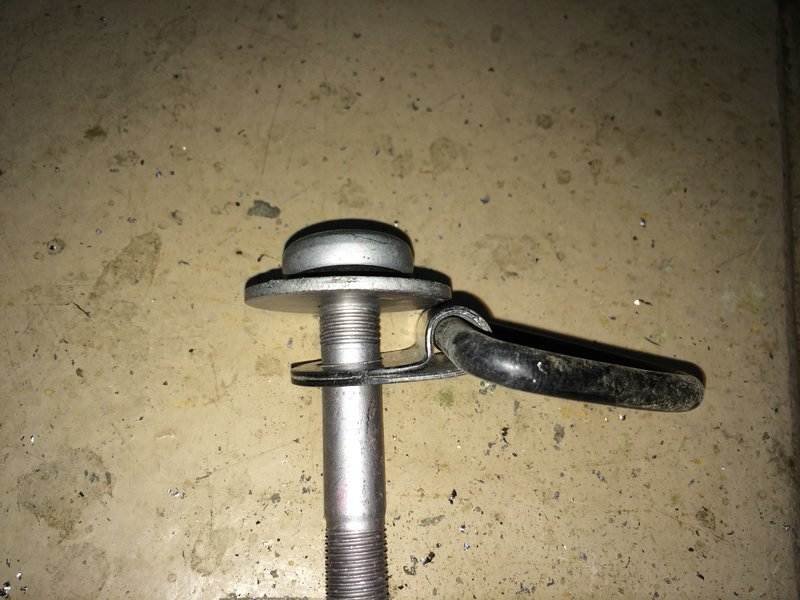

    Washer too big for the tie-down

    Another view of the washer being too big for the tie-down

    Paint added to the holes

    Notched washer

    Bolt with notched washer installed in the tie-down

    Installed
    [​IMG]
    [​IMG]


    Attached Files:

    Last edited: Sep 2, 2014
  2. Sep 1, 2014 at 9:43 PM
    #2
    Sean266

    Sean266 #ThinBlueLine Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    10,746
    Gender:
    Male
    Colorado
    Next DIY mod you need to do...spray in bed liner

    AnonVet and Yotalover88 like this.
  3. Sep 1, 2014 at 9:48 PM
    #3
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    Lol. It probably wont be a DIY. I will most likely get it done by a professional with warranty. The good stuff.

    Sean266 likes this.
  4. Sep 3, 2014 at 10:48 AM
    #4
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    Installed
    [​IMG]
    [​IMG]

    Yotalover88 and ODSteve like this.
  5. May 18, 2015 at 7:13 PM
    #5
    MotoTundra

    MotoTundra Adrenaline Addict

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    2,371
    Gender:
    Male
    Vehicle:
    14' Black TRD CM
    TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) TRD Pro Grill BakFlip VP Tonneau w/BakBox Dipped wheels & bumpers Undercover Swingcase SunTek Paint Protection film Yellow Lamin-X Fog Overlays Tint Bedmat
    I can't believe I didn't see this til now, great DIY.

  6. May 18, 2015 at 7:39 PM
    #6
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    Yea, @Sean266 was the only one to respond to the thread until you 8 months later.

    MotoTundra likes this.
  7. May 18, 2015 at 7:43 PM
    #7
    Sean266

    Sean266 #ThinBlueLine Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    10,746
    Gender:
    Male
    Colorado
    I think I still have some
    d-rings left over...but I plan on doing line-x so I'm not sure i care to install them...

  8. May 18, 2015 at 7:46 PM
    #8
    Sean266

    Sean266 #ThinBlueLine Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    10,746
    Gender:
    Male
    Colorado
    :smash:@csuviper - your abused bed paint scratches make my OCD go crazy

  9. May 18, 2015 at 7:53 PM
    #9
    Mike

    Mike Tread lightly.

    Joined:
    Jan 13, 2014
    Member:
    #87
    Messages:
    2,553
    Gender:
    Male
    First Name:
    Mike
    south carolina
    Vehicle:
    2003 tundra sr5 4x4 stepside....
    yep bank account is running low from it..
    Csviper knows how to make sean go stir crazy now. Sean you should have seen my bed on my tundra with that plastic bedliner before it went to bedrug. all I can say is alot of sanding and alot of primer/epoxy down to seal it.

  10. May 18, 2015 at 7:55 PM
    #10
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    It's because I know how to use the bed for what it's meant for rather than just looking at it :)

    AZdallas likes this.
  11. May 18, 2015 at 8:05 PM
    #11
    Sean266

    Sean266 #ThinBlueLine Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    10,746
    Gender:
    Male
    Colorado
    :spy: Brian knows my OCD has limits...haha I had him help me find a small squeak the other week....ended up finding his instead lol.

  12. May 18, 2015 at 8:11 PM
    #12
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    Yep. Stupid hood latch squeak

  13. May 20, 2015 at 11:08 AM
    #13
    ausei

    ausei New Member

    Joined:
    Jan 19, 2015
    Member:
    #891
    Messages:
    193
    Gender:
    Male
    First Name:
    Ause
    Baton Rouge, LA
    Vehicle:
    2011 Spruce Tundra TRD SR5 2WD
    3" Leveling Kit 3.5" Spindle Lift 4" Rear Blocks AirAid Intake 20" XD Monsters w/ Nitto Grapplers 1" wheel spacers for rear Magnaflow Exhaust Pro Comp Shocks for rear
    doing this soon.

  14. May 27, 2015 at 12:45 PM
    #14
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    Saw you completed your install. Post up your pic up here as an example.

  15. May 27, 2015 at 12:51 PM
    #15
    matluth

    matluth Fish On!

    Joined:
    Apr 20, 2014
    Member:
    #378
    Messages:
    6,489
    Gender:
    Male
    First Name:
    Matt
    Aurora CO
    Vehicle:
    2007 Slate Metallic 5.7L Tundra DC SR5 4X4
    18"X9" FN BFD's rims, 295/70R/18E Cooper Discoverer STT Pro's, upgraded to Old Man EMU coil-overs/shocks. Toytec shackles Next: true dual exhaust, new UCA's.
    I forgot about your mod. I went thru it once a few months back before I officially signed on. I need to go back and re-view your mods again.

  16. May 27, 2015 at 3:43 PM
    #16
    ausei

    ausei New Member

    Joined:
    Jan 19, 2015
    Member:
    #891
    Messages:
    193
    Gender:
    Male
    First Name:
    Ause
    Baton Rouge, LA
    Vehicle:
    2011 Spruce Tundra TRD SR5 2WD
    3" Leveling Kit 3.5" Spindle Lift 4" Rear Blocks AirAid Intake 20" XD Monsters w/ Nitto Grapplers 1" wheel spacers for rear Magnaflow Exhaust Pro Comp Shocks for rear
    here is mineimage.jpg

    matluth likes this.
  17. May 28, 2015 at 6:29 PM
    #17
    matluth

    matluth Fish On!

    Joined:
    Apr 20, 2014
    Member:
    #378
    Messages:
    6,489
    Gender:
    Male
    First Name:
    Matt
    Aurora CO
    Vehicle:
    2007 Slate Metallic 5.7L Tundra DC SR5 4X4
    18"X9" FN BFD's rims, 295/70R/18E Cooper Discoverer STT Pro's, upgraded to Old Man EMU coil-overs/shocks. Toytec shackles Next: true dual exhaust, new UCA's.
    How much should I expect to fork over to the dealer for a pack of D rings?

  18. May 28, 2015 at 6:47 PM
    #18
    Sean266

    Sean266 #ThinBlueLine Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    10,746
    Gender:
    Male
    Colorado
    matluth likes this.
  19. May 28, 2015 at 6:52 PM
    #19
    matluth

    matluth Fish On!

    Joined:
    Apr 20, 2014
    Member:
    #378
    Messages:
    6,489
    Gender:
    Male
    First Name:
    Matt
    Aurora CO
    Vehicle:
    2007 Slate Metallic 5.7L Tundra DC SR5 4X4
    18"X9" FN BFD's rims, 295/70R/18E Cooper Discoverer STT Pro's, upgraded to Old Man EMU coil-overs/shocks. Toytec shackles Next: true dual exhaust, new UCA's.
    Checked the site. Should be good to go. Getting major hail now. Hope truck doesn't get thrashed. Major hail.

  20. May 28, 2015 at 6:55 PM
    #20
    Sean266

    Sean266 #ThinBlueLine Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    10,746
    Gender:
    Male
    Colorado
    Poured here on the way back from the gym for about 5 mins...not raining now...last few days (during the day) have been beautiful. I've been driving around with some windows down at 730AM, and in the evening.

  21. May 28, 2015 at 7:06 PM
    #21
    matluth

    matluth Fish On!

    Joined:
    Apr 20, 2014
    Member:
    #378
    Messages:
    6,489
    Gender:
    Male
    First Name:
    Matt
    Aurora CO
    Vehicle:
    2007 Slate Metallic 5.7L Tundra DC SR5 4X4
    18"X9" FN BFD's rims, 295/70R/18E Cooper Discoverer STT Pro's, upgraded to Old Man EMU coil-overs/shocks. Toytec shackles Next: true dual exhaust, new UCA's.
    Whew!! No apparent dings. Shooter marble size. Truck was parked under a big tree. Now covered with a bazzilion leaves.

  22. May 29, 2015 at 8:01 AM
    #22
    ausei

    ausei New Member

    Joined:
    Jan 19, 2015
    Member:
    #891
    Messages:
    193
    Gender:
    Male
    First Name:
    Ause
    Baton Rouge, LA
    Vehicle:
    2011 Spruce Tundra TRD SR5 2WD
    3" Leveling Kit 3.5" Spindle Lift 4" Rear Blocks AirAid Intake 20" XD Monsters w/ Nitto Grapplers 1" wheel spacers for rear Magnaflow Exhaust Pro Comp Shocks for rear
    got off an army surplus site thats listed in the diy thread its $6 or something

    matluth likes this.
  23. May 29, 2015 at 8:13 AM
    #23
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    Is either $20 for two of the OEM Toyota ones or $6.50 for five of the ones i used from the Army Surplus site.

    matluth likes this.
  24. May 29, 2015 at 4:57 PM
    #24
    matluth

    matluth Fish On!

    Joined:
    Apr 20, 2014
    Member:
    #378
    Messages:
    6,489
    Gender:
    Male
    First Name:
    Matt
    Aurora CO
    Vehicle:
    2007 Slate Metallic 5.7L Tundra DC SR5 4X4
    18"X9" FN BFD's rims, 295/70R/18E Cooper Discoverer STT Pro's, upgraded to Old Man EMU coil-overs/shocks. Toytec shackles Next: true dual exhaust, new UCA's.
    I'll go for the $ 6.50 for five. That was easy.

  25. Jul 26, 2015 at 9:14 PM
    #25
    Tacogrande

    Tacogrande New Member

    Joined:
    Jul 23, 2015
    Member:
    #1564
    Messages:
    231
    Gender:
    Male
    First Name:
    Jeremy
    WICHITA KS
    Vehicle:
    2016 SR5 dbl. cab long bed gray
    Husky weatherbeaters,short antenna,window deflectors
    Great idea for the tiedowns mod!!

    matluth likes this.
  26. Jul 27, 2015 at 6:13 AM
    #26
    matluth

    matluth Fish On!

    Joined:
    Apr 20, 2014
    Member:
    #378
    Messages:
    6,489
    Gender:
    Male
    First Name:
    Matt
    Aurora CO
    Vehicle:
    2007 Slate Metallic 5.7L Tundra DC SR5 4X4
    18"X9" FN BFD's rims, 295/70R/18E Cooper Discoverer STT Pro's, upgraded to Old Man EMU coil-overs/shocks. Toytec shackles Next: true dual exhaust, new UCA's.
    Ditto on that. Need to do this ASAP. I keep forgetting about this mod.

  27. Nov 5, 2015 at 6:58 AM
    #27
    Oper8r

    Oper8r New Member

    Joined:
    Oct 27, 2015
    Member:
    #2022
    Messages:
    132
    Gender:
    Male
    KCMO
    Vehicle:
    2016 TRD PRO
    So, the bed of my truck came with what seems like a good quality spray in bed liner and don't feel it is a good idea to attempt to remove any of the bolts. Has anyone used these cargo control rail systems?

    I'm just wondering if there might be issues with installing them in the ruts of the bed, i.e. do they sit up too high? Do I have to pre-drill? Do they handle enough weight to be worth the install?

  28. Nov 5, 2015 at 11:09 AM
    #28
    Jack Burton

    Jack Burton Jorts Rule!

    Joined:
    Jan 7, 2014
    Member:
    #49
    Messages:
    341
    Gender:
    Male
    Little China
    Vehicle:
    2013 DC 5.7L TRD/OR
    Tires, Diamondback HD Tonneau w/ ATV Carrier
    Last edited: Nov 5, 2015
  29. Nov 5, 2015 at 5:29 PM
    #29
    Tacogrande

    Tacogrande New Member

    Joined:
    Jul 23, 2015
    Member:
    #1564
    Messages:
    231
    Gender:
    Male
    First Name:
    Jeremy
    WICHITA KS
    Vehicle:
    2016 SR5 dbl. cab long bed gray
    Husky weatherbeaters,short antenna,window deflectors
    HA! So a Dodge dealer is good for something after all. LOL I think i will order 4.

To Top
