TRD Pro Front Camera mounting

Discussion in '2.5 Gen TRD Pro (2014-2021)' started by rag9836, Feb 4, 2022.

  1. Feb 23, 2022 at 8:32 AM
    #31
    TRDnoob

    TRDnoob New Member

    Joined:
    Jan 5, 2019
    Member:
    #24010
    Messages:
    19
    Gender:
    Male
    Vehicle:
    2022 Tundra 1794 TRD off road
    Ill get him to print one

  2. Feb 23, 2022 at 8:33 AM
    #32
    reywcms

    reywcms New Member

    Joined:
    Dec 20, 2021
    Member:
    #72040
    Messages:
    5,071
    Gender:
    Male
    First Name:
    Rey
    Beaverton,Oregon
    Vehicle:
    2017 Tundra Platnium
    Too many mods to come
    I've been pondering this mount for a week lol. Think I've got a new game plan, once my other dash upgrades come in I'll be giving it a shot.

  3. Feb 23, 2022 at 8:38 AM
    #33
    dkahs05

    dkahs05 New Member

    Joined:
    Mar 8, 2015
    Member:
    #1045
    Messages:
    203
    Gender:
    Male
    Vehicle:
    2020 Tundra TRD PRO
    I will even pay for it. Let me know

  4. Feb 23, 2022 at 8:53 AM
    #34
    reywcms

    reywcms New Member

    Joined:
    Dec 20, 2021
    Member:
    #72040
    Messages:
    5,071
    Gender:
    Male
    First Name:
    Rey
    Beaverton,Oregon
    Vehicle:
    2017 Tundra Platnium
    Too many mods to come
    Im happy to pay for a printed one also let me know!

  5. Feb 23, 2022 at 10:11 AM
    #35
    19TurdPro

    19TurdPro New Member

    Joined:
    Jul 27, 2019
    Member:
    #33771
    Messages:
    897
    Gender:
    Male
    Vehicle:
    2019 Tundra TRD Pro
    Anyone have any idea what camera would work without modification?

  6. Feb 23, 2022 at 11:44 AM
    #36
    Badge618

    Badge618 New Member

    Joined:
    Oct 28, 2021
    Member:
    #69936
    Messages:
    166
    Gender:
    Male
    Lassen County, Ca
    Vehicle:
    2019 TRD Pro Voodoo Blue
    I looked around for one and couldn’t find one with a threaded section long enough. With the Pro grille you have to use a washer or some sort of backing. I think the only other option is a camera that the head swivels somehow allowing adjustability. The whole reason for using the spacer is to get the camera at the right angle to be useful.

  7. Feb 23, 2022 at 2:10 PM
    #37
    Chowdah

    Chowdah New Member

    Joined:
    Jun 5, 2021
    Member:
    #63936
    Messages:
    46
    Gender:
    Male
    Oceanside, CA
    Vehicle:
    2020 MBM Tundra TRD Pro
    A.R.E. Truck Cap HD Method Grid Wheels Mickey Thompson Baja ATZP3s
    Bump. This is very interesting stuff.

  8. Feb 23, 2022 at 2:16 PM
    #38
    reywcms

    reywcms New Member

    Joined:
    Dec 20, 2021
    Member:
    #72040
    Messages:
    5,071
    Gender:
    Male
    First Name:
    Rey
    Beaverton,Oregon
    Vehicle:
    2017 Tundra Platnium
    Too many mods to come
    My idea was to go to ace with the camera and see what I can find. Me thinking out loud below. This in theory would allow me not to need to drill into the mount. Still might need that 3d printed mount to stand the camera off for more visibility.

    1) Washer, lock nut- camera to mount or existing one in kit
    2) Barrel nut-Male portion to add extension and length
    3) Threaded male extended
    4)Probably more nuts/washers to lock it all together

    Badge618[QUOTED] and RainMan_PNW like this.
  9. Feb 24, 2022 at 11:06 AM
    #39
    Badge618

    Badge618 New Member

    Joined:
    Oct 28, 2021
    Member:
    #69936
    Messages:
    166
    Gender:
    Male
    Lassen County, Ca
    Vehicle:
    2019 TRD Pro Voodoo Blue
    I think I might order another mount and try this way also.

    reywcms[QUOTED] likes this.
  10. Feb 24, 2022 at 11:22 AM
    #40
    cctxquicksand

    cctxquicksand IG - TRDistheWrd

    Joined:
    Jun 3, 2019
    Member:
    #31410
    Messages:
    1,262
    Gender:
    Male
    I considered this mount but due to being impatient I went a completely different route and fabbed up a super simple bracket out of fencing strap and a couple bolts, been running it for about 3 months w zero issues, there is even a hole on the radiator support to bolt too
    I did not have to touch my grill at all, the camera sits right between the two supports and that keeps it snug enough so that it does not rattle at all during driving
    I figured at the time 5 dollars in material and 20 minutes of time was worth a shot… I haven’t looked back, I’m sure if you blacked out the screws for the camera it would be pretty hard to notice. YMMV but this is serving me pretty well

    bulldog93 and RoniusMaximus like this.
  11. Feb 24, 2022 at 11:23 AM
    #41
    19TurdPro

    19TurdPro New Member

    Joined:
    Jul 27, 2019
    Member:
    #33771
    Messages:
    897
    Gender:
    Male
    Vehicle:
    2019 Tundra TRD Pro
    Do you happen to have a picture of the video feed before the spacer? I want to go this route, but the spacer makes it look a little less stealth than I'd like. Did you try one of the shims it came with?

    This doesn't look hard to make on my own, maybe I could make a different version that sticks out further so a spacer isn't needed.

  12. Feb 24, 2022 at 12:17 PM
    #42
    Badge618

    Badge618 New Member

    Joined:
    Oct 28, 2021
    Member:
    #69936
    Messages:
    166
    Gender:
    Male
    Lassen County, Ca
    Vehicle:
    2019 TRD Pro Voodoo Blue
    It’s not as much needing the 3D shim for the right angle. Without the 3D shim the camera doesn’t want to sit flush against the bracket. It gets caught up against the grille.
    I don’t have any pics of the feed without the shim.

  13. Feb 24, 2022 at 12:32 PM
    #43
    19TurdPro

    19TurdPro New Member

    Joined:
    Jul 27, 2019
    Member:
    #33771
    Messages:
    897
    Gender:
    Male
    Vehicle:
    2019 Tundra TRD Pro
    Thank you, everything is making more sense to me now. I should be able to bend one that fits better out of scrap.

  14. Mar 2, 2022 at 6:10 PM
    #44
    TRDnoob

    TRDnoob New Member

    Joined:
    Jan 5, 2019
    Member:
    #24010
    Messages:
    19
    Gender:
    Male
    Vehicle:
    2022 Tundra 1794 TRD off road
    Got some shims from my buddy that printed them. I also have some of the stainless screws #10-32 threads and the washers for the bolts. You would need to get the stainless lock nuts and body washer. I have 5 sets with shim.

  15. Mar 24, 2022 at 9:32 AM
    #45
    GWill

    GWill gods gift to the internet

    Joined:
    Jan 12, 2021
    Member:
    #57520
    Messages:
    389
    Gender:
    Male
    First Name:
    Willis
    Don’t know what you’re talking about
    Vehicle:
    2021 Black SR5 Tundra TSS
    So the threaded part of the camera fit into a hole in the radiator/grill and you were able to nut it down?

  16. Mar 24, 2022 at 11:13 AM
    #46
    cctxquicksand

    cctxquicksand IG - TRDistheWrd

    Joined:
    Jun 3, 2019
    Member:
    #31410
    Messages:
    1,262
    Gender:
    Male
    Not exactly, I made a quick L bracket out of fencing strap. One end goes to the radiator support and the other end holds the camera, the supports between the Y and O keep the camera/bracket from jiggling around while driving

    bulldog93 likes this.
  17. Mar 28, 2022 at 9:33 PM
    #47
    DoublePro

    DoublePro New Member

    Joined:
    Aug 11, 2021
    Member:
    #66646
    Messages:
    103
    Gender:
    Male
    I end up using a rubber washer to hide and insulate the fender washer. I’m going to test the camera angle and will come back with blue locktite the nut in place.

    01EE13DE-C848-4B6F-AC2C-EDA5E2385CD3.jpg F1014C10-D762-4DDB-90DA-96F53E2B3EA0.jpg F3AEA5B0-7176-4B31-B59E-CE3AD64CC77A.jpg

    bulldog93, Fish Wagon and FISHN43 like this.
  18. Apr 10, 2022 at 11:27 PM
    #48
    k3k0a808

    k3k0a808 New Member

    Joined:
    Mar 4, 2022
    Member:
    #75403
    Messages:
    78
    Gender:
    Male
    808
    Vehicle:
    2021 1794 WCP
    I put mine here, gonna paint the nut black sometime22295A70-969B-4E3D-A11A-75C36B94FDBD.jpg6FAADC3B-EF30-4A61-90FE-E1193115EBBE.jpg

    bulldog93 likes this.
  19. May 13, 2023 at 6:38 PM
    #49
    Nino44

    Nino44 New Member

    Joined:
    Apr 24, 2023
    Member:
    #96001
    Messages:
    4
    Gender:
    Male
    First Name:
    Junior
    Vehicle:
    2020 Army Green Tundra TRD Pro

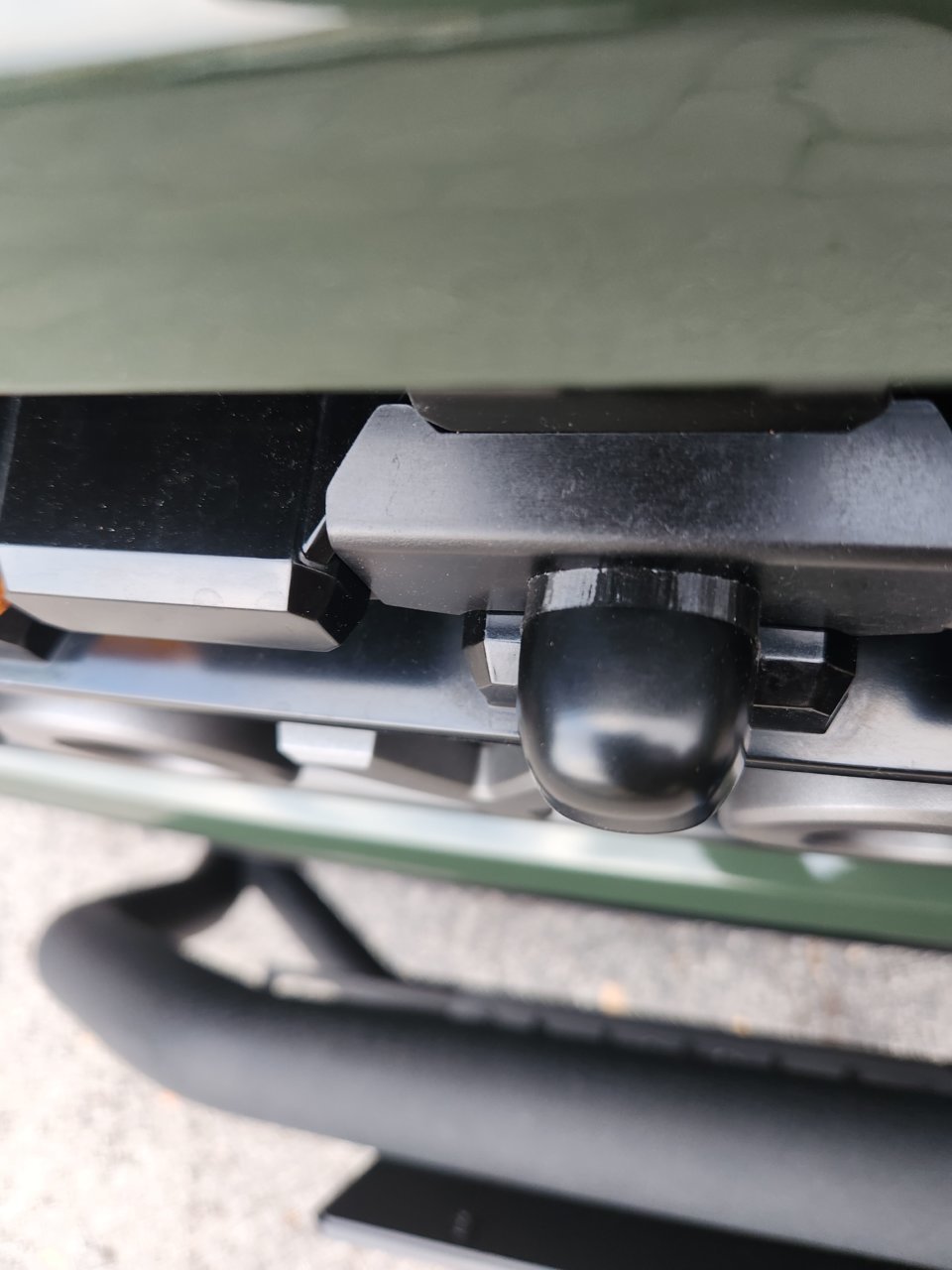

    Screenshot_20230513_210831_Chrome.jpg Screenshot_20230513_205648_Amazon Shopping.jpg Screenshot_20230513_205718_Amazon Shopping.jpg 20230512_161440.jpg 20230513_193911.jpg 20230513_194023.jpg 20230513_193551.jpg 20230513_200929.jpg 20230513_194814.jpgThank you guys for the help. I had a new idea for not drilling the braket and it worked. :bananadance:

    New parts links:

    10Pcs M12 to M8 Thread Reducer Nuts, Stainless Steel Repair Sleeve M8 Female Thread M12 Male Thread Conversion Kit Suitable for for Plumbing Connections Compressed Air Hydraulic Automobile https://www.amazon.com/dp/B09L7M9JYK

    M12x1.75mm DIN6923 Serrated Flange Nuts 10 Pack 304 Stainless Steel Hex Lock Nuts Full Thread for Industrial Construction Fasteners https://www.amazon.com/dp/B0BKH2N3QL


    https://www.treatstock.com/


    Attached Files:

    Last edited: May 16, 2023
  20. May 13, 2023 at 7:30 PM
    #50
    FISHN43

    FISHN43 New Member

    Joined:
    Apr 27, 2020
    Member:
    #45592
    Messages:
    719
    First Name:
    Mike
    Ohio
    Vehicle:
    2020 Super White TRD Pro
    That looks super clean! I have the camera, shim, anytime camera harness, and the Pro grill bracket ready to install just haven’t got around to do it because I’m in the process of moving. Once I get settled in a couple weeks I’m going to get it done.
    Did that threaded sleeve replace the one on the camera to extend the length?

    Nino44[QUOTED] likes this.
  21. May 13, 2023 at 7:39 PM
    #51
    Nino44

    Nino44 New Member

    Joined:
    Apr 24, 2023
    Member:
    #96001
    Messages:
    4
    Gender:
    Male
    First Name:
    Junior
    Vehicle:
    2020 Army Green Tundra TRD Pro
    I forgot to mention: Between the reducer and the bracket I put a M8 Stainless Steel washer and the M8 nut that came in the ABC package. "If you don't do it this way the reducer won't be long enough"

    Between the other side of the reducer and the M12 nut I put a 1/2 x 2 rubber washer (for protecting the grille) and 1/2 x 1 1/2 Stainless Steel washer... DON'T buy the M12 lock nut. It didn't work for me because it was too big.

    Last edited: May 16, 2023
  22. Jan 21, 2024 at 9:55 AM
    #52
    Redline870

    Redline870 New Member

    Joined:
    Oct 17, 2021
    Member:
    #69474
    Messages:
    225
    Gender:
    Male
    First Name:
    Ian
    Central NY
    Vehicle:
    2021 Super White TRD Pro
    I’m confused… how does this work? Earlier posts talk about the need for two additional longer screws since the threaded portion on the back of the camera isn’t long enough to sandwich everything together. How did you make it work it work?

  23. Jan 21, 2024 at 11:07 AM
    #53
    RainMan_PNW

    RainMan_PNW SSEM #82 RGBA #4 “That Guy” Vendor

    Joined:
    Oct 27, 2020
    Member:
    #54134
    Messages:
    14,884
    Gender:
    Male
    First Name:
    Casey
    Clark County, WA
    Vehicle:
    2021 Lunar Rock TRD Pro CM
    Check the build link in my signature.
    The M8-M12 thread adapter sleeve acts as an extension.

    I’m working on dialing this in a little and offering it as part of the camera shim offering over at RainMan Fabrications

    RobertD and roughfisher like this.
  24. Jan 21, 2024 at 12:04 PM
    #54
    Redline870

    Redline870 New Member

    Joined:
    Oct 17, 2021
    Member:
    #69474
    Messages:
    225
    Gender:
    Male
    First Name:
    Ian
    Central NY
    Vehicle:
    2021 Super White TRD Pro
    Ah I see, that’s a pretty smart idea. I already have the harness, camera, etc, looks like I’ll have to order a few of these as well. I like the cleanliness and simplicity.

  25. Jan 21, 2024 at 12:12 PM
    #55
    RainMan_PNW

    RainMan_PNW SSEM #82 RGBA #4 “That Guy” Vendor

    Joined:
    Oct 27, 2020
    Member:
    #54134
    Messages:
    14,884
    Gender:
    Male
    First Name:
    Casey
    Clark County, WA
    Vehicle:
    2021 Lunar Rock TRD Pro CM
    Check the build link in my signature.
    Do you have the shim already?
    I have the thread adapters and m12 nuts to start bundling with the shims.

  26. Jan 21, 2024 at 1:01 PM
    #56
    FISHN43

    FISHN43 New Member

    Joined:
    Apr 27, 2020
    Member:
    #45592
    Messages:
    719
    First Name:
    Mike
    Ohio
    Vehicle:
    2020 Super White TRD Pro
    Casey-

    I bought the thread adapters and nuts. I only need one of each for the install. I have extras that I’ll never use for anything else. You want me to send them out to you and you can include them with your shims?

    bulldog93 and Tripleconpanna like this.
  27. Jan 21, 2024 at 7:42 PM
    #57
    RainMan_PNW

    RainMan_PNW SSEM #82 RGBA #4 “That Guy” Vendor

    Joined:
    Oct 27, 2020
    Member:
    #54134
    Messages:
    14,884
    Gender:
    Male
    First Name:
    Casey
    Clark County, WA
    Vehicle:
    2021 Lunar Rock TRD Pro CM
    Check the build link in my signature.
    Up to you
    I’ll pay them forward if you do.

  28. Jan 22, 2024 at 5:59 PM
    #58
    Redline870

    Redline870 New Member

    Joined:
    Oct 17, 2021
    Member:
    #69474
    Messages:
    225
    Gender:
    Male
    First Name:
    Ian
    Central NY
    Vehicle:
    2021 Super White TRD Pro
    I don’t have the shim the M12 nuts or the thread adapters. Do you have a link for the kit?

  29. Jan 22, 2024 at 7:32 PM
    #59
    RainMan_PNW

    RainMan_PNW SSEM #82 RGBA #4 “That Guy” Vendor

    Joined:
    Oct 27, 2020
    Member:
    #54134
    Messages:
    14,884
    Gender:
    Male
    First Name:
    Casey
    Clark County, WA
    Vehicle:
    2021 Lunar Rock TRD Pro CM
    Check the build link in my signature.
    Not quite yet, but watch this thread and I will be getting it together pretty soon.

    bulldog93 and Tundra234 like this.
  30. Feb 19, 2024 at 11:54 PM
    #60
    Savmikey47

    Savmikey47 New Member

    Joined:
    Nov 19, 2023
    Member:
    #107201
    Messages:
    67
    I have 4 extra sleeves I’m willing to send to you as well @RainMan_PNW
