Love deliveries...Morimoto XB Headlights (now w/night shots)

Discussion in '3rd Gen Tundras (2014+)' started by buckrub71, Aug 8, 2019.

  1. Aug 9, 2019 at 8:40 PM
    #31
    buckrub71

    buckrub71 [OP] New Member

    Joined:
    Jun 2, 2016
    Member:
    #3510
    Messages:
    40
    Gender:
    Male
    Vehicle:
    2016 Bronze 1794 CM
    Just read your post. Great write up. Damn, those fogs really do light up the sides! I also noticed you're a fellow Keystoner. The salt sucks!

    MotoTundra likes this.
  2. Aug 9, 2019 at 8:47 PM
    #32
    MotoTundra

    MotoTundra The Ocho

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    7,262
    Gender:
    Male
    First Name:
    Don
    -TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) -Baja Designs Squadron R Sport Aux lights. -TRD Pro Grill -TRD Rear Sway Bar -BakFlip VP Tonneau w/BakBox -Dipped wheels & bumpers -Iron Cross HD steps -Undercover Swingcase -SunTek Paint Protection film -Tinted glass -Bedmat -OEM Towing Mirrors
    Thanks. Yeah they do, like the "Red Dragon" in the movie Old School, they aren't exactly street legal, and I refuse to be that guy blinding people.

    It does, I would like to buy a beater and I can't help but want to travel down south to get something old with miles that isn't covered in rust.

  3. Aug 9, 2019 at 9:14 PM
    #33
    buckrub71

    buckrub71 [OP] New Member

    Joined:
    Jun 2, 2016
    Member:
    #3510
    Messages:
    40
    Gender:
    Male
    Vehicle:
    2016 Bronze 1794 CM

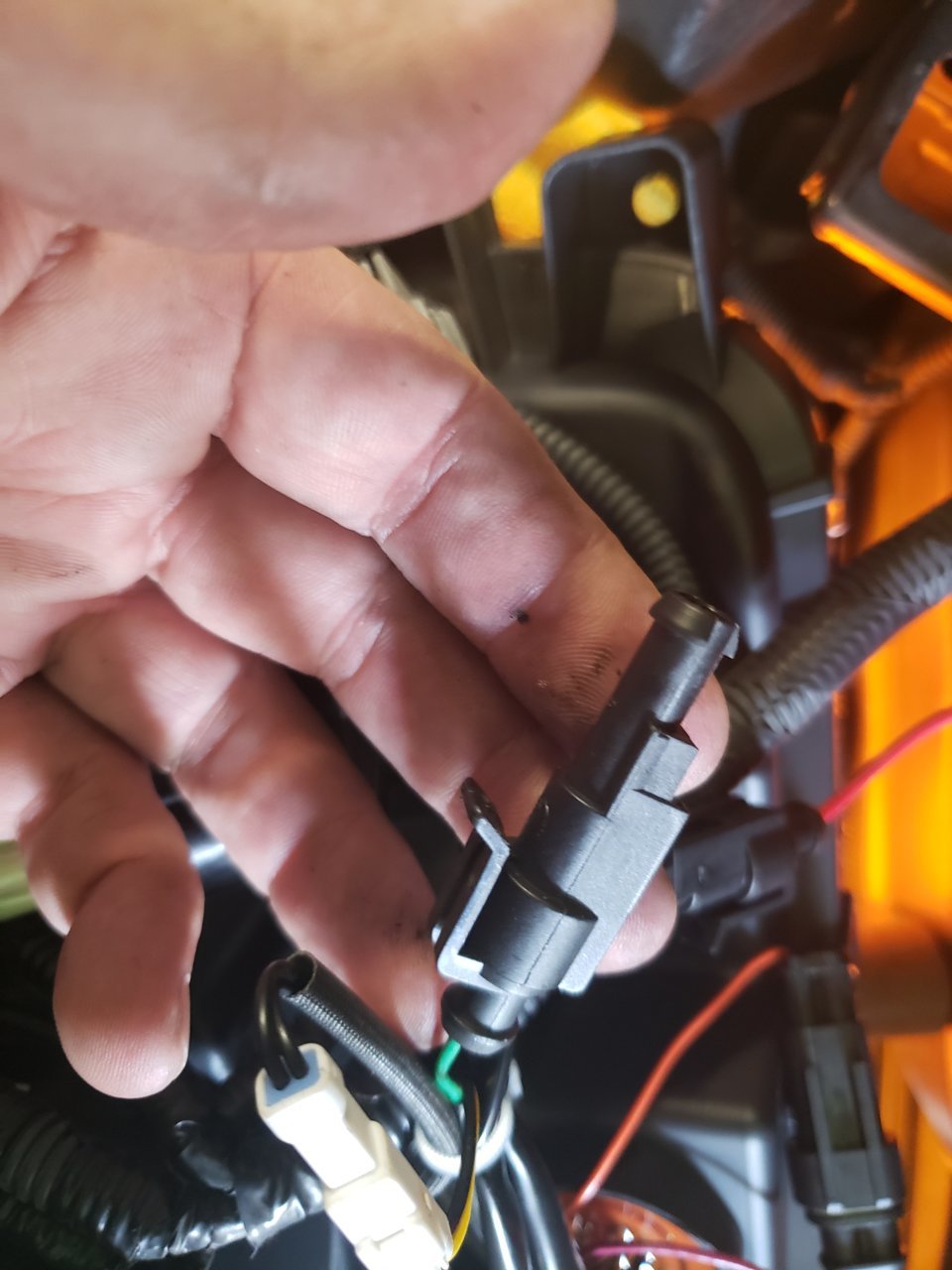

    I think it's important to mention that the install was relatively painless. This is not meant to be a tutorial but rather a highlight of the aforementioned additional step. By now most forum goers know how to remove the headlights. If not, it's easy to find. Once you get to that point, with exception of an added step (running a harness into the fuse box) it's like putting your headlights back in. This was the first time I have had to do this. They fit of the lights is like oem.

    Swap this fuse with the harness plug in

    Run the harness inside of this "thingamabob". It disconnects from the fuse box. Then remove the tape and look at it. You'll be able to figure out the plastic clips to separate it.


    Harness plugged in

    Ensure harness is nested in with other wiring and snap it back together. Reseat it back into the box.
    Taped back up

    Harness secured in housing and connected to fuse box. The lid the goes on and you then route your harness. I ran mine between the fuse box and battery. It then fishes down to the driver's side and across the front of the truck near radiator and behind the grill to the passenger side. Unlike so many other harnesses out there, this one does not contain an over abundance of length. It's just the right length. I recommend "dry fitting" before zip tying it. I had to make a couple of adjustments.


    Attached Files:

  4. Aug 9, 2019 at 11:16 PM
    #34
    TheBeast

    TheBeast The Beach

    Joined:
    Apr 27, 2016
    Member:
    #3246
    Messages:
    8,574
    Gender:
    Male
    Vehicle:
    2012
    looks great. hope they come out with gen 2 version.

  5. Aug 10, 2019 at 2:27 PM
    #35
    fundratss

    fundratss Send it!

    Joined:
    Jul 11, 2019
    Member:
    #33067
    Messages:
    73
    Gender:
    Male
    First Name:
    Joe
    Colorado Springs
    Vehicle:
    2016 Magnetic Grey Tundra TSS
    Toytec 2.5” Coilover boss suspension Volant air intake system Rear air bags (for towing) I’m sure there’s more but I’m lazy
    The in cab adjust for the headlights still function right?

  6. Aug 10, 2019 at 2:43 PM
    #36
    buckrub71

    buckrub71 [OP] New Member

    Joined:
    Jun 2, 2016
    Member:
    #3510
    Messages:
    40
    Gender:
    Male
    Vehicle:
    2016 Bronze 1794 CM
    Yes they do. There are motors and a connection. They work perfectly!

    fundratss and 831Tun like this.
  7. Aug 10, 2019 at 4:24 PM
    #37
    YotaMan

    YotaMan New Member

    Joined:
    Apr 9, 2019
    Member:
    #28872
    Messages:
    274
    Gender:
    Male
    Denver Area
    Vehicle:
    2018 Limited (Cement)
    I wonder if this is what's needed for the 18'+ harness to clear the fault? Interesting, there is 2 pigtails on the back of mine that can switch sequential to flash turn signals

  8. Aug 10, 2019 at 5:16 PM
    #38
    thomasbus337

    thomasbus337 New Member

    Joined:
    Sep 2, 2017
    Member:
    #9396
    Messages:
    338
    Gender:
    Male
    Vehicle:
    2016 SR5 DC
    The fault code is appearing because pin#3 on your original 8 pin headlight harness is looking for a input "status" signal from the headlamp. I'm guessing the Morimoto headlamps don't have a wire pinned for that function.

  9. Aug 10, 2019 at 5:18 PM
    #39
    YotaMan

    YotaMan New Member

    Joined:
    Apr 9, 2019
    Member:
    #28872
    Messages:
    274
    Gender:
    Male
    Denver Area
    Vehicle:
    2018 Limited (Cement)
    Are you talking about this?

    ryanwgregg likes this.
  10. Aug 10, 2019 at 5:19 PM
    #40
    thomasbus337

    thomasbus337 New Member

    Joined:
    Sep 2, 2017
    Member:
    #9396
    Messages:
    338
    Gender:
    Male
    Vehicle:
    2016 SR5 DC
    Yes

    ryanwgregg likes this.
  11. Aug 11, 2019 at 6:11 AM
    #41
    NCTundra1980

    NCTundra1980 New Member

    Joined:
    Jul 12, 2019
    Member:
    #33121
    Messages:
    11
    Gender:
    Male
    First Name:
    Stephen
    Vehicle:
    2019 SR5
    So the warning is still coming up on the screen?

  12. Aug 11, 2019 at 6:51 AM
    #42
    fundratss

    fundratss Send it!

    Joined:
    Jul 11, 2019
    Member:
    #33067
    Messages:
    73
    Gender:
    Male
    First Name:
    Joe
    Colorado Springs
    Vehicle:
    2016 Magnetic Grey Tundra TSS
    Toytec 2.5” Coilover boss suspension Volant air intake system Rear air bags (for towing) I’m sure there’s more but I’m lazy
    Did you figure out sequential yet? I haven’t received mine in the mail yet and looking though install directions from Morimoto online and it’s not clear how to connect it. Maybe it seems like you just connect the two “sequential” connections together to toggle it on? That’s all I can think of without actually having them here with me

  13. Aug 11, 2019 at 7:04 AM
    #43
    buckrub71

    buckrub71 [OP] New Member

    Joined:
    Jun 2, 2016
    Member:
    #3510
    Messages:
    40
    Gender:
    Male
    Vehicle:
    2016 Bronze 1794 CM
    Ignore the green wire pics about sequential signals. Our model year will not use it. If you go to pages 6 and 7 of the install guide, the plugs labeled "sequential turn signal connectors" which are orange and purple wires, is where the magic happens. Mine came connected. When disconnected, the sequential signal fires up. If you do not have LED turn signal tails, the sequential will work for you. I hooked up my stock bulb and they worked perfectly. Still waiting on a work around for mine (LED tails).

    fundratss likes this.
  14. Aug 11, 2019 at 7:05 AM
    #44
    buckrub71

    buckrub71 [OP] New Member

    Joined:
    Jun 2, 2016
    Member:
    #3510
    Messages:
    40
    Gender:
    Male
    Vehicle:
    2016 Bronze 1794 CM
    BTW, you're gonna love these!

    fundratss likes this.
  15. Aug 11, 2019 at 12:16 PM
    #45
    fundratss

    fundratss Send it!

    Joined:
    Jul 11, 2019
    Member:
    #33067
    Messages:
    73
    Gender:
    Male
    First Name:
    Joe
    Colorado Springs
    Vehicle:
    2016 Magnetic Grey Tundra TSS
    Toytec 2.5” Coilover boss suspension Volant air intake system Rear air bags (for towing) I’m sure there’s more but I’m lazy

    Awesome!!! I can’t wait until they get here lol. I haven’t done aftermarket tears so glad I didn’t yet. Ima follow your thread and see if find a fix for it. I’m sure Morimoto will prob have some kind of harness to add to correct it since they are so new

  16. Aug 11, 2019 at 1:37 PM
    #46
    toyoboyo

    toyoboyo New Member

    Joined:
    Jul 16, 2019
    Member:
    #33306
    Messages:
    133
    Gender:
    Male
    Anyone have a video clip of the sequential signal?

  17. Aug 14, 2019 at 8:59 AM
    #47
    MMichaelJJ

    MMichaelJJ New Member

    Joined:
    Dec 19, 2016
    Member:
    #5627
    Messages:
    131
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    14 Platinum CM
    @buckrub71

    Get a load resister. I installed one when I was using my VLED triton V3s. I also have led taillights. When I installled the Morimoto XBs I left the load resister installed. My sequential turns work like they’re supposed to.


  18. Aug 14, 2019 at 9:04 AM
    #48
    buckrub71

    buckrub71 [OP] New Member

    Joined:
    Jun 2, 2016
    Member:
    #3510
    Messages:
    40
    Gender:
    Male
    Vehicle:
    2016 Bronze 1794 CM
    Thanks. I actually ordered the resistors from VLED earlier this morning. I have Amazon cheaper coming today but second guessed using them since they get so hot. Not worth it. Can't wait to get the sequentials working. Even without, these headlights are amazing! Thanks again.

  19. Aug 14, 2019 at 2:37 PM
    #49
    gruntyota

    gruntyota New Member

    Joined:
    Aug 9, 2019
    Member:
    #34361
    Messages:
    12
    Gender:
    Male
    First Name:
    Mason
    Vehicle:
    2015 MGM Crewmax
    How much adjusting did you have to do vertically? Mine are ridiculously low, just seeing if anyone else ran into this.

  20. Aug 14, 2019 at 3:56 PM
    #50
    buckrub71

    buckrub71 [OP] New Member

    Joined:
    Jun 2, 2016
    Member:
    #3510
    Messages:
    40
    Gender:
    Male
    Vehicle:
    2016 Bronze 1794 CM
    Right was about 4 inches and the left about 6.5

    gruntyota likes this.
