BlueBottle's '16 Plat CM Build

Discussion in '2.5 Gen Builds (2014-2021)' started by BlueBottle, Sep 24, 2016.

  1. Aug 29, 2017 at 11:07 PM
    #241
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    @Not-required Thanks.

    These are the led's I purchased https://www.amazon.com/gp/product/B00ECTQNF6/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1

    I taped it to the slots on the grill and it fits perfect. I used the high strength 3M so it should be fine. I didn't want to do any permanent mounting. Tucked the wired behind the grill, soldered all connections and used some posi-taps to my Platinums DRL harness. The purple wire is a park light signal.

    Also installed some TRD PRO housings I got from @1UPPER

    This is where I tapped for the park light signal

  2. Aug 30, 2017 at 12:19 AM
    #242
    Not-required

    Not-required New Member

    Joined:
    Oct 19, 2016
    Member:
    #4919
    Messages:
    53
    Gender:
    Male
    First Name:
    Kawehi
    Vehicle:
    2016 MGM Crewmax 4x4 Tundra
    Thule racks, Philips LED headlights and fogs, TRD pro grill and hood buldge, front window tint 35%, ESP under seat storage.
    Awesome thanks. How do they match the amber color of the turn signals?

  3. Aug 30, 2017 at 5:48 AM
    #243
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    They are a little darker but it doesn't bother me.

    Not-required[QUOTED] likes this.
  4. Aug 30, 2017 at 6:15 AM
    #244
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    Here is a shot from the backside. You can see how they are mounted and how I did the wiring.
    FullSizeRender 4.jpg

  5. Aug 30, 2017 at 9:16 AM
    #245
    Newm

    Newm New Member

    Joined:
    Jan 11, 2017
    Member:
    #5908
    Messages:
    648
    Gender:
    Male
    KC
    Trucks looking good man!

    BlueBottle[OP] likes this.
  6. Aug 30, 2017 at 10:47 AM
    #246
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    Thanks bud

  7. Aug 30, 2017 at 11:24 AM
    #247
    CaptObvious

    CaptObvious New Member

    Joined:
    Mar 24, 2015
    Member:
    #1110
    Messages:
    88
    Gender:
    Male
    First Name:
    Patrick
    Vehicle:
    2015 Black Tundra SR5 Crewmax TRD
    Where did you order your skid plates from? Not a fan of my stock one and looking at different options. Right now I get some rub on mine at full lock. I like how clean yours looks.

  8. Aug 30, 2017 at 4:00 PM
    #248
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    I ordered directly from RCI Offroad. You can also order from @ToyTec Lifts

  9. Aug 31, 2017 at 5:57 AM
    #249
    paulphilly

    paulphilly New Member

    Joined:
    Aug 23, 2017
    Member:
    #9207
    Messages:
    156
    Gender:
    Male
    First Name:
    Paul
    Upstate NY
    Vehicle:
    '23 1794 TRD OR
    @BlueBottle , very very very nice rig man. Ironically, I just purchased a new '17 Platinum in MGM last week. I have already installed the color matched handles and mirror caps, and am installing the TRD rear sway bar today. My TRD pro grille should be here by tomorrow, along with the new ESP long box (thanks Earl). I am patiently waiting for my new
    '18 LED head lamp housings and LED fog lamps. I hope you don't mind, but I am copying your truck somewhat. You know the old saying, if you can't beat them join them :) Did you order all of your interior LED's from VLEDS?

  10. Aug 31, 2017 at 11:10 AM
    #250
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    All good @paulphilly
    That's what his information here is for to help anyone out.

    My interior bulbs are a mixture of superbrightled and vled. I prefer vled over sbl anyday of the week. Btw vled has a Labor Day sale! Scoop em up now.

  11. Sep 4, 2017 at 12:49 PM
    #251
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    The Hooligan out of me came out...
    IMG_2684.jpg IMG_2683.jpg IMG_2685.jpg

  12. Sep 7, 2017 at 7:39 PM
    #252
    nowayout

    nowayout New Member

    Joined:
    Feb 24, 2017
    Member:
    #6517
    Messages:
    1,069
    Gender:
    Male
    First Name:
    Jason
    NY
    Vehicle:
    17 CM
    Best looking MGM on the site.

    14tundra, BlueBottle[OP] and derkks like this.
  13. Sep 7, 2017 at 8:05 PM
    #253
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    Thanks! I'm flattered.

  14. Sep 23, 2017 at 10:04 AM
    #254
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    Waiting patiently for my '18 LED headlamps. Will get here this week and will post some install pics.

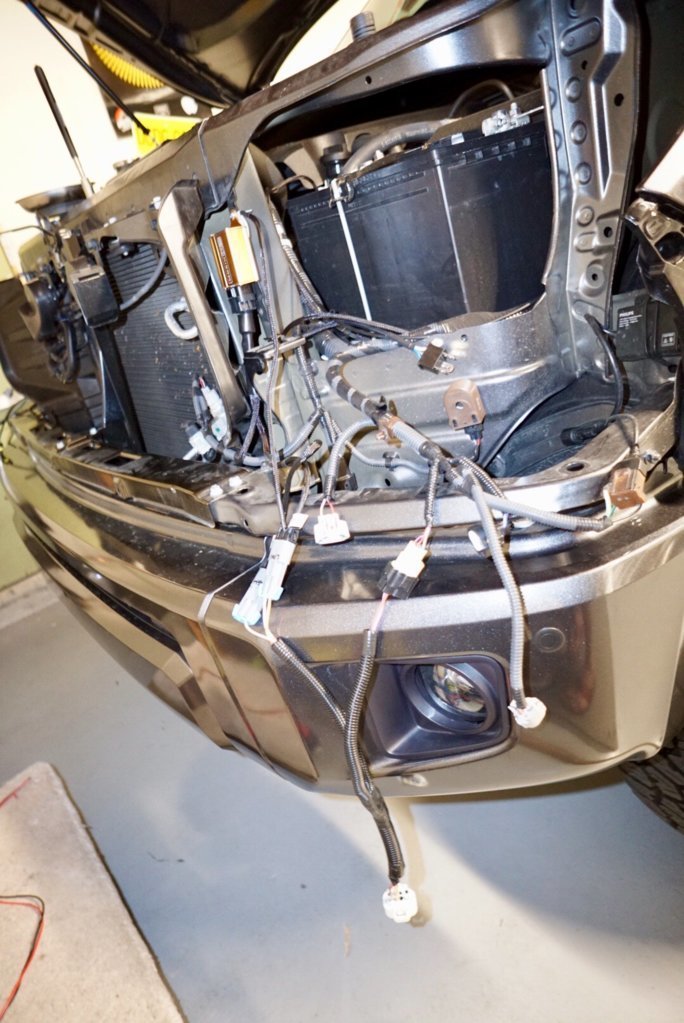

    In the meantime I built my pnp harness courtesy of the genius @thomasbus337

  15. Sep 25, 2017 at 9:19 AM
    #255
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    Ordered a pair of Squadron Sports thanks to Bailey @Baja Designs. Went with the sport so I might be able to use it on the streets.. hopefully lol. We will see. Looks like I have a bunch of lighting projects this week!

    If anyone is interested in my Morimoto XB LED fogs lmk, they will be off the truck soon.

    MotoTundra, dcsleeper408 and Pudge like this.
  16. Sep 25, 2017 at 9:35 AM
    #256
    tundraoverland1

    tundraoverland1 New Member

    Joined:
    Jan 17, 2017
    Member:
    #5986
    Messages:
    139
    Gender:
    Male
    First Name:
    Sean
    Las Vegas
    Vehicle:
    2015 White Tundra crewmax TRD 4x4
    IG: sfarrisjr88
    what will you be doing with the pro headlights once you get your new '18 headlight in?

  17. Sep 25, 2017 at 9:39 AM
    #257
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    @16tunterd has dibs on it right now =)

  18. Sep 25, 2017 at 9:41 AM
    #258
    tundraoverland1

    tundraoverland1 New Member

    Joined:
    Jan 17, 2017
    Member:
    #5986
    Messages:
    139
    Gender:
    Male
    First Name:
    Sean
    Las Vegas
    Vehicle:
    2015 White Tundra crewmax TRD 4x4
    IG: sfarrisjr88
    Damn! alright thanks man

    BlueBottle[OP] likes this.
  19. Sep 25, 2017 at 8:13 PM
    #259
    Pudge

    Pudge Super Secret Elite Member #7

    Joined:
    Nov 8, 2016
    Member:
    #5136
    Messages:
    9,498
    Gender:
    Male
    First Name:
    Sean
    CT
    Vehicle:
    2015 Blue Ribbon Platinum
    TRD PRO grille, OCD consol organizers, DIY wireless phone charger, 33" Michelin Defender LTX MS, Bak revolver X2 tonneau, weathertech liners, 20% tints. DIY pop n lock, 2018 LED headlights, morimoto fogs, TRD shift knob, DirtyDeeds 8"BAM exhaust, kenwood HU,JL amp, Tech12volts Tundra full speaker upgrade w/sub, Swing case, and lots of fluid film
    I'm interested in the morimoto. Gonna do some research them a little more right now.

  20. Sep 26, 2017 at 8:27 PM
    #260
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print

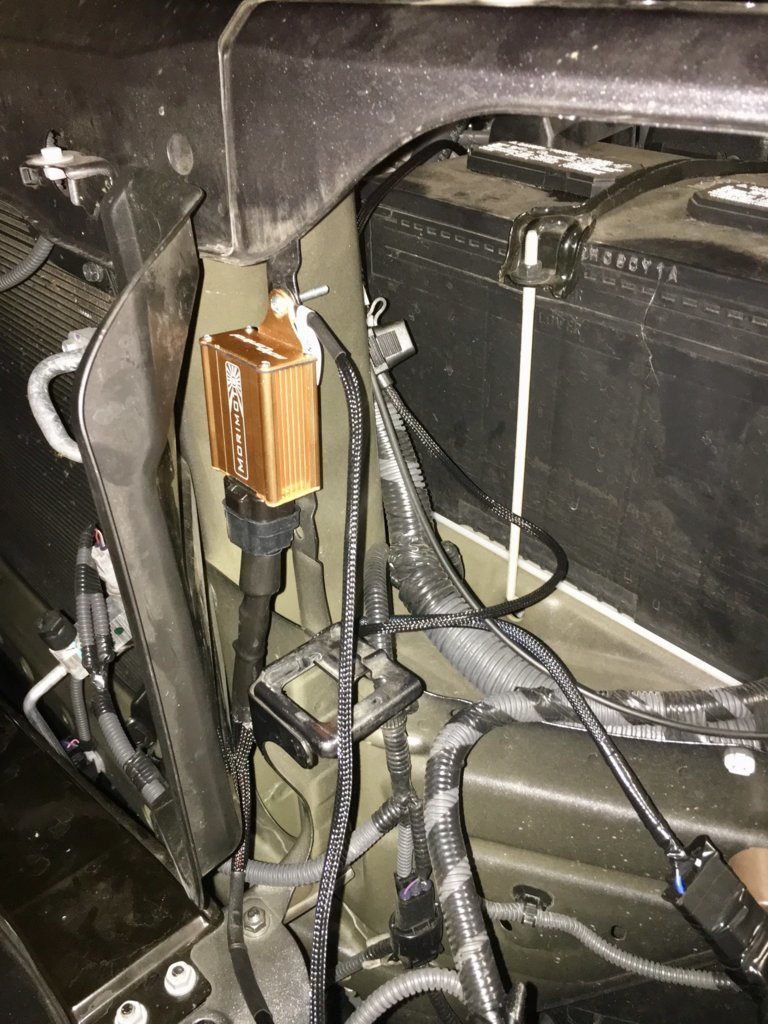

    Installed my '18 Headlamps thanks to @thomasbus337 's figuring out the harness for us & @Roman for providing the headlights wish super quick shipping!
    I am running these currently with Morimoto XB fogs.
    I was running stock headlights with Philips LED bulbs right before this. The Philips LED bulb might actually be brighter than the '18 headlights but the '18 headlights focus/control the light much better. I have had HID Retrofits in previous vehicles and this does not compare with light output. On a scale of 1 to 10, I would say stock halogen headlights are a 3, Philips LED is a 5, '18 LED Headlight is a 7 and HID Retro in a projector is a 9.

    The Look when they are off is very nice. The LED DRL/park light strip is really nice. Overall happy with the purchase but don't expect this setup to be as bright as an HID Retro Projector. That pretty much sums it up!

    **************************************************************

    2018 LED Headlamps Parts & Wiring Diagrams courtesy of @thomasbus337

    Parts
    Any part with a CONN – XXXXX can be ordered from www.bmotorsports.com

    (1) Morimoto Motocontrol 9003/H4 Bi-Xenon HID relay wire harness (www.theretrofitsource.com)

    (2) Toyota 8 Pin female plug 90980-10897

    (2) Toyota 4 pin female plug 90980-10869 OR (CONN 75928)

    (2) Toyota 4 Pin Male plug 90980-10868 or CONN-75929 (USE ONLY IF ADDING DRLS to NON DRL TRUCK)

    (4) Delphi 9006 Male 2-pin Plug CONN- 75893

    (14) Sumitomo TS/SL Female terminals CONN-11856

    (14) Sumitomo HM/MT/TS wire seals CONN-00145

    (10) Sumitomo MT/TS/HX/SL cavity plug CONN-100550


    Toyota 8 Pin Wiring Diagram 90980-10897
    The pin outs are as follows

    Pin 1 Hi Beam
    Pin 2 Low Beam
    Pin 3 not used
    Pin 4 Ground
    Pin 5 DRL HI (Bright)
    Pin 6 DRL Lo (parking light)
    Pin 7 not present on headlight plug
    Pin 8 not present on headlight plug.

    plug diagrams.jpg
    directional plug rewire.jpg

    https://www.youtube.com/watch?v=qDl7nbjPNXA

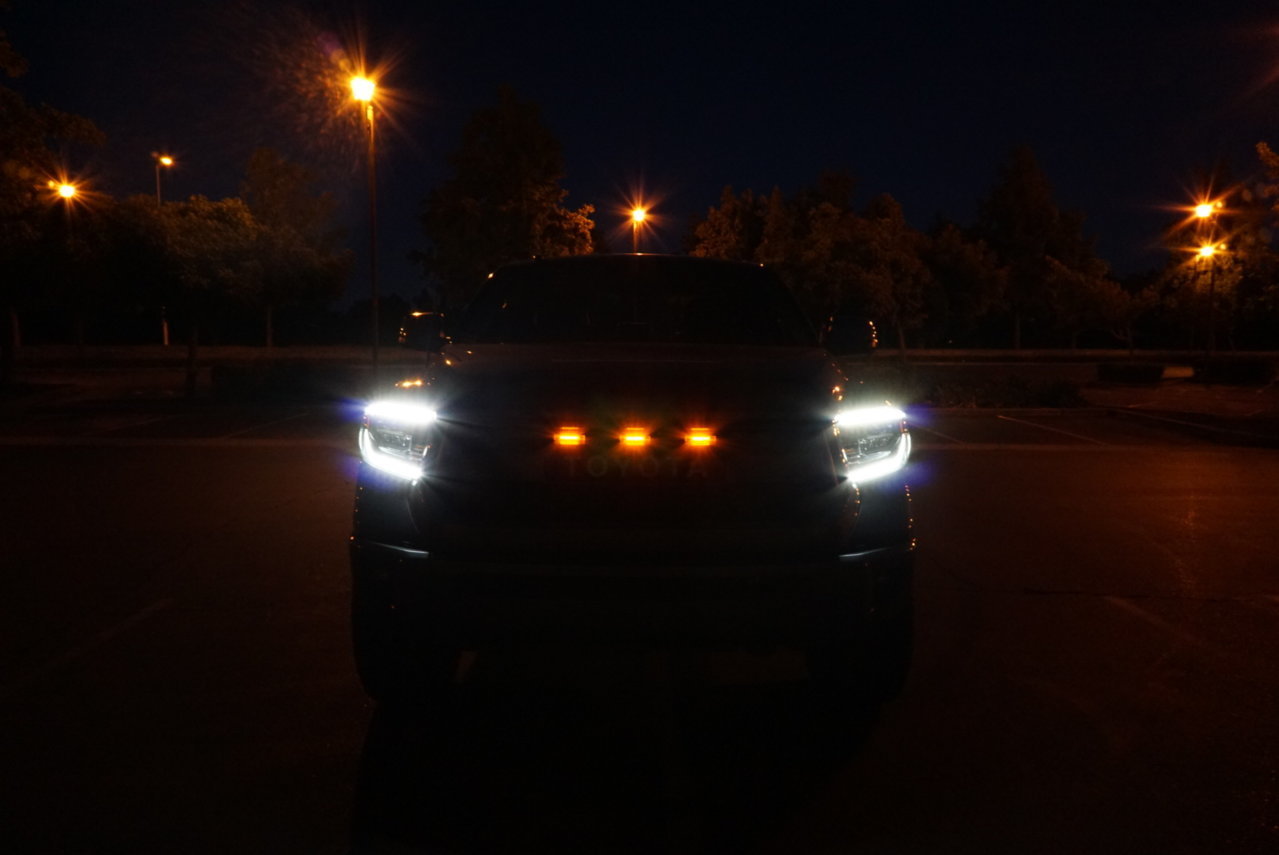

    DRL on full brightness

    Lows + Highs

    Lows + LED Fogs

    Lows

    Lows + Highs

    Lows + Fogs

    Lows

    Lows + Highs

    Lows + Fogs


    Attached Files:

    Last edited: Nov 6, 2017
  21. Sep 26, 2017 at 8:46 PM
    #261
    MotoTundra

    MotoTundra The Ocho

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    7,645
    Gender:
    Male
    First Name:
    Don
    -TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) -Baja Designs Squadron R Sport Aux lights. -TRD Pro Grill -TRD Rear Sway Bar -BakFlip VP Tonneau w/BakBox -Dipped wheels & bumpers -Iron Cross HD steps -Undercover Swingcase -SunTek Paint Protection film -Tinted glass -Bedmat -OEM Towing Mirrors

    Sick! Love the 18' headlights.

    Awesome build, can't wait to see the Squadron's lighting it up!

  22. Sep 26, 2017 at 8:56 PM
    #262
    831Tun

    831Tun heartless Bastrd

    Joined:
    Jun 7, 2016
    Member:
    #3549
    Messages:
    11,577
    Gender:
    Male
    First Name:
    Warren
    Santa Cruz
    Vehicle:
    '16 CM limited
    TC long travel. Deaver 420 SU leaf packs.
    Looks great. Those are the best photos I've seen yet illustrating the 2018 output.

  23. Sep 26, 2017 at 9:08 PM
    #263
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    Me too!!! Let there be light!

    Thanks - I used my sony camera on full manual to try to depict how it looks in my eyes. Also keeps it consistent between the shots.

  24. Sep 26, 2017 at 9:22 PM
    #264
    Pudge

    Pudge Super Secret Elite Member #7

    Joined:
    Nov 8, 2016
    Member:
    #5136
    Messages:
    9,498
    Gender:
    Male
    First Name:
    Sean
    CT
    Vehicle:
    2015 Blue Ribbon Platinum
    TRD PRO grille, OCD consol organizers, DIY wireless phone charger, 33" Michelin Defender LTX MS, Bak revolver X2 tonneau, weathertech liners, 20% tints. DIY pop n lock, 2018 LED headlights, morimoto fogs, TRD shift knob, DirtyDeeds 8"BAM exhaust, kenwood HU,JL amp, Tech12volts Tundra full speaker upgrade w/sub, Swing case, and lots of fluid film
    Lights look awesome. Great work. And you have won the race to finally show legit pics of the output. They really are nice lights.

  25. Sep 26, 2017 at 9:28 PM
    #265
    Pudge

    Pudge Super Secret Elite Member #7

    Joined:
    Nov 8, 2016
    Member:
    #5136
    Messages:
    9,498
    Gender:
    Male
    First Name:
    Sean
    CT
    Vehicle:
    2015 Blue Ribbon Platinum
    TRD PRO grille, OCD consol organizers, DIY wireless phone charger, 33" Michelin Defender LTX MS, Bak revolver X2 tonneau, weathertech liners, 20% tints. DIY pop n lock, 2018 LED headlights, morimoto fogs, TRD shift knob, DirtyDeeds 8"BAM exhaust, kenwood HU,JL amp, Tech12volts Tundra full speaker upgrade w/sub, Swing case, and lots of fluid film
    @BlueBottle you said your old LED bulbs were a huge upgrade to your stock 16 lights. What size bulbs are these 18's running? And do you think a buld upgrade would be worth a shot here for even better output?

  26. Sep 26, 2017 at 9:35 PM
    #266
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    The 18's dont use a bulb. The entire assembly has the LED's built in so you can't replace it. You are stuck with it.

    dcsleeper408 likes this.
  27. Sep 26, 2017 at 10:46 PM
    #267
    Pudge

    Pudge Super Secret Elite Member #7

    Joined:
    Nov 8, 2016
    Member:
    #5136
    Messages:
    9,498
    Gender:
    Male
    First Name:
    Sean
    CT
    Vehicle:
    2015 Blue Ribbon Platinum
    TRD PRO grille, OCD consol organizers, DIY wireless phone charger, 33" Michelin Defender LTX MS, Bak revolver X2 tonneau, weathertech liners, 20% tints. DIY pop n lock, 2018 LED headlights, morimoto fogs, TRD shift knob, DirtyDeeds 8"BAM exhaust, kenwood HU,JL amp, Tech12volts Tundra full speaker upgrade w/sub, Swing case, and lots of fluid film
    Oh wow i had no idea. Still don't get why they didn't just use a projector. It's very odd to me.

  28. Sep 27, 2017 at 10:21 AM
    #268
    mdavis

    mdavis I need a beer.

    Joined:
    Feb 13, 2015
    Member:
    #966
    Messages:
    3,345
    Gender:
    Male
    First Name:
    Michael
    Rock Hill, SC
    Man, that looks good!

  29. Sep 27, 2017 at 1:47 PM
    #269
    mgm16trdpro

    mgm16trdpro Certified Modoholic

    Joined:
    Feb 7, 2017
    Member:
    #6258
    Messages:
    4,235
    Gender:
    Male
    First Name:
    Mike
    Northern NJ
    Vehicle:
    2016 mgm trd pro crewmax
    Ici magnum side steps in linex, factory spray in bed liner, remote start,afe pro dry filter, dap tune,sso slimline hybrid OEM bumper with baja designs 30" s8 driving combo,warn platinum xeon winch, baha designs squadron sport fogs in amber wide cornering with fog pocket kit, gtr headlight LEDs, 295/70r18 nitro ridge grapplers, g2 painted red calipers, 1.25 spidertrax spacers, bed slide pro 1000 se and 5 bin package, diamondback HD bed cover with ATV package and black package, 2 auto access led strips in bed, husky full coverage exact contour mats with custom logos, V led leds interior lights, tuffskinz mid console/&rear cupholder package, mid console tray and organizer, 2 JL 10s in custom sub box, 4 Hertz door speakers,2 hertz tweeters, other audio upgrades, tinted front windows, weathertech in channel rain guards, artic coating, reverse tail light section and third brake tint, ami big stick antenna, 2 CB shims +3 shackle, cb steer kit, Trd dual exhaust, trd skid plate, vled footwell kits front and back, factor 55 winch fairlead and prolink, gen y torsion hitch, bushwacker color matched fender flares with black powder coated rivets, trd rear sway bar, covercraft cargo bar and cargo net, recovery gear, custom shifter and middle console.I'm sure other things I'm forgetting too
    So Blue, feels weird knowing ur name but calling u blue lol. Guessing if u wanted all ur info out there it'd be posted, so again no worries on me revealing any info on ya. U don't have to worry about the fb guys showing up on ur doorstep begging for a harness lol. To my point, my question for u is this, having had a retro in past and considering the cost between the 18 led and a good retro, if u could get a good retro for around the same cost as the 18 leds which way would u go now that you've had a chance to experience both in action. Not that I want to get into a housing on a retro anymore than once to fix something wrong I'm guessing it's at least nice go have that option. What happens if there's a issue with 1 of these? Whole new housing and all? Taking output, cost, and ability/cost to repair an issue help me make up my mind on retro or 18 led? As always tnx in advance, and just fyi I'm sure u already got my sarcasm about sending me a harness since we've helped eachother a time or 2. In case u didn't I'm obviously not even sure on my lighting upgrade route yet so don't waste ur time sending n money sending me anything, just yet that is.

    dcsleeper408 likes this.
  30. Sep 27, 2017 at 1:56 PM
    #270
    BlueBottle

    BlueBottle [OP] not a PRO

    Joined:
    Sep 17, 2016
    Member:
    #4572
    Messages:
    5,084
    Vehicle:
    '16 Platinum 4x4
    See fine print
    Retro Performance outshines OEM LED's any day of the week. You have to look at the long term and reliability. OEM headlights will last forever and Retro even when done very well will not stand to the same reliability. Its just what it is. So to answer your question, do you care about longevity and reliability? I think you do because you bought a Toyota =)

    dcsleeper408 likes this.

Products Discussed in

To Top
