Discussion in 'Suspension' started by Joeshaker, Oct 28, 2016.

  1. Nov 15, 2016 at 11:06 AM
    #31
    joem1cha3l

    joem1cha3l New Member

    Joined:
    Jul 27, 2016
    Member:
    #4013
    Messages:
    1,957
    Albany, NY
    Vehicle:
    2016 Double Cab SR5 Blazing Blue Pearl
    BOSS Suspension, DB Customz Grill, 35's, Spyder, Tint, Color matched corners
    Was trying to avoid that until I get the BOSS lift from Toytec, damn.

    I wanted bigger tires anyway lol. Maybe I'll just run with this until they wear out and I'll put the trigger on the BOSS, UCAs and 35's all at the same time lol

    T-Rex266 likes this.
  2. Nov 15, 2016 at 6:15 PM
    #32
    Joeshaker

    Joeshaker [OP] New Member

    Joined:
    Jun 5, 2016
    Member:
    #3531
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Amado
    Evergreen, Co
    Vehicle:
    13 dcsb trd4x4
    Bilstein 6112/5160 trd sway bar and ride rite bags. Black and burnt orange wet okole seat covers.
    Hey Jace, I was supposed to bring my truck in for the alignment and zero point calibration this Friday. But my boss needs me to work. Only been reminding him for three weeks. Oh well, that'll give me time to get the couchbuilder shims installed. Maybe some massaging to the fender liners to. I've got a little rubbing with the new tires, not exactly sure where. I ordered three shims, two for the drivers side and one for the passenger side to get a little more lift and get rid of the lean. Are there any issues that I should know about first? Is it bad to do two shims on one side and one on the other? Would just one on each be better and live with the lean? I've got bilstein 6112's on the top setting and stock ucas.

  3. Nov 15, 2016 at 6:16 PM
    #33
    Joeshaker

    Joeshaker [OP] New Member

    Joined:
    Jun 5, 2016
    Member:
    #3531
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Amado
    Evergreen, Co
    Vehicle:
    13 dcsb trd4x4
    Bilstein 6112/5160 trd sway bar and ride rite bags. Black and burnt orange wet okole seat covers.
    I rescheduled my appt. For Sat Dec 10th. Are you working that day?

  4. Nov 17, 2016 at 7:10 PM
    #34
    LOTSOFTOYS

    LOTSOFTOYS Toyota Whisperer

    Joined:
    Jun 9, 2015
    Member:
    #1396
    Messages:
    1,246
    Gender:
    Male
    First Name:
    Jace
    Mile high
    Vehicle:
    2005 Tundra DBL cab
    Either rock I how it is and monitor tire wear outerm edge or buy ucas

    What kind of shims are these? not familiar... for rear or front?

    I'm off

  5. Nov 17, 2016 at 7:19 PM
    #35
    Joeshaker

    Joeshaker [OP] New Member

    Joined:
    Jun 5, 2016
    Member:
    #3531
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Amado
    Evergreen, Co
    Vehicle:
    13 dcsb trd4x4
    Bilstein 6112/5160 trd sway bar and ride rite bags. Black and burnt orange wet okole seat covers.
    I figured, dang it! Do you work any Saturdays? Or is there someone else there that can get it dialed in right? What about the shims, should I wait till I get ucas?

  6. Nov 17, 2016 at 9:48 PM
    #36
    T-Rex266

    T-Rex266 Elon approved Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    155,867
    Gender:
    Male
    Just call them and schedule it with him

  7. Nov 17, 2016 at 9:53 PM
    #37
    Joeshaker

    Joeshaker [OP] New Member

    Joined:
    Jun 5, 2016
    Member:
    #3531
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Amado
    Evergreen, Co
    Vehicle:
    13 dcsb trd4x4
    Bilstein 6112/5160 trd sway bar and ride rite bags. Black and burnt orange wet okole seat covers.
    Yeah, I tried that. But my boss scewed it up for me. Can't count on getting time off during the week. I'll call again and ask if they have a say appt when he's going to be there.

  8. Nov 19, 2016 at 7:06 PM
    #38
    LOTSOFTOYS

    LOTSOFTOYS Toyota Whisperer

    Joined:
    Jun 9, 2015
    Member:
    #1396
    Messages:
    1,246
    Gender:
    Male
    First Name:
    Jace
    Mile high
    Vehicle:
    2005 Tundra DBL cab
    I work every other Saturday.

  9. Nov 19, 2016 at 8:18 PM
    #39
    Joeshaker

    Joeshaker [OP] New Member

    Joined:
    Jun 5, 2016
    Member:
    #3531
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Amado
    Evergreen, Co
    Vehicle:
    13 dcsb trd4x4
    Bilstein 6112/5160 trd sway bar and ride rite bags. Black and burnt orange wet okole seat covers.
    Cool, I'll call on Monday and try to schedule it for the 17th.

    T-Rex266 likes this.
  10. Nov 19, 2016 at 8:54 PM
    #40
    cdkenne

    cdkenne Toyota Master Technician

    Joined:
    Nov 16, 2016
    Member:
    #5236
    Messages:
    189
    Gender:
    Male
    First Name:
    Corey
    KS
    Vehicle:
    2002 Tundra SR5 TRD Offroad
    285/70R17, '15 4Run Trail Wheels, Westin Shopping Cart Basher, SnapOn license plate cover that adds >50 HP
    Ok so its getting late, and I've had a bit to drink, but it doesn't look like they touched anything on this visit...

  11. Nov 19, 2016 at 9:05 PM
    #41
    T-Rex266

    T-Rex266 Elon approved Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    155,867
    Gender:
    Male
    Just go with @LOTSOFTOYS
    Whatever he does to your truck is like ...a magic touch. Think of him as the Toyota whisperer.

    NewImprovedRon likes this.
  12. Nov 19, 2016 at 9:09 PM
    #42
    cdkenne

    cdkenne Toyota Master Technician

    Joined:
    Nov 16, 2016
    Member:
    #5236
    Messages:
    189
    Gender:
    Male
    First Name:
    Corey
    KS
    Vehicle:
    2002 Tundra SR5 TRD Offroad
    285/70R17, '15 4Run Trail Wheels, Westin Shopping Cart Basher, SnapOn license plate cover that adds >50 HP
    Sometimes you have to yell and use colorful language and throw expensive tools around to get a stuck truck into spec. I'm not so sure about the whispering...

    T-Rex266[QUOTED] likes this.
  13. Nov 19, 2016 at 9:13 PM
    #43
    T-Rex266

    T-Rex266 Elon approved Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    155,867
    Gender:
    Male
    Oh..:you'll be surprised. He is the the Toyota Whisperer. He's one of the only ones I will ever let touch my vehicles. He goes above and beyond than a standard tech.

  14. Nov 20, 2016 at 8:48 AM
    #44
    LOTSOFTOYS

    LOTSOFTOYS Toyota Whisperer

    Joined:
    Jun 9, 2015
    Member:
    #1396
    Messages:
    1,246
    Gender:
    Male
    First Name:
    Jace
    Mile high
    Vehicle:
    2005 Tundra DBL cab
    Nope they didn't touch a thing... or, they didn't "save before measurements". older machines made u hit a button that did that. newer ones do it by themselves

  15. Aug 10, 2021 at 11:03 AM
    #45
    BeastTundra303

    BeastTundra303 New Member

    Joined:
    Aug 10, 2021
    Member:
    #66576
    Messages:
    1
    Gender:
    Male
    Vehicle:
    2019 Tundra TRD sport
    3/1 lift
    Hey @LOTSOFTOYS.

    I have a 3/1 lift on my 2019 Tundra. I have the following specs that we set my truck to. Can you please tell me what you think? The positive camber is freaking me out a little because I just put new tires on and don't want them wearing excessively.

    Left:
    Caster 1.4
    Camber 0.0
    Toe .13

    Right:
    Caster 1.3
    Camber 0.1
    Toe .13

    Overall:
    Toe .25
    Steer ahead 0.0

  16. Aug 10, 2021 at 2:17 PM
    #46
    Norfolk757

    Norfolk757 Be Kind, Be Helpful, Be a Man

    Joined:
    May 8, 2018
    Member:
    #15134
    Messages:
    309
    Gender:
    Male
    First Name:
    Tom
    Norfolk, VA
    Vehicle:
    2015 White Tundra- CrewMax TRD Off Road
    I'm in the same boat with Firestone lifetime alignment to keep my new tires (275/70R18) wearing properly with stock suspension. How bad is mine?


  17. Aug 10, 2021 at 4:46 PM
    #47
    JMB

    JMB Not new, just a little old.

    Joined:
    Jan 20, 2014
    Member:
    #156
    Messages:
    6,603
    Gender:
    Male
    First Name:
    John
    Chesapeake, VA
    Vehicle:
    2013 Super White Tundra DC
    5100s all around, 295-70-18 Defenders, 1.25 Spidertrax spacers, BD reverse lights, de-badged, interior LEDs, footwell LEDs, reverse LEDs, ARE cap, front receiver hitch for cooler holder, cooler holder/rod rack, backup camera, Kenwood HU, Westin nerf bars, Husky floor liners, folding rear seats, remote battery posts, plastidip grill chrome, Powder coat bumpers.
    I lifted this off another forum, but it worked for me.

    STOCK TRUCKS:
    Camber: +.1 degree camber on both sides.
    Caster: As much as possible without sacrificing +.1 degree camber or causing a cross caster pull.
    Toe: +.12 degrees per side for a total toe of +.24 degrees. (some guys have had to drop toe to +.04 to +.5 per side/+.08 to +.10 total toe)

    LIFTED TRUCKS:
    Same As Above ... BUT if you have wheels that have more negative offset than factory wheels, increase the camber to +.2 degrees. (or even +.3 degrees if they just can't get there with the amount of adjustment allowed by the eccentrics) Adjustable upper control arms are available for cases where there just isn't enough adjustment left in the eccentrics to get a decent alignment. Although they are expensive, most guys with lifts have a lot of $$$ invested in tires so you need to make a judgement call.

    LOWERED TRUCKS:
    Guys that lower trucks tend to want it to handle the road like a Lambo so I'll give two recommendations. One for improved handling and one for improved tire wear.
    Emphasis On Handling:
    Camber: 0 to -.1 degree (watch for inside tire wear)
    Caster: As much as humanly possible. Caster causes the front tires to lean into the turn. Installing adjustable upper control arms to increase caster can really make it stick in turns. High positive caster can make it follow ruts/imperfections in the road and cause it to creep toward "full lock" after turning half way to the locks.
    Toe: +.12 per side for a total toe of +.24 degrees.
    Emphasis on tire wear:
    Camber: 0 to +.1 degree.
    Caster: As much as possible. It won't affect tire wear and we tend to have a hard time getting good caster unless we use drop spindles.
    Toe: +.12 degrees for a total toe of +.24 degrees.

    Norfolk757 likes this.
  18. Aug 12, 2021 at 5:53 AM
    #48
    Norfolk757

    Norfolk757 Be Kind, Be Helpful, Be a Man

    Joined:
    May 8, 2018
    Member:
    #15134
    Messages:
    309
    Gender:
    Male
    First Name:
    Tom
    Norfolk, VA
    Vehicle:
    2015 White Tundra- CrewMax TRD Off Road
    Does anyone know what can be done to get the Righ Front Caster to at least an acceptable range so my tires wear evenly. As I drove on the highway it looks like the steering wheels is tilted to the right a little for the truck to drive straight. They have it marked as MAX, was told it was maxed out on the caster side.

  19. Jun 22, 2022 at 5:48 PM
    #49
    terrythesalmon

    terrythesalmon New Member

    Joined:
    Jan 17, 2020
    Member:
    #41335
    Messages:
    16
    Gender:
    Male
    Vehicle:
    2001 Tundra

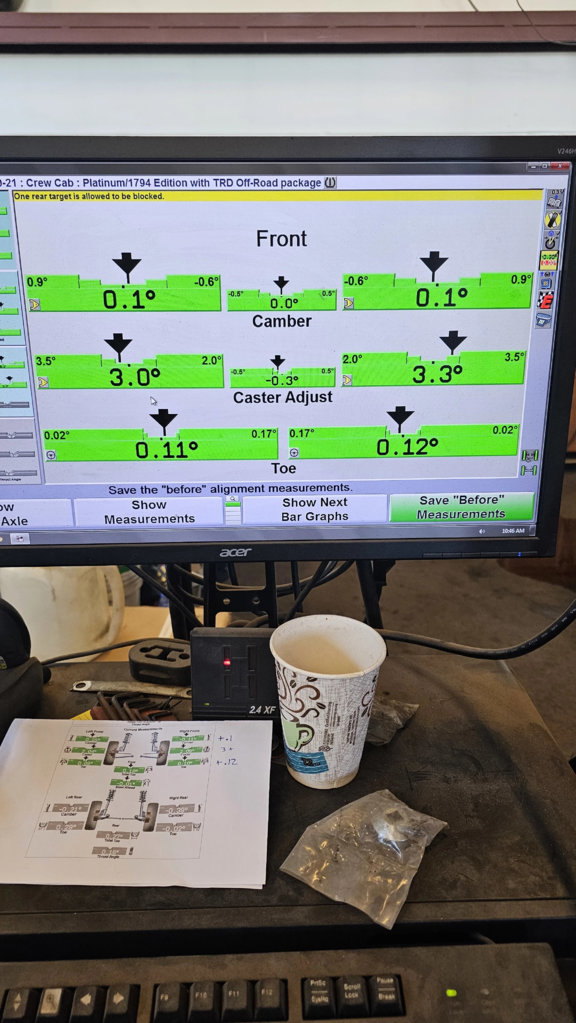

    Can you guys chime in on my alignment specs that I recently had done? I’ve got about 2.5 inch lift up front on a 2001 tundra. It feels a little twitchy at speed and I’m thinking the caster needs to come up a bit. Any other input is greatly appreciated.

    also curious why my rear left camber is high….bent axle? I did have new leaf springs installed as well.

    The left rear tire is sticking out about an inch more the right rear tire by the way.


    Last edited: Jun 22, 2022
  20. Jun 23, 2022 at 12:54 PM
    #50
    pursuit2550

    pursuit2550 New Member

    Joined:
    Jul 29, 2020
    Member:
    #50029
    Messages:
    1,617
    Gender:
    Male
    Florida
    Vehicle:
    2020 Tundra SR5 DC Attitude Black
    I am not familiar with the 01 tundra, but, I will say that if one of you rear tires stick out more than the other then that's a totally different issue. Solid rear axles have no alignment. The leaf pack sits in the bracket and the U-bolts hold it down. Could it be bent causing camber, I believe so, not and alignment tech. Right front caster could be closer to left side. Same with your caster, closer/equal. Why couldn't they get the toe equal?
