2018 Tundra LED headlight wiring info with diagrams

Dang it.....I swear every time I log into this site I spend money. Must order my v6's....



Look like cool bulbs.

So, dumb question as I might just order a set, do we need the "load resistor" add on for our trucks? I hate bulbs that flash too fast ha



I believe you would need to order the load resistors. I have the V3 Tritons in the front and in the back I have the new HIGH VISIBILITY RED HIGH POWER 6 LED 921 bulbs in the back, I'm using the VLR3 setup. Here's some eye candy

https://youtu.be/5D-4WyXx_q8

https://youtu.be/hbbT5dy2P7Y



Those are some pretty pricey bulbs



no need to order any bulbs or load resister ,,, When I finished installing the lights I had issue withe flash lights is to fast pumping like crazy
after that I change the pin form conector and now run normal

only change pin positon

passenger side



driver side



Where did you mount the resistor? I want to mount it on the housing but scared it might melt it!



Always works that way. I just ordered all the parts last night. I'm guessing it might be a little cheaper for me to make them myself.

Good info for others.

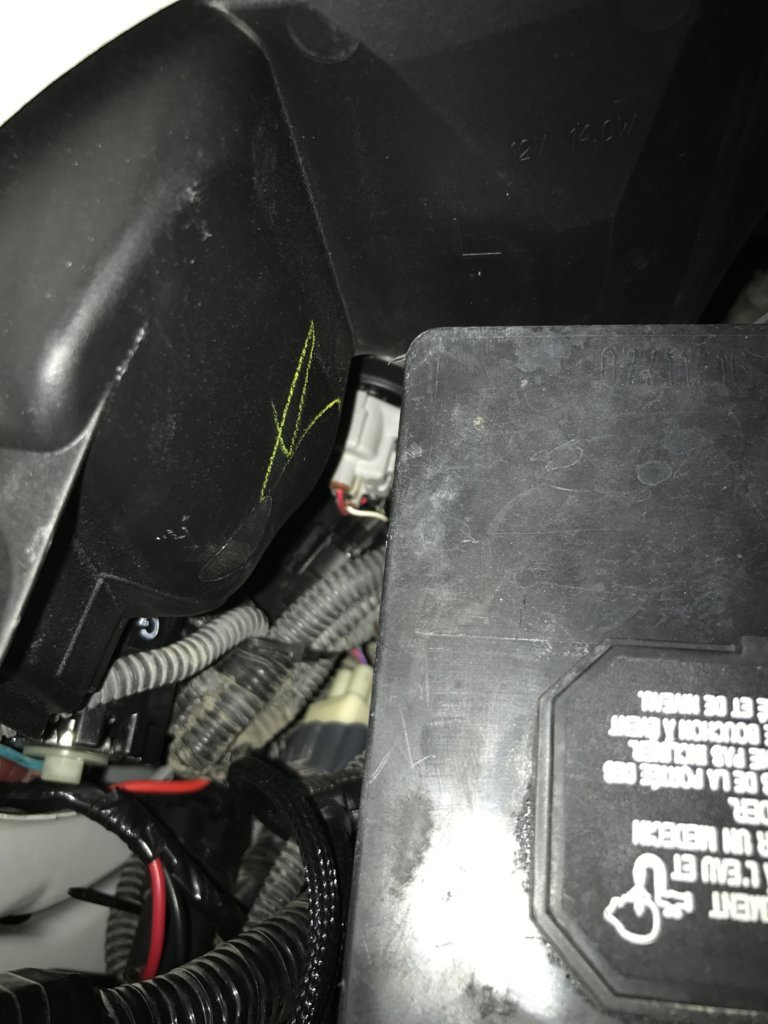

I mounted them on the black metal cross member above the bumper. You can kind of see them laying flat in this pic.



I mounted mine behind the tail lights. There's a lot of room back there. I don't think it matters where it's mounted as long as it's connected to the turn signal wires.

Someone might want to confirm that.



Sweet. I see them. Good to know the cables are long enough to reach.



Will this harness still use the motocontroller?

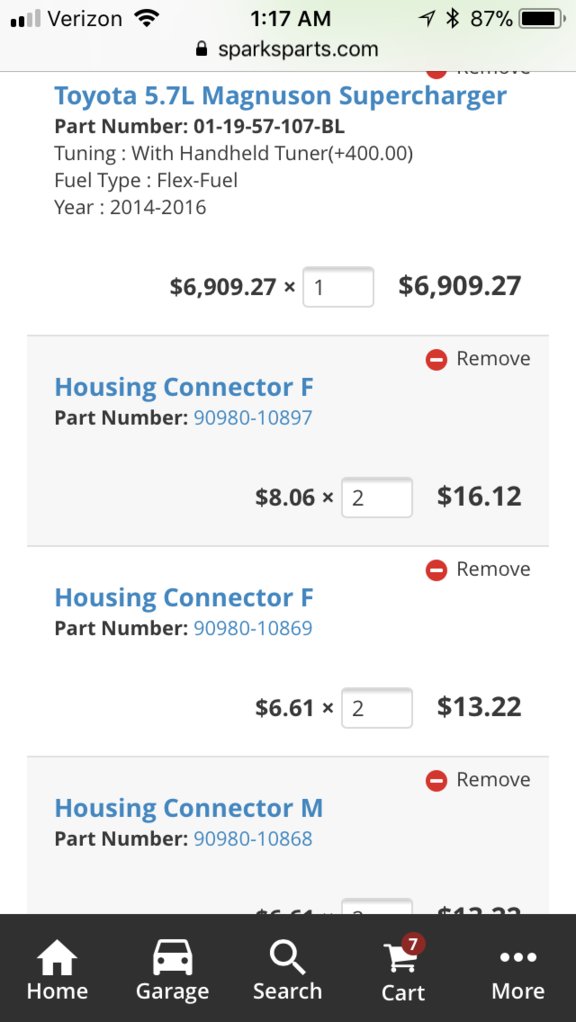

Ordered all my connectors, way more expensive than I thought.....



I didn't know we had to order a supercharger also to get this 2018 lights to work lol.



It’s a must lol i heard it raises light beam slightly for a few seconds by just giving it gas lol



You will not be disappointed. But you'll never be able to go back either haha



4.7 seconds to be exact



After tons of research, It seems that @thomasbus337 method is the only way to get High/Low beams to work together via Relay Harness. I will begin to produce these harnesses beginning next week or so once parts arrive. Harnesses will include the Morimoto H4 harness.

As for DRL's, (NONE PLATINUM Trims) It will use my PNP harness for retrofit LED's that will be powered by the Ignition fuse via fuse tap. The brightness will remain on High even with headlights are on. If you want the DRL to dim when lights are on please request it.



So are you saying to get the high and low beams on a 1794/platinum to work at the same time the additional relay @thomasbus337 posted is a must? Or is that just for the SR5/limited/TRD Pros? We can't just use the morimoto safely? Several members on here are running the high and low beams at the same time with just the morimoto, and not the additional relays.



Yes for both low and high beams to work at the same time the Relay harness is a must. The morimoto relays is the most efficient.



Ok so just to clarify we need to create this in the post below using the Hella Relays?

Or just the morimoto itself is sufficient?



I got an email from them today. They say they are about a month or two out with the harnesses. That is why I had to order the the connectors after my initial order. Either way, I just got my headlights delivered and harness making parts are on their way. Soon enough, I will have the new headlights on.



Once I receive the parts and test, I will let you know for sure.



The extra Hella relay is only needed if you wanted to upgrade the wiring for the high beam circuit. I used 16 gauge wire throughout the harnesses that I put together. The high beam wiring on the H4 Morimoto harness is 20 gauge. TRS said it would be sufficient to operate the High beams since they have a low amperage draw. I used the high beam power and ground outputs on the Moto harness to trigger a relay and ran 16 awg from the relay to the high beam circuit.



Anyone willing to make a video of putting this harness together yet? Got all my parts just need to see how everything goes together now



OK, sorry for the noob questions just want to make sure I understand this fully. So if the lighting harness is made using 16 gauge wire, is that hella relay an extra precaution, or is it now actually necessary since the entire headlight harness will be made out of 16g wire?



I basically did it as an extra precaution and to try out/test my wiring layout



Awesome thanks so much @thomasbus337!! Should have all my parts this weekend hopefully to put this together



Just a quick shout-out to @Roman and crew. Ordered my 2018 headlights on Tuesday (3 days ago) and just received the tracking info. Great, responsive customer service as well. Excited to have the new headlights on early next week



@thomasbus337 do you have to switch any pins around with the harness you made on a 14-17 Pro?



Harness from @thomasbus337 are in! And they look good

Also got my tracking number for my headlights today as well. Ordered them on the 21st.

I'm real pumped now!
