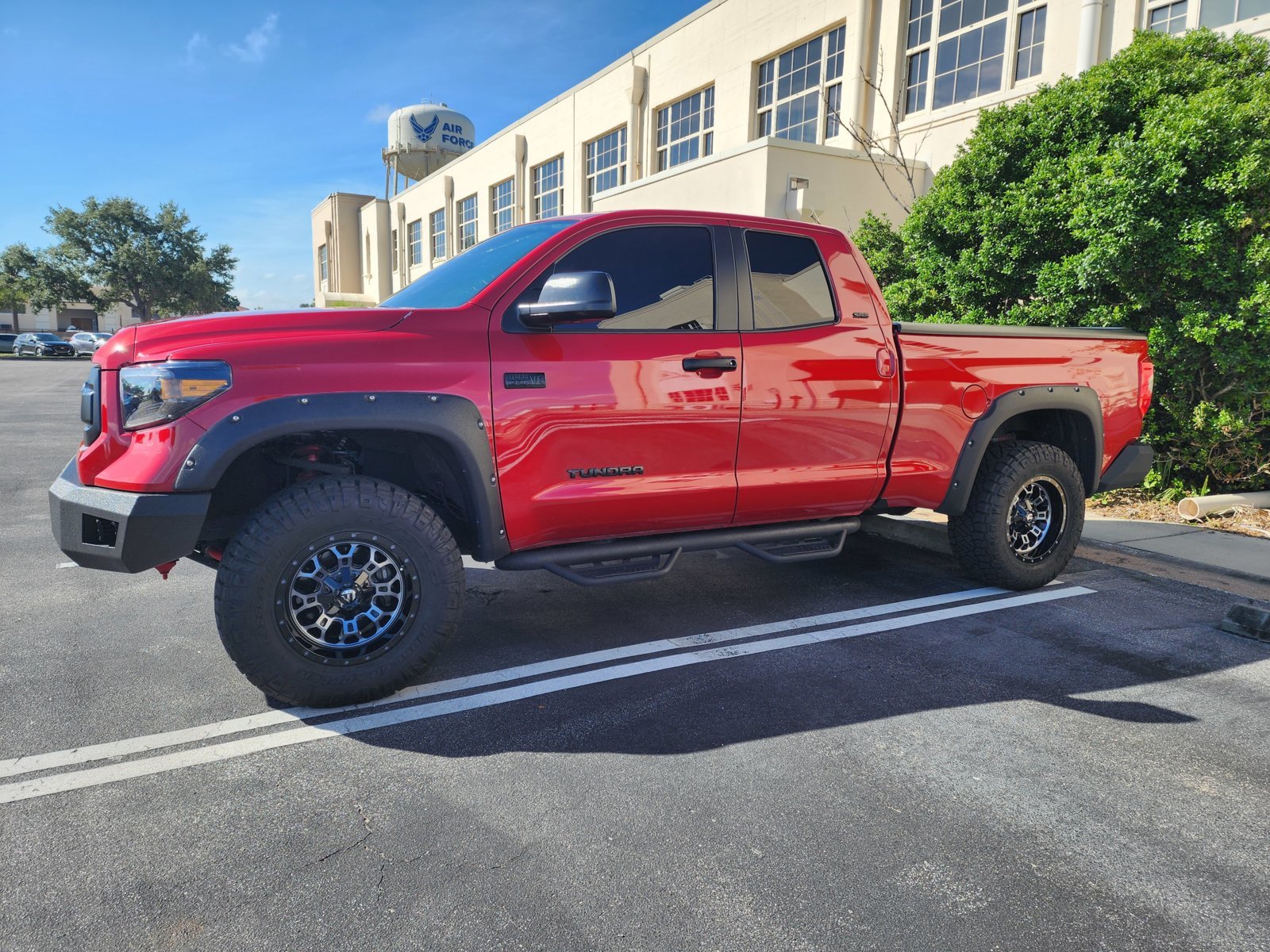

Tundra234's 2020 Barcelona SR5 DC

Discussion in '2.5 Gen Builds (2014-2021)' started by Tundra234, May 29, 2022.

  1. May 29, 2022 at 3:02 PM
    #1
    Tundra234

    Tundra234 [OP] New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    16,518
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them
    20210718_131458 (1).jpg


    Suspension
    :
    TRD rear sway bar
    TRD front sway bar
    SPC upper control arms
    Toytec Aluma 2.5 coilover lift
    Toytec shackles set at 1.5
    Toytec Boss rear shocks with remote resis
    Alcan leaf springs +200 with 1/2" lift
    Timbren bump stops
    Coachbuilder front bump stops
    Coachbuilder carrier bearing drop kit
    Fuel Maverick 18x9 0 offset
    295/70/18 Nitto Ridge Grapplers



    Engine and performance:
    DirtyDeeds 8" without resonator
    Banks Pedal Monster
    TRD air filter
    Transmission cooler kit from @Genuine Cooling Systems
    Aluminum oil filter housing
    StopTech Sport cryo treated slotted rotors
    Fumoto oil drain valve
    Hypertech Speedometer calibration

    Exterior:
    Color matched hood bulge and TRD Pro grille
    N-Fab Podiums (Line-X'ed)
    Rough Country front bumper
    Road Armour Stealth rear bumper
    GearAmerica anti-theft shackles on rear bumper
    Coachbuilder 1/2" bumper shims
    UnderCover SE tonneau cover
    Bushwacker flares (Line-X'ed and PPF)
    RCI engine skid
    Desert Eagle front cat plate
    Valhalla rear cat plate
    Valhalla vertical add-on to rear plate
    Gloss black overlays
    Painted exhaust pipe
    Black chrome exhaust tip
    Llumar ceramic tint (5% side and rear, 50% windshield)
    Taillight vinyl overlay
    Jomax TSS relocation kit



    Interior:
    Drivers side grab handle
    Husky X-Act floor mats
    SEM trim black (silver/chrome delete)
    AJT climate control knobs, shifter trim, cup holder, steering wheel trim
    Lock'r Down full console safe
    G-Tek Fab aluminum door sills
    Anytime backup camera kit
    MirrorTap radar detector power wire
    3W Liners window control module
    Rear seat fold down mod
    ProHolder phone mount
    Cupholderheroes inserts
    Clazzio leather seat covers (all black)
    3d switch plate from @abomb60
    AirOnBoard switches
    TRD shift handle
    Shift bezel degloss with matte clear
    Screen Pro-tech instrument cluster screen protector
    Rago dash plate with ICS support plate
    ICS Fab ball mounts and arms
    Escort Max 360C MKII mounted on Ram mounts power plate
    Rear AC conversion

    Compress_20220724_200035_5270 (2).jpg

    Lighting and electrical:
    Baja Designs S8 40" in hood bulge
    Morimoto XB Gen 2 headlights (PPF installed)
    Vleds puddle lights in mirrors
    Muth red signal mirrors
    Vleds Stage 1 tail conversion
    Vleds footwell kit
    Vleds LPR system
    Rigid SAE pods (4) in front bumper
    Rigid SR-M Pro flush mounts in rear bumper
    Rigid Dually D2 pods (4) behind grille (tinted lenses)
    Console safe lighting
    Led strip bed lighting
    Blue Sea (#5026) 12 circuit fuse block
    Blue Sea (#7187) 100 amp circuit breaker
    Blue Sea (#2307) 130A 4 post busbar
    Blue Sea (#2126) MaxiBus 250A 6 post busbar
    Blue Sea (#4366) DC power panel with Rago Fabrication mount
    Overland Equipped fuse block mount
    Cargo light to 3rd brake light conversion

    Compress_20220814_211633_3586 (2).jpg

    Audio:
    Maestro RR
    Maestro USB retention
    Pioneer DMH-7600 NEX 9 inch floating display
    Rockford Fosgate 4 ch amp (mids and highs)
    Rockford Fosgate 500 watt amp (subs)
    8" Alpine subs
    Rockford Fosgate front doorspeakers
    Rockford Fosgate rear door speakers
    Pioneer dash speakers
    Stinger Roadkill Stealth in doors
    Roku Express

    Compress_20220910_172102_2670 (2).jpg

    Miscellaneous:
    Custom made decals (by me)
    Thinkware F200 Pro dash cam (front and rear)
    ScanGauge 3
    UnderCover Swing cases (modified bracket install)
    Hornblasters Conductors 232 kit with Stealth spare tire delete kit
    Badlands 3 ton offroad jack and mount in bed
    Manual to power sliding window conversion
    https://www.tundras.com/threads/how...-power-rear-sliding-window-conversion.130717/


    To do:
    Thinkware side view cameras
    Victory4x4 Fuel tank skid
    G-Tek Fab SABM
    ABS sensor guards
    Charcoal filter delete
    Cargo switch to puddle/footwell
    CH4x4 backlight
    Bumper studs
    Lock box
    Tackform phone mount
    Dual power rear console panel
    Drain kit
    5.7 inside, AC writeup, rear window, SG3
    Refresh maestro
    Amp mount maple brd
    Breaker at amp
    Drain valve and air service port



    Favorite links:

    https://screwdsecurity.com/

    https://rcimetalworks.com/

    https://shop-coachbuilder.myshopify.com/

    https://www.alcanspring.com/

    https://hotshotoffroad.com/ @memario1214

    https://valhallasshields.com/ @Classy63

    https://overlandequipped.com/collec...use-block-bracket-for-2007-2021-toyota-tundra

    https://*****************/products/toyota-tundra-screen-protech-kit

    https://www.motivxtools.com/collect...wrench-mx2301-funnel-mx2341-drain-tool-bundle

    https://www.bluesea.com/

    https://www.aironboard.com/online/

    https://genuinecoolingsystems.com/

    https://adamspolishes.com/

    https://bankspower.com/

    https://dirtydeedsindustries.com/

    https://www.vleds.com/

    Favorite products:
    SEM 39143 Trim Black Aerosol - 15 oz. https://www.amazon.com/dp/B000EM019O

    Favorite detailing products:
    Adams Graphene liquid wax https://www.autozone.com/wash-clean...polishes-graphene-liquid-wax-16oz/1173219_0_0

    Adams Graphene Tire Dressing https://www.amazon.com/Adams-Graphene-Tire-Dressing-Combo/dp/B08NVZT8V3

    303 AeroSpace Protectant https://www.amazon.com/303-30313-CSR-Protectant-Plastic-Fiberglass/dp/B00KN0UOEE
