Tundra Bed to Axle alignment?

Discussion in 'General Tundra Discussion' started by 1794TRD, May 9, 2018.

?

What would you do to address the bed issue?

  1. Contact the factory, complain, and see if they will make this right (I have 44,000 miles on truck, s

    1 vote(s)
    10.0%
  2. Call the dealership and inquire if they can assist with the issue?

    7 vote(s)
    70.0%
  3. Knock the bed coating off the bed bolts and try to adjust myself, and then respray with some ra

    2 vote(s)
    20.0%
  1. May 9, 2018 at 3:14 PM
    #1
    1794TRD

    1794TRD [OP] It is, what it is!

    Joined:
    Oct 3, 2017
    Member:
    #10050
    Messages:
    122
    Little Rock, AR
    Vehicle:
    2015 Super White II TUNDRA 1794
    TRD EXHAUST TRD INTAKE Lift 3” front 1.5” rear TRD SKIDPLATE UNIFLEX TRIFOLD BED COVER UNIFLEX SWINGBOX POP & LOCK POWER TAILGATE LOCK TUNDRA BED LIGHTS LED HEADLIGHTS / FOG LIGHTS / PUDDLE LIGHTS / INTERIOR LIGHTS WHITE DOOR HANDLES WHITE MIRROR COVERS TOYTEC BOSS REAR SHOCKS CRUX AVITY-01 VIDEO INTERFACE AJT KEY FOB COVER
    Hello All... Help Please...

    First of all, I would like to know if other Tundra owners are experiencing their truck bed being installed further to one side of the vehicle than the other directly from the factory? Has anyone experienced the rear axle not centered under the truck?

    If you haven't looked at this closely on your truck, you may want to...

    I am looking for a little guidance on what I should do to resolve an issue. Keep in mind I have been running factory wheels with factory +60 offset, so I was tuned to my wheels always being tucked well inside the fenders. Two months ago I purchased new wheels and tires for my tundra. the wheels are a +15 offset, so they protrude slightly outside the fender.

    So a couple of days ago I was out in the garage walking by my truck, which is a 2015 Toyota Tundra 1794, and something caught my eye that stood out to me. Upon further investigation, I noticed the passenger rear tire protruding slightly farther beyond the fender than the Driver side rear. It was really noticeable, so I performed a few measurements and this is what I discovered:

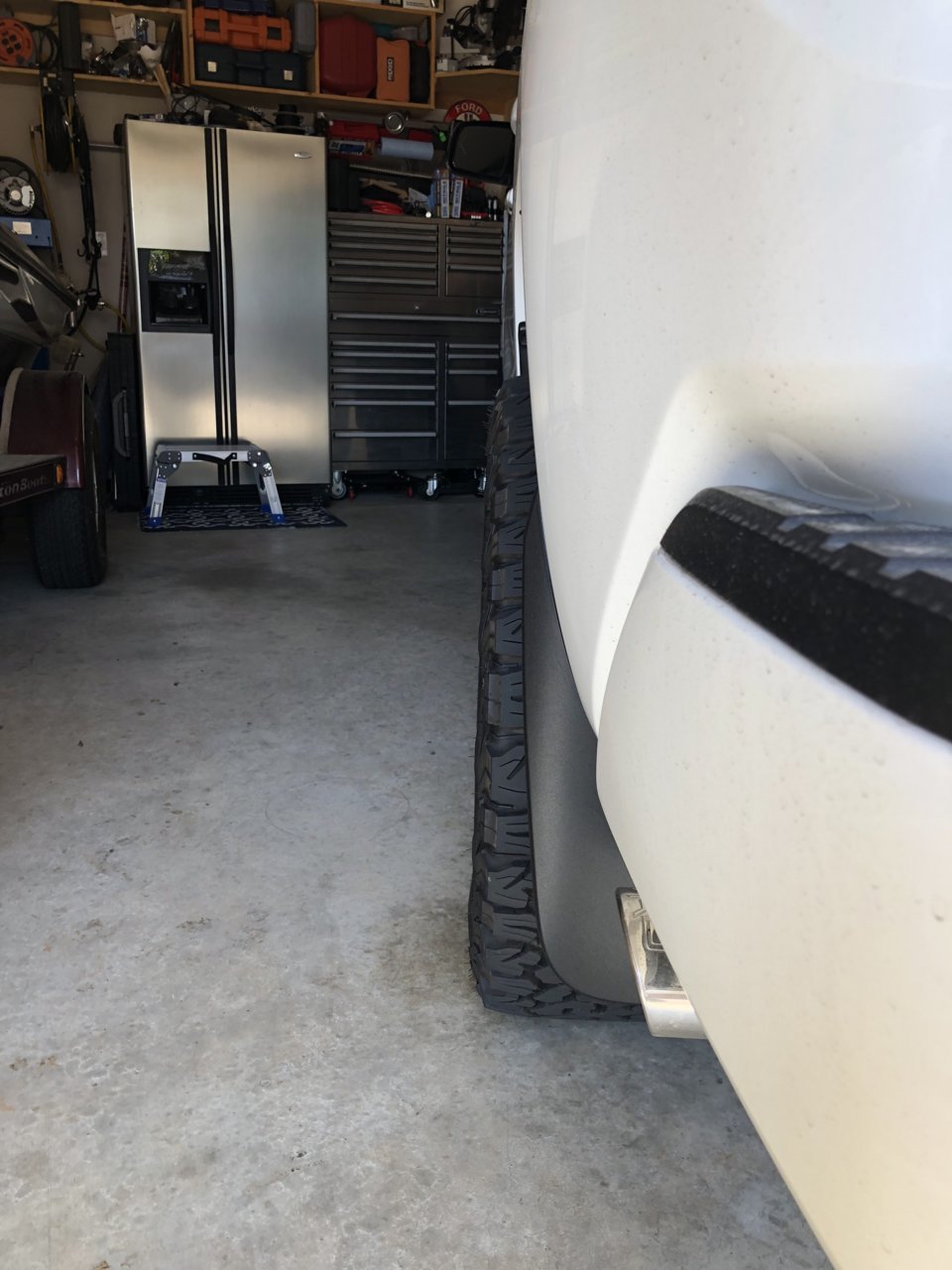

    IMG_0776.jpg The passenger side rear tire...

    Rear Passenger outer tire distance to fender: almost 1 .25"


    The Driver side rear.

    Rear Driver outer tire distance to fender: almost 0.75"

    It appears the bed was mounted offset more to the driver side from the factory. It has to be the bed because I measured frame to wheel and it came out almost exactly the same for both sides. That leaves only the bed position to blame, right?

    This is annoying me now that I have noticed it.... I really don't want to unbolt the bed bolts to try and adjust it because I have a spray in Bed liner and will have to remove the coating around the bolts to loosen them...

    Should I contact the factory, complain, and see if they will make this right (I have 44,000 miles on truck, so out of waranty)?

    Should I call the dealership and inquire if they can assist with the issue?

    Should I just knock the bed coating off the bed bolts and try to adjust myself, and then respray with some rattle can bed liner? Whats the difficulty with this?

    Looking for thoughts/ideas on how to handle....


    Attached Files:

  2. May 9, 2018 at 3:34 PM
    #2
    blizz86

    blizz86 New Member

    Joined:
    Apr 13, 2016
    Member:
    #3120
    Messages:
    526
    Gender:
    Male
    Loads of our tundras have a small difference like what you have here, its just even further exaggerated by our lifts/wheels. Doesn't hurt to try going to the dealership but i highly doubt they will do anything.

    14burrito likes this.
  3. May 9, 2018 at 3:47 PM
    #3
    Casper3

    Casper3 Slow down, let the MGM's catch up.

    Joined:
    Oct 27, 2017
    Member:
    #10570
    Messages:
    1,658
    Gender:
    Male
    First Name:
    Jay
    CT
    Vehicle:
    2017 Super White 5.7 SR5 TRD off road
    All our trucks are like that, axle is offset on purpose. Do a quick search:thumbsup:

  4. May 9, 2018 at 3:55 PM
    #4
    1794TRD

    1794TRD [OP] It is, what it is!

    Joined:
    Oct 3, 2017
    Member:
    #10050
    Messages:
    122
    Little Rock, AR
    Vehicle:
    2015 Super White II TUNDRA 1794
    TRD EXHAUST TRD INTAKE Lift 3” front 1.5” rear TRD SKIDPLATE UNIFLEX TRIFOLD BED COVER UNIFLEX SWINGBOX POP & LOCK POWER TAILGATE LOCK TUNDRA BED LIGHTS LED HEADLIGHTS / FOG LIGHTS / PUDDLE LIGHTS / INTERIOR LIGHTS WHITE DOOR HANDLES WHITE MIRROR COVERS TOYTEC BOSS REAR SHOCKS CRUX AVITY-01 VIDEO INTERFACE AJT KEY FOB COVER
    will do a search. I spoke with Toyota briefly and they of course had no comments other than recommendations to bring to a dealership to have them look at it...

    do you know if there is any adjustment in the bed bolts that woulds allow me to bump the bed over slightly if I just loosen them?

  5. May 9, 2018 at 4:02 PM
    #5
    Casper3

    Casper3 Slow down, let the MGM's catch up.

    Joined:
    Oct 27, 2017
    Member:
    #10570
    Messages:
    1,658
    Gender:
    Male
    First Name:
    Jay
    CT
    Vehicle:
    2017 Super White 5.7 SR5 TRD off road
    Never messed with bed/bolts, I would think the holes in frame or bed would have to be slotted to get any adjustment out of em. :notsure: crawl under and take a quick look

  6. May 9, 2018 at 4:24 PM
    #6
    1794TRD

    1794TRD [OP] It is, what it is!

    Joined:
    Oct 3, 2017
    Member:
    #10050
    Messages:
    122
    Little Rock, AR
    Vehicle:
    2015 Super White II TUNDRA 1794
    TRD EXHAUST TRD INTAKE Lift 3” front 1.5” rear TRD SKIDPLATE UNIFLEX TRIFOLD BED COVER UNIFLEX SWINGBOX POP & LOCK POWER TAILGATE LOCK TUNDRA BED LIGHTS LED HEADLIGHTS / FOG LIGHTS / PUDDLE LIGHTS / INTERIOR LIGHTS WHITE DOOR HANDLES WHITE MIRROR COVERS TOYTEC BOSS REAR SHOCKS CRUX AVITY-01 VIDEO INTERFACE AJT KEY FOB COVER
    Yeah, I found mention of this issue upon a google search. wondering now if both bed and cab is misaligned...

  7. May 9, 2018 at 4:45 PM
    #7
    blizz86

    blizz86 New Member

    Joined:
    Apr 13, 2016
    Member:
    #3120
    Messages:
    526
    Gender:
    Male
    Iirc it’s not the bed bolts that you adjust. It’s the axle alignment with the springs

    JohnLakeman and Black Wolf like this.
  8. May 9, 2018 at 4:47 PM
    #8
    1794TRD

    1794TRD [OP] It is, what it is!

    Joined:
    Oct 3, 2017
    Member:
    #10050
    Messages:
    122
    Little Rock, AR
    Vehicle:
    2015 Super White II TUNDRA 1794
    TRD EXHAUST TRD INTAKE Lift 3” front 1.5” rear TRD SKIDPLATE UNIFLEX TRIFOLD BED COVER UNIFLEX SWINGBOX POP & LOCK POWER TAILGATE LOCK TUNDRA BED LIGHTS LED HEADLIGHTS / FOG LIGHTS / PUDDLE LIGHTS / INTERIOR LIGHTS WHITE DOOR HANDLES WHITE MIRROR COVERS TOYTEC BOSS REAR SHOCKS CRUX AVITY-01 VIDEO INTERFACE AJT KEY FOB COVER
    woah.. Please do explain how to do this?:bowdown:

  9. May 9, 2018 at 10:48 PM
    #9
    blizz86

    blizz86 New Member

    Joined:
    Apr 13, 2016
    Member:
    #3120
    Messages:
    526
    Gender:
    Male
    I don’t know the specifics but I remember reading through a Tacoma forum thread about this same issue. Es normal

  10. Jan 5, 2019 at 1:12 PM
    #10
    Silv333

    Silv333 Patriot

    Joined:
    Jun 14, 2018
    Member:
    #16153
    Messages:
    909
    Gender:
    Male
    NJ-NC-MD-NC
    Vehicle:
    2018 Cement Crewmax TRD Off Road
    Hey guys, wondering if theres a fix for this. Just got a little lift with new tires and wheels and now it is noticeable. The tire on the right sticks out further than the tire on the drivers side.

  11. Feb 14, 2019 at 1:08 AM
    #11
    tundraforme

    tundraforme New Member

    Joined:
    Sep 2, 2018
    Member:
    #18917
    Messages:
    224
    Gender:
    Female
    First Name:
    Em
    Vancouver, BC
    Vehicle:
    2018 Tundra TRD Off Road Quicksand
    I posted about this a few months back and heard nothing but (sorry!) I'm glad I'm not the only one. We checked the offsets, and then the shop tried to blame it on the bed alignment - but went to the dealership and measured it out with the tech. Only came to less than a 1/4" that he could move the bed. With the new info above I'm going to go back to a different shop and the dealership and see if they can't centre it for me. You but a $50k truck - you would think this wouldn't be a thing....

  12. Feb 14, 2019 at 3:27 AM
    #12
    zombie

    zombie Master at Something

    Joined:
    Feb 10, 2018
    Member:
    #12803
    Messages:
    507
    Gender:
    Male
    First Name:
    paul
    Rhode Island
    Vehicle:
    2007 Black DC 4x4
    I'm not seeing a bed alignment, but more so an axle alignment. Nice garage fridge by the way.

    15whtrd likes this.
  13. Feb 14, 2019 at 3:53 AM
    #13
    Spoony1

    Spoony1 New Member

    Joined:
    Jul 24, 2016
    Member:
    #3983
    Messages:
    126
    Gender:
    Male
    Vehicle:
    2016 tundra platinum crewmax
    Trd pro grill color match door handles and mirror. 4 1/2 bds lift
    I had that same problem after my lift and new tires. It drove me crazy so I bought 3/4” bora bolt on spacers and only put 3 on the rear drivers doesn’t have a spacer now everything lined up great.

  14. Feb 14, 2019 at 5:49 AM
    #14
    Silv333

    Silv333 Patriot

    Joined:
    Jun 14, 2018
    Member:
    #16153
    Messages:
    909
    Gender:
    Male
    NJ-NC-MD-NC
    Vehicle:
    2018 Cement Crewmax TRD Off Road
    Thing that’s driving me nuts is just the one tire sticks out further than the others. I prefer them to not be sticking out, or I’d just do spacers and get them all to match.

    I’d like to know what the dealer will say or what they’ll do. Please keep us informed @tundraforme .

  15. Feb 14, 2019 at 6:26 AM
    #15
    tundraforme

    tundraforme New Member

    Joined:
    Sep 2, 2018
    Member:
    #18917
    Messages:
    224
    Gender:
    Female
    First Name:
    Em
    Vancouver, BC
    Vehicle:
    2018 Tundra TRD Off Road Quicksand
    It will likely be next week before I can get over there - shift work.

    I thought about spacers but I know of a couple guys that had them fail up in the mountains here so I'd want to do a bit more research before throwing them on, especially because it would be just the one side.

  16. Feb 14, 2019 at 8:32 AM
    #16
    joonbug

    joonbug bacon

    Joined:
    Oct 13, 2015
    Member:
    #1948
    Messages:
    15,392
    Gender:
    Male
    First Name:
    Joon
    NorCal - Dublin
    Vehicle:
    2020 Limited DoubleCab
    Every Tundra I’ve seen does this. The passenger rear wheel sticks out a little. My bed is offset to one side a little too. If it were on straight, that wheel would pop out even more.

    GodlessPro and Casper3 like this.
  17. Feb 14, 2019 at 10:47 AM
    #17
    mtTundra

    mtTundra New Member

    Joined:
    Nov 14, 2017
    Member:
    #10958
    Messages:
    372
    Gender:
    Male
    First Name:
    Matt
    Bozeman MT
    Vehicle:
    2016 Platinum 4X4, 1997 Tacoma 4x4
    Go-Rhino Bumper, FRAC Harness, VLED puddle lights, Decked Bed Drawers, King OEM Coilovers, SPOD control, Baja Designs lights, etc. etc. etc.
    I have the same issue. noticed after installing my lift / tires.
    Its normal - i've also seen dozens of tundras around my area with the same thing.
    As others said if the truck is tracking straight i'd be hesitant to make changes to your axle alignment.
    If you think its the bed check the gap between the cab and the bed on both sides.

  18. Feb 14, 2019 at 11:18 AM
    #18
    15whtrd

    15whtrd Mr. Blonde

    Joined:
    Sep 20, 2015
    Member:
    #1829
    Messages:
    8,721
    Gender:
    Male
    First Name:
    Sean
    SoCal
    Vehicle:
    White 2015 Tundra DC SR5 TRD 4x4 5.7L, White 2003 Sequoia 2WD
    TRD Pro suspension, +2 Coachbuilder shackles, 2015 TRD Pro headlights, 20% ceramic tinted windows, charcoal filter delete, aFe drop in pro s dry air filter, TRD airflow accelerator, TRD oil fill cap, TRD 18 psi radiator cap, BDX Bullydog tuner, Weathertech floor mats front and rear, rear seat fold down mod, Tyger soft tonneau cover, Linex with uv protection, TRD swaybar, TRD center caps, TRD Pro grille insert, aluminum oil filter canister, Real truck tailgate seal, Pop-n-lock tailgate lock actuator, rear diff breather relocate, RCI front skid plate.
    One of the first things I did was loosen up my bed when I got the truck home and realign it the best I could. Not with the axle but with the cab. Then I adjusted my rear bumper to make it as closest possible to square. I don’t even look at it anymore.

  19. Feb 19, 2019 at 10:01 PM
    #19
    Silv333

    Silv333 Patriot

    Joined:
    Jun 14, 2018
    Member:
    #16153
    Messages:
    909
    Gender:
    Male
    NJ-NC-MD-NC
    Vehicle:
    2018 Cement Crewmax TRD Off Road
    Any updates?

  20. Feb 20, 2019 at 7:21 AM
    #20
    tundraforme

    tundraforme New Member

    Joined:
    Sep 2, 2018
    Member:
    #18917
    Messages:
    224
    Gender:
    Female
    First Name:
    Em
    Vancouver, BC
    Vehicle:
    2018 Tundra TRD Off Road Quicksand
    not yet! we had a holiday here and I'm back at work

  21. Feb 20, 2019 at 7:22 AM
    #21
    Silv333

    Silv333 Patriot

    Joined:
    Jun 14, 2018
    Member:
    #16153
    Messages:
    909
    Gender:
    Male
    NJ-NC-MD-NC
    Vehicle:
    2018 Cement Crewmax TRD Off Road
    10-4, can’t wait to hear what the dealer says.

  22. Mar 10, 2019 at 8:32 AM
    #22
    tundraforme

    tundraforme New Member

    Joined:
    Sep 2, 2018
    Member:
    #18917
    Messages:
    224
    Gender:
    Female
    First Name:
    Em
    Vancouver, BC
    Vehicle:
    2018 Tundra TRD Off Road Quicksand
    so I finally got my ass into the dealership and spoke with their head technician who confirmed that axle is off, but they won't do anything about it! I'm not going to be putting in spacers on the one side - not worth the risk if something happens as I do offroad/camp alone way too often

    interestingly he said that Toyotas are the best out of all the trucks for this (they won't QC something that Ford/Chev/Dodge would).

  23. Mar 10, 2019 at 9:01 AM
    #23
    Silv333

    Silv333 Patriot

    Joined:
    Jun 14, 2018
    Member:
    #16153
    Messages:
    909
    Gender:
    Male
    NJ-NC-MD-NC
    Vehicle:
    2018 Cement Crewmax TRD Off Road
    Thanks for the update! So what else did the tech tell you? Anything else effected?

  24. Mar 10, 2019 at 9:02 AM
    #24
    tundraforme

    tundraforme New Member

    Joined:
    Sep 2, 2018
    Member:
    #18917
    Messages:
    224
    Gender:
    Female
    First Name:
    Em
    Vancouver, BC
    Vehicle:
    2018 Tundra TRD Off Road Quicksand
    no, he said alignment won't be an issue. I'm taking it to a reputable shop here anyway out of sheer curiosity to have it checked out. I have a major road trip coming up in a month so I want all my little ticky boxes checked.

    I'll post if they say any differently

  25. Mar 10, 2019 at 9:04 AM
    #25
    Silv333

    Silv333 Patriot

    Joined:
    Jun 14, 2018
    Member:
    #16153
    Messages:
    909
    Gender:
    Male
    NJ-NC-MD-NC
    Vehicle:
    2018 Cement Crewmax TRD Off Road
    Please post whatever they say! You’re doing me a solid by having it checked out and it might save me some moolah!

  26. Mar 10, 2019 at 9:05 AM
    #26
    tundraforme

    tundraforme New Member

    Joined:
    Sep 2, 2018
    Member:
    #18917
    Messages:
    224
    Gender:
    Female
    First Name:
    Em
    Vancouver, BC
    Vehicle:
    2018 Tundra TRD Off Road Quicksand
    will do :thumbsup:

    Silv333 likes this.
  27. Mar 12, 2019 at 5:25 PM
    #27
    tundraforme

    tundraforme New Member

    Joined:
    Sep 2, 2018
    Member:
    #18917
    Messages:
    224
    Gender:
    Female
    First Name:
    Em
    Vancouver, BC
    Vehicle:
    2018 Tundra TRD Off Road Quicksand
    alright - so have had an off day and will apologize in advance if this doesn't make sense.

    Alignment guy (who is AMAZING by the way - my truck drives better than it did new I $hit you not), said that my axle is totally within the acceptable range. he said it was at .3. he said if it was even at .4, .5 or .6, he'd be recommending me to bring it in to have it adjusted. Now, he said at .3, nothing will be affected: not tire life, not alignment, nothing. But, he said that if I want to keep the truck forever (like hundreds of thousands of KMs which I plan on doing **edit: sorry put that in miles), I should get it adjusted. So when I'm back from vacation, it is going in for another hour to be adjusted. I had a really bad headache by the time I was leaving his shop so I only remember parts of what he said but he will adjust the dowels on both sides, one out and one in. might be .1 off is what he said but he should get is pretty darn close.

    I will post before and after pics when it gets done.

  28. Mar 12, 2019 at 6:04 PM
    #28
    conlons26

    conlons26 High speed dirt mobile

    Joined:
    Jan 6, 2019
    Member:
    #24040
    Messages:
    225
    Gender:
    Male
    Raleighwood, NC
    Vehicle:
    2018 Quiksand Limited CM
    King 2.5's, Toytec shackles, FN BFD 18", 295/70r18 NItto Ridge Grapplers, Dirty Deeds 8" SS, no more chrome, 17' pro grill, Husky mats, TRD Pro shifter + 15hp...
    Are we talking thrust angles?

  29. Mar 12, 2019 at 6:19 PM
    #29
    tundraforme

    tundraforme New Member

    Joined:
    Sep 2, 2018
    Member:
    #18917
    Messages:
    224
    Gender:
    Female
    First Name:
    Em
    Vancouver, BC
    Vehicle:
    2018 Tundra TRD Off Road Quicksand
    that sounds right! sorry - full migraine mode now ugh

  30. Mar 12, 2019 at 7:41 PM
    #30
    Silv333

    Silv333 Patriot

    Joined:
    Jun 14, 2018
    Member:
    #16153
    Messages:
    909
    Gender:
    Male
    NJ-NC-MD-NC
    Vehicle:
    2018 Cement Crewmax TRD Off Road
    Thanks so much for sharing. Are you using a Toyota alignment guy or just a general shop?

    Please do post before and after pics and take a friend to take notes, hahahahaha. Would like to know exactly what they do for you so I can tell my guy here exactly what to do.

    THANKS AGAIN! Take some excedrin!


Products Discussed in

To Top
