Really happy with what I did it on page 18 of this thread with the trailer wiring. If you have Canbus i.e. the fancy headlights its about the only "EASY" (heavy on the quotes) that I could think of after a lot of research and pondering life choices on if I should even wire them up. Someone could start making a ready to go harness for these, but I imagine by the time you gather all the pieces and assemble it....it would still be very time consuming to make and also be very expensive by the time you factor in all the labor it takes to make one. I think the main bottleneck would be the connectors to the lights because there is no connector available off the shelf that allows plug and play there. Seriously considered starting to make some but after all the time it took me to put it together I wouldn't want to set my self up for that kind of torture.



Hahaha, no way am I attempting that. Far above my skill level and patience.



I really would love some 3d printed blanks to install in the flares instead of the lights.

I don’t plan on wiring mine up and installing as is.

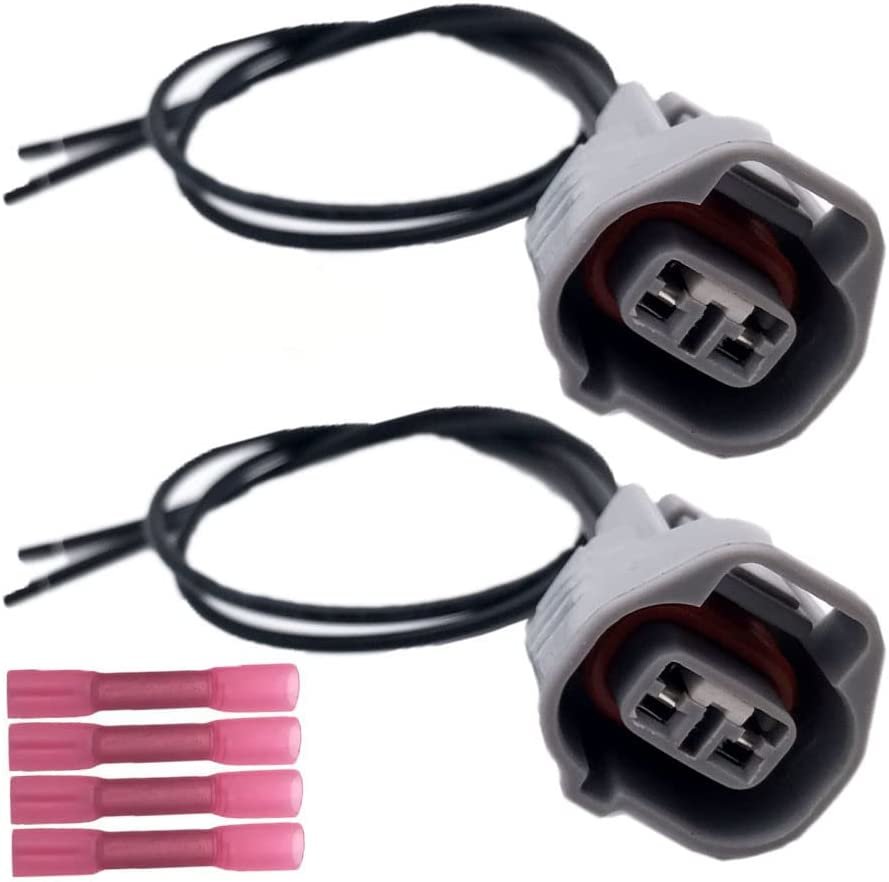

Yeah. I’m sold on what you did. My parts are coming in on Sunday. I already have plugs trimmed down and ready to splice.



No Lights for you then!!

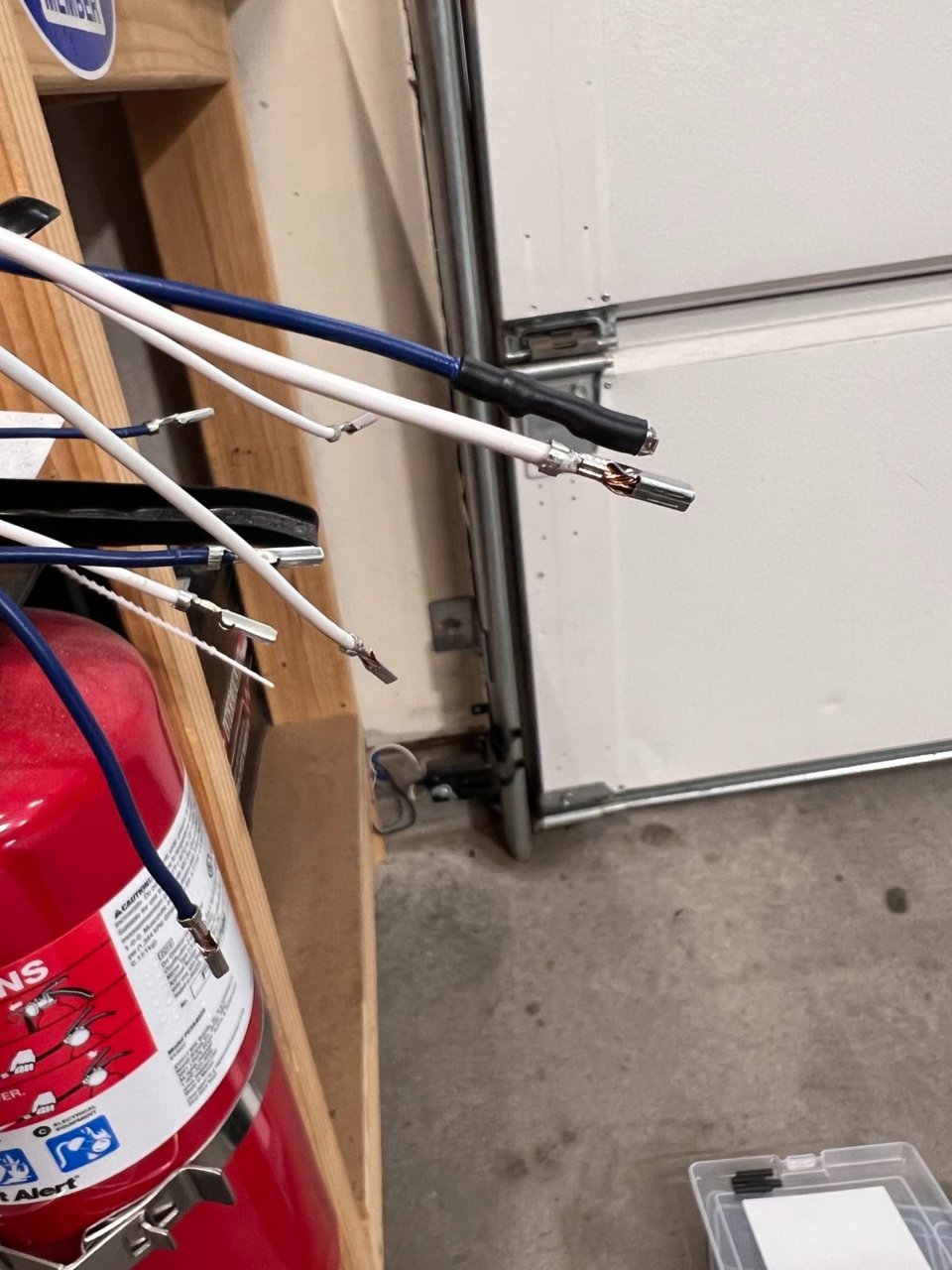

If you can splice a wire....



Hahaha! Love that movie.

Maybe I'll re-read your post a few times and reconsider....



I just installed these yesterday. They took care of the little poke I had going on. Paid $72 a piece and no shipping from my local dealer. Had them in one day.



Perfect fit! Great job they look fantastic and cover the tires perfectly. You got them for an amazing price and so much faster than most of us on the thread, nice work!
Mine are finally arriving tomorrow. Are you going to wire your lights in? That's the big question here! I think I'm going to install mine w/o wiring for now.



Being in central Arizona, I was surprised myself. I waited 6 months before I went shopping. If I hook up the lights, ill source the wire from the trailer plug. For now, they are reflectors.

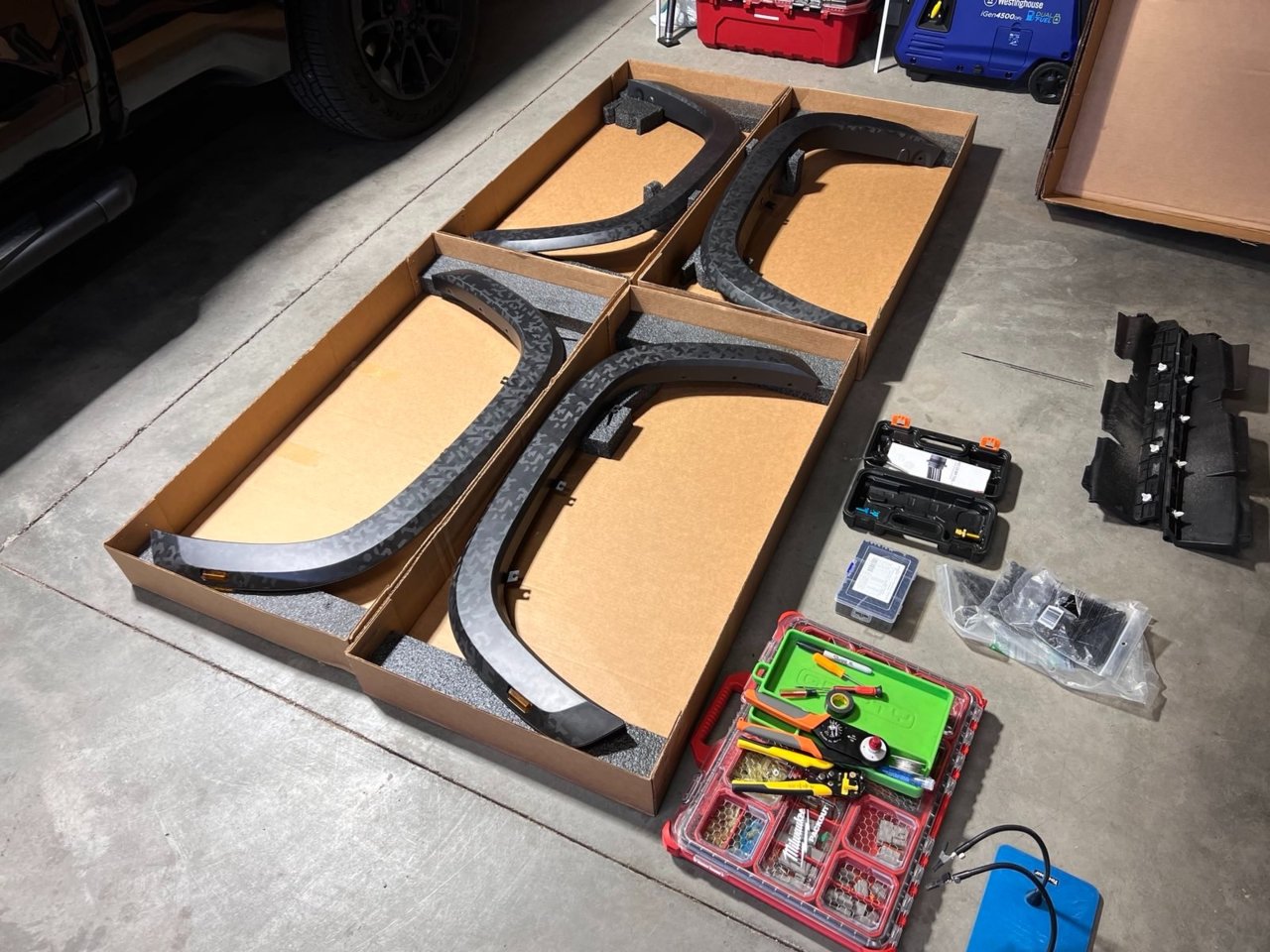

Most enjoyable install ever. Not wired for the moment, someday! But for now, absolutely in love with these! Looks and quality amazing



Nice !



Camouflage looks very impressive in sunny weather, but when it's cloudy we will turn on the lights. We look forward to continuing!



Looks good. Stock wheels right? What size tires? Do you have any unpoke (what’s the opposite of poke)?



Stock R20 TRD wheels, TRD 3” lift, BFG KO2 285/65R20.

The TRD flares feel and look amazing I keep finding myself walking around the truck admiring. I’m sure I could use spacers or install wider tires if I wanted to, but would be worried about rub. Pretty happy with the look r/n.

If I did want to fill the new space, what spacers would you recommend? Anyone who has done this I’d love pics. Past pics have shown these flares do a great job matching a good poke lol

For me this setup is great for r20 on the TRD lift b/c of no rub, and better speed and load ratings than flotation. Also listed as the largest for the TRD kit that doesn’t require dealer to make changes I didn’t want. Not sure if spacers would introduce rub w/the TRD lift.

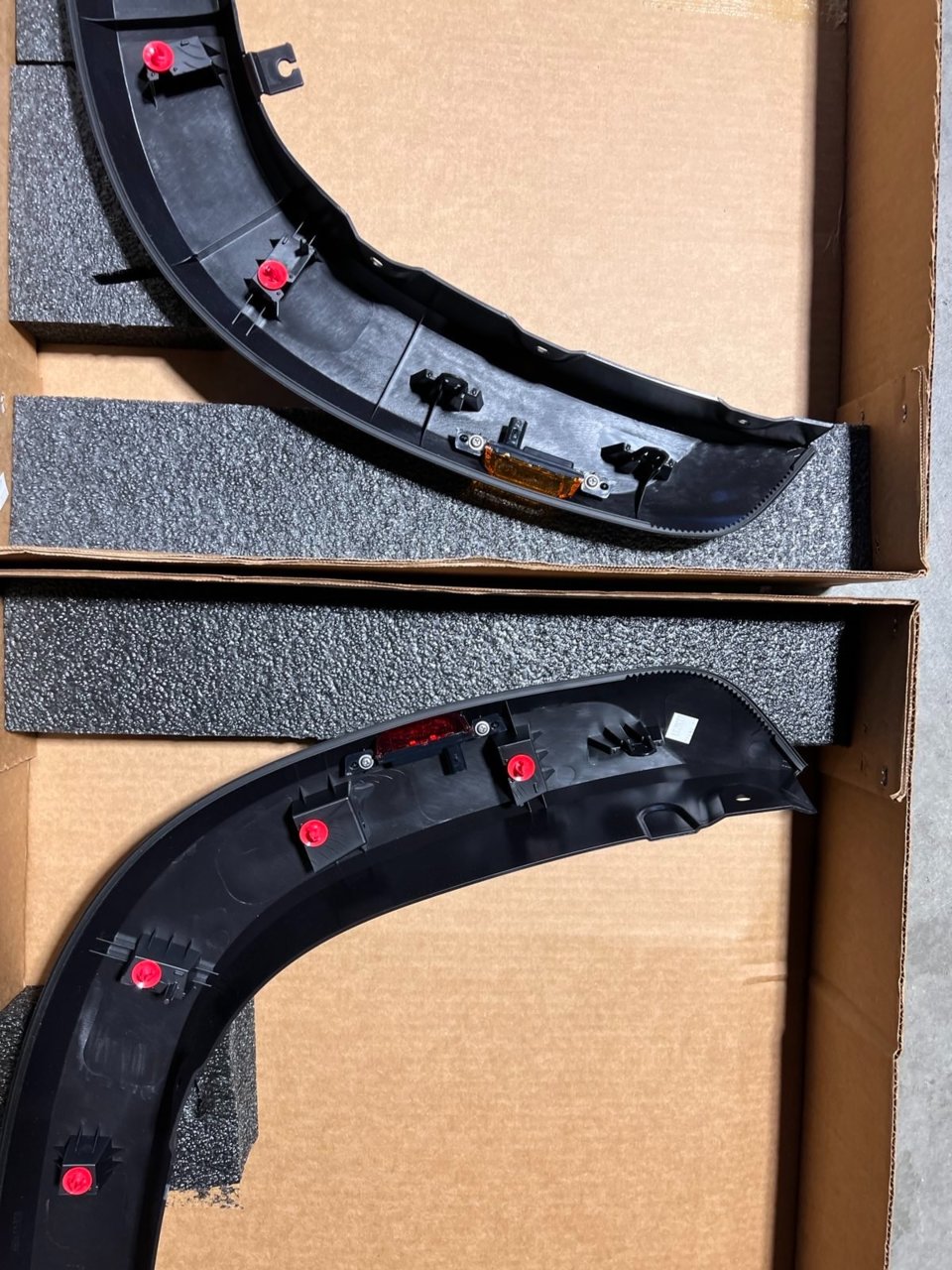

Either way these parts were worth the long wait, seamless install on the TRD OR limited. Especially cool is how there are pre-drilled slots in our trucks for the flare’s marker light housings in the wheel well! Much beefier than the flimsy (in comparison) stock parts.

PS I have my black TRD OR flares available



Cool. I also have the TRD lift - with OEM 1794 wheels, but I believe offset is the same (+60). I had bad rubbing on the sway bar with the exact same tires as you so I put spacers on which made the rubbing much better (although still slightly there). My truck is currently at the dealership for an axle issue and they are checking why I rub so bad while it is there. But putting the spacers on is what made me consider the pro flares since my tires are now out a bit. I only did 1" spacers so they are now currently about dead even with the stock flares.

I used Bora spacers as FYI and they seem very solid, but haven't driven much in them yet and if the dealer can somehow make adjustments so I do not rub without the spacers, I will probably remove them. But this is why I wondered about the wheels looking too far inset with the bigger flares. Seems like it looks good though from your experience.



Thanks cruiserhead! Cool we both have the same tire size and lift! Now you’ve got me curious about spacers! I agree that having that perfect flush fit with the flares would look great, do you have any pics you can post? So you think a 1” spacer would be good, although you mentioned that if you can figure out the rub you might remove then. I’m not familiar with the advantages/disadvantages (if any) to spacers but I will do some reading. Pls LMK what you learn re your sway bar rub and whether the spacers helped! Thanks again!

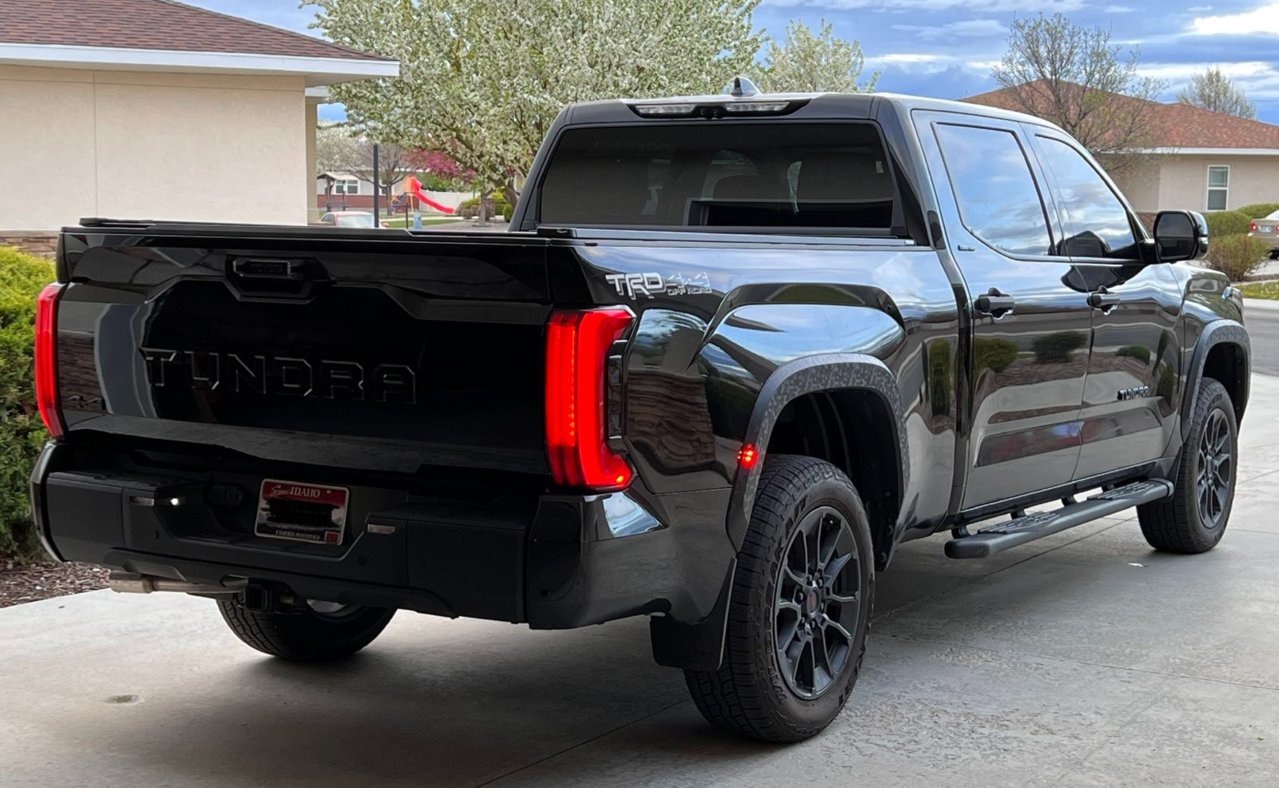

Got the flares installed, they look good! Not wired yet, bit will eventually.



here are some pics of mine now with the spacers (stock flares). Hopefully you can get a sense of it.



So apart from the added width of these flares, I noticed that the black ones I took off fit inside the crease in the fender so you have an inset crease that follows the line of the flare.

Then you put the Pro flares on and this crease is now covered and the flare has a rubber gasket that touches the fender and hides the crease. This actually changes the look of the truck sides.

Some of the blocky appearance that we like about the gen3 Tundras is smoothed out!

Just thought I would share my observation for those who haven’t installed theirs yet.



Thank you CH! I really like the look with the spacers. I think spacers make the overall effect more balanced with the TRD Pro flares. I’ve been looking at the 1” Spidertrax they look great. Some posts say they make the ride more stable with better tracking! Some posters write that spacers make the build weaker and worse for towing. Studying now!! PS this thread is awesome I love my flares



Personally, I would just prefer not to have the spacers...less things for something to go wrong. I will be doing a bit of towing as well, but for the time being I need to keep the spacers on because of the rubbing.

I agree on the look and like the slightly wider stance though. I am leaving them on for now, but likely at some point will just get some wheels with a bit more aggressive offset. I have the pro flares on order, so will see how it looks once installed!



Added PRO flares ( not wired ) and REK GEN mud flaps.

stock wheels
285/ 65 / 20 Toyo A/T 3
1” Borla spacer

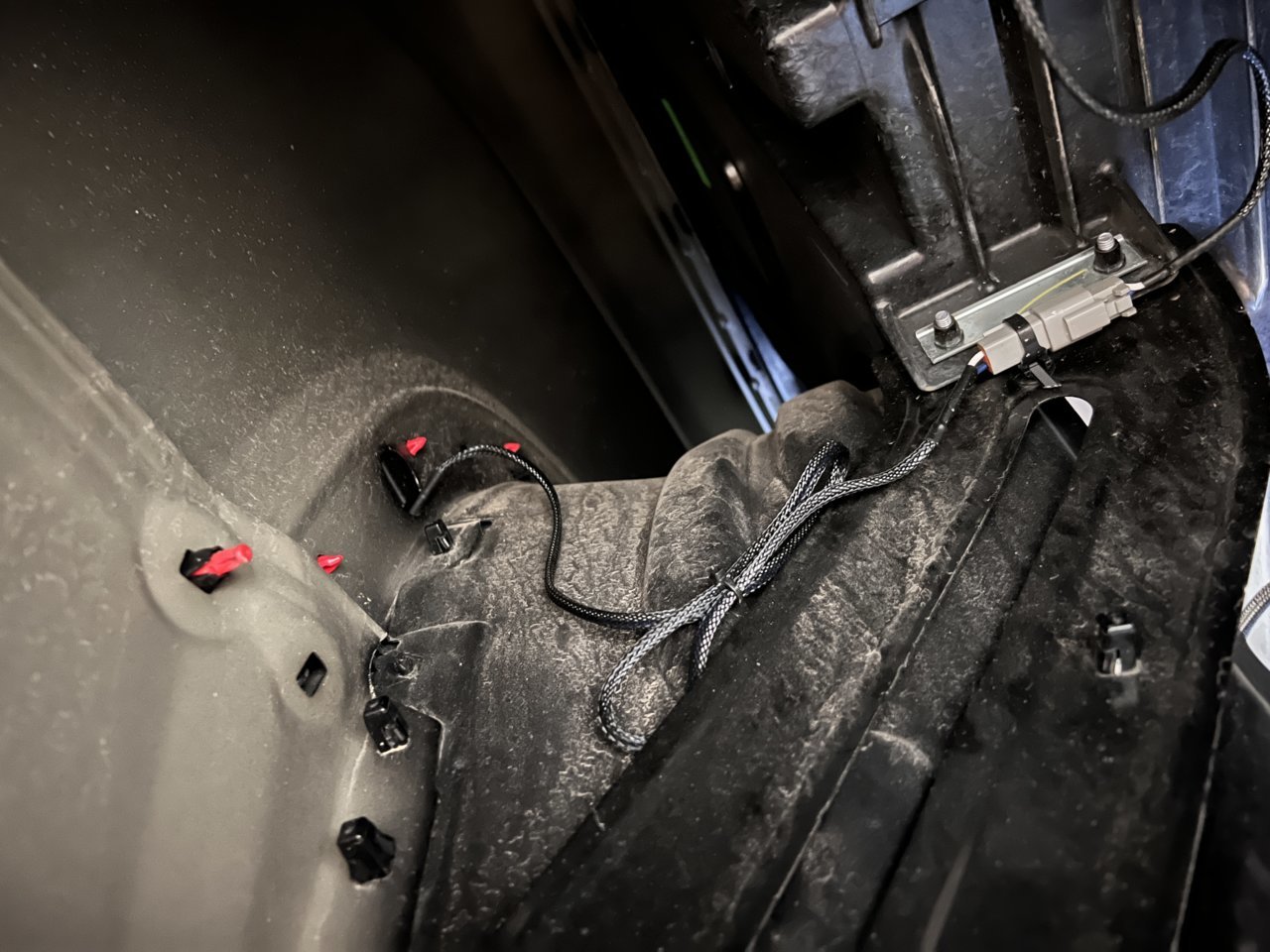

@teab Phase 1 complete (see pics)I got a late start so I will have to work on it a little throughout the week. Can’t wait to get it finished. Like you I want to see this through and not have to come back and make it look better later.



That is clean. Nice job!



Nice work. looks just like the way I did it down to where you zip tied the factory plug. Glad I could contribute something back to the forum. Always takes a long time to look good but it's worth it. I really like the look of the marker lights when they are on now that I've lived with them for a few weeks.



Looks great! I've been debating on whether or not I should run 1" spacers with my factory off-road wheels..

This Saturday I'm having a set of 285/65 R20 Mickey AT Baja Boss installed. This past weekend I installed the flairs and wow, the stock tire / wheel combo was not going to cut it IMO. Did you run your wheel and tire combo without the spacers and decide you still needed them, or were you already running the spacers?



I had the tires, level, and spacers installed all at the same time.

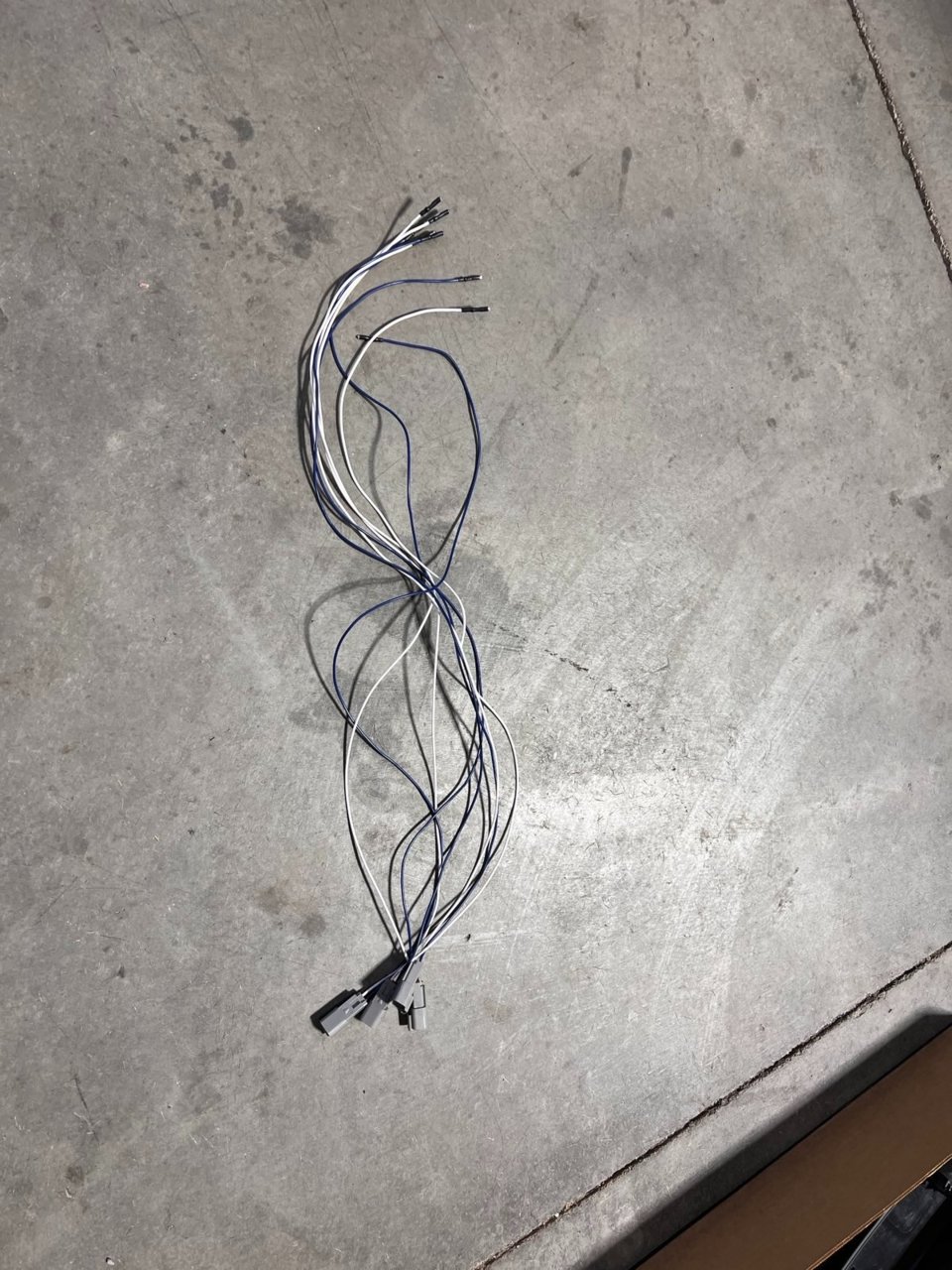

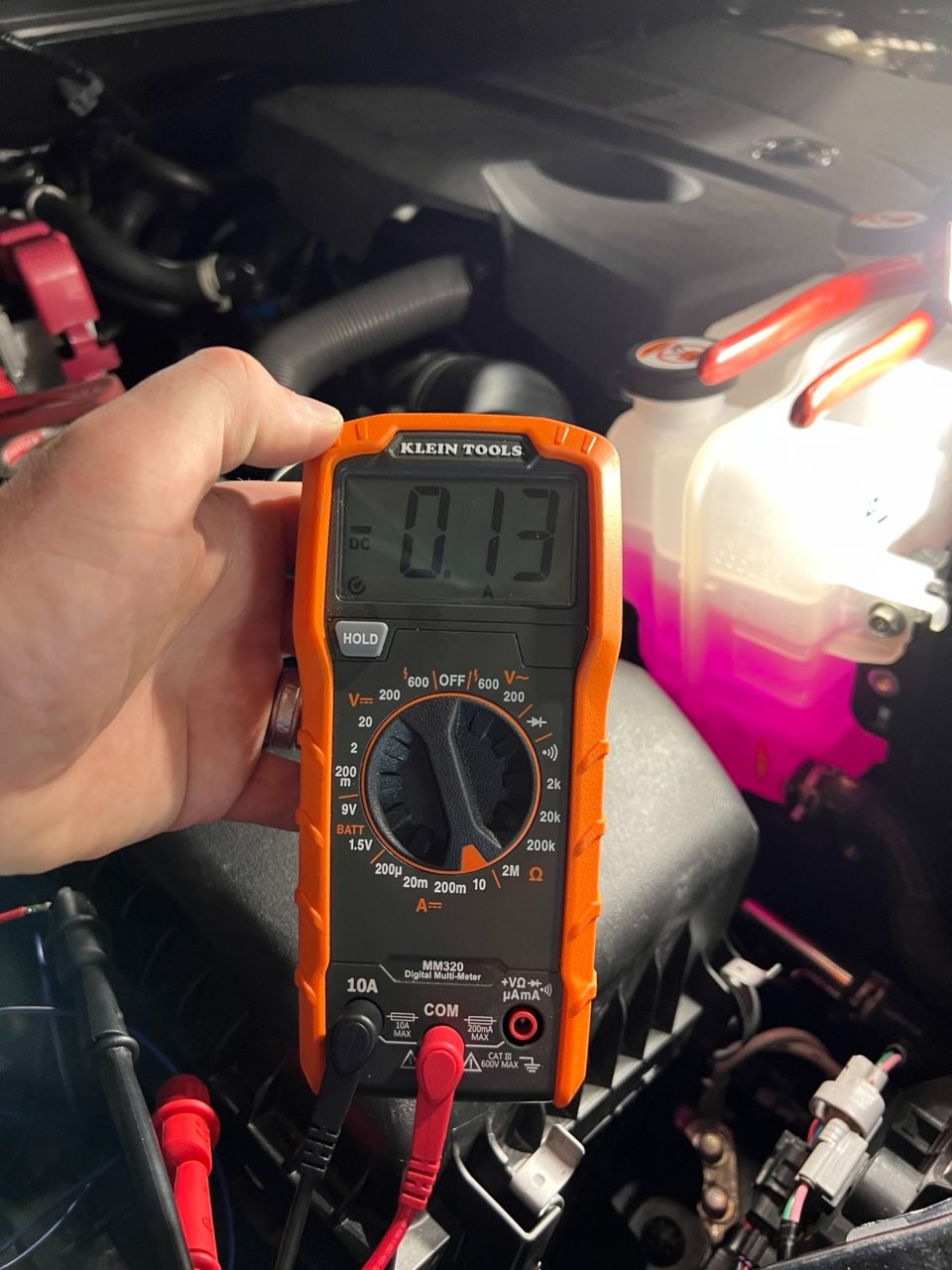

@teab Mission accomplished!! I finally had some time to run all the wires and make all the connections. I ran one wire from the driver’s side front across the grille and down the passenger side until I reached the 4 way plug. I also ran a wire from the driver side rear across the spare tire support. All lights were t-spliced into the 2-lead long wire. I made one connection to the 4-way plug and tried it out. All lights work perfectly. If anyone is wondering, the positive pin on the lights is the pin closest to the middle of the light.

To anyone looking to wire your Pro flare lights, all I can say is….

@teab is a Tundra genius.



Very nice DIY wiring jobs above!!

I see Rave has a wiring set up for the flares lights. Has any tried this route ?

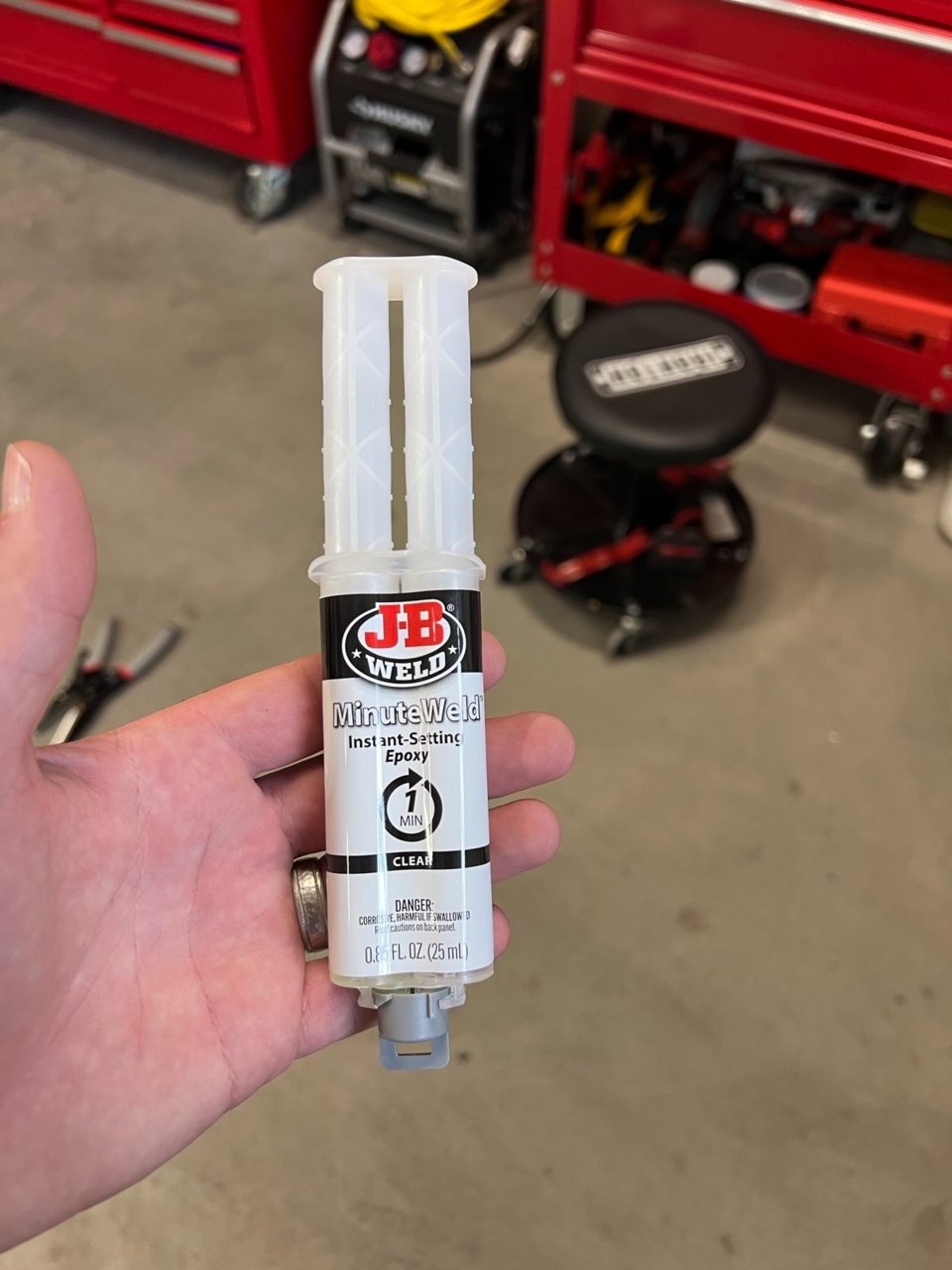

I have the Rave kit but haven't installed it yet. You get a disconnect for each flare if you ever need to take the flare off. The pin end of the wiring connect to the light and then the shrink wrap is applied. I would inject some epoxy or sealant into the end before putting the heat shrink on. The wires are intended to be permanently installed to the light and the connector sits about 10" to 12" away from the light tucked into the fender.

The other end has a fuse tap or wire tap. It is pretty easy to install these, it just depends on how you want to trigger them, that will be that hardest part of this.

I went this route because I didn't want to deal with the shaving of connectors.

When I was about to give up on my order for the flares and go with Sports, I looked at some flush mount LED's and I was going to install them into the sports. To much time thinking about lights! I need another hobby! I do like the TRD units now that I have them.
