Transfer case starts beeping then switches itself back to 2wd

Discussion in '2nd Gen Tundras (2007-2013)' started by Jhack, Jun 30, 2024.

  1. Jun 30, 2024 at 4:35 PM
    #1
    Jhack

    Jhack [OP] New Member

    Joined:
    Jun 25, 2023
    Member:
    #99186
    Messages:
    10
    Gender:
    Male
    First Name:
    Joel
    Vehicle:
    2008 Tundra
    Need help on my 4x4. I have replaced all 3 acuators. Front and back and 4 wheel still doesn't work. When I engage 4 hi the transfer case starts beeping and then switches it self back to 2 wheel. 4 low does nothing. Been trying to figure it out for months. Any help is appreciated. Thanks

  2. Jun 30, 2024 at 6:41 PM
    #2
    huntertn

    huntertn New Member

    Joined:
    Jun 23, 2019
    Member:
    #32273
    Messages:
    327
    First Name:
    Steve
    Tennessee
    Vehicle:
    2008 White CrewMax Limited 4x4
    What indication do you get on the indicator lights?

  3. Jun 30, 2024 at 7:02 PM
    #3
    Jhack

    Jhack [OP] New Member

    Joined:
    Jun 25, 2023
    Member:
    #99186
    Messages:
    10
    Gender:
    Male
    First Name:
    Joel
    Vehicle:
    2008 Tundra
    4 hi blinks when engaged.

  4. Jun 30, 2024 at 7:12 PM
    #4
    koditten

    koditten New Member

    Joined:
    Apr 6, 2018
    Member:
    #14241
    Messages:
    1,465
    Gender:
    Male
    Have you tried switching it to 4 wheel drive with just the key on, but the truck not running?

  5. Jun 30, 2024 at 7:17 PM
    #5
    huntertn

    huntertn New Member

    Joined:
    Jun 23, 2019
    Member:
    #32273
    Messages:
    327
    First Name:
    Steve
    Tennessee
    Vehicle:
    2008 White CrewMax Limited 4x4
    Has the problem remained the same the whole time? In other words, it’s doing the same thing now that it did before you replaced the actuators?

    And, did it just stop working or was there something that may have caused it?

  6. Jun 30, 2024 at 7:17 PM
    #6
    Jhack

    Jhack [OP] New Member

    Joined:
    Jun 25, 2023
    Member:
    #99186
    Messages:
    10
    Gender:
    Male
    First Name:
    Joel
    Vehicle:
    2008 Tundra
    Yes. I've tried everything I can think of. It will go in to 4 hi and something in the transfer case starts beeping then automatically disengages.

  7. Jun 30, 2024 at 7:20 PM
    #7
    Jhack

    Jhack [OP] New Member

    Joined:
    Jun 25, 2023
    Member:
    #99186
    Messages:
    10
    Gender:
    Male
    First Name:
    Joel
    Vehicle:
    2008 Tundra
    Yes it has remained the same and Yes it just stop working one day.

  8. Jun 30, 2024 at 7:43 PM
    #8
    huntertn

    huntertn New Member

    Joined:
    Jun 23, 2019
    Member:
    #32273
    Messages:
    327
    First Name:
    Steve
    Tennessee
    Vehicle:
    2008 White CrewMax Limited 4x4
    The system has to go through a certain sequence. If it detects that something isn’t right, it will just go back to 2WD. But you already know that I’m sure.

    If you have a factory service manual there is a troubleshooting procedure for the 4wd system. It’s pretty decent. You could go through those steps.

    My 08 stopped working too and it turned out to be a mouse chewed thru a wire to the front ADD. I started by checking the voltages at the 4WD ECU on the passenger side behind the glove box. I wasn’t getting the correct readings. So then I just disconnected the ADD and 4WD ECU and checked continuity. Then it was just a matter of a visual check to find the broken wire.

    Based on my experience I would check continuity of the harness between the ADD and ECU and the TC actuator and 4WD ECU. It is pretty easy to do with a helper and doesn’t take very long. That would at least eliminate the wiring and it’s doesn’t cost anything but time.


    Attached Files:

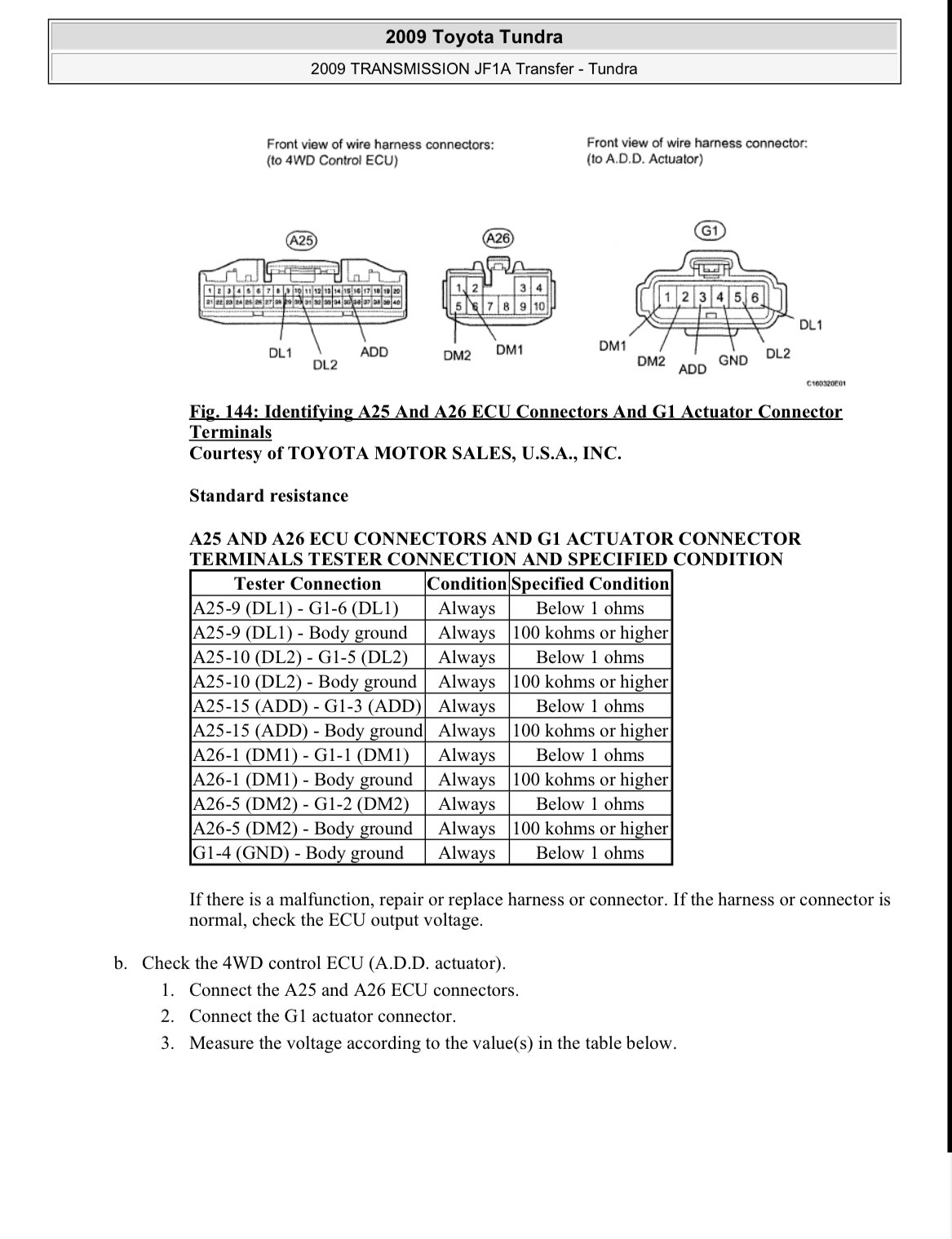

  9. Jul 1, 2024 at 11:14 AM
    #9
    Jhack

    Jhack [OP] New Member

    Joined:
    Jun 25, 2023
    Member:
    #99186
    Messages:
    10
    Gender:
    Male
    First Name:
    Joel
    Vehicle:
    2008 Tundra
    I'll try that. Thanks for your help

  10. Jul 1, 2024 at 4:43 PM
    #10
    Jhack

    Jhack [OP] New Member

    Joined:
    Jun 25, 2023
    Member:
    #99186
    Messages:
    10
    Gender:
    Male
    First Name:
    Joel
    Vehicle:
    2008 Tundra
    So did some investigating and my front acuator is not getting power. Guess I'll have to trace the wires down and hopefully find the problem.

  11. Jul 2, 2024 at 6:08 AM
    #11
    huntertn

    huntertn New Member

    Joined:
    Jun 23, 2019
    Member:
    #32273
    Messages:
    327
    First Name:
    Steve
    Tennessee
    Vehicle:
    2008 White CrewMax Limited 4x4

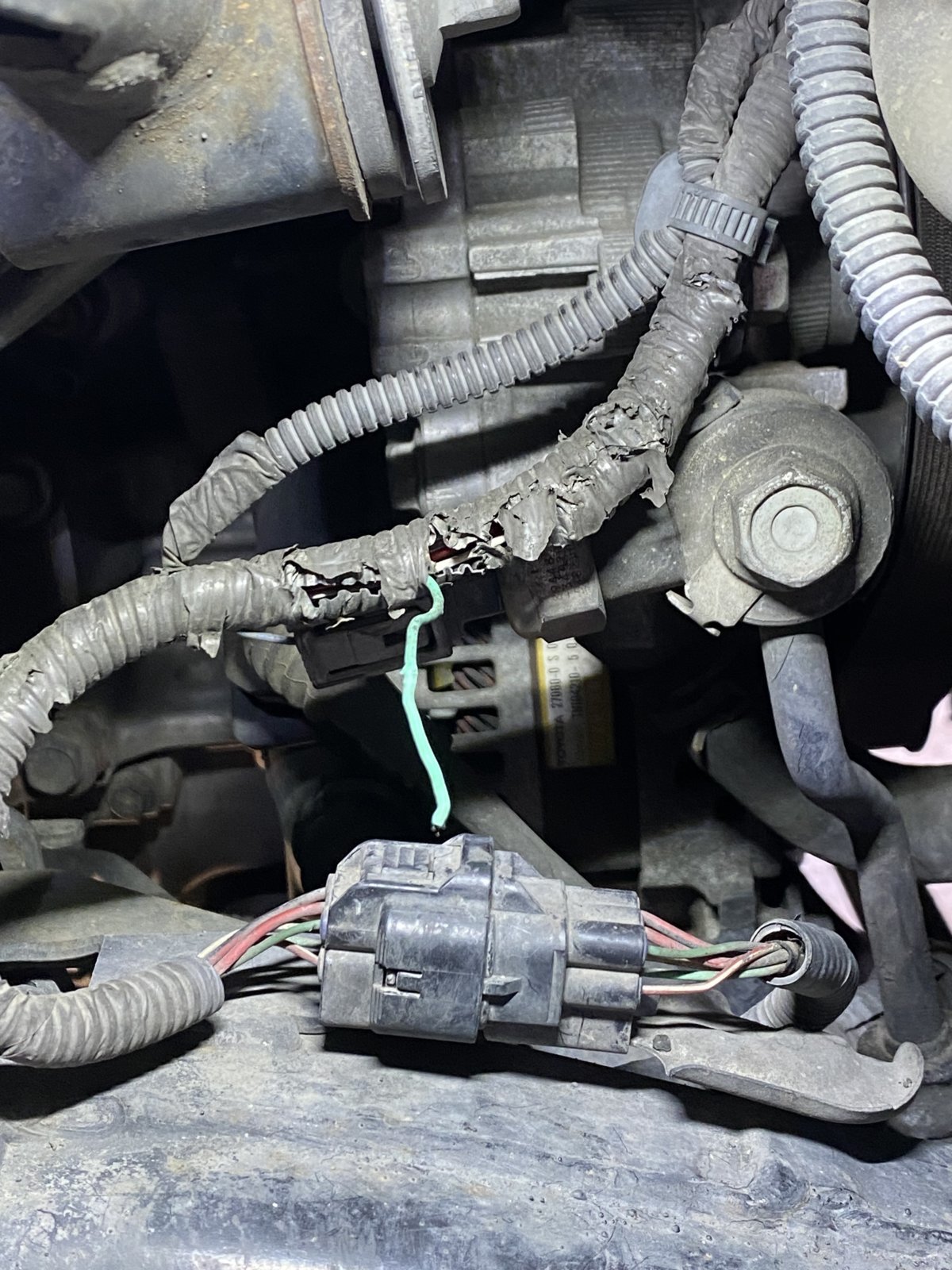

    I have an 08 too and the harness for the front ADD runs from the differential to the passengers side frame rail. You can see it on top of the frame in front of the spring mount. Then it runs up and back towards the firewall. My broken wire was visible from the passengers fender well. IMG_7374.jpg

  12. Jul 3, 2024 at 7:20 PM
    #12
    Jhack

    Jhack [OP] New Member

    Joined:
    Jun 25, 2023
    Member:
    #99186
    Messages:
    10
    Gender:
    Male
    First Name:
    Joel
    Vehicle:
    2008 Tundra
    Would you happen to have a wiring diagram for the front acuator to the main controller? I'm not finding any breaks or mice activity. I manually put a 12 volt power on the harness and it engaged in 4 wheel. I can't find any info on this. Thanks

  13. Jul 3, 2024 at 7:27 PM
    #13
    huntertn

    huntertn New Member

    Joined:
    Jun 23, 2019
    Member:
    #32273
    Messages:
    327
    First Name:
    Steve
    Tennessee
    Vehicle:
    2008 White CrewMax Limited 4x4
    Go to the “Electrical” forum. There is a sticky at the top. You will find a complete wire diagram for multiple years.

  14. Jul 3, 2024 at 7:49 PM
    #14
    Jhack

    Jhack [OP] New Member

    Joined:
    Jun 25, 2023
    Member:
    #99186
    Messages:
    10
    Gender:
    Male
    First Name:
    Joel
    Vehicle:
    2008 Tundra
    Thanks much!

  15. Jul 3, 2024 at 8:17 PM
    #15
    huntertn

    huntertn New Member

    Joined:
    Jun 23, 2019
    Member:
    #32273
    Messages:
    327
    First Name:
    Steve
    Tennessee
    Vehicle:
    2008 White CrewMax Limited 4x4

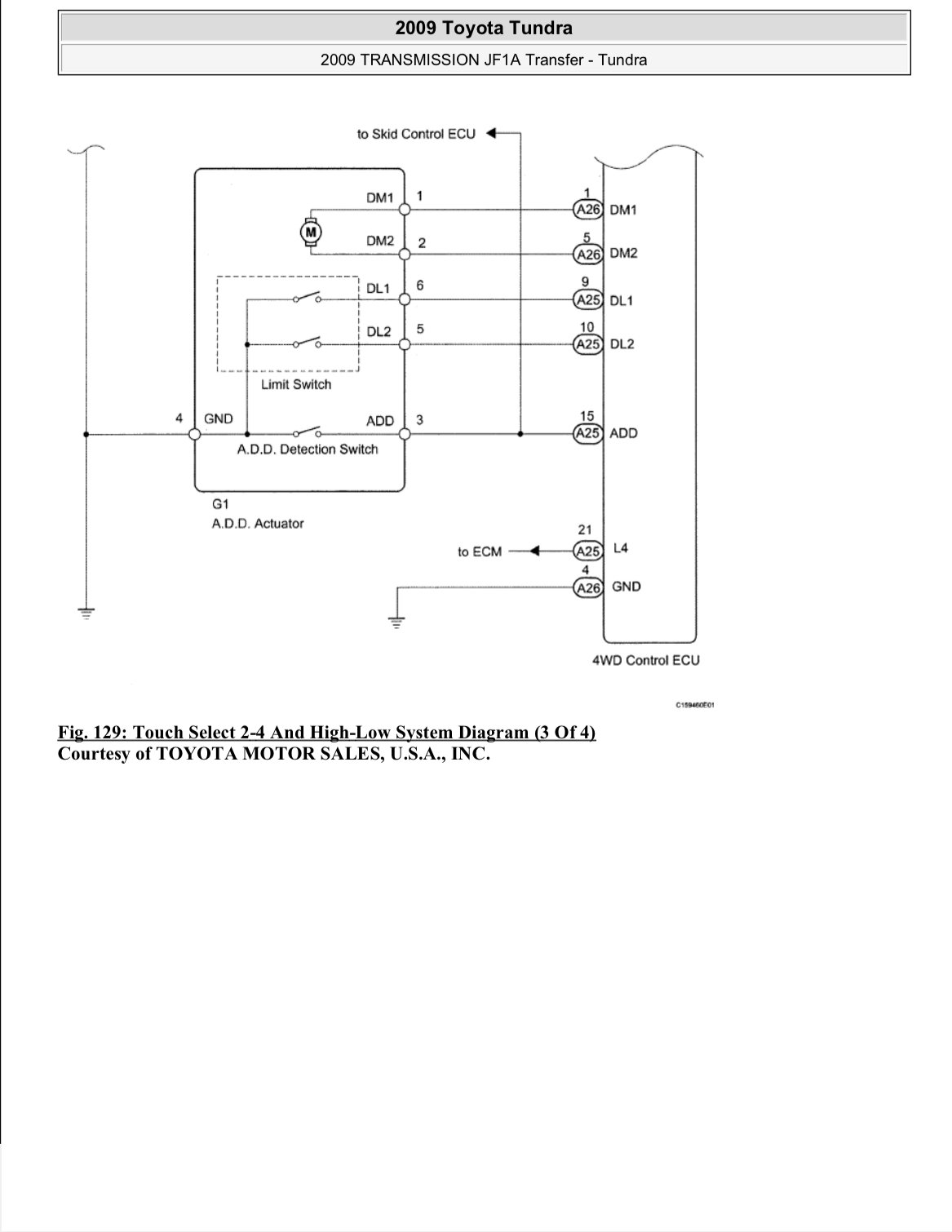

  16. Jul 5, 2024 at 12:17 PM
    #16
    Jhack

    Jhack [OP] New Member

    Joined:
    Jun 25, 2023
    Member:
    #99186
    Messages:
    10
    Gender:
    Male
    First Name:
    Joel
    Vehicle:
    2008 Tundra
    So I couldn't visually see any breaks in the wires so bought a wire tracer and that thing is a game changer. Everything checks out good. So I'm thinking it's the 4x4 module. Does anyone know if or how it can be checked out to see if it's bad? Going to be testing the abs sensors as well.
