Safari rack

Discussion in '2nd Gen Builds (2007-2013)' started by Tundra44, Dec 14, 2014.

  1. Dec 14, 2014 at 10:47 PM
    #1
    Tundra44

    Tundra44 [OP] New Member

    Joined:
    May 7, 2014
    Member:
    #401
    Messages:
    63
    Gender:
    Male
    Vehicle:
    2007 SR5 CrewMax
    King shocks front and rear, Spider trax spacers on Rock Warrior rims, Demello Off-road front bumper with Tuff Stuff 12.5 winch.
    I have been planning to build a bed rack for a while. I want to keep the truck self contained when my son and I camp. The plan is to put a roof top tent on the rack in the future.

    I originally wanted to build it all out of round tube, but we had some problems with the mandrel bender at my buddy's shop (and he only had dies for .065 wall 1.5" tubing) so I ended up using square and round. It's difficult to get the organic flow of the cab shape with the square so we didn't really try.

    The square tube is .120 wall 1.75 and the round is .120 wall 1.5. It's stout and will carry way mor weight than I could put on it. We put mounts for the Hi-lift on the driver's side and an area to mount pioneer tools on the pax side. The "shelf" between the cab top and the forward "hoop" is 1/8 stainless. I pit it there to have a spot for antennae etc. can drill it and not worry about rust.

    I ended up painting it myself instead of powder coating it. I had my sliders coated and honestly it was a waste of 200 bucks. The first time I scraped them I had to do rattle can touch up anyway. I figured I'm the rack is going to be a work in progress, so if I powder coat it, it would be a waste of about 500 bucks. I'll be grinding, adding and touching up.

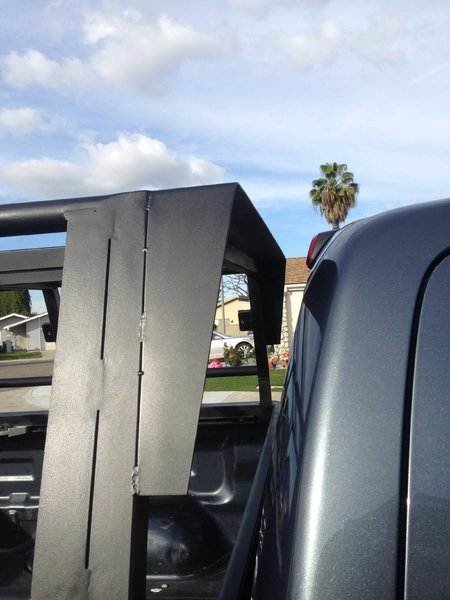

    image.jpgimage.jpg image.jpgimage.jpg
