Power source for LED bar

Discussion in 'Lighting' started by AMRE2ME2, Oct 16, 2015.

  1. Oct 16, 2015 at 4:24 AM
    #1
    AMRE2ME2

    AMRE2ME2 [OP] New Member

    Joined:
    Aug 3, 2015
    Member:
    #1609
    Messages:
    232
    Gender:
    Male
    Colorado
    Vehicle:
    2016 DC 4x4 Limited TRD
    Where is everyone taping into to get your 12volt power from? Is there a certain fuse that is better then another one to use. Want it to power off when key is off.
    And how are you taping into it? Using a fuse tap? Or do I need to run a fused wire right from the battery?

    Last edited: Oct 16, 2015
  2. Oct 16, 2015 at 6:49 AM
    #2
    csuviper

    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,283
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    I don't have a light bar yet but the proper way would be to use a relay. The main power source comes direct from the battery the secondary source that goes through the switch to the other connection on the relay would be accessory power. This power can be pulled from the fuse box under the dash. For my amp accessory power i pulled from an open slot that happened to be accessory power.

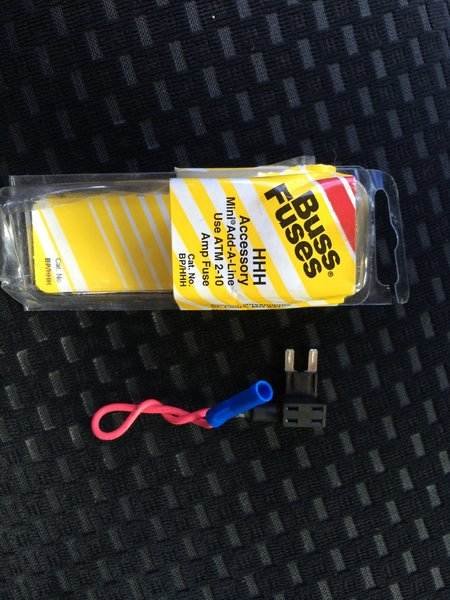

    Used one of these
    [​IMG]

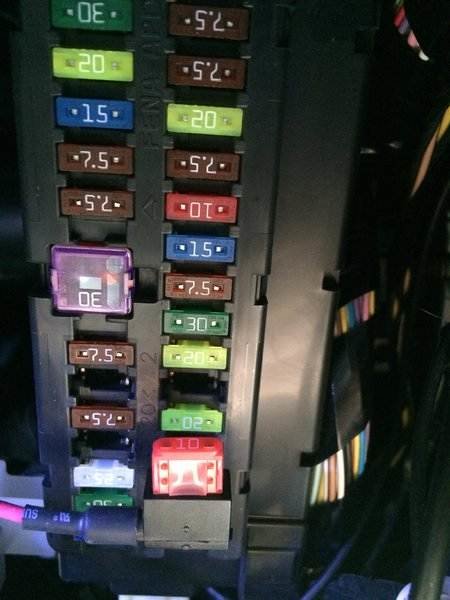

    to plug here

    [​IMG]

    Last edited: Oct 16, 2015
    831Tun likes this.
  3. Oct 16, 2015 at 8:29 AM
    #3
    Baja Designs

    Baja Designs The Scientist of Lighting Vendor

    Joined:
    Sep 15, 2015
    Member:
    #1813
    Messages:
    1,357
    Gender:
    Male
    First Name:
    Bill
    San Marcos, CA
    We advise against using an Add-A-Fuse or similar as the main power for Aux. Lights. A wiring harness w/ relay and fuse directly to the vehicles battery is the best way to go. This keeps extra strain off of the OEM electrical system. Many of the circuits were only designed for 7.5-20Amps.. Adding a light bar on top of that could overload the circuit.

    An option for you is to find a keyed 12V source and use it as the trigger for the relay. It will turn on/off when the key is on/off and will only use the OEM circuit as a trigger. Not a main power source for the light.
    Good Luck with the project!

    Thank You,
    Bailey, Baja Designs

  4. Oct 16, 2015 at 7:09 PM
    #4
    AMRE2ME2

    AMRE2ME2 [OP] New Member

    Joined:
    Aug 3, 2015
    Member:
    #1609
    Messages:
    232
    Gender:
    Male
    Colorado
    Vehicle:
    2016 DC 4x4 Limited TRD
    Thank you guys. Just the info I was looking for.

  5. Oct 17, 2015 at 10:34 AM
    #5
    TNTundra08

    TNTundra08 New Member

    Joined:
    Mar 4, 2015
    Member:
    #1027
    Messages:
    741
    Gender:
    Male
    First Name:
    Blake
    Vehicle:
    2008 DC 4x4
    3/1 lift. 20x9 Method standards, machine face. 305/55/20 nitto trail grapplers
    There is a killeeeeeeer right up on a Tacoma forum. It's saved to a computer I don't have so sorry it isn't a lot of help. If you google "how to wire LED" or something and one comes from a Tacoma forum it's probably it... You'll know bc it gives every detail possible and pictures. It's what I used to do my bars.

  6. Oct 17, 2015 at 10:40 AM
    #6
    TNTundra08

    TNTundra08 New Member

    Joined:
    Mar 4, 2015
    Member:
    #1027
    Messages:
    741
    Gender:
    Male
    First Name:
    Blake
    Vehicle:
    2008 DC 4x4
    3/1 lift. 20x9 Method standards, machine face. 305/55/20 nitto trail grapplers
    NewImprovedRon likes this.
  7. Oct 17, 2015 at 12:14 PM
    #7
    AMRE2ME2

    AMRE2ME2 [OP] New Member

    Joined:
    Aug 3, 2015
    Member:
    #1609
    Messages:
    232
    Gender:
    Male
    Colorado
    Vehicle:
    2016 DC 4x4 Limited TRD
    Got it all done, thanks

  8. Oct 18, 2015 at 5:14 AM
    #8
    mdavis

    mdavis I need a beer.

    Joined:
    Feb 13, 2015
    Member:
    #966
    Messages:
    3,345
    Gender:
    Male
    First Name:
    Michael
    Rock Hill, SC
    :worthless:

  9. Nov 5, 2015 at 2:25 PM
    #9
    csuviper

    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,283
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
  10. Nov 5, 2015 at 3:13 PM
    #10
    TNTundra08

    TNTundra08 New Member

    Joined:
    Mar 4, 2015
    Member:
    #1027
    Messages:
    741
    Gender:
    Male
    First Name:
    Blake
    Vehicle:
    2008 DC 4x4
    3/1 lift. 20x9 Method standards, machine face. 305/55/20 nitto trail grapplers
    ayyyyyy that's the one I was talking about. That's what I used to do mine.

  11. Oct 22, 2018 at 10:33 PM
    #11
    TRD-tv

    TRD-tv Menace2Ohio

    Joined:
    Aug 29, 2018
    Member:
    #18768
    Messages:
    893
    Gender:
    Male
    Cleveland OH
    Vehicle:
    2012 MGM Tundra TRD
    i know this is old, but were bros lol was thre a completely spare one or a separate one you tapped into. do u know whuch one. youd be a huge help . otherwise imma be using the test light all day lol

  12. Dec 7, 2019 at 9:01 AM
    #12
    zachzap361

    zachzap361 MEAN GREEN MACHINE

    Joined:
    May 30, 2019
    Member:
    #31187
    Messages:
    218
    Gender:
    Male
    First Name:
    Zach
    San Antonio
    Vehicle:
    2010 Green Tundra CrewMax
    Toytec Aluma 2.5 Coilovers and Toytec rear shocks, Method NV 17", Nitto Ridge Grappler 35", RCI Skid Plate, Dirtydeeds Dual Dumped Exhaust, Volant Cold Air Intake and Throttle Body Spacer, SDHQ Ditch Mount Brackets, Rigid Blackout Spot Lights, Stampede Fender Flares, N-Fab Nerf Bars, Morimoto Fog Lights, 55 watt HID's, AJT Design Climate Knobs, Ellis Precision Shift Knob, Coverking Seat Covers, Husky Floor Liner's,Demello Off-road Bumper, Rigid and Baja Designs Lights, Jomax ABS Sensor covers

    Finally getting into the lighting game and have a question. So I understand all that you mentioned but what is the main difference of a relay compared to a fuse relay? Any pro and cons? Also I see so many at 30/40 Amp and 12/14 AWG and don't really understand that either, sorry I'm a noob in this department and could use the help.
