Plug and Play Brake taps

just placed an order, thanks!!



Ordered and installed mine. Fit perfectly and used it to wire a camper shell brake light. Thanks!



Any of these still available?



Yes

https://fbchs.square.site/product/tundra-2007-2013-brake-t-harness/18



No option for taillight, brake light and blinkers?



Turn signals are on a different connector. I can add a listing for a pair of turn T’s. I have one for 3rd Gen Tacoma just not for 2.5 Gen Tundra today. Doable.

Parking light option for the brake T is straightforward, will add that right now.



I did wonder if you'd add them after mine, or if they were the same as the 3rdG Tacoma reverse ~ for 2.5G Tundra turns

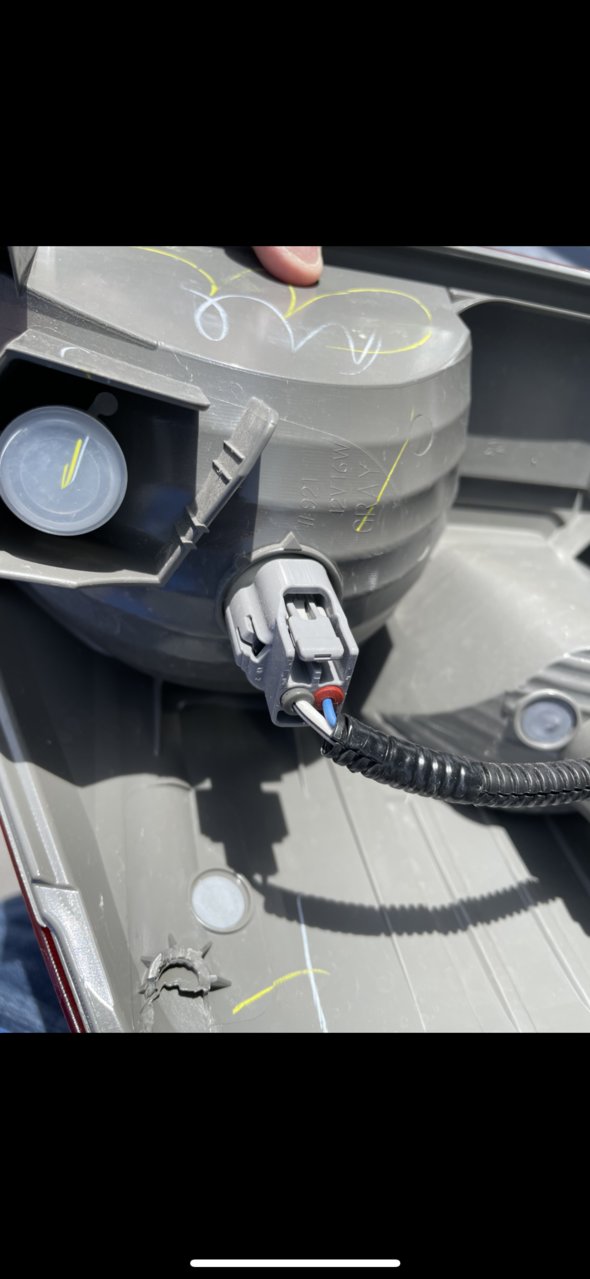

If you can give me a photo of the turn connector indicating polarity I can build a template.
Tundra reverse is Tacoma front turn, that much I know. I think tundra turn is Tacoma reverse but it’s been a while since I asked about that. And I’m not certain on polarity.

Also I really like color matching the wires on both sides.



I'll grab a pic sometime today, probably evening.



S, I did some for you? I have forgotten. How pathetic is my memory? Geez.



Otherwise that info could be pulled from the wiring diagrams… I might be able to pull them up a little later today and post them



I went back and found the info from @Taco-Spike 's conversation on TW. Tundra turn is Tacoma reverse with polarity switched. I'll build a template and grab a photo and post it here, buuuut, I would really like to know wire colors on D and P side to satisfy my OCD on color matching.



Just the OEM D / P rear turn color wiring?

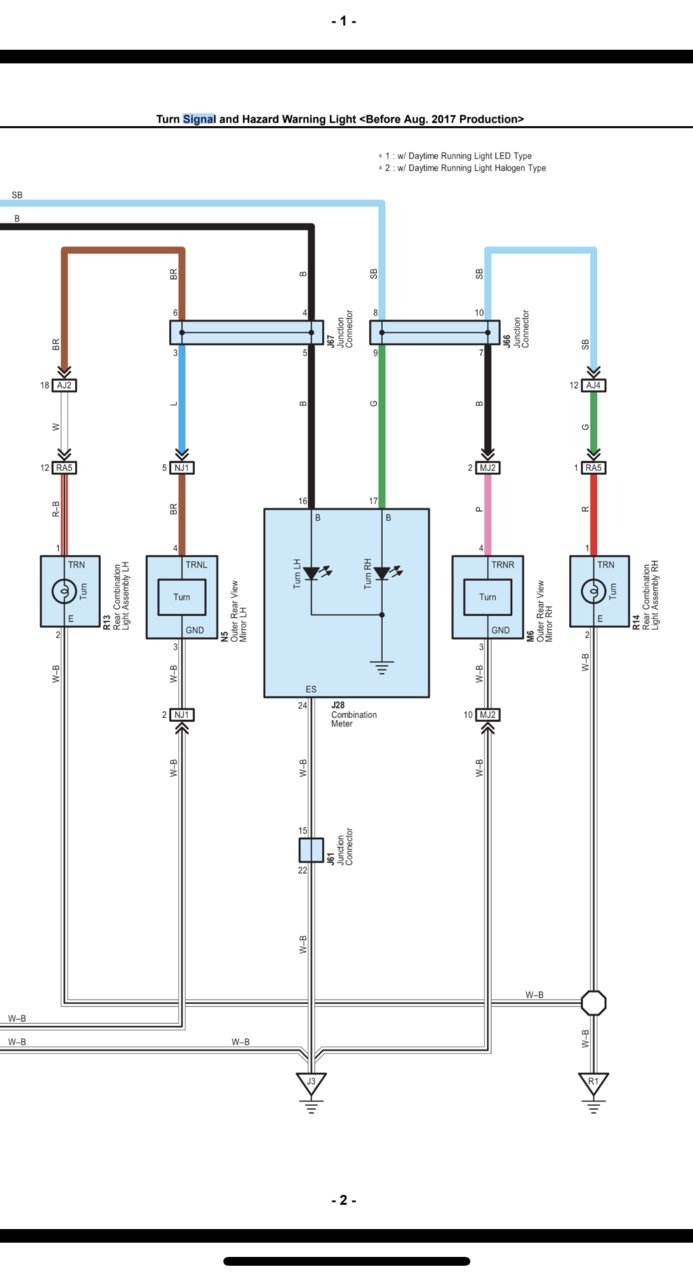

Currently on my phone, but this is from the 18-21 ewd

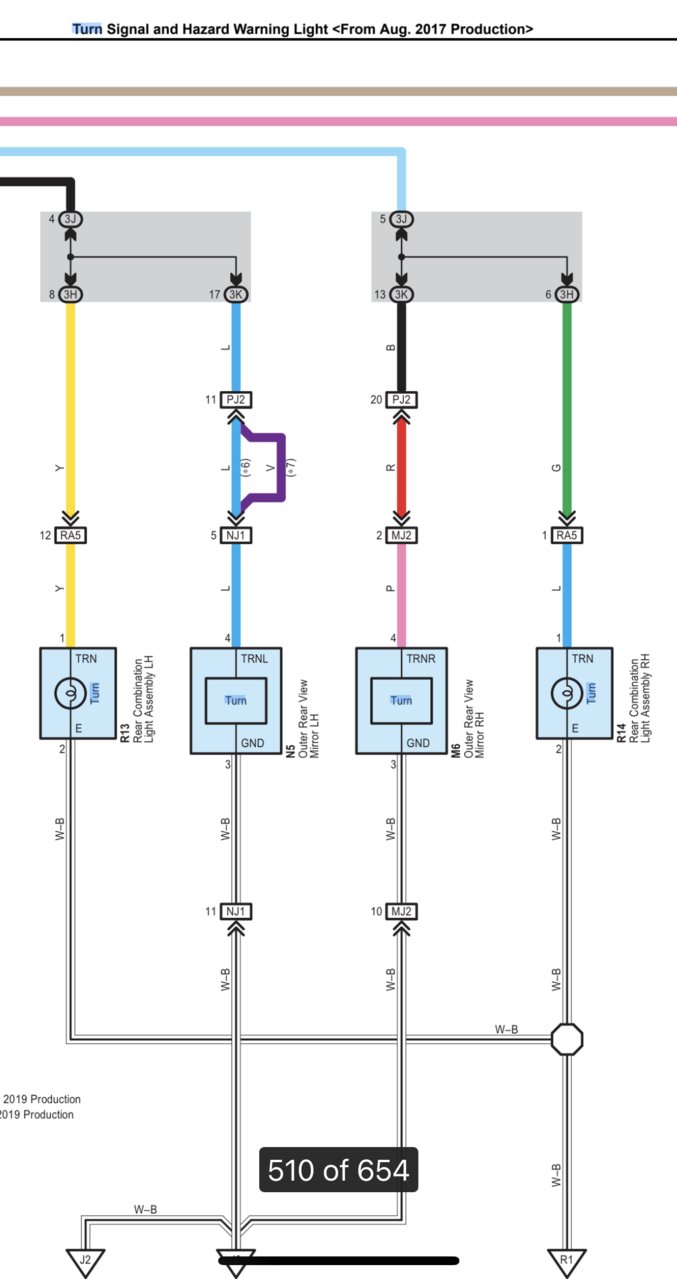

This is from the 16-17 ewd



Yes, a photo to confirm so I can satisfy my OCD

Pass: Light Blue (thanks @memario1214!)
I'll assume yellow for driver for now, that's Taco colors.



https://fbchs.square.site/product/t...rue&sa=false&sbp=false&q=false&category_id=11

Someone let me know if anything looks wrong there pls.



Looks right to me, but what do I know

Mine had a ground, was it probably not needed? I know I asked for it to connect my aux turns, just curious.



Yeah, I thought about that as I was building it. It's just the template. Given the (lack of) order frequency here, I'll probably just converse with buyers as needed on these rear turn T's. Seems like they would typically be combined with a brake T and/or reverse T.

Johnny actually does his reverse T's with just the positive side, assuming it'll be used together with some other T for something specific. But we can always tap extra grounds if it's useful. Totally depends on intended purpose I think.



Can always run ground direct to the frame too…depending on where you’re putting what you are tapping off



I would like to buy one for a 2021 tundra crewmax

Just signed up just for this. Let me know how to pay etc. thanks
Grady



https://fbchs.square.site/product/tundra-2014-2021-brake-t-harness/19?cp=true&sa=false&sbp=false&q=false&category_id=6

Not sure to order from above or from OP.

or if OP should link site directly?

@daveeasa



Link above is best.



Thanks!!



The website says "Our store is not currently accepting orders.". Has the Tundra 2014 - 2021 Brake T Harness been discontinued or just on hold? I have a Super Pacific USA camper to connect.



Owner needed a personal / health break. It was for a week. I think it reopens tomorrow or Friday



I received mine last week/ installed. Awesome stuff. Thanks



Hah,vacation is definitely not helping me out mentally. But my hands are better now. Reopening the store tonight. I don’t think I have a 2.5 Gen Tundra superpacific today but I could add that. It would be build to order. Is that the request?



Thanks for the update. I need one for a 2018 Tundra and am ready to order.
