Needsmoresalt's build

Going for this setup, which will weigh in at 1500lbs when done, and loaded. If something breaks, I will fix it.



Looks good



Knock on wood...
But airbags are typically trouble free.
Usually, problems arise from improper install.

Air systems have been in use with the consumer for decades, even longer in commercial applications.
They’re very dependable.



Now I see why! Thanks for sharing!
Thanks Patrick and thanks Chad!



Got the FWC installed yesterday. Moving on to enhanced social distancing.



Good looking rig. Well put together.



Camper is on, with full solar. "Almost" done



Got the trailer done as well.



So sick man



Good looking build! Why did you take the Fox shocks off?

i am in SC and heading up to Cape Lookout in June.
Ryan



Wanted more travel and to adjust the rate. When the camper comes off, I want to take some of the pogo out of it.



Did a weekend beach trip to Cape Lookout, NC.



Super legit.



@needsmoresalt Could you take some pictures and some measurements of the rear overhang of the Raven from your bed?

I've got a Raven on order and wanted a rear bumper with swing out tire carrier. But I will need to either modify an existing bumper or full build one to clear the overhanging 4WC. Your hitch mount carrier wouldn't work as I still need the OEM hitch.

Thanks! And great looking rig.

One more thing how are liking the OME with D28 add a leaves with the air bag combo? That is the exact rear set up I will go with (along with the heavy OME front).

Have you weighed your rig? Especially a weigh in with and without your loaded Raven (I was guessing at 1500# as well).



@needsmoresalt

Thanks for the reply. I was not aware that it retained the full tow rating.

I'm looking for a more custom swingout. A modular panel approach like the Expedition One. Spare or generator on the passenger side and gas/water on the driver. I'm willing and able to build it so might as well.

I'm looking for a picture or dim's that would show how many inches the Raven hangs over the end of the bed (with the tailgate removed). I know I'm going to need that custom swingarm to give that extra clearance the Raven protrudes past the bed.

For example here is a picture of how to solve the issue with a 45 degree modification to get the swing out away from the rear of the Raven.



Referencing the above picture. I need the overhang of the rear camper to the bed sheet metal. So place a ruler under the camper until it contacts the bed.

Much appreciate your help.

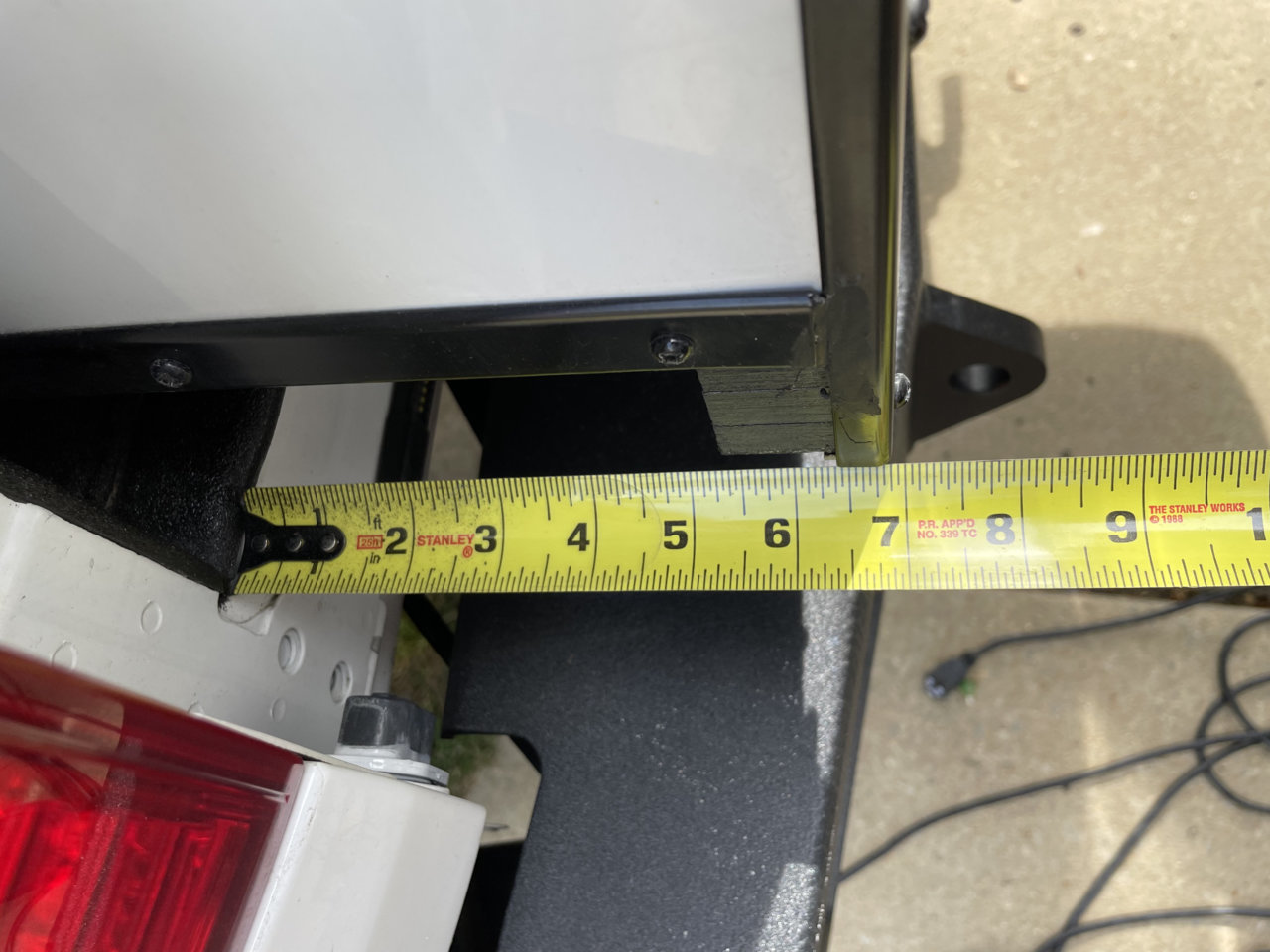

Here ya go, the Rigd is pretty strong, but I get it.



Thanks man! I much appreciate it! I think that is now the ONLY picture on the internet that shows what I was after. Cold beer if we ever meet...



goddamn, that setup look badass. Been thinking about getting into buying overland stuff, how much is your setup?



Probably about $120k



Playing with some 8020, and setup some maxtrax. Next up, Alucab shower on the drivers side.



That is a very smart idea on the 80-20 for the sand mats. I'm gonna use that idea! I now just have to wait for my Raven to be built. Ordered end of April and due sometime next summer - boo!



Something to keep you interested until next year: https://www.youtube.com/c/DarksideOverlandUSA



Hey that looks like a great channel. Gonna check it out tonight. Is that you?



The engineer in me is trying to figure out how you mounted that front rack? Use the two shackle mount holes for a bottom support and some sort of grip on the bull bar for a top support. Impressive!



That is me.



Ask nicely, and I will share the secret



Do you like those Battery terminals? How have they been holding up. And sweet build by the way



The post mounts to the battery could be a bit more secure, but overall, they are great.



@dittothat I have a front hitch, then a 2" .25 thick 316L square tubing that I cut and welded, then powder coated, to bolt to the rod and cooler rack. I used a no wobble locking hitch bolt from Curt. Easy on and off and has held up really well.
