Lower control arm bolts stuck

Discussion in 'Suspension' started by BlueFalconActual, Oct 7, 2016.

  1. Oct 8, 2016 at 10:46 AM
    #31
    BlueFalconActual

    BlueFalconActual [OP] Field Day Inspector Extraordinaire

    Joined:
    Jun 1, 2016
    Member:
    #3495
    Messages:
    1,625
    Gender:
    Male
    First Name:
    Kevin
    29 Palms, CA
    Vehicle:
    Tundra-less

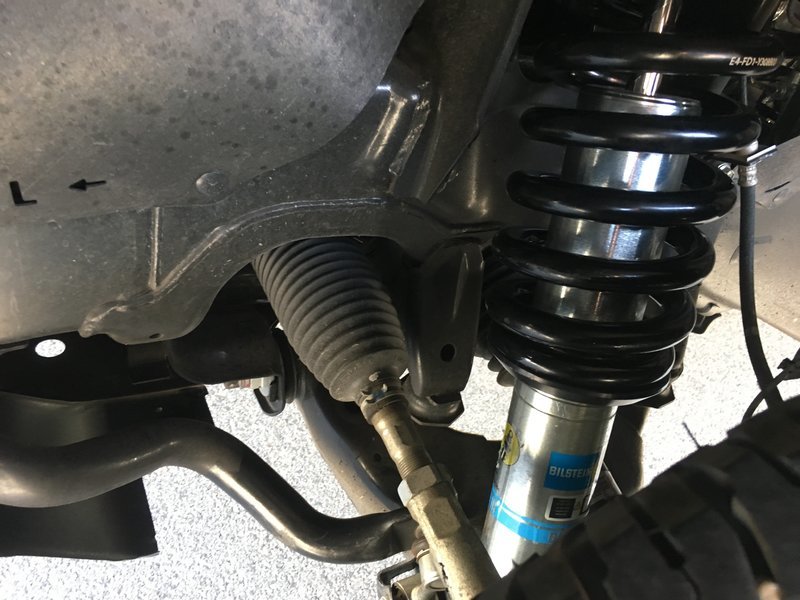

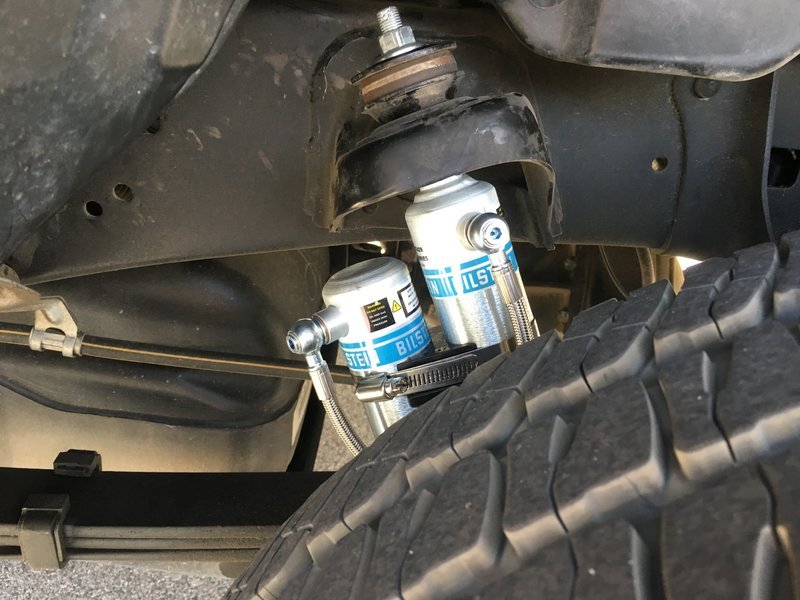

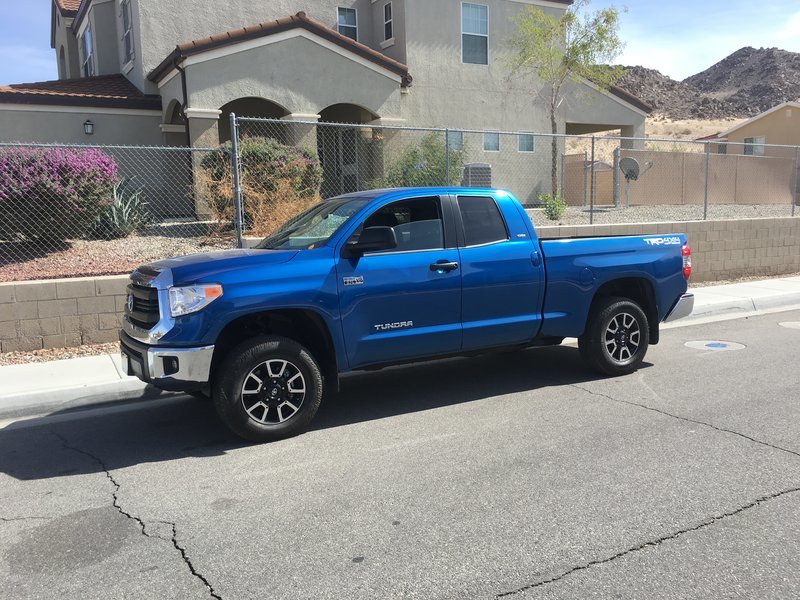

    Yeah, camber was way off. Time to pick a bone with a dishonest shop.

    On a positive note, I just bombed down a desert trail going like 60 mph and it rode increadible. Very happy with this setup.

  2. Oct 8, 2016 at 12:34 PM
    #32
    MotoTundra

    MotoTundra The Ocho

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    7,645
    Gender:
    Male
    First Name:
    Don
    -TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) -Baja Designs Squadron R Sport Aux lights. -TRD Pro Grill -TRD Rear Sway Bar -BakFlip VP Tonneau w/BakBox -Dipped wheels & bumpers -Iron Cross HD steps -Undercover Swingcase -SunTek Paint Protection film -Tinted glass -Bedmat -OEM Towing Mirrors
    Glad to hear she handles well with the new setup! Good luck with the shop.

  3. Oct 8, 2016 at 3:28 PM
    #33
    jburson250

    jburson250 Pensioner

    Joined:
    Feb 11, 2016
    Member:
    #2661
    Messages:
    136
    Gender:
    Male
    First Name:
    Jim
    Newmarket, NH
    Vehicle:
    14 Limited TRD Crew Max
    TRD Pro Suspension, Custom Audio System.
    Your truck looks fantastic Kevin. That's a huge job singlehanded in a driveway. Nicely done!

    2cID and BlueFalconActual[OP] like this.
  4. Oct 8, 2016 at 3:41 PM
    #34
    BlueFalconActual

    BlueFalconActual [OP] Field Day Inspector Extraordinaire

    Joined:
    Jun 1, 2016
    Member:
    #3495
    Messages:
    1,625
    Gender:
    Male
    First Name:
    Kevin
    29 Palms, CA
    Vehicle:
    Tundra-less
    I really appreciate, Jim. Couldn't have done it with out the help of the forum. Theres nothing better than getting greasy and turning wrenches on my own truck.

  5. Oct 9, 2016 at 5:49 AM
    #35
    jburson250

    jburson250 Pensioner

    Joined:
    Feb 11, 2016
    Member:
    #2661
    Messages:
    136
    Gender:
    Male
    First Name:
    Jim
    Newmarket, NH
    Vehicle:
    14 Limited TRD Crew Max
    TRD Pro Suspension, Custom Audio System.
    @BlueFalconActual
    Kevin, the instructions with my TRD Pro suspension kit included steps for a Zero Point Calibration - a key player in the truck's stability system.
    Apparently, if not recalibrated, the VSC can trigger unexpected power loss following suspension mods involving a lift or level.
    The recalibration is done by Toyota using TechStream. DIY methods for the foolish can be found on this or other forums.
    Just something to consider if your truck surprises you while accelerating up a curving interstate on-ramp.

    Best Regards,

  6. Oct 9, 2016 at 6:40 AM
    #36
    BlueFalconActual

    BlueFalconActual [OP] Field Day Inspector Extraordinaire

    Joined:
    Jun 1, 2016
    Member:
    #3495
    Messages:
    1,625
    Gender:
    Male
    First Name:
    Kevin
    29 Palms, CA
    Vehicle:
    Tundra-less
    Thanks for the heads up. The guys at the second alignment shop knew all about that and did it for me.

  7. Oct 9, 2016 at 6:46 AM
    #37
    jburson250

    jburson250 Pensioner

    Joined:
    Feb 11, 2016
    Member:
    #2661
    Messages:
    136
    Gender:
    Male
    First Name:
    Jim
    Newmarket, NH
    Vehicle:
    14 Limited TRD Crew Max
    TRD Pro Suspension, Custom Audio System.
    You're welcome! Pleased to hear you got it done.

  8. Oct 26, 2016 at 9:21 PM
    #38
    Joeshaker

    Joeshaker New Member

    Joined:
    Jun 5, 2016
    Member:
    #3531
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Amado
    Evergreen, Co
    Vehicle:
    13 dcsb trd4x4
    Bilstein 6112/5160 trd sway bar and ride rite bags. Black and burnt orange wet okole seat covers.
    I just finished the install of my 6112/5160 setup. I put the front on the top setting, drove it a few miles, mostly unpaved. It settled in quite a bit. Looks like I got close to 3 inches. Hoping it settles down to the advertised 2.5. I've got 1.5 inch shackles in the back. Does the zero point calibration have to be done with any lift or just when you change the rake? I should be at about one inch different than stock. By the way, the new bilies are awesome!

  9. Oct 26, 2016 at 9:29 PM
    #39
    Joeshaker

    Joeshaker New Member

    Joined:
    Jun 5, 2016
    Member:
    #3531
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Amado
    Evergreen, Co
    Vehicle:
    13 dcsb trd4x4
    Bilstein 6112/5160 trd sway bar and ride rite bags. Black and burnt orange wet okole seat covers.
    Thanks for the tip on breaking the lower ball joint to control arm Brian. That is way better than the way others, like Fabtech show, disconnecting the upper ball joint. Saved me a ton of time and hassle. Took 2.5 hours in the driveway. Half as long as the first time!

    FirstGenTundra and csuviper like this.
  10. Oct 26, 2016 at 9:41 PM
    #40
    Joeshaker

    Joeshaker New Member

    Joined:
    Jun 5, 2016
    Member:
    #3531
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Amado
    Evergreen, Co
    Vehicle:
    13 dcsb trd4x4
    Bilstein 6112/5160 trd sway bar and ride rite bags. Black and burnt orange wet okole seat covers.
    Oh yeah, anybody got the torque specs for the suspension? I've seen a couple different things that are way far apart. One that says something like 280 lb/ft another I think said 118 lb/ft for the two bolts between the ball joint and spindle. Probably the 118?

  11. Oct 26, 2016 at 11:16 PM
    #41
    csuviper

    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,272
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    Tundra Torques
    Tie rod end: 51 ft lbs
    Top coilover bolts: 33 ft lbs
    Bottom coilover bolt: 144 ft lbs
    Wheel: 97 ft lbs
    Upper control arm ball joint: 81 ft lbs
    Steering knuckle: 81 ft lbs
    Sway bar bolt: 89 ft lbs
    Top stabilizer bolt: 111 ft lbs
    Lower control arm ball joint attachment(2 bolts): 221 ft lbs
    Lower ball joint: 123 ft lbs
    Aluminum wheel: 97 ft lbs
    Steel wheel: 154 ft lbs
    Control sensor wire A: 10 ft lbs on UCA
    Control sensor wire B: 21 ft lbs on spindle
    Sway bar brackets bracket (4 bolts): 51 ft lbs
    UCA through bolt for TC UCA: 173 ft lbs
    Uniball: 100 ft lbs


    Rear spring: 77 ft lbs
    Rear Ubolt: 74 ft lbs
    Rear shock upper: 21 ft lbs
    Rear shock lower: 66 ft lbs

  12. Oct 27, 2016 at 4:48 AM
    #42
    Joeshaker

    Joeshaker New Member

    Joined:
    Jun 5, 2016
    Member:
    #3531
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Amado
    Evergreen, Co
    Vehicle:
    13 dcsb trd4x4
    Bilstein 6112/5160 trd sway bar and ride rite bags. Black and burnt orange wet okole seat covers.
    Or would that be the steering knuckle. Doah!

  13. Oct 27, 2016 at 4:51 AM
    #43
    Joeshaker

    Joeshaker New Member

    Joined:
    Jun 5, 2016
    Member:
    #3531
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Amado
    Evergreen, Co
    Vehicle:
    13 dcsb trd4x4
    Bilstein 6112/5160 trd sway bar and ride rite bags. Black and burnt orange wet okole seat covers.
    Thanks Brian, those numbers are more like it! Now I can torque everything down get it aligned Sat and go test it out! Amado

  14. Oct 27, 2016 at 8:48 AM
    #44
    2cID

    2cID New Member

    Joined:
    Jun 22, 2016
    Member:
    #3671
    Messages:
    183
    Gender:
    Male
    Vehicle:
    16 crewmax 4x4
    Car seat covers
    BFA truck looks good!

    BlueFalconActual[OP] likes this.
  15. Mar 24, 2017 at 9:05 PM
    #45
    geno0506

    geno0506 New Member

    Joined:
    May 25, 2016
    Member:
    #3446
    Messages:
    4,700
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2017 Tundra 5.7 CM 4x4, S/W, B-6112/5160

    PM sent, buddy

  16. Mar 25, 2017 at 3:25 AM
    #46
    Les7311

    Les7311 Look up, what do you see

    Joined:
    Dec 30, 2016
    Member:
    #5738
    Messages:
    1,212
    Gender:
    Male
    Vehicle:
    2008 Blue Tundra TRD 4x4
    So did you remove the LCA completely or simply loosened up the bolts?

    Am asking as I plan to replace mine since the LCA knuckle-boot is compromised, after installing the 6 inch lift kit

    eBay selling the LCA for under $60

    This site contains affiliate links for which the site may be compensated.
    #46
  17. Mar 25, 2017 at 6:34 AM
    #47
    BlueFalconActual

    BlueFalconActual [OP] Field Day Inspector Extraordinaire

    Joined:
    Jun 1, 2016
    Member:
    #3495
    Messages:
    1,625
    Gender:
    Male
    First Name:
    Kevin
    29 Palms, CA
    Vehicle:
    Tundra-less
    Just loosened it

    This site contains affiliate links for which the site may be compensated.
    #47
  18. Mar 25, 2017 at 6:46 AM
    #48
    FirstGenTundra

    FirstGenTundra R2R

    Joined:
    Feb 18, 2016
    Member:
    #2715
    Messages:
    833
    Gender:
    Male
    First Name:
    Daniel
    Wyoming
    Vehicle:
    2014 Toyota Tundra TRD
    Looks good, I'm thinking about doing this with my truck. I only ever do light off roading couple times a year. Is the trucks on road performance impacted in any way like leaning around corners?

  19. Mar 25, 2017 at 6:50 AM
    #49
    BlueFalconActual

    BlueFalconActual [OP] Field Day Inspector Extraordinaire

    Joined:
    Jun 1, 2016
    Member:
    #3495
    Messages:
    1,625
    Gender:
    Male
    First Name:
    Kevin
    29 Palms, CA
    Vehicle:
    Tundra-less
    Not at all. In fact, it's improved. They are digresive valved for that reason.

  20. Mar 25, 2017 at 7:16 AM
    #50
    FirstGenTundra

    FirstGenTundra R2R

    Joined:
    Feb 18, 2016
    Member:
    #2715
    Messages:
    833
    Gender:
    Male
    First Name:
    Daniel
    Wyoming
    Vehicle:
    2014 Toyota Tundra TRD
    That's sweet!

  21. Apr 12, 2019 at 10:08 PM
    #51
    Tundyfundy

    Tundyfundy Petunia The Tundra, and her sidekick Colbie

    Joined:
    May 5, 2017
    Member:
    #7567
    Messages:
    2,705
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    Magnetic Grey DC SR5 4x4 2016
    SUSPENSION: Bilstein 6112 coilover (1.9") w/ Powder Coated Springs and Spring Perch (TRD Red), JBA Upper Control Arms, Bilstein 5160's w/Billet Aluminium Reservoir Brackets, +2 Coachbuilder Shackles, Diff Drop Kit, Carrier Bearing Drop Kit, Brakeline Extensions, ABS Extension, Poly Bushings for Leafs, Coachbuilder Shims (2 Each Side), Coachbuilder Bumpstop Extensions, TRD Rear Sway Bar, TRD Front Sway Bar, Air Lift 5000 airbags w jounce bumpers, Daystar Airbag Cradles WHEELS AND TIRES: BF Goodrich KO2's 275/70/r18, BORA wheel spacers 1.25", TRD Wheel Caps,TRD Valve Stem Caps, Spare Tire Lock PERFORMANCE: Bullydog GT Tuner(Performance Tune), TRD Intake, TRD Dual Exhaust (with Modified Exhaust Hangers for Levelling Tail Pipe),TRD Brake Pads, TRD Oil Cap (US), TRD Radiator Cap, TRD Oil Filter, Optima Yellow Top Battery,GP Battery Distribution Blocks, StopTech Slotted Cryo Treated Rotors, Goodridge G-Stop Steel Braided Brake Line Kit PROTECTION: PNP Engineering Type 4 Rock Sliders (With Full Dimple Plate) ,ADD Stealth Fighter Rear Bumper w Red/Blk Shackles and Custom Stomp Pad, TRD Skid Plate with ReadyLift Spacer Kit, Victory 4x4 LCA Skid Plates, JOMAX ABS Sensor Armor, Rear Diff Breather Mod, ARK splash guards INTERIOR: Husky Liners X-Act (Front and Full Coverage Rear and Front Weather Beater Trans Hump), Interior LED Bulbs, WheelSkins Genuine Leather Steering Wheel Cover(EuroPerf), Clazzio Genuine Leather Seat Covers(BLK/DRK GRYwith custom stitching and embroidered headrests), Clazzio Seat Heaters (Front and Rear), Entune Startup Screen MOD, Entune Off Screen Mod, Tinted Windows with Windshield Visor, AJT Key Fobs,Eagle Claws Floor Mat Clips, Bodyglove Visor Organizer,Custom Door Cup Inserts, Glass Break Sensor,AJT Radio Knobs, Custom Dior Cup Inserts EXTERIOR: Full Debadge, LED Brake Light Bulbs, LED Rear Turns, LED Reverse, LED Plate Lights, LED Cargo Lights, LED Third Brake Lights, LED Front Marker Lights, LED Fog Light Bulbs, Lamin-X Fog Light Covers (Amber),2018 OEM LED Headlights, iHacker harness, VLED Universal Puddle Lights, VLED Interior Footwell Lighting (Front and Rear),VLED Extreme Amber Fornt Turns, NSV Knight Rider Light bar, Baja Designs Sport Squadron Pods in Rear Bumper (Driving/wide), Painted Red Tow-hooks, Bed Rail System, Blind Spot Mirrors, Hitch-safe, Tail-gate lock, EAG Raptor Grille, Custom Grille Badge,Full Vinyl Wrap (Matte Black/Matte Pine Green Mettalic), Charvonia Designs Tie Bed Tie-Downs, Bull Ring Bed Rail Anchors, Line-X, Tundra Bed Mat, Bakflip F1 Bed Cover SOUND: Noico 80Mil Sound Deadening and Noico 170 Mil Thermal Insulation (All 4 Doors, Roof, Floors, Rear Panel, Dash). Hertz Uno K170's Component Speakers (Front Doors with Upgraded Sail Panels), Hertz Uno K170 Coaxial Speakers (Rear Doors), JBL C1-075ct Tweeters (Total 4) in Side Dash and Center Speaker, JBL Stadium 5 Amp w/Remote Bass Adjustment Knob and Amp Rack, 12" Infinity Reference Subwoofer in Custom Enclosure w/ “TUNDRA” Logo, Fast Rings Foam Speaker Rings System(4 Doors), Fix 86 DSP
    In the middle of my 6112 install and so many issues. Do I tighten the lower control arm bolts after the truck is on the ground or in the air. Hoe do I get a torque reading on that silly nut on top of the strut mount??? When I try to tighten it with my torque wrench it just spins...

  22. Oct 23, 2019 at 8:34 AM
    #52
    TundraCoast

    TundraCoast Member In Good Standing

    Joined:
    Feb 25, 2018
    Member:
    #13151
    Messages:
    592
    Gender:
    Male
    First Name:
    Ian
    California
    Vehicle:
    1794 4x4
    1794 on the inside - PRO on the outside
    Hey Brian,
    I’m using your step by step on the front coilovers, came across this. I have everything loose per your instructions but I still don’t have enough room to pull out my factory coilovers, they have 3.5” spacer bolted to the top. I’ve tried everything short of unbolting the LCA’s (tying to avoid that). My question is as you said above, will the lowers push down if you stand on them? I’m installing Toytec Boss 3”.

  23. Oct 23, 2019 at 8:49 AM
    #53
    csuviper

    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,272
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    They might go down far enough if you really push down hard or put all your weight on there. 3.5" spacer on the top might be a bit much to get them out this way however.

  24. Oct 23, 2019 at 8:52 AM
    #54
    TundraCoast

    TundraCoast Member In Good Standing

    Joined:
    Feb 25, 2018
    Member:
    #13151
    Messages:
    592
    Gender:
    Male
    First Name:
    Ian
    California
    Vehicle:
    1794 4x4
    1794 on the inside - PRO on the outside
    I agree, my easy swap turned into an all day "get nowhere" project. I called a shop thats worked on my truck before they said $180 for the install seems fair

  25. Oct 23, 2019 at 9:04 AM
    #55
    TundraCoast

    TundraCoast Member In Good Standing

    Joined:
    Feb 25, 2018
    Member:
    #13151
    Messages:
    592
    Gender:
    Male
    First Name:
    Ian
    California
    Vehicle:
    1794 4x4
    1794 on the inside - PRO on the outside
    What are your thoughts on setting the Boss coils to 3.5"? Will that additional 1/2" be felt in a negative way?

  26. Oct 23, 2019 at 11:58 AM
    #56
    Tundyfundy

    Tundyfundy Petunia The Tundra, and her sidekick Colbie

    Joined:
    May 5, 2017
    Member:
    #7567
    Messages:
    2,705
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    Magnetic Grey DC SR5 4x4 2016
    SUSPENSION: Bilstein 6112 coilover (1.9") w/ Powder Coated Springs and Spring Perch (TRD Red), JBA Upper Control Arms, Bilstein 5160's w/Billet Aluminium Reservoir Brackets, +2 Coachbuilder Shackles, Diff Drop Kit, Carrier Bearing Drop Kit, Brakeline Extensions, ABS Extension, Poly Bushings for Leafs, Coachbuilder Shims (2 Each Side), Coachbuilder Bumpstop Extensions, TRD Rear Sway Bar, TRD Front Sway Bar, Air Lift 5000 airbags w jounce bumpers, Daystar Airbag Cradles WHEELS AND TIRES: BF Goodrich KO2's 275/70/r18, BORA wheel spacers 1.25", TRD Wheel Caps,TRD Valve Stem Caps, Spare Tire Lock PERFORMANCE: Bullydog GT Tuner(Performance Tune), TRD Intake, TRD Dual Exhaust (with Modified Exhaust Hangers for Levelling Tail Pipe),TRD Brake Pads, TRD Oil Cap (US), TRD Radiator Cap, TRD Oil Filter, Optima Yellow Top Battery,GP Battery Distribution Blocks, StopTech Slotted Cryo Treated Rotors, Goodridge G-Stop Steel Braided Brake Line Kit PROTECTION: PNP Engineering Type 4 Rock Sliders (With Full Dimple Plate) ,ADD Stealth Fighter Rear Bumper w Red/Blk Shackles and Custom Stomp Pad, TRD Skid Plate with ReadyLift Spacer Kit, Victory 4x4 LCA Skid Plates, JOMAX ABS Sensor Armor, Rear Diff Breather Mod, ARK splash guards INTERIOR: Husky Liners X-Act (Front and Full Coverage Rear and Front Weather Beater Trans Hump), Interior LED Bulbs, WheelSkins Genuine Leather Steering Wheel Cover(EuroPerf), Clazzio Genuine Leather Seat Covers(BLK/DRK GRYwith custom stitching and embroidered headrests), Clazzio Seat Heaters (Front and Rear), Entune Startup Screen MOD, Entune Off Screen Mod, Tinted Windows with Windshield Visor, AJT Key Fobs,Eagle Claws Floor Mat Clips, Bodyglove Visor Organizer,Custom Door Cup Inserts, Glass Break Sensor,AJT Radio Knobs, Custom Dior Cup Inserts EXTERIOR: Full Debadge, LED Brake Light Bulbs, LED Rear Turns, LED Reverse, LED Plate Lights, LED Cargo Lights, LED Third Brake Lights, LED Front Marker Lights, LED Fog Light Bulbs, Lamin-X Fog Light Covers (Amber),2018 OEM LED Headlights, iHacker harness, VLED Universal Puddle Lights, VLED Interior Footwell Lighting (Front and Rear),VLED Extreme Amber Fornt Turns, NSV Knight Rider Light bar, Baja Designs Sport Squadron Pods in Rear Bumper (Driving/wide), Painted Red Tow-hooks, Bed Rail System, Blind Spot Mirrors, Hitch-safe, Tail-gate lock, EAG Raptor Grille, Custom Grille Badge,Full Vinyl Wrap (Matte Black/Matte Pine Green Mettalic), Charvonia Designs Tie Bed Tie-Downs, Bull Ring Bed Rail Anchors, Line-X, Tundra Bed Mat, Bakflip F1 Bed Cover SOUND: Noico 80Mil Sound Deadening and Noico 170 Mil Thermal Insulation (All 4 Doors, Roof, Floors, Rear Panel, Dash). Hertz Uno K170's Component Speakers (Front Doors with Upgraded Sail Panels), Hertz Uno K170 Coaxial Speakers (Rear Doors), JBL C1-075ct Tweeters (Total 4) in Side Dash and Center Speaker, JBL Stadium 5 Amp w/Remote Bass Adjustment Knob and Amp Rack, 12" Infinity Reference Subwoofer in Custom Enclosure w/ “TUNDRA” Logo, Fast Rings Foam Speaker Rings System(4 Doors), Fix 86 DSP
    I had to loosen my control arms to install my 6112. I used a 6 foot breaker bar and had my boy stand on it while I put the 6112 in. Make sure to mark you LCA cam bolts while the truck is sitting on all 4 tires. Then lift it up and do your install. Put it back down and line cam bolts back up and tighten.
