Liftgate lock actuator plug wiring

Discussion in 'Sequoia 1st Gen (2001-2007)' started by Sandyroads, Jun 3, 2025 at 8:18 AM.

  1. Jun 3, 2025 at 8:18 AM
    #1
    Sandyroads

    Sandyroads [OP] New Member

    Joined:
    Feb 25, 2025
    Member:
    #130931
    Messages:
    20
    Gender:
    Male
    Good morning everybody hope everyone’s doing really well.

    My truck is slowly coming together installed new slotted and drilled rotors and brake pads, did it my self. I did pay roughly $230 for an alignment but it’s got a warranty.

    Today I have a cai Being delivered. I started working on the rear liftgate, I ordered a new lock actuator, but it looks like the previous owner ripped the four wire plug apart so I ordered a new plug but I need somebody to take a picture or tell me where each wire goes where.

    that imagine one is positive one is negative. No idea what the other two are for, but I don’t wanna wire it wrong and burn up the new lock that I just got.

    my next project is to figure out why the motor isn’t working for the rear window as a relay does click. My guess is the motor might be seized a little top of a hammer should fix the problem. Maybe some PB blaster or heck might have to replace the motor. Hopefully I don’t have to replace the arms inside.

  2. Jun 3, 2025 at 10:42 AM
    #2
    Sandyroads

    Sandyroads [OP] New Member

    Joined:
    Feb 25, 2025
    Member:
    #130931
    Messages:
    20
    Gender:
    Male

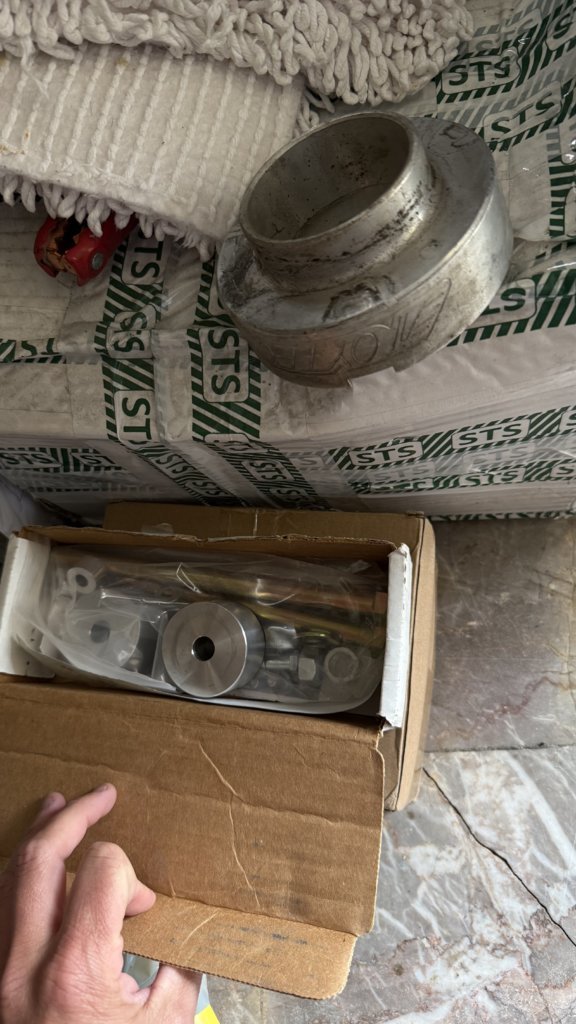

    I also picked up for free on Facebook marketplace these aluminum spacers that go between the shocks and mount for the front there made by toytec


  3. Jun 3, 2025 at 12:18 PM
    #3
    1lowlife

    1lowlife Toxic prick and pavement princess..

    Joined:
    May 4, 2016
    Member:
    #3296
    Messages:
    10,941
    First Name:
    DADA
    THE GREAT STATE OF TEXAS
    Vehicle:
    2014 MGM DC SR5

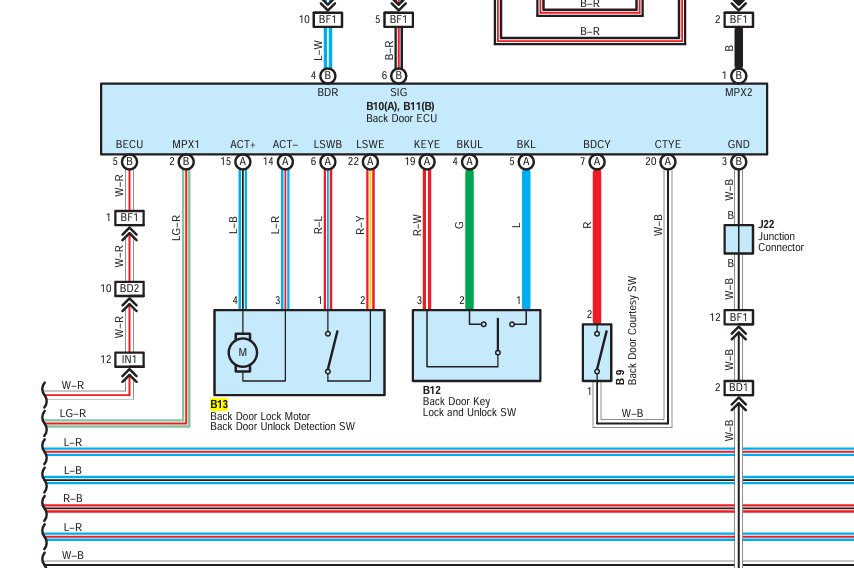

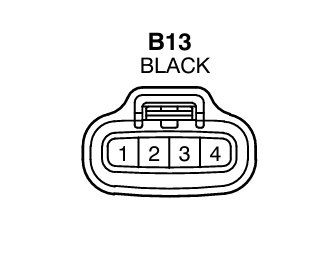

    You can find your wiring diagrams here.
    Ultimate SEQUOIA Wiring Diagrams Collection | Toyota Tundra Forum

    Seems to be the same for both 2001 and 2006.:thumbsup:
    Hope this helps..
    upload_2025-6-3_14-14-34.png upload_2025-6-3_14-15-2.png upload_2025-6-3_14-16-18.png
