LED DRL wiring for 2011

Discussion in 'Lighting' started by TallPaul, May 6, 2019.

  1. May 6, 2019 at 1:55 PM
    #1
    TallPaul

    TallPaul [OP] New Member

    Joined:
    May 6, 2019
    Member:
    #30149
    Messages:
    8
    Lexington, KY
    Vehicle:
    2011 Magnetic Grey 5.7l FFV TRD SR5 DBL Cab
    Bakflip HD cover with Pro Rac and Tepui Roof tent Spyder Led Projector lights Weather Tech mats
    I purchased some Spyder Headlight replacements and have them installed minus wiring the LED DRL. I have the older version with the bare red/blk wires (no connector) I understand that they need to be spliced into the existing front turn signal/parking/DRL harness but not which wires to tap for power and neutral. Also, can i make it so the amber bulb is only a turn signal and not light when the LED DRL is on.

  2. May 6, 2019 at 2:14 PM
    #2
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    You just need to tap into the two wires leading into the amber driving light in the very top (right) corner of your driver headlight. You should have had to swap a small, orange bulb from your old headlights into these new spiders, I assume, and that’s the connection you’re looking for. As far as your last question goes, prolly not, especially with your limited electrical background.

    Edit: zoom into my photo and you’ll see the little amber light you need to tap into, just tap into the two wires powering it...

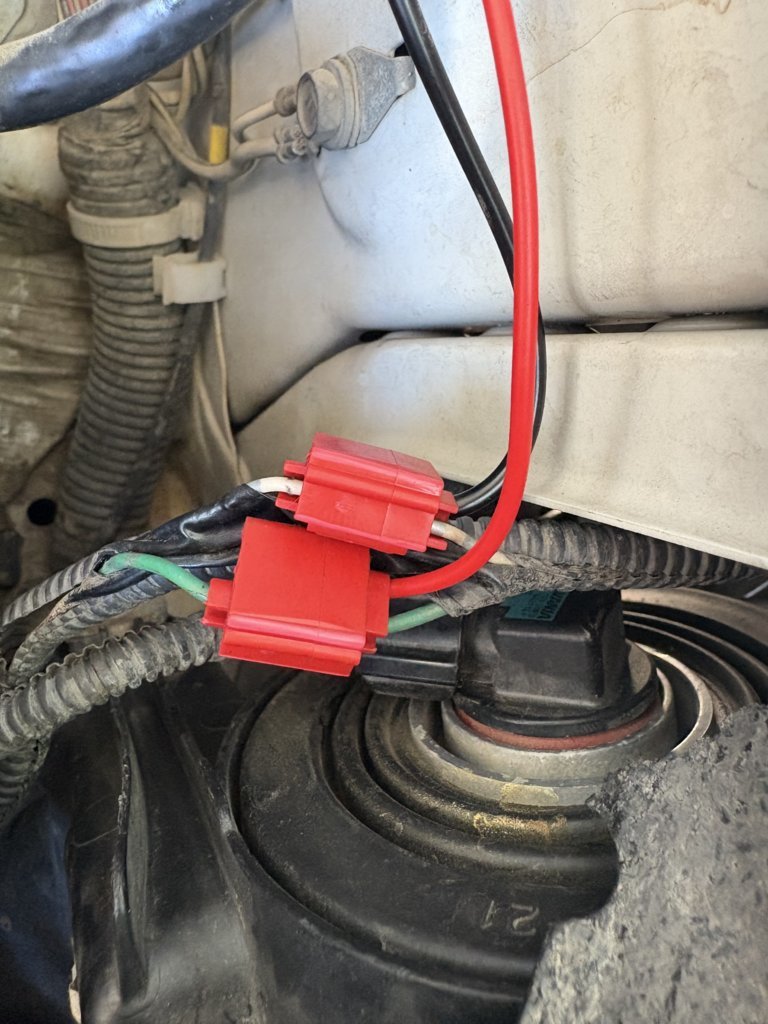

    Use something similar to these...or positaps

    RAM-PRO 65 Piece Reusable Quick Splice Electrical Connector Assortment 22,18,14,12,10 Gauge/AWG Crimp Connector Kit with See-through Divided Organizer Case https://www.amazon.com/dp/B06VVPG9GQ/ref=cm_sw_r_cp_api_i_Ijk0Cb0PCVRZB


    Last edited: May 6, 2019
  3. May 6, 2019 at 2:21 PM
    #3
    NewImprovedRon

    NewImprovedRon Hey! Get off my grass!

    Joined:
    Jul 8, 2015
    Member:
    #1501
    Messages:
    13,339
    Gender:
    Male
    First Name:
    Ron
    Bentonville, AR
    Vehicle:
    2015 Radiant Red TSS Doublecab 4X4 Off Road
    Deck rail system, Bed divider, door sill protectors, LED reverse light bars, Aries Bull Bar with 28" 180 watt LED light bar, LED step lights, LED bed lights, driver-side grab handle, TRD Rear Sway Bar, BedRug bed mat and tailgate mat, Morimoto Fog Lights, Diamondback SE Bed Cover, LED bed lights, more to come.....
    I am a Posi-tap fan myself for tapping wires.

  4. May 6, 2019 at 2:23 PM
    #4
    TallPaul

    TallPaul [OP] New Member

    Joined:
    May 6, 2019
    Member:
    #30149
    Messages:
    8
    Lexington, KY
    Vehicle:
    2011 Magnetic Grey 5.7l FFV TRD SR5 DBL Cab
    Bakflip HD cover with Pro Rac and Tepui Roof tent Spyder Led Projector lights Weather Tech mats
    Yes, I understand that I need to splice into the amber bulb harness, but I have 3 wires instead of 2, also these headlights are using the existing amber socket and bulb for the turn signal and currently they are functioning as the DRL as well. I was hoping one of the 3 wires was a constant for the DRL and the other for the turn signal but I don't know how to determine that.

  5. May 6, 2019 at 2:30 PM
    #5
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    Link to new headlights?

  6. May 6, 2019 at 2:33 PM
    #6
    TallPaul

    TallPaul [OP] New Member

    Joined:
    May 6, 2019
    Member:
    #30149
    Messages:
    8
    Lexington, KY
    Vehicle:
    2011 Magnetic Grey 5.7l FFV TRD SR5 DBL Cab
    Bakflip HD cover with Pro Rac and Tepui Roof tent Spyder Led Projector lights Weather Tech mats
  7. May 6, 2019 at 2:36 PM
    #7
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    The pic shows a red and black wire to power the LED, you’re saying you have 3 wires? What color are they?


  8. May 6, 2019 at 2:38 PM
    #8
    TallPaul

    TallPaul [OP] New Member

    Joined:
    May 6, 2019
    Member:
    #30149
    Messages:
    8
    Lexington, KY
    Vehicle:
    2011 Magnetic Grey 5.7l FFV TRD SR5 DBL Cab
    Bakflip HD cover with Pro Rac and Tepui Roof tent Spyder Led Projector lights Weather Tech mats
    I have 3 on the truck harness, Spyder says to tap the harness for the front turn signal/parking/DRL (same bulb) it has 3 wires: red/blkwht/purple...the light has blk and red

  9. May 6, 2019 at 2:38 PM
    #9
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    Ooooooh....you’re just wondering which 2 of the 3 wires to tap into?

  10. May 6, 2019 at 2:39 PM
    #10
    TallPaul

    TallPaul [OP] New Member

    Joined:
    May 6, 2019
    Member:
    #30149
    Messages:
    8
    Lexington, KY
    Vehicle:
    2011 Magnetic Grey 5.7l FFV TRD SR5 DBL Cab
    Bakflip HD cover with Pro Rac and Tepui Roof tent Spyder Led Projector lights Weather Tech mats
    Here's the harness


  11. May 6, 2019 at 2:40 PM
    #11
    TallPaul

    TallPaul [OP] New Member

    Joined:
    May 6, 2019
    Member:
    #30149
    Messages:
    8
    Lexington, KY
    Vehicle:
    2011 Magnetic Grey 5.7l FFV TRD SR5 DBL Cab
    Bakflip HD cover with Pro Rac and Tepui Roof tent Spyder Led Projector lights Weather Tech mats
    Yes and will the wire choice determine if they work as DRL w/o the amber coming on?
    Still hoping that the amber can just function as a turn signal only.

  12. May 6, 2019 at 2:44 PM
    #12
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    Red to red, black to black/white. I’m nearly 99% sure as I have the same headlights and just installed a few months back. I’m looking at my truck now, but I’ve got an aftermarket alarm in the way of that connection and would have to remove battery/headlight to double check...I would certainly remember if a purple wire was in the mix and it wasn’t...

  13. May 6, 2019 at 2:48 PM
    #13
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    No, that small orange bulb in the very right corner of your driver side headlights (seem my pic above) is just DRL, it has no blink function in any of the 3 wires leading to it

  14. May 6, 2019 at 2:52 PM
    #14
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    My leds are powered from the side marker (see my finger) and come on with driving lights, they stay on when I turn my headlights on. If you powers the leds from the other amber light, above the “bright” I would assume they would flash when you turn as they are drl/blinkers...


  15. May 6, 2019 at 2:55 PM
    #15
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    You can power the leds from the “ignition” fuse under the hood, no way to turn on/off other than ignition...?

  16. May 6, 2019 at 2:57 PM
    #16
    TallPaul

    TallPaul [OP] New Member

    Joined:
    May 6, 2019
    Member:
    #30149
    Messages:
    8
    Lexington, KY
    Vehicle:
    2011 Magnetic Grey 5.7l FFV TRD SR5 DBL Cab
    Bakflip HD cover with Pro Rac and Tepui Roof tent Spyder Led Projector lights Weather Tech mats
    My side marker lights only come on when I turn on the parking/headlights...the front amber comes on when the truck is running reguarless of the parking/headlights, is it the same for you? also, thank you for your patience and help.

  17. May 6, 2019 at 3:00 PM
    #17
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    Yes, same for me. If you want that led to just come on when truck is on, tap into the ignition fuse 10a, I believe, under the hood, with an add-a-fuse...

  18. May 6, 2019 at 3:02 PM
    #18
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    That front amber that comes on is also blinker so you don’t wanna tap into it unless you want the led to act as blinker...

  19. May 6, 2019 at 3:02 PM
    #19
    TallPaul

    TallPaul [OP] New Member

    Joined:
    May 6, 2019
    Member:
    #30149
    Messages:
    8
    Lexington, KY
    Vehicle:
    2011 Magnetic Grey 5.7l FFV TRD SR5 DBL Cab
    Bakflip HD cover with Pro Rac and Tepui Roof tent Spyder Led Projector lights Weather Tech mats
    Ahh, okay, just making sure...I've seen those fuse tap harnesses, maybe i'll try one of those. I really appreciate your help and Love your grille!

  20. May 6, 2019 at 3:07 PM
    #20
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    No problem and thanks! Here’s a link to the add a fuse, but let me warn you, there are 3 different size fuses. The link I am providing is for the “low profile mini” fuses like under the steering wheel, I think the fuses in the hood are one size up, do your homework, or order all 3 sizes or go to auto parts store for visual...
    ABN Fuse Tap Fuse Holder & Fuse... https://www.amazon.com/dp/B01BU59QA8?ref=ppx_pop_mob_ap_share

    TallPaul [OP] likes this.
  21. May 6, 2019 at 3:18 PM
    #21
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,118
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    There’s also a mod on here to run your fogs independently of your headlights, you can do some cool/different things with your front end...point I’m trying to make is, take your time researching before cutting wires...I’d advise to get your headlights working normally (simply tapping into the amber side marker) then explore different options, once you have ignition/driving wires into your engine bay, adding lights/light bars becomes very easy...plan ahead..
