    Quick Links: What's a good adhesive or glue to stick the rubber strips to fender flares and bumper ends? Rear diff cover and fluid advice wanted Where are people getting steering rack from these days? Help! Carplay wiring KPOffroad Brake Line Experience/Reviews Tips for rear flare removal without breaking the clips

I shorted something... door locks not working. Help!!!!!!!!!

Discussion in '1st Gen Tundras (2000-2006)' started by Kameleonmax, Sep 27, 2014.

  1. Sep 27, 2014 at 10:28 PM
    #1
    Kameleonmax

    #1
    Kameleonmax [OP] New Member

    Joined:
    Sep 27, 2014
    Member:
    #637
    Messages:
    9
    Gender:
    Male
    First Name:
    Ralph
    Vehicle:
    2006 Toyota Tundra 4wd double cab
    I was adding some led strip lights to illuminate my side steps then i was fiddling around some wire harnesses to check for a best possible area to splice my wires. I tried testing some wires with my dmm and i shorted something. Now my remote door lock/unlock doesnt work, i cant lock/unlock it from the door panel. Can someone help me please!!!!!!

    Kameleonmax, Sep 27, 2014
    #1
  2. Sep 28, 2014 at 9:06 AM
    #2
    Relentless

    #2
    Relentless Eric @Relentless Fab Vendor

    Joined:
    Jan 6, 2014
    Member:
    #19
    Messages:
    896
    Gender:
    Male
    First Name:
    Eric
    East of the Sierras(Reno), Nevada
    Vehicle:
    '14 Crewmax TRD 4x4> '15 Duramax SLT
    Just a few, more to come
    Sounds like a fuse hopefully. Pop your covers off the fuse boxes and look for an accessory power with blown fuse and pop a new one in.

    Relentless, Sep 28, 2014
    #2
    Bob likes this.
  3. Sep 28, 2014 at 5:23 PM
    #3
    Kameleonmax

    #3
    Kameleonmax [OP] New Member

    Joined:
    Sep 27, 2014
    Member:
    #637
    Messages:
    9
    Gender:
    Male
    First Name:
    Ralph
    Vehicle:
    2006 Toyota Tundra 4wd double cab
    I Checked all the fuses. They all looked good. Unless there were hairline breaks that i couldn't see. Hope its not a relay.

    Kameleonmax, Sep 28, 2014
    #3
  4. Sep 28, 2014 at 5:56 PM
    #4
    Relentless

    #4
    Relentless Eric @Relentless Fab Vendor

    Joined:
    Jan 6, 2014
    Member:
    #19
    Messages:
    896
    Gender:
    Male
    First Name:
    Eric
    East of the Sierras(Reno), Nevada
    Vehicle:
    '14 Crewmax TRD 4x4> '15 Duramax SLT
    Just a few, more to come
    Did you check both fuse boxes?

    Relentless, Sep 28, 2014
    #4
  5. Sep 28, 2014 at 6:14 PM
    #5
    Kameleonmax

    #5
    Kameleonmax [OP] New Member

    Joined:
    Sep 27, 2014
    Member:
    #637
    Messages:
    9
    Gender:
    Male
    First Name:
    Ralph
    Vehicle:
    2006 Toyota Tundra 4wd double cab
    Yes. I checked above driver kick panel and engine compartment. Are there any other places where there's fuses? I hope its not a relay.

    Kameleonmax, Sep 28, 2014
    #5
  6. Sep 28, 2014 at 7:28 PM
    #6
    Mike

    #6
    Mike Tread lightly.

    Joined:
    Jan 13, 2014
    Member:
    #87
    Messages:
    3,638
    Gender:
    Male
    First Name:
    Mike
    south carolina
    Vehicle:
    2003 tundra sr5 4x4 stepside....
    yep bank account is running low from it..
    while you where fiddling around did you not plug something back in correctly? If all the fuses are good.. unless your shorted the door relay box out...

    Mike, Sep 28, 2014
    #6
  7. Sep 28, 2014 at 9:31 PM
    #7
    Kameleonmax

    #7
    Kameleonmax [OP] New Member

    Joined:
    Sep 27, 2014
    Member:
    #637
    Messages:
    9
    Gender:
    Male
    First Name:
    Ralph
    Vehicle:
    2006 Toyota Tundra 4wd double cab
    Soooooo guys, it was a fuse that i missed 7.5a. So i replaced that. Everything's good now. As for my lights, how can i hook up that when i open each door, each designated light would light up at that side step?

    Kameleonmax, Sep 28, 2014
    #7
    KK6PD, T-Rex266, Bob and 1 other person like this.
  8. Sep 28, 2014 at 9:58 PM
    #8
    csuviper

    #8
    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,260
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    Use a new relay and tie into the wire that leads to the cab light. You might be able to tie in right at the switch for the cab light.

    Relay and harness here: http://www.oznium.com/wire-12v-and-relays
    Set it up so that when the cab light goes on then the relay is met. This will close the loop and turn on the door lights.

    Not sure if you can do each door separate without adding a separate door switch pin: http://www.oznium.com/pin-switch

    Last edited: Sep 28, 2014
    csuviper, Sep 28, 2014
    #8
    T-Rex266, Bob and Relentless like this.
  9. Sep 29, 2014 at 1:57 PM
    #9
    googlydoodle

    #9
    googlydoodle New Member

    Joined:
    Sep 4, 2014
    Member:
    #593
    Messages:
    28
    Gender:
    Male
    First Name:
    Geoffrey
    Vehicle:
    Lucy
    100% stock

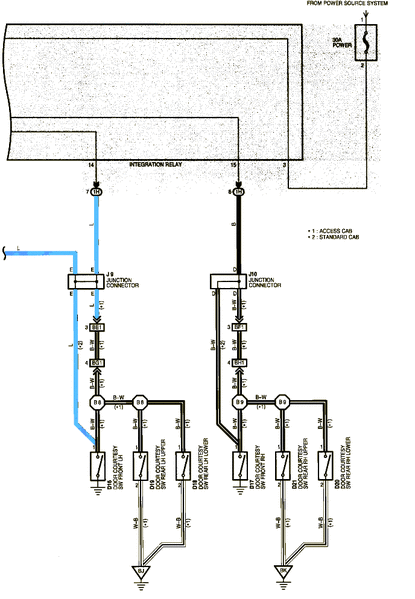

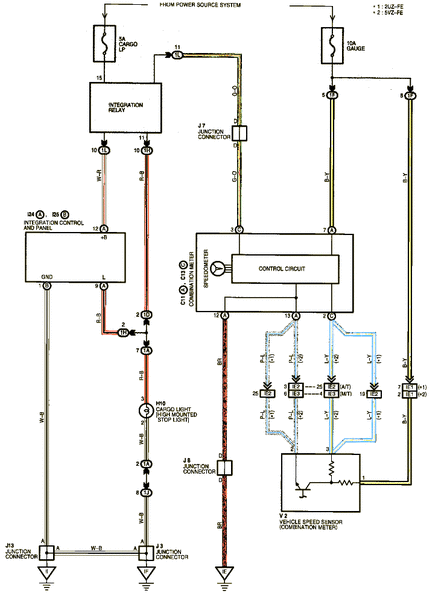

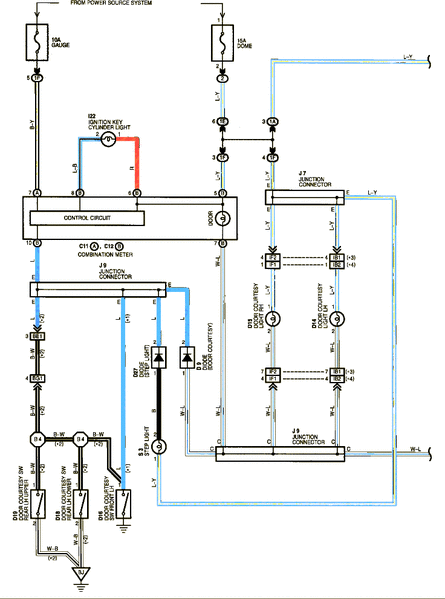

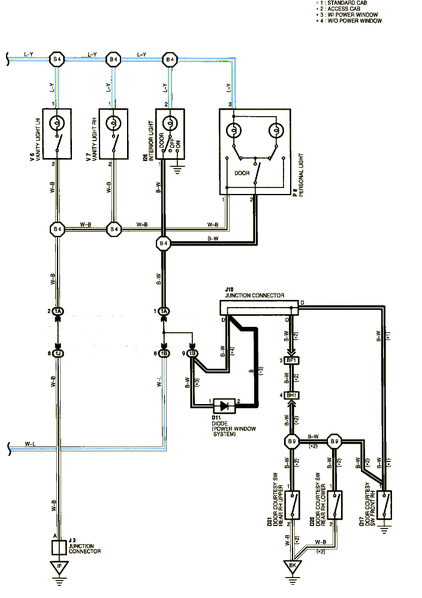

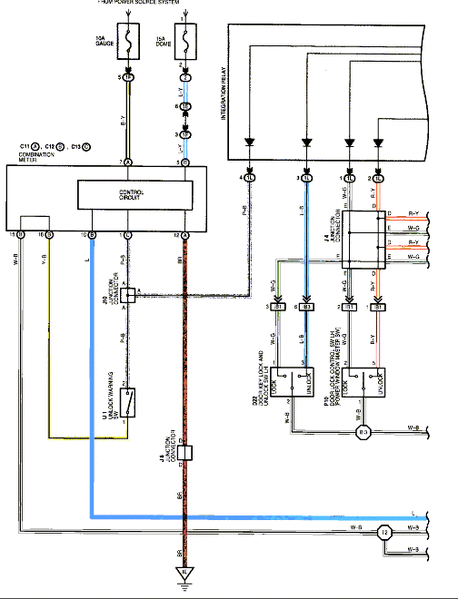

    hope this helps... This should be your cargo lamp and courtesy switch wiring diagrams


    Attached Files:

    googlydoodle, Sep 29, 2014
    #9
    NewImprovedRon likes this.
  10. Oct 5, 2014 at 2:02 AM
    #10
    Kameleonmax

    #10
    Kameleonmax [OP] New Member

    Joined:
    Sep 27, 2014
    Member:
    #637
    Messages:
    9
    Gender:
    Male
    First Name:
    Ralph
    Vehicle:
    2006 Toyota Tundra 4wd double cab
    Got it done. Will have a video/pic on the finished product...... ;)

    Kameleonmax, Oct 5, 2014
    #10
  11. Oct 19, 2014 at 8:58 PM
    #11
    Kameleonmax

    #11
    Kameleonmax [OP] New Member

    Joined:
    Sep 27, 2014
    Member:
    #637
    Messages:
    9
    Gender:
    Male
    First Name:
    Ralph
    Vehicle:
    2006 Toyota Tundra 4wd double cab
    Kameleonmax, Oct 19, 2014
    #11
  12. Oct 20, 2014 at 7:47 AM
    #12
    csuviper

    #12
    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,260
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    That is awesome man. Going to have to do something like this to mine eventually.

    csuviper, Oct 20, 2014
    #12
    Kameleonmax[OP] likes this.
  13. Oct 20, 2014 at 7:48 AM
    #13
    csuviper

    #13
    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,260
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    csuviper, Oct 20, 2014
    #13
    Kameleonmax[OP] likes this.
  14. Oct 20, 2014 at 4:51 PM
    #14
    Kameleonmax

    #14
    Kameleonmax [OP] New Member

    Joined:
    Sep 27, 2014
    Member:
    #637
    Messages:
    9
    Gender:
    Male
    First Name:
    Ralph
    Vehicle:
    2006 Toyota Tundra 4wd double cab
    Thanks.....
    Since the door switches are the grounded type, i wired the (-) side of each of the strip lights so each one operated separately for each door.

    Kameleonmax, Oct 20, 2014
    #14
  15. Oct 20, 2014 at 5:26 PM
    #15
    csuviper

    #15
    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,260
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    Negative of the light to the door switch and the positive side to where?

    csuviper, Oct 20, 2014
    #15
  16. Oct 23, 2014 at 1:07 PM
    #16
    csuviper

    #16
    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,260
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    Can you post up the light strips and relays etc that you purchased for this project? Would help me and others out if we choose to do this?

    csuviper, Oct 23, 2014
    #16
  17. Oct 25, 2014 at 12:21 AM
    #17
    Kameleonmax

    #17
    Kameleonmax [OP] New Member

    Joined:
    Sep 27, 2014
    Member:
    #637
    Messages:
    9
    Gender:
    Male
    First Name:
    Ralph
    Vehicle:
    2006 Toyota Tundra 4wd double cab
    Positive to a constant source

    Kameleonmax, Oct 25, 2014
    #17
  18. Oct 25, 2014 at 12:28 AM
    #18
    Kameleonmax

    #18
    Kameleonmax [OP] New Member

    Joined:
    Sep 27, 2014
    Member:
    #637
    Messages:
    9
    Gender:
    Male
    First Name:
    Ralph
    Vehicle:
    2006 Toyota Tundra 4wd double cab
    I only purchased the light strips from Amazon. Like these:


    Kameleonmax, Oct 25, 2014
    #18
  19. Oct 2, 2021 at 7:27 PM
    #19
    Teutonics

    #19
    Teutonics BestGen Member

    Joined:
    Jul 31, 2021
    Member:
    #66184
    Messages:
    208
    Gender:
    Male
    Vehicle:
    2005 DC SR5 4WD
    My apologies for necro-posting, but thanks for this! Saved my a$$ from buying a new remote module. I too was troubleshooting and let the sparks out at the junction fitting in the passenger footwell. A quick search found this and I checked all my fuses again... yep, 7.5A!

    Teutonics, Oct 2, 2021
    #19
    Darkness likes this.
  20. Oct 3, 2021 at 12:01 AM
    #20
    Tundra2

    #20
    Tundra2 Zoinked

    Joined:
    Feb 10, 2019
    Member:
    #25875
    Messages:
    12,449
    Gender:
    Male
    First Name:
    Noah
    Western Kentucky
    Vehicle:
    '00 Tundra V8 SR5 '03 Corolla Virus
    @bmf4069 we need thread revival memes

    Tundra2, Oct 3, 2021
    #20
  21. Oct 3, 2021 at 12:11 AM
    #21
    Desert Dog

    #21
    Desert Dog Nobody rides for free

    Joined:
    May 29, 2021
    Member:
    #63643
    Messages:
    1,338
    Gender:
    Male
    Vehicle:
    2001 SR5 AC 2WD 4.7l
    Bilstein 5100's, SPC UCA's, ATS HD leaves
    How 'bout this? Courtesy of @BubbaW


    Desert Dog, Oct 3, 2021
    #21
    Jack McCarthy, Darkness, BubbaW and 1 other person like this.
  22. Oct 3, 2021 at 12:15 AM
    #22
    Tundra2

    #22
    Tundra2 Zoinked

    Joined:
    Feb 10, 2019
    Member:
    #25875
    Messages:
    12,449
    Gender:
    Male
    First Name:
    Noah
    Western Kentucky
    Vehicle:
    '00 Tundra V8 SR5 '03 Corolla Virus
    received_361211895247149.jpg received_249503956190461.jpg

    Back on my cellular device!

    Tundra2, Oct 3, 2021
    #22
    Darkness likes this.
  23. Oct 3, 2021 at 12:47 AM
    #23
    ZappBrannigan

    #23
    ZappBrannigan The mind is willing but the flesh is weak

    Joined:
    Dec 31, 2018
    Member:
    #23724
    Messages:
    2,551
    Gender:
    Male
    Canada, by way of Hawaii
    Vehicle:
    2018 1794 MGM
    NVS light bar
    To be fair, it is nearly Halloween, despite the fact that Xmas is going on in Lowe’s right now, so necromancy is cool.

    ZappBrannigan, Oct 3, 2021
    #23
    Darkness, Desert Dog[QUOTED] and Tundra2 like this.
  24. Oct 3, 2021 at 2:18 AM
    #24
    Desert Dog

    #24
    Desert Dog Nobody rides for free

    Joined:
    May 29, 2021
    Member:
    #63643
    Messages:
    1,338
    Gender:
    Male
    Vehicle:
    2001 SR5 AC 2WD 4.7l
    Bilstein 5100's, SPC UCA's, ATS HD leaves

    I can dig it for thread revival memes any time of the year.

    Desert Dog, Oct 3, 2021
    #24
    Darkness, ZappBrannigan[QUOTED] and Tundra2 like this.
  25. Oct 3, 2021 at 2:40 AM
    #25
    Tundra2

    #25
    Tundra2 Zoinked

    Joined:
    Feb 10, 2019
    Member:
    #25875
    Messages:
    12,449
    Gender:
    Male
    First Name:
    Noah
    Western Kentucky
    Vehicle:
    '00 Tundra V8 SR5 '03 Corolla Virus

    Tundra2, Oct 3, 2021
    #25
    shifty` and Darkness like this.
  26. Oct 3, 2021 at 8:53 AM
    #26
    Lil Steve

    #26
    Lil Steve Living the dream

    Joined:
    Apr 15, 2020
    Member:
    #45041
    Messages:
    724
    Gender:
    Male
    First Name:
    Steve
    Gilbert, AZ
    Vehicle:
    2002 Tundra SR5 Access Cab 2WD V8
    As Heather would say...


    Lil Steve, Oct 3, 2021
    #26
    Tundra2 likes this.
  27. Jan 31, 2023 at 12:49 PM
    #27
    threeroundpro

    #27
    threeroundpro "Here to f*ck sh!t up!" and then fix it...

    Joined:
    Jan 30, 2023
    Member:
    #91157
    Messages:
    15
    Gender:
    Male
    First Name:
    Ed
    Houston, TX
    Vehicle:
    2006 DC SR5 4.7L
    SAIS bypass, GMRS radio, everything else still stock
    This thread has heald me . Just ran into the same problem, lol

    threeroundpro, Jan 31, 2023
    #27
Register FREE to Reply!

Products Discussed in

TRIAX Synergy Gear Max 75W-90 GL-5 Limited Slip, Ultra Long Drain 500k Miles, Manual Transmission, Gear/Differential Lubricant (1 Gallon)
$38.49
KENWOOD DNR1007XR eXcelon 10.1" High Definition Navigation Car Stereo Receiver with Capacitive Touch Panel
$1,599.00
AISIN TKT-021 Engine Timing Belt Kit with Water Pump - Compatible with Select Lexus GS400, GS430, GX470, LS400, LS430, LX470, SC400, SC430 Toyota 4Runner, Land Cruiser, Sequoia, Tundra
$184.95
Posi-Tap Red (10) Inline Wire Connectors 18-24, GA, AWG, Electrical Fastener, WIRE NOT INCLUDED
$13.90
Interior Door Handles W/ Bezel (Pair), Gray, Compatible with 2000-2007 Toyota Avalon Sequoia Tundra (Crew Cabs Only), Inner Front / Rear Left Driver & Right Passenger | 69205-0C030-B169206-0C030-B1
$13.89
DaierTek Door Pin Switch Car Hood Jamb Auto Alarm Security Adjustable Momentary ON Off 12VDC 20A for Automotive Trunk - 3Pcs
$6.99
Digital Caliper, Esydon Upgraded Calipers 6", Measuring Tool, Electronic Ruler, with Large LCD Screen, Auto-Off Feature, Inch and Millimeter Conversion, Plastic Case, Perfect for Household, DIY
$6.88
20 Pcs Hardware Pins Cotter Pins Spring Fastener Assortment Kit, Retaining Pins R Clips Heavy Duty Zinc Plated Cotter Pin Hairpin Assortment Kit for Use On Hitch Pin Lock Systems Multiple Sizes M1-M3
$4.99
3M Adhesive Remover, Helps Remove Tar, Attachment Tape & Bumper Sticker Adhesive, 12 oz., 1 aerosol
$18.85
SYLVANIA - 3157 ZEVO LED Amber Bulb - Bright LED Bulb, Ideal for Park and Turn Lights (Contains 2 Bulbs)
$19.75
SYLVANIA - 3156 ZEVO LED Amber Bulb - Bright LED Bulb, Ideal for Park and Turn Lights (Contains 2 Bulbs)
$19.75
Armordillo Low Profile Hard Tri-Fold for Toyota Tundra Bed Cover fits 2004 2005 2006 Toyota Tundra 6.2 Ft (74.4") Short Bed | CoveRex TFX Series | 8705353
$674.99
North Mountain Soft Roll Up Truck Tonneau Cover for Toyota Tundra 6.2ft Pickup Truck Bed/Fits 2004-2006 Toyota Tundra Double/Crew Cab 6.2ft Feetside Bed Only(74.3"-76.1")
$182.99
Areyourshop Rear Suspension Spring Bump Stop R/H OR L/H 48306-35110 for Toyota Hilux Pickup MK5 KDN165 2.5TD 08/2001-07/2005
$37.99
RealTruck AMP Research PowerStep Power Running Boards with LED Step Lights for 2007 - 2021 Toyota Tundra Crew Cab/Double Cab/Extended Crew CabCrewMax - Electric Powerstep & Retractable Truck Steps
$1,586.99
Dorman HW14023 Front Disc Brake Caliper Bolt Compatible with Select Lexus / Mazda / Toyota Models, 2 Pack
$7.41
Metra Axxess ASWC-1 Steering Wheel Control Interface
$63.96
XXL/Car Side Window Shades for SUVs (12 Sizes) - Baby Protection from Sun, Heat, Bugs & Privacy, Double-Layered Stretchy Mesh Screens, 2-Pack by Qualizzi
$24.97
Cup Holder Divider and Hide for 2022+ Toyota Tundra, Anti-Tipping Insert (Matt Black)
$15.99
Renogy 30A 12V/24V PWM Solar Charge Controller with LCD Display Flush Mount Design Negative Ground, Compatible with Sealed, Gel, Flooded and Lithium Batteries, Adventurer 30A,black
$40.99
EPAuto Spill Proof Radiator Coolant Filling Funnel Kit
$22.87
iJDMTOY 8-Pin LM449 Flashing Speed Adjustable Electronic LED Flasher Assy Relay Fix Compatible with Lexus Scion Toyota LED Turn Signal Light Bulbs
$12.29
Renogy Wanderer Li 30A 12V PWM Negative Ground Solar Charge Controller Solar Panel Regulator w/ Temp Sensor Function Fit for Lithium, Sealed, Gel, and Flooded Batteries, Wanderer Li 30A
$24.49
Astro Tools 78354 10-Piece 3/8" Drive 6 Point Pinless Universal Torque-Saver Impact Extension Socket Set - Metric
$106.90
MIFMIA H4 LED Bulb, 40000LM 800% Brighter, Backup HB2 9003 Bulb 6000K Cool White, IP68 Waterproof Plug and Play, Pack of 2, Interior Lights License Plate Lights
$19.97
Spicer 5002334 Center Bearing
$62.00
Denso 3122 Spark Plug
$3.66
ATP Automotive AT-205 Re-Seal Stops Leaks, 8 Ounce Bottle
$20.49
Toyota Oil Drain Plug Crushable Steel Gaskets Set of 10 OEM 12157-10010
$14.25
Dorman 912-088 Hood Release Cable Compatible with Select Toyota Models
$33.99
iCrimp Weather Pack Crimp Tool for AWG 24-14 Crimping Delphi APTIV Weather Pack Terminals or Metri-Pack Connectors- Crimp Terminals and Seal In ONE Cycle with Locator & Removal Extraction Tool
$34.11
Power Steering Reservoir For 2000-2007 Toyota Sequoia Tundra 4.7L 443050C030 443600C030 4436034010 603-678 3R-117
$32.39
Lisle 70500 Tap Socket Set
$32.78
KONNWEI KW208 12V Car Battery Tester, 100-2000 CCA Load Tester Automotive Alternator Tester Digital Auto Battery Analyzer Charging Cranking System Tester for Truck Marine Motorcycle SUV Boat
$29.99
LycoGear Heavy Duty Metal AMPS Hole Pattern ELD Drinks Cup Holder Mount Compatible with Ham CB Pro Satellite Radio & All Universal 2 & 4 Hole fit AMPS Pattern mounting Device
$29.95
Siless Max 120 mil (3mm) 6 sqft Car Sound Deadening mat - Butyl Automotive Sound Deadener - Noise Insulation and Vibration Dampening Material (6 sqft)
$29.95
Seaflo 12V 1.2 GPM 35 PSI Water Pressure Diaphragm Pump
$32.99
Cuisinart QG-012B LP Adapter Hose, 4 feet, Black
$29.48
BETOOLL 0-140PSI Fuel Injector Injection Pump Pressure Tester Gauge Kit Car Tools (Master)
$30.99
Hayden Aluminum Automotive 403 Ultra-Cool Tube and Fin Transmission Cooler
$31.99
Master Lock Key Lock Box, Outdoor Lock Box for House Keys, Key Safe with Combination Lock, 5 Key Capacity, 5400EC
$31.99
Marsflex TPMS Sensor 42607-33021 Compatible for Toyota Lexus Scion Pontiac, Tire Pressure Monitoring Sensors for Camry Prius Corolla rav4 Scion Yaris Replaces 42607-33011 PMV-107J 315MHz Set of 4
$30.29
To Top
