How to add LED DRL's to 2014-2017 Tundra with factory amber Drls

Discussion in 'Lighting' started by thomasbus337, Sep 24, 2017.

  1. Oct 9, 2017 at 5:04 PM
    #211
    inferno_pro_satx

    inferno_pro_satx New Member

    Joined:
    Apr 7, 2017
    Member:
    #7161
    Messages:
    153
    Gender:
    Male
    First Name:
    Roger
    Vehicle:
    2016 Tundra TRD Pro
    Depin the current purple wire you have on D connector and if your building new set up 48930029fe708955b889531857ab1202_d08972d73d45b2fb61f985630cb567d1d8b0c43d.jpgas Thomas’s posted earlier the new purple’s will go in the circle locations.

  2. Oct 9, 2017 at 5:04 PM
    #212
    iHacker

    iHacker New Member

    Joined:
    Mar 19, 2016
    Member:
    #2962
    Messages:
    279
    Gender:
    Male
    I did relay wiring in-cabin I don't like relays in the hood or wires coming from my battery terminal, taking power from ignition activated 12v, and just have one wire from inside to the LED DRLs harness adapters sorry didn't get good pictures but just as an idea for someone still planning this mod, not trying to bash Thomasbus337 setup this is just another example Im running my setup flawless. I love this kind of projects this is my world. ;)


    inferno_pro_satx likes this.
  3. Oct 9, 2017 at 5:12 PM
    #213
    thomasbus337

    thomasbus337 [OP] New Member

    Joined:
    Sep 2, 2017
    Member:
    #9396
    Messages:
    150
    Gender:
    Male
    Vehicle:
    2016 SR5 DC
    iHacker, looks good. I'm curious, where are you inserting the male terminals "purple wire from C bulb"?

  4. Oct 9, 2017 at 5:17 PM
    #214
    guyp2k

    guyp2k New Member

    Joined:
    Aug 9, 2017
    Member:
    #8973
    Messages:
    25
    Gender:
    Male
    I'm almost there :) Last 2 questions for the day: To unpin, how difficult is that, do I just push the pin out with a screwdriver, and the pigtails ( D and P) where to they plugin on both ends?

    Thanks

  5. Oct 9, 2017 at 5:23 PM
    #215
    inferno_pro_satx

    inferno_pro_satx New Member

    Joined:
    Apr 7, 2017
    Member:
    #7161
    Messages:
    153
    Gender:
    Male
    First Name:
    Roger
    Vehicle:
    2016 Tundra TRD Pro
    Use a push pin or paper clip and pull the locking tab down and pull the wire out. It’s on one of the pages on how to swap the wires at the cbulb and Thomas explains how to depin the wire with pic.c21c732529de9f3a88135e948a73583b_069cbc842396b5d046998e26ba26a9c3ad79c98e.jpg

  6. Oct 9, 2017 at 5:25 PM
    #216
    iHacker

    iHacker New Member

    Joined:
    Mar 19, 2016
    Member:
    #2962
    Messages:
    279
    Gender:
    Male
    For now temporary while I receive conectors for the adapters you made just depinned purple wire from the turn signal socket then inserted the male terminals in the depinned purple female and they are covered with a heatshrink wrap, virtually don't need the adapters the connection is secure but It will become permanent and secure when receive my adpaters

    inferno_pro_satx likes this.
  7. Oct 9, 2017 at 5:27 PM
    #217
    inferno_pro_satx

    inferno_pro_satx New Member

    Joined:
    Apr 7, 2017
    Member:
    #7161
    Messages:
    153
    Gender:
    Male
    First Name:
    Roger
    Vehicle:
    2016 Tundra TRD Pro
    Yours came out nice !!

    iHacker likes this.
  8. Oct 9, 2017 at 5:35 PM
    #218
    thomasbus337

    thomasbus337 [OP] New Member

    Joined:
    Sep 2, 2017
    Member:
    #9396
    Messages:
    150
    Gender:
    Male
    Vehicle:
    2016 SR5 DC

    That's what I was thinking after I posted it. Another option, that can be done without the use of my signal adapters (which I will include in the new write up) and the way I ended up wiring mine is to swap around the male and female 4 pin plugs. I've got the male plug on my harness end and the female end (using the oem purple wire and female terminal) and my added pin 87 relay output (not shown)


    iHacker likes this.
  9. Oct 9, 2017 at 5:40 PM
    #219
    iHacker

    iHacker New Member

    Joined:
    Mar 19, 2016
    Member:
    #2962
    Messages:
    279
    Gender:
    Male
    Yeah I tried that but don't want to break that tiny purple wire it was really thigh doing it this way

    inferno_pro_satx likes this.
  10. Oct 9, 2017 at 5:43 PM
    #220
    inferno_pro_satx

    inferno_pro_satx New Member

    Joined:
    Apr 7, 2017
    Member:
    #7161
    Messages:
    153
    Gender:
    Male
    First Name:
    Roger
    Vehicle:
    2016 Tundra TRD Pro
    You and Thomas are really gonna confuse these guys more now lol

  11. Oct 9, 2017 at 5:46 PM
    #221
    iHacker

    iHacker New Member

    Joined:
    Mar 19, 2016
    Member:
    #2962
    Messages:
    279
    Gender:
    Male
    Opps, sorry guys just don't pay attention to the last 3-4 posts hahaha nothing has changed our harness does the same job just tying to blend the ideas to make it easy

    inferno_pro_satx likes this.
  12. Oct 9, 2017 at 5:53 PM
    #222
    thomasbus337

    thomasbus337 [OP] New Member

    Joined:
    Sep 2, 2017
    Member:
    #9396
    Messages:
    150
    Gender:
    Male
    Vehicle:
    2016 SR5 DC
    I'm going to work on the two new separate write ups tomorrow.
    Yeah, I guess you'd have to plan ahead to have more slack in the DRL wiring if you were going to do it this way. I'm offering it up as an alternative because the male 3 pin plugs to make the signal adapters are hard to find. Conicelli Toyota had to special order them for me the first time because no dealer in the US was showing any stock, and it took almost two weeks to get them. I ordered another two sets later and they had to credit me for one of the connectors because they were not available. I'm imagining they are on back order now, oops

    Newm and inferno_pro_satx like this.
  13. Oct 11, 2017 at 6:53 AM
    #223
    Lanceb83

    Lanceb83 New Member

    Joined:
    Jan 23, 2017
    Member:
    #6066
    Messages:
    48
    Gender:
    Male
    First Name:
    Lance
    Valliant, OK
    Vehicle:
    2014 Tundra Crewmax
    RC leveling kit RC fender flares 305/55/20 Mickey Thompson ATZ P3 Fuel Maverick 20x10 -12 offset Body chop mount modification

  14. Oct 11, 2017 at 10:37 AM
    #224
    guyp2k

    guyp2k New Member

    Joined:
    Aug 9, 2017
    Member:
    #8973
    Messages:
    25
    Gender:
    Male
    Received all the parts today to make the relay. One question for Thomas, could you tell me the length of each on your relay please?

  15. Oct 11, 2017 at 2:47 PM
    #225
    thomasbus337

    thomasbus337 [OP] New Member

    Joined:
    Sep 2, 2017
    Member:
    #9396
    Messages:
    150
    Gender:
    Male
    Vehicle:
    2016 SR5 DC
    For the battery wire I went 33" plus the length of the inline fuse holder, 18" from relay to Driver's side headlight, 68" from relay to pass side. I guestimated on the length from the relay to the under dash area at 9ft just to be on the safe side then trimmed off the excess once it was in the cab.

    inferno_pro_satx likes this.
  16. Oct 11, 2017 at 2:58 PM
    #226
    thomasbus337

    thomasbus337 [OP] New Member

    Joined:
    Sep 2, 2017
    Member:
    #9396
    Messages:
    150
    Gender:
    Male
    Vehicle:
    2016 SR5 DC
    @Lanceb83, I have piggybacked both power wires and both DRL relay outputs each on one terminal. I used the wire seals and terminals for 10-12 gauge wire for the doubles and I had no problems

  17. Oct 12, 2017 at 8:30 AM
    #227
    TuffTundra

    TuffTundra New Member

    Joined:
    Sep 5, 2017
    Member:
    #9461
    Messages:
    62
    Gender:
    Male
    Missouri
    Vehicle:
    2016 MGM SR5
    Starting to put together my harness and think I might have messed up. I used the bigger pins to go into the 8-pin plug and I don't think they are going to fit. I'm not sure what pins (male or female) should go into the 8-pin plug. If someone can provide a photo that would be great. Also should I try and save the wrong pins I attached already or just trash them? Hope I didn't need those :(


  18. Oct 12, 2017 at 8:39 AM
    #228
    inferno_pro_satx

    inferno_pro_satx New Member

    Joined:
    Apr 7, 2017
    Member:
    #7161
    Messages:
    153
    Gender:
    Male
    First Name:
    Roger
    Vehicle:
    2016 Tundra TRD Pro
    Female pins go in the 8 pin connector

    And male at the gray connectors

  19. Oct 12, 2017 at 9:05 AM
    #229
    TuffTundra

    TuffTundra New Member

    Joined:
    Sep 5, 2017
    Member:
    #9461
    Messages:
    62
    Gender:
    Male
    Missouri
    Vehicle:
    2016 MGM SR5
    So these go into 8-pin plug?

    Female Pins.jpg

    iHacker likes this.
  20. Oct 12, 2017 at 9:21 AM
    #230
    iHacker

    iHacker New Member

    Joined:
    Mar 19, 2016
    Member:
    #2962
    Messages:
    279
    Gender:
    Male
    Yes this are the females into the 8 pin plug, the males with purple seals goes into the 9006 ballast/high bean ends

    inferno_pro_satx likes this.
  21. Oct 12, 2017 at 9:22 AM
    #231
    inferno_pro_satx

    inferno_pro_satx New Member

    Joined:
    Apr 7, 2017
    Member:
    #7161
    Messages:
    153
    Gender:
    Male
    First Name:
    Roger
    Vehicle:
    2016 Tundra TRD Pro
    Correct

  22. Oct 12, 2017 at 11:47 AM
    #232
    Lanceb83

    Lanceb83 New Member

    Joined:
    Jan 23, 2017
    Member:
    #6066
    Messages:
    48
    Gender:
    Male
    First Name:
    Lance
    Valliant, OK
    Vehicle:
    2014 Tundra Crewmax
    RC leveling kit RC fender flares 305/55/20 Mickey Thompson ATZ P3 Fuel Maverick 20x10 -12 offset Body chop mount modification
    6BD3C923-35A6-401F-92BA-E93DD22D2AF3.jpg I was looking around on eBay and found this attaches to your parking lights and 12v power. Not sure if you can buy this without the panel led kit....

    https://youtu.be/d3UUCGNogrw

  23. Oct 12, 2017 at 12:45 PM
    #233
    inferno_pro_satx

    inferno_pro_satx New Member

    Joined:
    Apr 7, 2017
    Member:
    #7161
    Messages:
    153
    Gender:
    Male
    First Name:
    Roger
    Vehicle:
    2016 Tundra TRD Pro
    Why would you wanna use that? You can build you’re own harness for around 100 bucks complete fully functional . That harness will only work for the drl’s you still have to wire up the headlights to work properly..

  24. Oct 12, 2017 at 2:11 PM
    #234
    Lanceb83

    Lanceb83 New Member

    Joined:
    Jan 23, 2017
    Member:
    #6066
    Messages:
    48
    Gender:
    Male
    First Name:
    Lance
    Valliant, OK
    Vehicle:
    2014 Tundra Crewmax
    RC leveling kit RC fender flares 305/55/20 Mickey Thompson ATZ P3 Fuel Maverick 20x10 -12 offset Body chop mount modification

    Oh, I just thought it was interesting. I built the headlight harness and they worked great, thanks for @thomasbus337 help and yours on the DRL. I am still waiting for parts to come in for my DRLS. I tested them but wanted to wait for some braided sleeve to come in for extra protection.

    inferno_pro_satx likes this.
  25. Oct 12, 2017 at 8:41 PM
    #235
    guyp2k

    guyp2k New Member

    Joined:
    Aug 9, 2017
    Member:
    #8973
    Messages:
    25
    Gender:
    Male

    So for 86 and 30, how did you do that? Create a loop and tie the lead to either pin ( 86 or 30) going to the battery? Also, I have 3 sets of female pins for the relay that are labeled 11, 15, 17, which ones should I use? They seem to all fit in the relay....

    Thanks

  26. Oct 12, 2017 at 8:43 PM
    #236
    inferno_pro_satx

    inferno_pro_satx New Member

    Joined:
    Apr 7, 2017
    Member:
    #7161
    Messages:
    153
    Gender:
    Male
    First Name:
    Roger
    Vehicle:
    2016 Tundra TRD Pro
    Yes create a loop at 86 & 30 fused to the battery.

  27. Oct 12, 2017 at 10:37 PM
    #237
    jdm ctr '00

    jdm ctr '00 New Member

    Joined:
    Dec 11, 2015
    Member:
    #2233
    Messages:
    243
    Gender:
    Male
    los Angeles, CA
    Vehicle:
    2016 Tundra TRD PRO
    Check the diagram I posted @guyp2k

  28. Oct 13, 2017 at 6:39 AM
    #238
    guyp2k

    guyp2k New Member

    Joined:
    Aug 9, 2017
    Member:
    #8973
    Messages:
    25
    Gender:
    Male
    I did and I assume it doesn't matter which pin I attach the lead to going to the battery, since it is a loop? Also when terminating, do you crimp the round rubber sleeve that the wires slide through or push them in once you insert the pins into connector/housing?

    Thanks

  29. Oct 13, 2017 at 8:47 AM
    #239
    jdm ctr '00

    jdm ctr '00 New Member

    Joined:
    Dec 11, 2015
    Member:
    #2233
    Messages:
    243
    Gender:
    Male
    los Angeles, CA
    Vehicle:
    2016 Tundra TRD PRO
    86/30 get wired together then attached to the fuse lead. Once that is done you attach the other end of the fuse lead to the batt. The rubber gets crimped on after you crimp the wire.

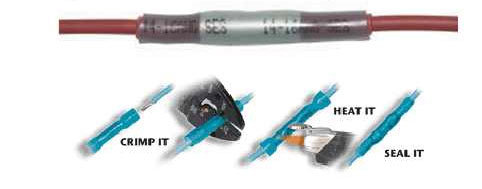

    I used heat shrink connectors then added heat shrink tubing over them.




    Something like this



    Last edited: Oct 13, 2017 at 8:53 AM
  30. Oct 13, 2017 at 8:27 PM
    #240
    guyp2k

    guyp2k New Member

    Joined:
    Aug 9, 2017
    Member:
    #8973
    Messages:
    25
    Gender:
    Male
    Just about done with the relay harness, one last question. The connectors (75929) is labeled 1-4, what #/hole does the red wire terminate and which #/hole does the purple wire terminate? Hard to tell from Thomas's picture.





    Thanks
