Hard to Remove Inner Tie Rod End

Discussion in '1st Gen Tundras (2000-2006)' started by w666, Sep 9, 2020.

  1. Sep 9, 2020 at 9:20 AM
    #1
    w666

    w666 [OP] New Member

    Joined:
    Dec 17, 2019
    Member:
    #40020
    Messages:
    54
    Gender:
    Male
    Vehicle:
    04 Access Cab SR5 V8 4WD
    None yet
    While trying to sort out my vibration problem, the tire guy told me I needed a lower ball joint, and both inner and outer tie rod ends. I jacked the car up at home and the wheel was so loose in any direction it felt like it was going to fall off! So I went for it...

    I've got the JBJ off, and the OEM part from McGeorge Toyota will arrive any minute now. The outer tie rod end was no more trouble to remove that expected, but the inner refuses to come loose. Before I get more aggressive with it (I'm afraid I might bend the rack), I'm wondering if anyone has had a similar problem, and more importantly, a solution.

    I expected to find a lock washer staked to the flats, but there is nothing there. Perhaps it's been changed once already? Perhaps it's secured by Loctite? Yeech!

    My thanks in advance for your wisdom and advice!

    IMG_0698.jpg IMG_0699.jpg IMG_0700.jpg

  2. Sep 9, 2020 at 9:55 AM
    #2
    N84434

    N84434 In the Frozen Tundra

    Joined:
    Jan 22, 2020
    Member:
    #41580
    Messages:
    232
    Gender:
    Male
    First Name:
    Jim
    Milwaukee WI.
    Vehicle:
    2001 Limited TRD
    Are they right hand thread?? I replaced the whole rack, so did not have to deal with inners.

  3. Sep 9, 2020 at 11:54 AM
    #3
    w666

    w666 [OP] New Member

    Joined:
    Dec 17, 2019
    Member:
    #40020
    Messages:
    54
    Gender:
    Male
    Vehicle:
    04 Access Cab SR5 V8 4WD
    None yet
    Everything I've seen/read says it's left thread (lefty loosey). The outer ends should be left threaded on the passenger side, and right threaded on the driver side (I haven't removed that one yet, so I stick with "should be" until I do).

  4. Sep 9, 2020 at 12:03 PM
    #4
    Geo4x4

    Geo4x4 New Member

    Joined:
    Apr 3, 2018
    Member:
    #14161
    Messages:
    60
    Gender:
    Male
    First Name:
    George
    Vehicle:
    2010 Toyota Tundra TRD Rock Warrior
    Check the threads on the new one to see if they are right or left hand thread. And btw left hand thread is lefty tighty righty loosey. Right hand thread is the normal style bolt that is righty tighty lefty loosey. Good luck!

  5. Sep 9, 2020 at 12:25 PM
    #5
    w666

    w666 [OP] New Member

    Joined:
    Dec 17, 2019
    Member:
    #40020
    Messages:
    54
    Gender:
    Male
    Vehicle:
    04 Access Cab SR5 V8 4WD
    None yet
    Found a FSM...

    Inner End.jpg

  6. Sep 9, 2020 at 12:45 PM
    #6
    rock climber

    rock climber New Member

    Joined:
    Oct 7, 2019
    Member:
    #37106
    Messages:
    405
    Gender:
    Male
    Colorado
    Vehicle:
    2001 Sequoia 4X4, 2006 Tundra Double Cab 4X4
    Mine was normal threaded. What are you using to get it off? I used a massive pipe wrench, but O'Reilly's has a tool that fits over it and then multiple different clamps so you can use a socket.

    bmf4069 and revtune like this.
  7. Sep 9, 2020 at 12:56 PM
    #7
    revtune

    revtune New Member

    Joined:
    Mar 5, 2019
    Member:
    #27132
    Messages:
    601
    Gender:
    Male
    First Name:
    Dane
    Houston Texas
    Vehicle:
    2002 Tundra 4.7 AC 2wd 2006 Tundra 4.7 AC 2wd
    2002 Tundra: JBA short tube headers Stock air intake Ome front lift Spc upper control arms Energy steering rack bushings Wheelers front sway bar bushings Wheelers sway bar end link bushings 2.5 inch catback Dynomax 17748 muffler OME center support driveshaft spacer 4.30 gears 17x9 Mickey Thompson III wheels p285/70/17 falken at3w 03-06 facelift 05-06 headlights Weathertech floor liners Double cab tundra center console Driver seat from a 2005 tundra 2006 Tundra: Stock air intake 3 inch catback Magnaflow 13742 2.5 inch front lift 1.5 inch rear blocks 2014 sr5 4Runner wheels (17x7) 1.5 inch hub centric wheel spacers p285/70/17 Nitto Terra Grappler G2 Weathertech floor liners
    ^This!

    Pipe wrench works very good on inner tie rods for removing and installing. When I changed the ones on my 06 they were super tight and they’d never been changed before.

    w666 [OP] likes this.
  8. Sep 9, 2020 at 1:08 PM
    #8
    Ludakrishna

    Ludakrishna New Member

    Joined:
    Nov 21, 2019
    Member:
    #38991
    Messages:
    6
    Gender:
    Male
    Yeah, the stake washer is not installed. Whoever installed it last didn’t do it right. With that said, I really didn’t have much of a fight in replacing the inner tie rod.

    https://www.autozone.com/wrenches-pliers-and-cutters/wrench/duralast-10in-locking-adjustable-wrench/565691_0_0

    This product made changing the inner tie rods a breeze on a 17 year old truck from the rust belt. It fits the steering rack portion perfectly with its low profile jaw and I was able to break loose the inner tie rod using a pipe wrench while this held the steering rack in place. For pipe wrench, I went to harbor freight and got their largest one.

    I rented the inner tie rod tool from advance auto and it would not fit over my truck’s Inner Tie Rod.

  9. Sep 10, 2020 at 2:18 AM
    #9
    w666

    w666 [OP] New Member

    Joined:
    Dec 17, 2019
    Member:
    #40020
    Messages:
    54
    Gender:
    Male
    Vehicle:
    04 Access Cab SR5 V8 4WD
    None yet
    I'm using a big ass adjustable crescent wrench. The pipe wrench may be in my future. The truck is on jack stands so I can't really use a long pipe for added leverage. But now that I'm confident of the thread direction I can be a bit more aggressive. Ahh...if only this rain would stop!

  10. Sep 10, 2020 at 4:29 AM
    #10
    Ludakrishna

    Ludakrishna New Member

    Joined:
    Nov 21, 2019
    Member:
    #38991
    Messages:
    6
    Gender:
    Male
    Are you using two wrenches? One to hold the steering rack stationary and the other to loosen the Tie Rod? If not, you can really cause some damage to the steering rack. As I mentioned, I have a truck from the rust belt and the outer tie rod nut was welded on due to corrosion. I had to remove the inner tie rod and outer tie rod in one piece. It literally took me a few seconds to loosen the inner tie rod once I had both of my wrenches positioned correctly.

  11. Sep 10, 2020 at 4:41 AM
    #11
    w666

    w666 [OP] New Member

    Joined:
    Dec 17, 2019
    Member:
    #40020
    Messages:
    54
    Gender:
    Male
    Vehicle:
    04 Access Cab SR5 V8 4WD
    None yet
    No, not yet. I haven't really done much yet since it didn't twist off easily. Still gathering info, suggestions, and real life experience. Thanks for sharing yours! I see how two wrenches are called for in the service manual picture above, but the steering rack is polished smooth and has no flats for a second wrench. So I don't understand how to set the wrench on the rack. I'm very concerned about damaging the rack.

    Edit:

    Hmmm...looks like there might be some flats after all. I'll climb under there again (after the effin rain stops!) and check it out.

    [​IMG]

    Last edited: Sep 10, 2020
  12. Sep 10, 2020 at 5:39 AM
    #12
    Ludakrishna

    Ludakrishna New Member

    Joined:
    Nov 21, 2019
    Member:
    #38991
    Messages:
    6
    Gender:
    Male
    Yep, that’s the spot where the Duralast wrench went on perfectly. It’s a very narrow area and can be easily missed.

    w666 [OP] and N84434 like this.
  13. Sep 10, 2020 at 7:08 AM
    #13
    w666

    w666 [OP] New Member

    Joined:
    Dec 17, 2019
    Member:
    #40020
    Messages:
    54
    Gender:
    Male
    Vehicle:
    04 Access Cab SR5 V8 4WD
    None yet
    Bummer :(

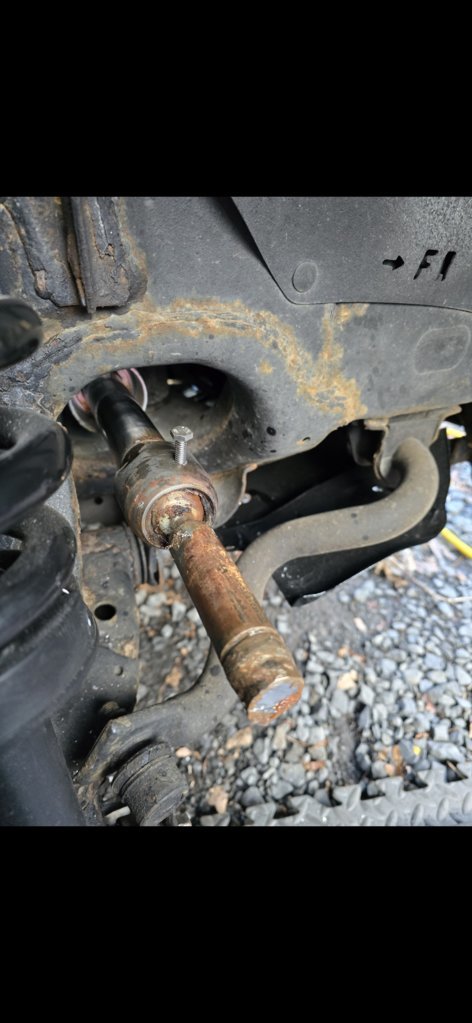

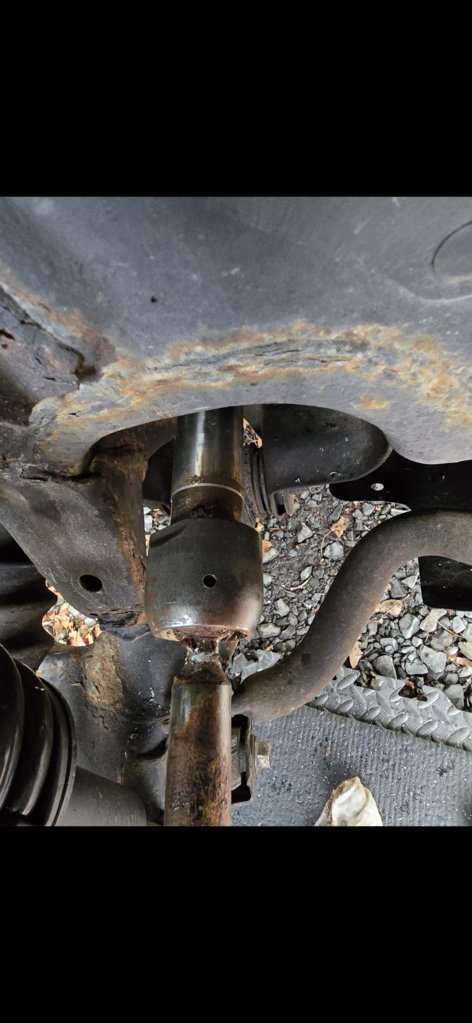

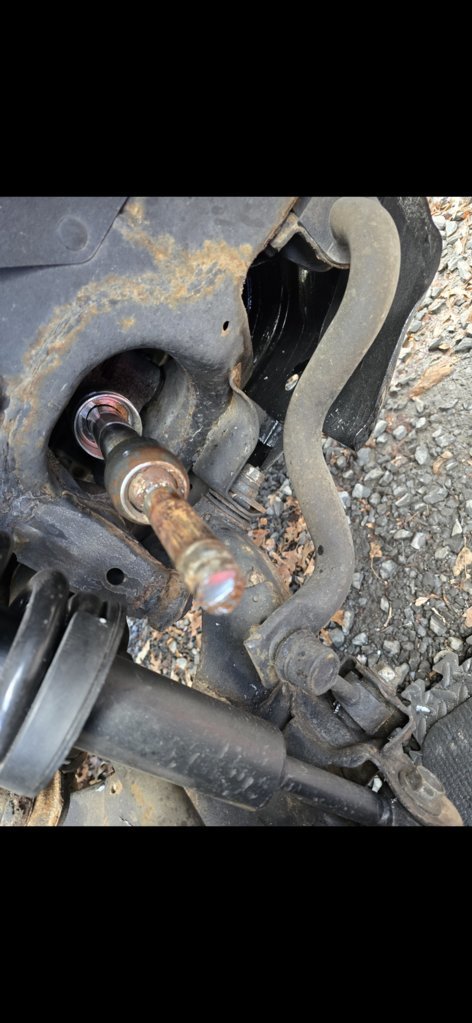

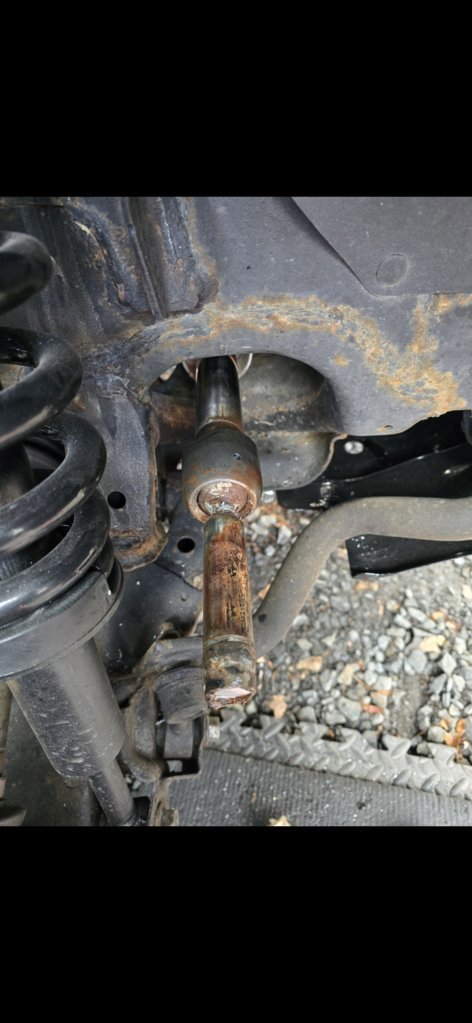

    There are no flats at all! In fact, it looks like the end has been ground to eliminate them? Maybe a refurbished unit? Or even a non-OEM replacement? SFP!

    I'll run the rack in all the way to the other side, and see how much shaft still protrudes. Maybe I can get some sort of strap wrench on there.

    IMG_0704.jpg IMG_0705.jpg

    Last edited: Sep 15, 2020 at 4:19 PM
  14. Sep 10, 2020 at 7:40 AM
    #14
    pickeledpigsfeet

    pickeledpigsfeet New Member

    Joined:
    Aug 10, 2018
    Member:
    #17999
    Messages:
    352
    Gender:
    Male
    Sierra Foothills, Ca
    Vehicle:
    2019 Tundra/14 FJ/ 90 SASed xcab
    Kings & Icons
    Sounds like a good plan. Then use a pipe wrench on the steering rack as close to the joint as you can. Pipe wrench teeth grab in one direction so make sure you have it orientated correctly. Then sand the teeth marks out.

    revtune likes this.
  15. Sep 15, 2020 at 3:44 PM
    #15
    w666

    w666 [OP] New Member

    Joined:
    Dec 17, 2019
    Member:
    #40020
    Messages:
    54
    Gender:
    Male
    Vehicle:
    04 Access Cab SR5 V8 4WD
    None yet
    Solved! The problem was (as is so often the case when working on cars) I had too much money! I just needed to spend more!!

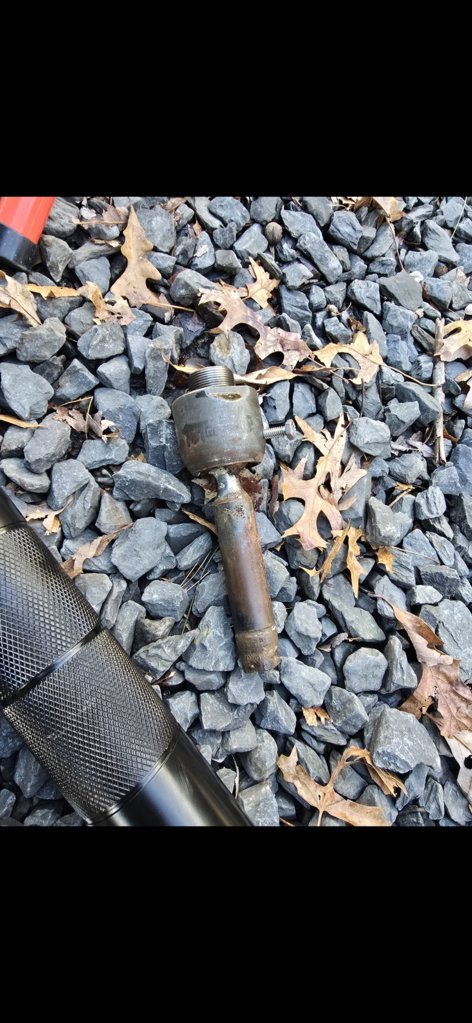

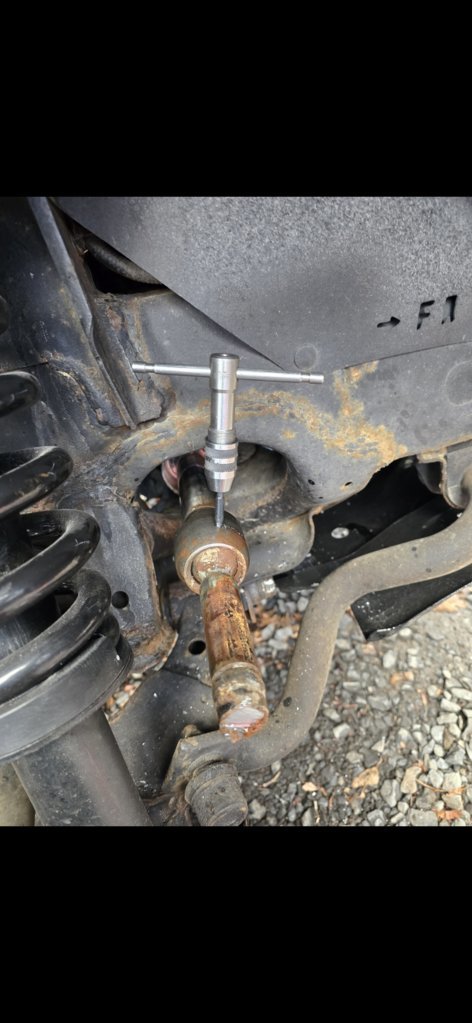

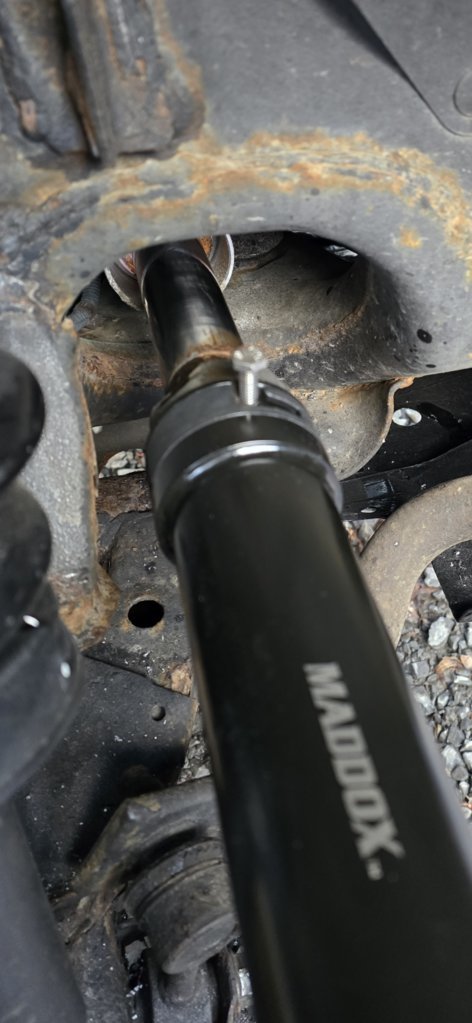

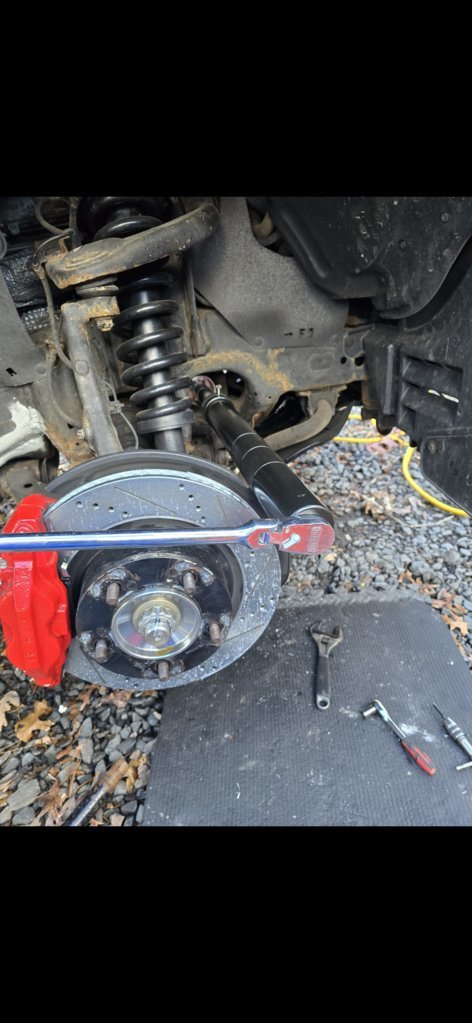

    I purchased a Lisle 54500 Large Inner Tie Rod Tool ($60 at Rock Auto). The Tundra requires a 42mm claw. With the tool and my 1/2" breaker bar i was able to unloose it and spin it off. I expected that Loctite was involved, but instead I found this funky white stuff all over the threads, mostly on the passenger side.

    Installation of the new ends was painless. There were no slots for the claw washer, so I used Loctite and 58 ft/lbs of torque.
    IMG_0723.jpg IMG_0722.jpg IMG_0721.jpg

    Last edited: Sep 15, 2020 at 4:19 PM
    bmf4069, Lil Steve, artsr2002 and 3 others like this.
  16. Sep 15, 2020 at 4:40 PM
    #16
    N84434

    N84434 In the Frozen Tundra

    Joined:
    Jan 22, 2020
    Member:
    #41580
    Messages:
    232
    Gender:
    Male
    First Name:
    Jim
    Milwaukee WI.
    Vehicle:
    2001 Limited TRD
    Excellent! You earned a cold beer after that!

  17. Sep 15, 2020 at 5:06 PM
    #17
    revtune

    revtune New Member

    Joined:
    Mar 5, 2019
    Member:
    #27132
    Messages:
    601
    Gender:
    Male
    First Name:
    Dane
    Houston Texas
    Vehicle:
    2002 Tundra 4.7 AC 2wd 2006 Tundra 4.7 AC 2wd
    2002 Tundra: JBA short tube headers Stock air intake Ome front lift Spc upper control arms Energy steering rack bushings Wheelers front sway bar bushings Wheelers sway bar end link bushings 2.5 inch catback Dynomax 17748 muffler OME center support driveshaft spacer 4.30 gears 17x9 Mickey Thompson III wheels p285/70/17 falken at3w 03-06 facelift 05-06 headlights Weathertech floor liners Double cab tundra center console Driver seat from a 2005 tundra 2006 Tundra: Stock air intake 3 inch catback Magnaflow 13742 2.5 inch front lift 1.5 inch rear blocks 2014 sr5 4Runner wheels (17x7) 1.5 inch hub centric wheel spacers p285/70/17 Nitto Terra Grappler G2 Weathertech floor liners
    Glad you got it solved. Also, pretty sure the white stuff is/was some form of thread locker. That’s probably why it was so tight.
