General Supercharger Thread.

Discussion in 'Performance and Tuning' started by snivilous, Mar 18, 2021.

  1. Mar 19, 2023 at 6:30 PM
    #6781
    M3Tundra-JK

    M3Tundra-JK New Member

    Joined:
    May 3, 2022
    Member:
    #77930
    Messages:
    2,130
    Gender:
    Male
    First Name:
    Scott
    Vehicle:
    2005 GX470
    This site contains affiliate links for which the site may be compensated.
    Jcmf52 likes this.
  2. Mar 19, 2023 at 6:55 PM
    #6782
    Saltyhero13

    Saltyhero13 Throbbing Member

    Joined:
    Aug 12, 2020
    Member:
    #50704
    Messages:
    4,446
    Fuel delete mod Cup holder upgrade
    This site contains affiliate links for which the site may be compensated.
  3. Mar 19, 2023 at 7:39 PM
    #6783
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    Just went 98 miles mostly freeway. Wow! I can't believe there is more power there, feels great! It threw 2 codes that immediately cleared. Got a really solid table for 60 bucks (plus 45 in gas as I just spent 92 bucks & have just above 1/2 tank) lol

    462 is fuel sender, oddly it caused all the movement lights to flash, 4hi, low, dsc etc.



    P101 is maf.



    Table is easily 100 pounds & I'm too burnt to deal with it tonight.


  4. Mar 19, 2023 at 7:40 PM
    #6784
    FrenchToasty

    FrenchToasty The Desert rat, 6 lug enthusiast

    Joined:
    Sep 15, 2019
    Member:
    #36156
    Messages:
    15,435
    First Name:
    Mo
    The SoAz
    Vehicle:
    2006 DC 4.88s Elocker and some other trippy stuff
    None
    Sweet T2S slap, must have missed you last year

  5. Mar 19, 2023 at 7:42 PM
    #6785
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    No, I wasn't there. Toy Mafia threw it in with a pack I bought. :D

    FrenchToasty[QUOTED] likes this.
  6. Mar 19, 2023 at 7:42 PM
    #6786
    FrenchToasty

    FrenchToasty The Desert rat, 6 lug enthusiast

    Joined:
    Sep 15, 2019
    Member:
    #36156
    Messages:
    15,435
    First Name:
    Mo
    The SoAz
    Vehicle:
    2006 DC 4.88s Elocker and some other trippy stuff
    None
    You should come this year……:boink:

    e30cabrio[QUOTED] likes this.
  7. Mar 20, 2023 at 1:28 PM
    #6787
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    Where should I mount the Innovate map sensor? Where do I get vacuum/mount away from heat/electronic "noise" under the hood? Seems like saying take a bath & stay dry!

    lol

    Saltyhero13 likes this.
  8. Mar 20, 2023 at 1:35 PM
    #6788
    sctomfar

    sctomfar Chasing 700RWHP

    Joined:
    Aug 23, 2020
    Member:
    #51208
    Messages:
    79
    Gender:
    Male
    First Name:
    Tom
    Bluffton, SC
    Vehicle:
    Supercharged Reg cab
    Harrop 2650 supercharger TRD suspension TRD intake Custom exhaust Dirtydeeds cross pipe Fully built bottom end motor Manly Rods Crowder Pistons ARB Stud Kit National Speed Tuned Redesigned fuel system XAT Fuel Rails Twin Demon Fuel Pumps 83cc Injectors Morimoto Headlights
    i would absolutely get hello kitty..

    Saltyhero13 likes this.
  9. Mar 20, 2023 at 1:35 PM
    #6789
    Wynnded

    Wynnded What MPG...

    Joined:
    Apr 20, 2014
    Member:
    #379
    Messages:
    5,055
    Gender:
    Male
    Rockies
    Vehicle:
    Souped up truck
    Magnuson Magnum TVS 2650 S/C Sniv's Speed Shop 70mm pulley RCF Throttle Body TRD PRO BBS Wheels TRD Front Sway Bar TRD Rear Sway Bar Fox TRD Pro Shocks Limited mirrors (auto darkening/backup camera/power fold/puddle lights) Limited Grill Mod Automatic Climate Controls Mod Automatic Headlamp Mod Sequoia Transfer Case Mod Sequoia Leather Steering Wheel Mod Sequoia Limited Gage Cluster Mod Sequoia LED Headlamp Upgrade Window Tint 15/70% Fake Manual Transmission Mod 10" BAMufflers Stainless Catback Valhalla Catalytic Converter Shields Engine Block Heater Illuminated Ignition Key Ring Mod Deck Rail System w/cleats Solid Offroad Engine Mounts
    I just screwed mine to the firewall on the driver side inboard of the brake booster. I didn't want a long vacuum/boost run, then the wiring under the booster and through the firewall along with all the other detritus that needs to go from the engine to the interior. I think that as long as you don't fix it to the exhaust manifold or coil pack, it'll be okay.¯\_(ツ)_/¯

  10. Mar 20, 2023 at 1:49 PM
    #6790
    snivilous

    snivilous [OP] snivspeedshop.com

    Joined:
    Apr 16, 2019
    Member:
    #29192
    Messages:
    3,634
    SW UT
    Vehicle:
    295k Supercharged 2008
    Mine is bolted to the fender area right behind the hood strut.

    HulkSmurf14 likes this.
  11. Mar 20, 2023 at 2:00 PM
    #6791
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    Thanks, where do I get the vacuum?

  12. Mar 20, 2023 at 2:03 PM
    #6792
    Wynnded

    Wynnded What MPG...

    Joined:
    Apr 20, 2014
    Member:
    #379
    Messages:
    5,055
    Gender:
    Male
    Rockies
    Vehicle:
    Souped up truck
    Magnuson Magnum TVS 2650 S/C Sniv's Speed Shop 70mm pulley RCF Throttle Body TRD PRO BBS Wheels TRD Front Sway Bar TRD Rear Sway Bar Fox TRD Pro Shocks Limited mirrors (auto darkening/backup camera/power fold/puddle lights) Limited Grill Mod Automatic Climate Controls Mod Automatic Headlamp Mod Sequoia Transfer Case Mod Sequoia Leather Steering Wheel Mod Sequoia Limited Gage Cluster Mod Sequoia LED Headlamp Upgrade Window Tint 15/70% Fake Manual Transmission Mod 10" BAMufflers Stainless Catback Valhalla Catalytic Converter Shields Engine Block Heater Illuminated Ignition Key Ring Mod Deck Rail System w/cleats Solid Offroad Engine Mounts
    My blower has a port pretty much right there at the driver-rear corner.

  13. Mar 20, 2023 at 2:04 PM
    #6793
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    I thought that was for the boost gauge. Cool!

    Saltyhero13 likes this.
  14. Mar 20, 2023 at 2:07 PM
    #6794
    Wynnded

    Wynnded What MPG...

    Joined:
    Apr 20, 2014
    Member:
    #379
    Messages:
    5,055
    Gender:
    Male
    Rockies
    Vehicle:
    Souped up truck
    Magnuson Magnum TVS 2650 S/C Sniv's Speed Shop 70mm pulley RCF Throttle Body TRD PRO BBS Wheels TRD Front Sway Bar TRD Rear Sway Bar Fox TRD Pro Shocks Limited mirrors (auto darkening/backup camera/power fold/puddle lights) Limited Grill Mod Automatic Climate Controls Mod Automatic Headlamp Mod Sequoia Transfer Case Mod Sequoia Leather Steering Wheel Mod Sequoia Limited Gage Cluster Mod Sequoia LED Headlamp Upgrade Window Tint 15/70% Fake Manual Transmission Mod 10" BAMufflers Stainless Catback Valhalla Catalytic Converter Shields Engine Block Heater Illuminated Ignition Key Ring Mod Deck Rail System w/cleats Solid Offroad Engine Mounts
    Both occur there for your boost/vacuum gauge. Are you looking for for a vacuum source for something other than your gauge?

    Saltyhero13 and M3Tundra-JK like this.
  15. Mar 20, 2023 at 2:11 PM
    #6795
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    Right now I'm trying to finish the Innovate PSB-1 install. I'll use that port, thanks!

    I mean trying to be ready to install it when I get my truck back tonight :p

    Last edited: Mar 20, 2023
    HulkSmurf14 and Wynnded like this.
  16. Mar 20, 2023 at 6:31 PM
    #6796
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    It's done, just drove around the block, didn't really get to wot but saw 5.8.

  17. Mar 20, 2023 at 7:58 PM
    #6797
    snivilous

    snivilous [OP] snivspeedshop.com

    Joined:
    Apr 16, 2019
    Member:
    #29192
    Messages:
    3,634
    SW UT
    Vehicle:
    295k Supercharged 2008
    Now tell me what the AFR number is when you're cruising :D

    HulkSmurf14 likes this.
  18. Mar 20, 2023 at 8:16 PM
    #6798
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    Criusing has been 13.5-14.5. The lowest I have seen is 9.8 for an instant at wot. If I get the pro deal can I get the Innovate info into the HP Tune reading?

    snivilous[QUOTED][OP] likes this.
  19. Mar 21, 2023 at 7:33 AM
    #6799
    snivilous

    snivilous [OP] snivspeedshop.com

    Joined:
    Apr 16, 2019
    Member:
    #29192
    Messages:
    3,634
    SW UT
    Vehicle:
    295k Supercharged 2008
    You don't even need anything else, @ZPhilip figured out how to get HPT to read from the Innovate directly. Though you'd have to talk to him about how to do it.

  20. Mar 21, 2023 at 7:52 AM
    #6800
    armyoffoo

    armyoffoo Member

    Joined:
    Jun 4, 2018
    Member:
    #15876
    Messages:
    744
    Gender:
    Male
    First Name:
    Bryan
    Cypress, TX
    Vehicle:
    2018 Black TRD Sport CrewMax
    Supercharged with all the trimmings
    Looks like you'll need to connect the Yellow wire to the blue or red wire on the prolink, then add the external input in the software. Also, make sure the ProLink is grounded as well.

    From Innovate Manual:
    Optionally, the YELLOW analog output can be connected to the analog input of other devices such as data loggers or standalone ECUs. If this wire is not being used isolate and tape it out of the way. The default analog output configuration is 0V = 7.35 AFR and 5V = 22.39 AFR.

    From HP Tuners forums:
    Under Channel Selector > External Inputs
    you'll see MVPI Pro, MVPI2
    MVPI2 Pro only has two analog inputs with the pro link. MVPI pro has four listed.
    Select MVPI2 > Pro Link
    if MVPI2 Pro link isn't visible try resynching your interface under Help section in vcm scanner. Afterwards make sure you are licensed with the Pro Feature Set in hptuners.com > My Account > My Devices

  21. Mar 21, 2023 at 7:59 AM
    #6801
    Silver17

    Silver17 Used, but returned and sold as new member

    Joined:
    Oct 3, 2021
    Member:
    #68847
    Messages:
    2,577
    Gender:
    Male
    Eastern PA
    Vehicle:
    2017 TRD 4x4 Harrop SC
    Eibach pro 2.0s, toytec progressive mini AAL, ARE CX cap, Airlift bags, Harrop Supercharger, 650cc injectors, 77.5mm pulley, TRD Dual exhaust, J&L catchcan, Powertrax LSD, RRW RR7-H, 305/70r17 Toyo AT3s
    Wynnded, e30cabrio and Saltyhero13 like this.
  22. Mar 21, 2023 at 8:07 AM
    #6802
    armyoffoo

    armyoffoo Member

    Joined:
    Jun 4, 2018
    Member:
    #15876
    Messages:
    744
    Gender:
    Male
    First Name:
    Bryan
    Cypress, TX
    Vehicle:
    2018 Black TRD Sport CrewMax
    Supercharged with all the trimmings
    That's pretty cool, so he added the gauge output as a serial input to his computer via usb adapter, and was able to see it in the software from there. Cheaper than the prolink for sure, and good to know.

    Silver17[QUOTED] and e30cabrio like this.
  23. Mar 21, 2023 at 8:08 AM
    #6803
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    Thank you, gentlemen!

  24. Mar 21, 2023 at 1:03 PM
    #6804
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    I am having a slow start issue after replacing the flex basket that had a small fpr in it with a non flex, can I use this FPR I have from a BMW (made by Ireland Engineering) If I can where does it go?


  25. Mar 21, 2023 at 7:01 PM
    #6805
    ZPhilip

    ZPhilip Custom title here

    Joined:
    Sep 20, 2019
    Member:
    #36383
    Messages:
    971
    Gender:
    Male
    First Name:
    Philip
    West Chester, PA
    Vehicle:
    2015 Platinum Super White Crewmax
    Harrop supercharger, TRD Pro Fox suspension, CB +1 shackles, 295/70-18 Toyo ATIII, TRD Pro forged rims

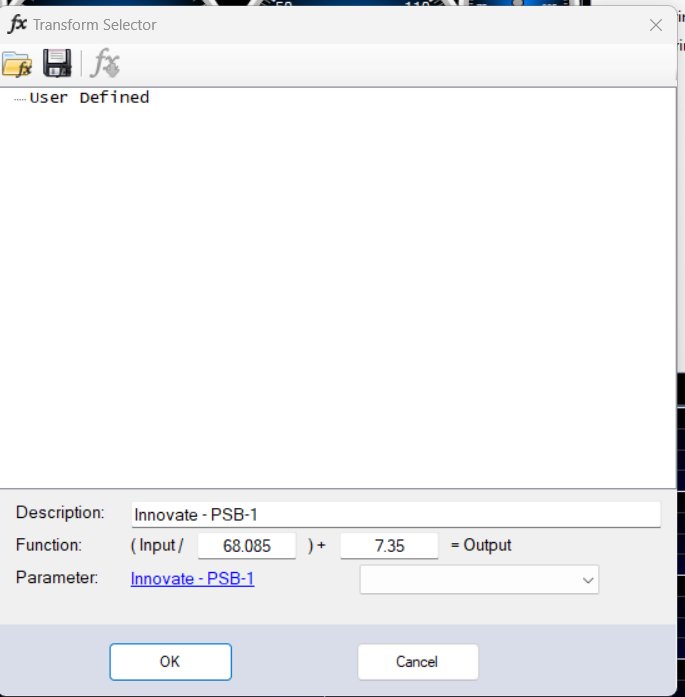

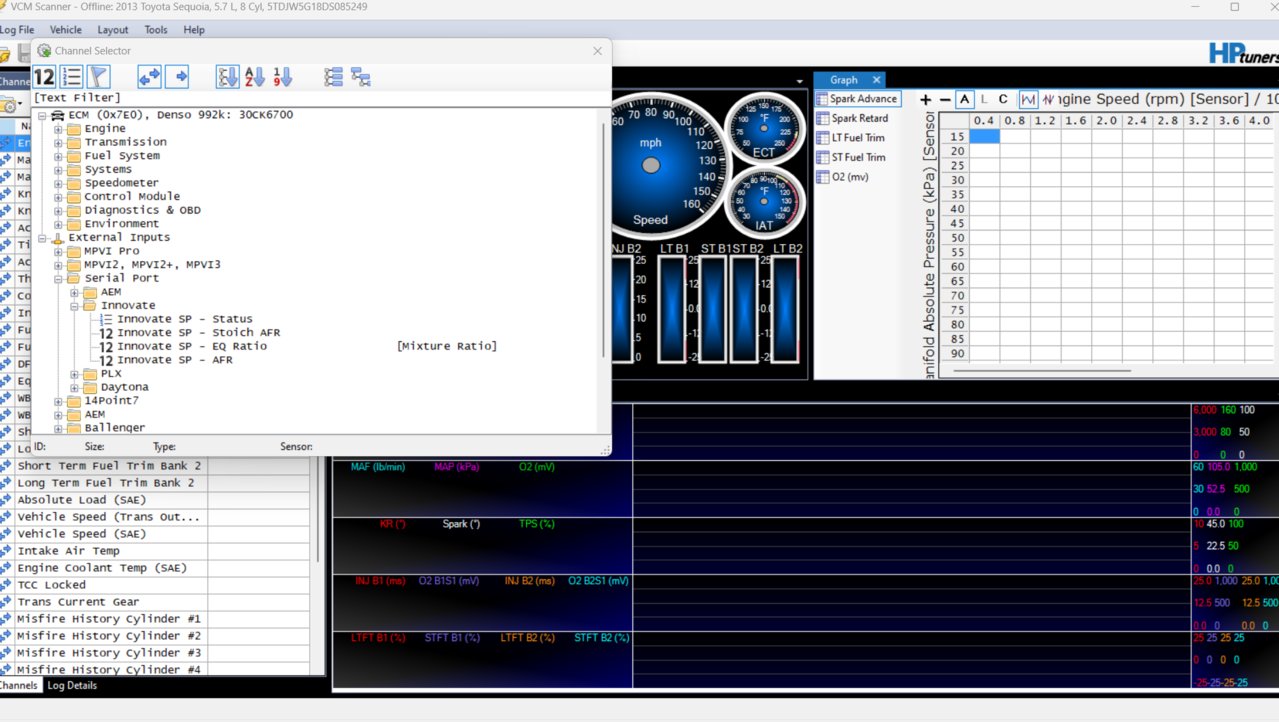

    Correct, I did successfully get the PSB-1 to show up in the channel list and record the AFR in data logs. Without using the ProLink or any other hardware.

    Once I got a new serial to USB adapter (had an old adapter that was being problematic), I added the external serial input and got it to connect with some trial and error. The next issue was getting it to display in AFR units with 14.7 stoich. I dug deep on HPT’s tuning forum and came up with the formula below to get the units correct. Hope this helps.


    Wynnded, V10Ace, HulkSmurf14 and 3 others like this.
  26. Mar 22, 2023 at 5:45 AM
    #6806
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    So I need to connect the rs232's wites to the PSB-1 out?

  27. Mar 22, 2023 at 6:46 AM
    #6807
    M3Tundra-JK

    M3Tundra-JK New Member

    Joined:
    May 3, 2022
    Member:
    #77930
    Messages:
    2,130
    Gender:
    Male
    First Name:
    Scott
    Vehicle:
    2005 GX470
    This is what I've been scanning for with OTT


    snivilous[OP] and e30cabrio like this.
  28. Mar 22, 2023 at 6:51 AM
    #6808
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    4,591
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    2010 Crewmax, 2013 Sequoia Limited
    Sequoia LED Headlights! D.T. L.T. headers, dual exh., BDX, S&B intake, 2018 seat skins.
    Guess a positive of being in IT since 1980 (went to Wang school, which was a waste of $ & time) is having pretty much every possible cable & connector.

    Is this all I need to connect?

    rs232 to USB.jpg

    HulkSmurf14 and M3Tundra-JK like this.
  29. Mar 22, 2023 at 6:54 AM
    #6809
    M3Tundra-JK

    M3Tundra-JK New Member

    Joined:
    May 3, 2022
    Member:
    #77930
    Messages:
    2,130
    Gender:
    Male
    First Name:
    Scott
    Vehicle:
    2005 GX470
    Oi, high-five for the IT guy! I'm a data center engineer.

  30. Mar 22, 2023 at 6:56 AM
    #6810
    ZPhilip

    ZPhilip Custom title here

    Joined:
    Sep 20, 2019
    Member:
    #36383
    Messages:
    971
    Gender:
    Male
    First Name:
    Philip
    West Chester, PA
    Vehicle:
    2015 Platinum Super White Crewmax
    Harrop supercharger, TRD Pro Fox suspension, CB +1 shackles, 295/70-18 Toyo ATIII, TRD Pro forged rims
    That is what I connected. The supplied serial Innovate cable and bought a USB adapter. I don’t know what rs232 wires are. I’m just a half assed driveway tinkerer.


Products Discussed in

To Top
