Front bumper removal write up

Discussion in '3rd Gen Tundras (2014-2021)' started by 16TRD, Nov 11, 2017.

  1. Nov 11, 2017 at 11:52 PM
    #1
    16TRD

    16TRD [OP] New Member

    Joined:
    Sep 27, 2016
    Member:
    #4692
    Messages:
    854
    Gender:
    Male
    Norcal
    Vehicle:
    2016 White crewmax
    I know there are some how tos out there. More pics cant hurt for those hesistant about tackling it.

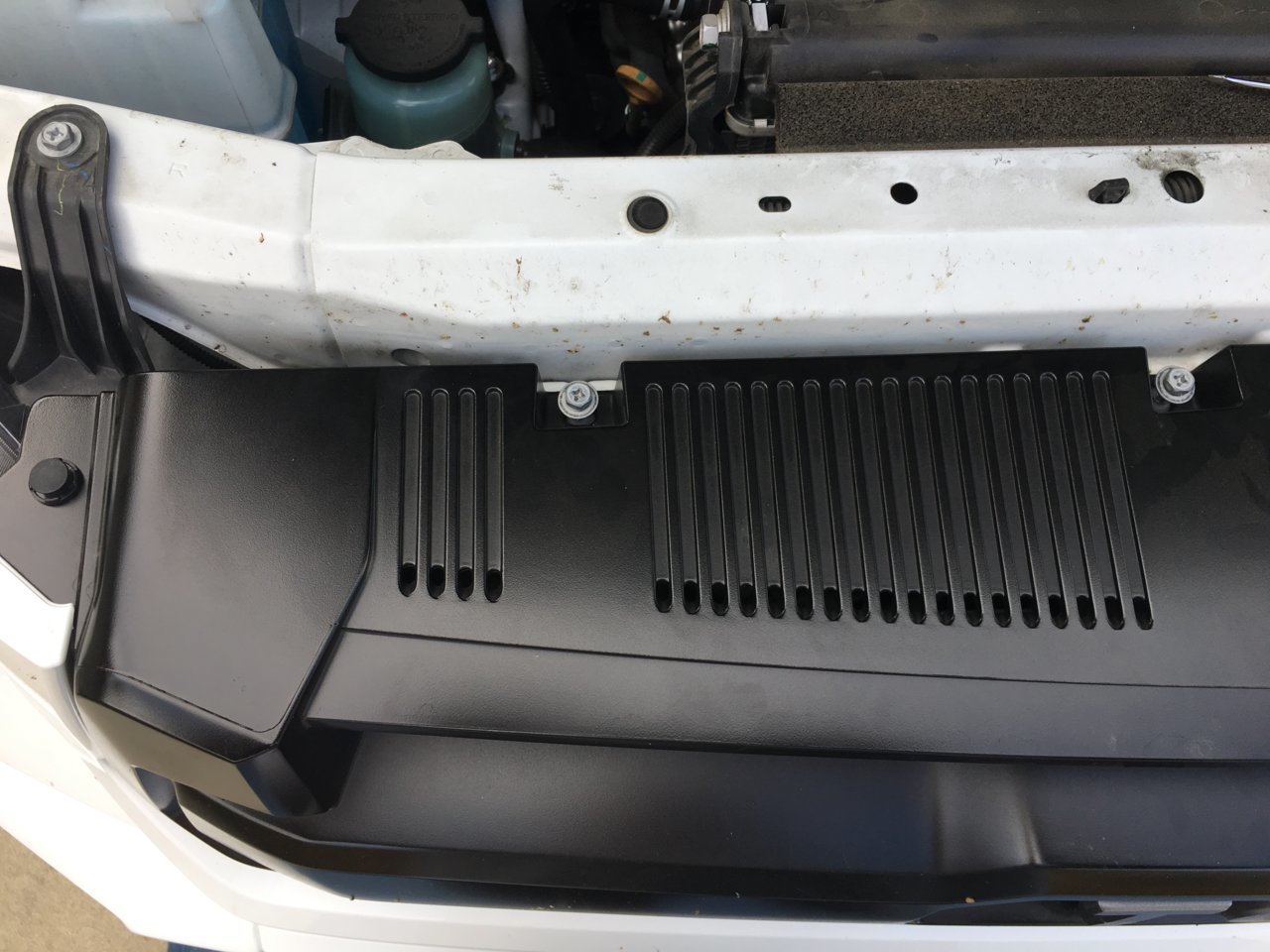

    Remove the 4 10mm bolt and clip on top of grill. Pull the top up off where it was screwed in.
    Reach under the grill and slide hand across. You can feel 3 spots where there are tabs. Pull away from truck and remove grill.

    Remove the two tabs and two 10mm screws in the wheelwell for the garnesh below the headlighight. Pull away from the truck.
    The splash guard has two 10mm screws and pop up tab in the frame. Be careful and use a small flat head to pop off the tab as its easy to break. I broke mine.
    Underneath there are also two 10mm and 12mm screws.
    Once off you have access to the fog light. Unplug it. After it's unplugged you can remove it by using a small flat head screw driver and pop down from the top and it will come out.
    On the bottom of the center valence are three 10mm bolts. On top where you remove the headlight garnish are two silver 12mm bolts on both sides. Once done the bumper comes off as once whole piece.
    Remove the 10mm bolts holding the end caps to the metal brace that holds it all together.
    Don't forget the orientation of this piece used to screw the splash guard to under the endcap.
    Now drive around getting weird looks without front bumper while you wait on your caps to get painted/powder coated.

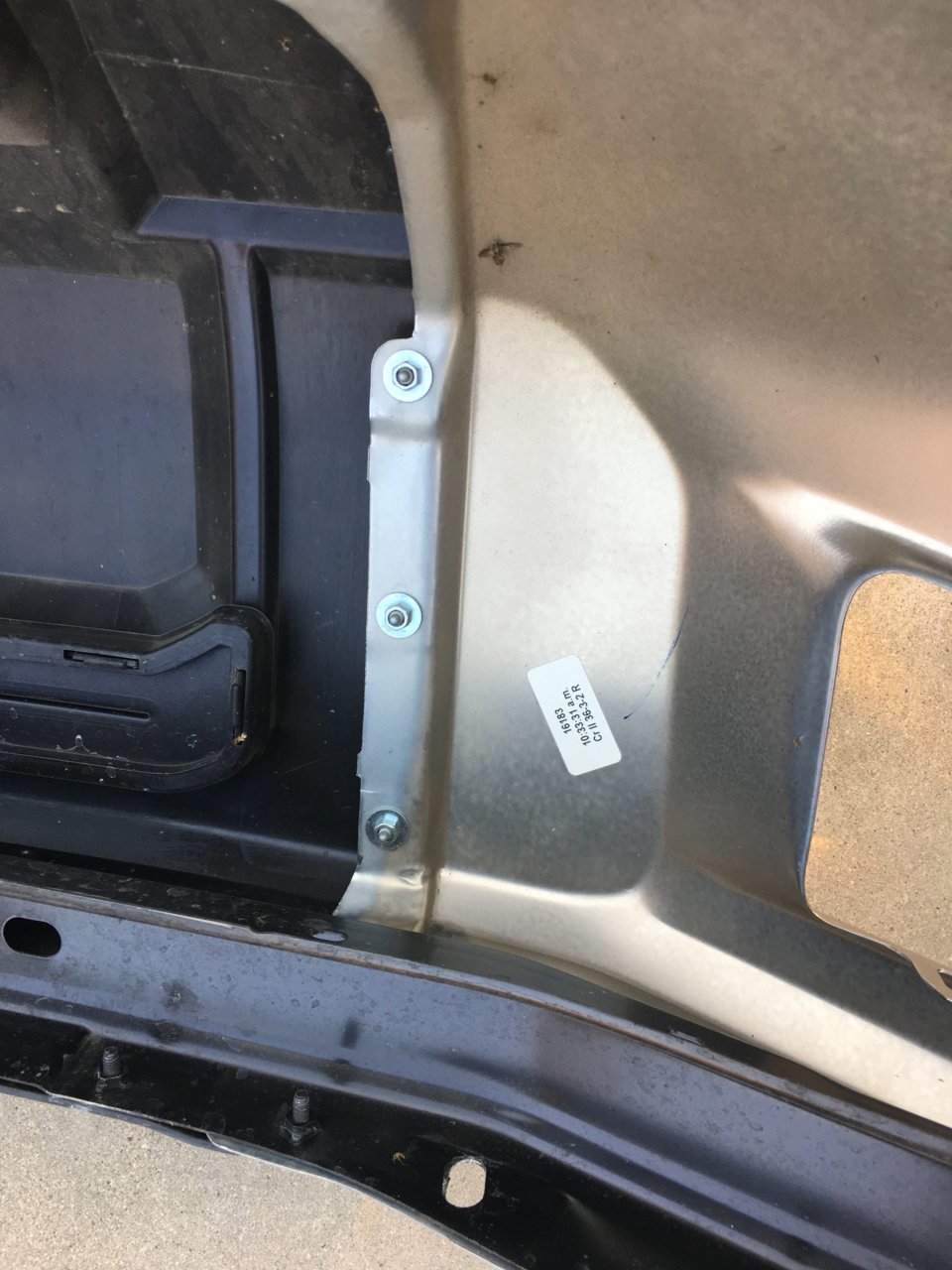

    Attached Files:
