DIY: USB Replacement CIG outlet

Discussion in 'General Tundra Discussion' started by csuviper, Mar 7, 2017.

  1. Mar 7, 2017 at 11:29 PM
    #1
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,131
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    This is the same process for the 2nd gen and 3rd Gens. Crew cab might be different from Double, not positive. This mod was completed on my 2012 Rock Warrior Crew Max.


    Parts needed:
    Tools needed:
    • Plastic pry bar
    • Wire cutters
    • Crimping tool
    • Dremel with sanding bit (only needed if you need to widen the hole)

    This install is way easier than I made it out to be. Let's just say I uninstalled the entire console to find out that all I had to do was pop off the back panel that the CIG lighter is on. Well here is the process to get that back panel off, remove the CIG lighter and install the replacement USB.

    Start by prying up and out on the back panel that the cig lighter is on. Use a plastic tool to not damage anything. Screwdriver can be used but be careful. There are a total of 6 clips. Just pry and pull hard.


    Once removed unplug the CIG outlet


    Use a pointy tool to push in one of the plastic clips inside the CIG lighter


    Oops I got the wrong size. It won't fit in the hole.


    I made the decision to make a hard conversion to the USB without the need to go back. This allowed me to do some modifications to the existing plastic without regrets. I used a dremel with a sanding bit to open up the hole..


    The widening of the hole paid off.


    Tighten down the nut on the back side of the USB outlet to secure in place. Make sure the face is level.


    Next cut off the cig outlet plug and crimp on the female wire connectors. Then plug them into the back side of the outlet and your good to go. Red is positive and white with black stripe is negative.







    Last edited: May 1, 2019
  2. Mar 7, 2017 at 11:39 PM
    #2
    Tundra Fan

    Tundra Fan Got 17's?

    Joined:
    Sep 10, 2016
    Member:
    #4489
    Messages:
    2,179
    Gender:
    Male
    First Name:
    Toby
    Nor Cal (Placer Co.)
    Vehicle:
    2013 Platinum, Silver Sky Metallic
    Nice job. Install looks good. This is a great idea for the kids to charge their phone/tablets while on trips. I wouldn't have even thought of it.

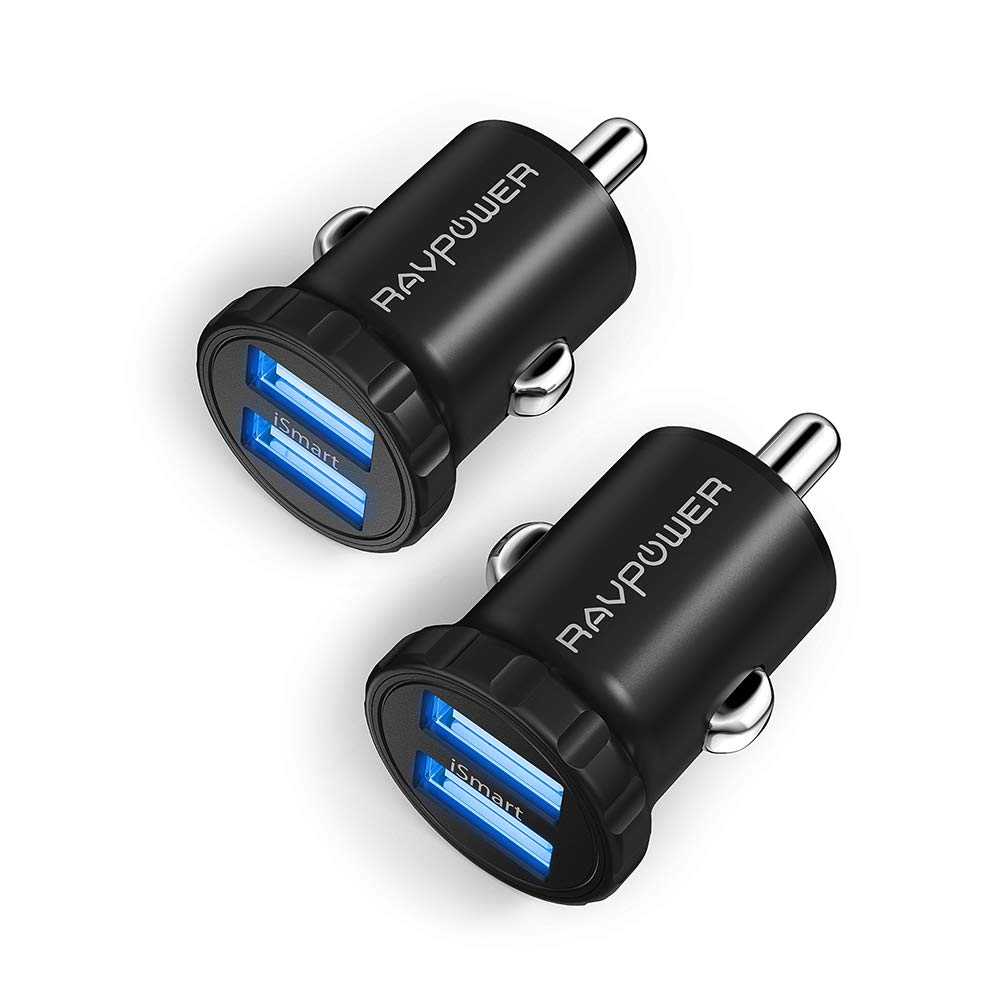

    I think I'll go the lazy route though, and do something like this instead. :D
    [​IMG]

    booya69, AnonVet, BrandonL812 and 4 others like this.
  3. Mar 8, 2017 at 1:29 AM
    #3
    1BadTundra

    1BadTundra New Member

    Joined:
    Oct 11, 2016
    Member:
    #4835
    Messages:
    707
    Gender:
    Male
    First Name:
    Clinton
    Vehicle:
    2010 TRD Rock Warrior Crewmax
    Borla Cat-back, Black Rock Warrior Wheels, Black LED Tails, HID conversion, Tonneau 3/1 lift A lot of minor stuff
    I used the one with the orange LED, and replaced the lower left cig lighter in the dash. Love these things. $6, cant beat it.

  4. Aug 21, 2017 at 3:45 PM
    #4
    bj46-taco-tundra

    bj46-taco-tundra New Member

    Joined:
    Apr 3, 2016
    Member:
    #3053
    Messages:
    249
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    Bj46 taco and now a tundra
    Trying to decide whether to go this route or not . Could I see how your lower dash looks with your setup

  5. Aug 25, 2017 at 6:22 PM
    #5
    SHIfTHEAD

    SHIfTHEAD New Member

    Joined:
    Aug 12, 2017
    Member:
    #9017
    Messages:
    6
    Gender:
    Male
    First Name:
    Nate
    Fort Mill SC
    Vehicle:
    08 Crewmax Limited 4wd
    How much room is in there? Can we add a DC inverter?

  6. Oct 3, 2017 at 11:23 AM
    #6
    speckmon

    speckmon Must. Have. Pow.

    Joined:
    Sep 25, 2017
    Member:
    #9891
    Messages:
    1,108
    Gender:
    Male
    Thornton, CO
    Vehicle:
    '07 mountain road bomber
    bump. that's what I was thinking. depending on the inverter you might have cooling issues though.

  7. Oct 3, 2017 at 11:28 AM
    #7
    smslavin

    smslavin Behind a lens...

    Joined:
    Jul 15, 2017
    Member:
    #8578
    Messages:
    7,111
    Gender:
    Male
    First Name:
    Sean
    Denver, CO
    Vehicle:
    2016 Tundra CrewMax SR5
    Some stuff
    i would say no to the inverter. there's room for a small one but they present other issues. your charging requirements could be done without one. if you really need DC current, i would suggest using a blue sea DC outlet or just use the lighter socket.

    there is plenty of room in there to add additional USB/DC sockets.

  8. Jan 22, 2018 at 8:48 AM
    #8
    Happybg81

    Happybg81 New Member

    Joined:
    Dec 30, 2017
    Member:
    #11847
    Messages:
    43
    Gender:
    Male
    First Name:
    William
    Vehicle:
    13’ Balcked Out Rock Warrior DC
    Switched backup camera, interior led’s, backflip g2, smoke led taillights, rhino liner, leveling kit, black powder coated rw wheel rings, weathertech mats, under seat storage, evo one remote start, flowmaster 50 series, S&B CAI, Focal 6x9 front doors, Rockford Fosgate 6.5” rear doors, JL Audio dash tweeters, Kicker hideaway under rear seat
    Thanks for the write up. Installed one in the rear and inside the console today. Will probably go back and do one of the fronts.

  9. Aug 30, 2018 at 9:00 PM
    #9
    ReconRanger

    ReconRanger New Member

    Joined:
    Aug 30, 2018
    Member:
    #18801
    Messages:
    4
    Gender:
    Male
    First Name:
    Joe
    Vehicle:
    2018 Tundra SR5
    None Yet
    This is a Great idea!

  10. Aug 31, 2018 at 8:46 AM
    #10
    nk1794

    nk1794 Always torque to spec

    Joined:
    Jan 24, 2018
    Member:
    #12420
    Messages:
    3,758
    Gender:
    Male
    San Jose, CA
    Vehicle:
    2016 1794
    SnugTop, TRD Catback, DECKed Storage, TRD Sway Bar, ESP Under Seat Storage, Blackvue DR750S-2CH Dashcam
    I did this mod but keeping the cigarette lighter plug just in case I need it. Both plugs wired directly to the battery so they are always on.

    PMG likes this.
  11. Jan 12, 2019 at 8:59 PM
    #11
    Beavertonite

    Beavertonite New Member

    Joined:
    Jan 12, 2019
    Member:
    #24394
    Messages:
    7
    Did you have to replace the plate in the back? I just did this mod to USB and the hole was in the middle, thus not allowing me to center two of them.

  12. Jan 12, 2019 at 9:03 PM
    #12
    TheBeast

    TheBeast The Beach

    Joined:
    Apr 27, 2016
    Member:
    #3246
    Messages:
    11,950
    Gender:
    Male
    SoCal
    Vehicle:
    2012
    check his YT channel. He has great videos.

    nk1794 likes this.
  13. Jan 12, 2019 at 9:06 PM
    #13
    Beavertonite

    Beavertonite New Member

    Joined:
    Jan 12, 2019
    Member:
    #24394
    Messages:
    7
    Just found it! Thanks for the quick response and helpful info!!

    nk1794 likes this.
  14. Jan 12, 2019 at 9:12 PM
    #14
    nk1794

    nk1794 Always torque to spec

    Joined:
    Jan 24, 2018
    Member:
    #12420
    Messages:
    3,758
    Gender:
    Male
    San Jose, CA
    Vehicle:
    2016 1794
    SnugTop, TRD Catback, DECKed Storage, TRD Sway Bar, ESP Under Seat Storage, Blackvue DR750S-2CH Dashcam
    I put a new thin metal plate on the top of existing plate and drill two holes.

  15. Jan 13, 2019 at 8:37 AM
    #15
    BrandonL812

    BrandonL812 New Member

    Joined:
    Aug 5, 2018
    Member:
    #17783
    Messages:
    606
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2017 Sequoia LTD
    Rx350 retrofitted, Morimoto Led fogs. interior and exterior leds swap. TRD drop in filter. Carbon filter delete. Led DRL panels. TRD Shift knob.
    I have the Aukey slim, flushed adapter, like post #2.. work perfect. Pull it out if you need to use the regular cig.

  16. Apr 27, 2019 at 7:47 PM
    #16
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,131
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    I am hoping to do this tonight and wire to a fuse in the inside fuse box for power all the time

    nk1794 and Pudge like this.
  17. Apr 27, 2019 at 8:07 PM
    #17
    Pudge

    Pudge Super Secret Elite Member #7

    Joined:
    Nov 8, 2016
    Member:
    #5136
    Messages:
    9,481
    Gender:
    Male
    First Name:
    Sean
    CT
    Vehicle:
    2015 Blue Ribbon Platinum
    TRD PRO grille, OCD consol organizers, DIY wireless phone charger, 33" Michelin Defender LTX MS, Bak revolver X2 tonneau, weathertech liners, 20% tints. DIY pop n lock, 2018 LED headlights, morimoto fogs, TRD shift knob, DirtyDeeds 8"BAM exhaust, kenwood HU,JL amp, Tech12volts Tundra full speaker upgrade w/sub, Swing case, and lots of fluid film
    Did something similar. I Might add another dual usb to even out the look but will wire that one to the battery direct for charging when truck is off. Even though I'd never see the need to charge so many devices, I prefer the symmetrical look I think. I had to keep a regular 12v outlet for my daughters booster seat warmer or her dvd player. The dual usb will be good for most anything else. I used a dremel to open the round hole like Brian did, and a razor/file for the rectangle hole. Tapped into the factory 12v wires.

    Also added a dual usb quick charge w/ volt meter up front. Got a dual usb adapter for the 12v in console, plugged wireless console lid charger in to one spot and decided to place me audio usb extention cable/plug inside the console to connect phone for android auto function. All very easy and cheap mods.


    Mattco808 and nk1794 like this.
  18. May 1, 2019 at 9:48 PM
    #18
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,131
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    Wife got pissed I was making so much noise using the dremel in the house but I have now added the dual USB to my 2019. I changed the verbiage at the top to state that this works for both 2nd and 3rd gen.

    nk1794 likes this.
  19. May 3, 2019 at 6:21 AM
    #19
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,131
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
  20. Jun 23, 2019 at 3:13 PM
    #20
    vq35721

    vq35721 New Member

    Joined:
    Sep 21, 2017
    Member:
    #9808
    Messages:
    588
    Gender:
    Male
    First Name:
    Reggie
    SoCal
    Vehicle:
    2011 040 SR5
    Too much to list
    @csuviper You sir is the man with all these mods ;) Thanks I’m assuming you working on how to run our rigs with water? :p

    829A8D13-6D1D-4DD6-987C-752DF183A801.jpg C4FAB810-8764-447E-9431-0BB40963385D.jpg

  21. Nov 8, 2019 at 8:36 AM
    #21
    paradizecityz

    paradizecityz New Member

    Joined:
    Jan 28, 2019
    Member:
    #25222
    Messages:
    594
    Gender:
    Male
    Richmond, TX
    Vehicle:
    2019 Cavalry Blue CM

    Got this exact one this past summer for our trip to Florida...haven't even used it lol

  22. Nov 8, 2019 at 9:44 AM
    #22
    TundraNationalist

    TundraNationalist New Member

    Joined:
    Nov 7, 2019
    Member:
    #38408
    Messages:
    55
    Gender:
    Male
    Vehicle:
    2008 BASED CrewMax 4.7L
  23. May 15, 2020 at 3:43 PM
    #23
    WhitmanTundra

    WhitmanTundra New Member

    Joined:
    Aug 26, 2018
    Member:
    #18629
    Messages:
    41
    First Name:
    Alexis
    Illinois
    Vehicle:
    2010 Toyota Tundra SR5 4.6L V8 double cab
    I followed your link and bought the same plug you posted and followed your instructions here. Really gotta say this is an AWESOME modification. And super simple.

    I don't do electronics, so I am a little nervous that the light seems to stay on the plug. Not sure if this'll drain my battery or not. I hope not. But again, I don't do electronics.

    Thanks for this post though!!!!

  24. Jun 6, 2020 at 8:07 AM
    #24
    Newbie_19

    Newbie_19 New Member

    Joined:
    Jul 8, 2019
    Member:
    #32958
    Messages:
    42
    Gender:
    Male
    First Name:
    Dan
    Towson, MD
    Vehicle:
    2019 SR5 SX Package Black
    Havoc HS2 flat black steps, Thule XSporter Pro Rack, spray in liner, window tint, black lugnuts, TRD Rear Swaybar, OEM LED Fogs, 2019 Pro Headlights, NSV Lightbar, BAMuffler 10" budget
    I bought this a while back and just found the little box. Reminded me that I needed to do it so I decided hot day, sun beaming down, black truck, might as well. It was a little hot but got the job done.
    Thanks for the tip on the Dremel. That worked amazing!

  25. Oct 31, 2020 at 5:28 PM
    #25
    TXTundraFan

    TXTundraFan New Member

    Joined:
    Jun 18, 2020
    Member:
    #48138
    Messages:
    154
    Gender:
    Male
    I just installed this same USB plug to replace the 12v in the rear center console in my '10 CM. Have you had any issues with he voltmeter draining the battery while the truck isn't running? I also replaced the cigarette lighter with the same USB plug in the front. Replacing the USB/AUX with a dual port USB that has one port dedicated to the radio and the other dedicated to charging, I now have 6 USB ports in my Tundra. :)

    Trooper2 likes this.
