DIY: TOYOTA “Raptor” Lettering Install for 2nd Gen Tundra Mesh Grills

Discussion in '2nd Gen Tundras (2007-2013)' started by csuviper, Feb 27, 2014.

  1. Feb 27, 2014 at 9:35 PM
    #1
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,798
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    I recently asked Jerry at Bay Area Metal Fab for some “Raptor” style lettering that was sized correctly for the Tundra grill. He probably already had the idea just needed the jump to fabricate them. I actually wanted TUNDRA instead but the letter designs were already made for TOYOTA. I jumped on this after I recently installed my Grillcraft grill. Below is the procedure I went through to install the lettering.

    Link to Grillcraft Grill
    Link to Raptor Letters

    Link to Grillcraft Grill install

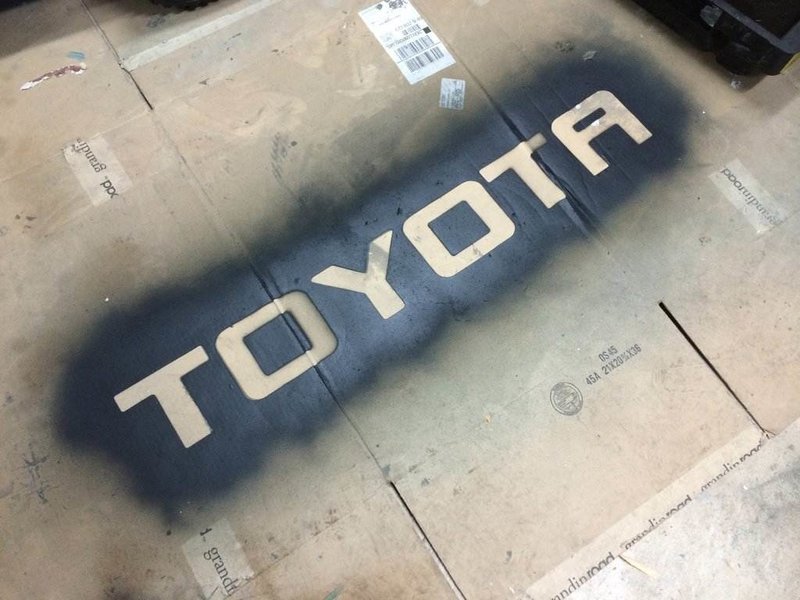

    First step was to clean and paint the letters. I used a self-etching primer and then a flat black paint to cap it off.
    IMG_9380.jpg IMG_9391.jpg

    Next I had to figure out how to get the letters on straight and level. I decided to use some blue painters tape that I had laying around to make the bottom line for all the letters. Then I determined the best spacing of the letters and used that total length to mark the beginning and ending with tape.

    IMG_9408.jpg IMG_9410.jpg IMG_9413.jpg

    I used string to identify the centers between each letter. This made it easy for each letter to be centered within the space between strings.
    IMG_9414.jpg IMG_9415.jpg

    Next was installation. 3M super strength molding tape was used. This was the best stuff the auto store had. Strips of the tape were cut and applied to the metal. Since it is cold outside the metal was cold and the adhesion was not as strong as desired. I decided to use a heat gun to warm up the metal and the tape for better adhesion. The heat gun idea worked very well and the tape seemed to be stuck on good.


    IMG_9411.jpg IMG_9416.jpg

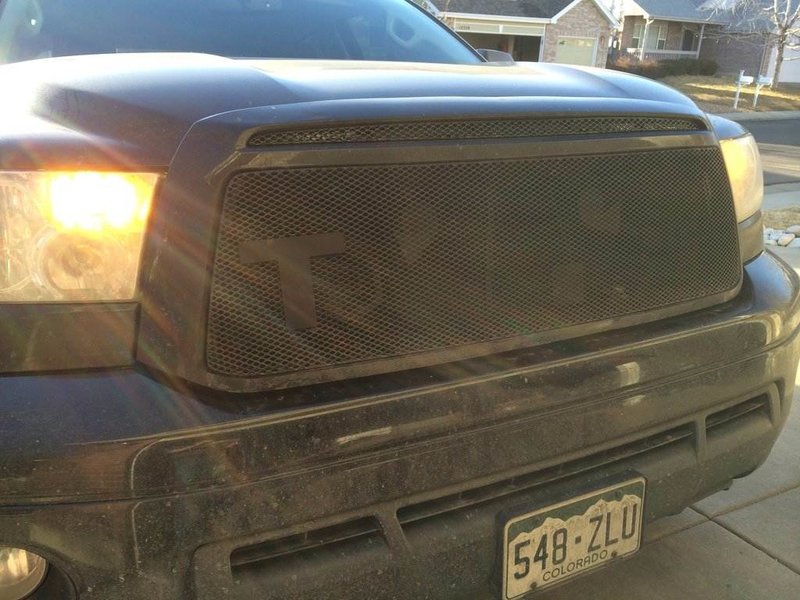

    I started applying the letters one by one to the grill starting with the outside letters and moved toward the center. The heat gun came in handy here as well. The grill mesh and the tape were heated to a warm temp before pushing them on. I used the lower blue tape as the guide for the bottom of the letter and just eyeballed the center between strings. As I was applying I used a level on the top of the letters as I wanted to get them placed as best as I could the first time. Once leveled and placed, I pushed them on hard to ensure adhesion. Tape was then removed to complete the project.






    IMG_9419.jpg IMG_9425.jpg
