DIY: MAF, Throttle Body and EGR Cleaning Write Up

Discussion in '2nd Gen Tundras (2007-2013)' started by Nor7, Jul 31, 2016.

  1. Jul 31, 2016 at 7:55 PM
    #1
    Nor7

    Nor7 [OP] Chilton Manual Guy

    Joined:
    Oct 19, 2015
    Member:
    #1989
    Messages:
    880
    Gender:
    Male
    Texas
    Vehicle:
    2011 Tundra 4.6L Double Cab
    Ok so decided to take a look at my MAF and Throttle Body, the MAF looked great but sprayed it down anyway, the Throttle Body was filthy so I decided to clean it and the EGR while I was at it.

    Note: Did not have my low tech pointer so had to draw circles on the pics.

    Note 2: This may seem like a daunting task but it took me about 30 minutes and I would not consider myself a master mechanic of any sort. I did notice a significant boost in performance as the Throttle Body and EGR were very filthy.

    MAF (Mass Airflow Sensor) Cleaning:

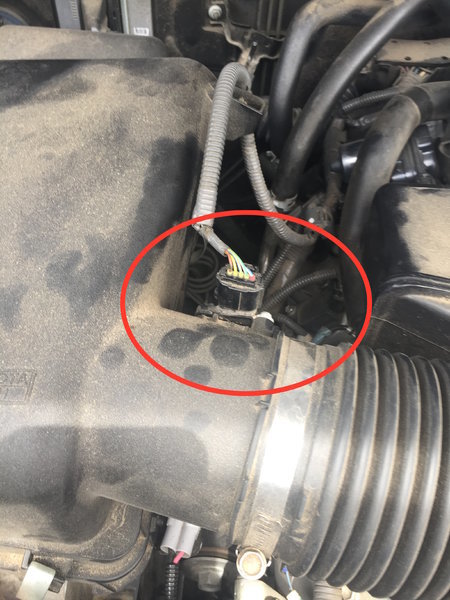

    Step 1: Locate MAF. See pic below, its the unit on the back of the hose between the air intake filter box and the intake manifold.


    Step 2: Remove connector. Pretty easy to pop right out.


    Step 3: Remove 2 philips head screws.


    Step 4: Carefully pull out MAF and spray down with approved spray. I recommend a MAF cleaner or other electronic safe spray.




    Step 5: Reverse steps to re-install. DON'T drop the sensor!!

    Throttle Body Cleaning:

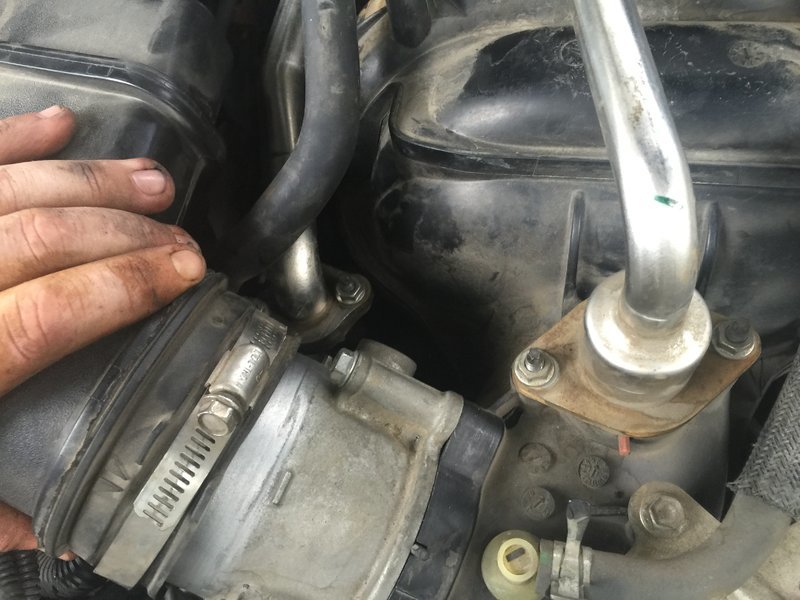

    Step 1: Remove Air Intake Hose. Loosen hose clamps with 10 mm socket.


    Step 2: Remove Throttle Body by removing qty 4, 10 mm bolts. DO NOT REMOVE HOSES GOING TO THROTTLE BODY!! THESE HOSES CARRY COOLANT. TRUST ME.


    Step 3: Using a brake cleaner or other fluid, clean the throttle body and butterfly valve. Make sure to get the ends of the valve as this is what props open the valve over time causing a mis-read of zero-location position.

    (Side 1 above and partially cleaned side 2 below, dirtier on side 2 b/c of EGR system)

    Step 4: If you're going to clean the EGR, leave Throttle Body off. The truck will eventually re-program Throttle Body position but for more instant effect, remove battery cable to let computer reset. Warning: this will reset your radio favorites and all synced devices.

    EGR (Exhaust Gas Recirculation) Cleaning:

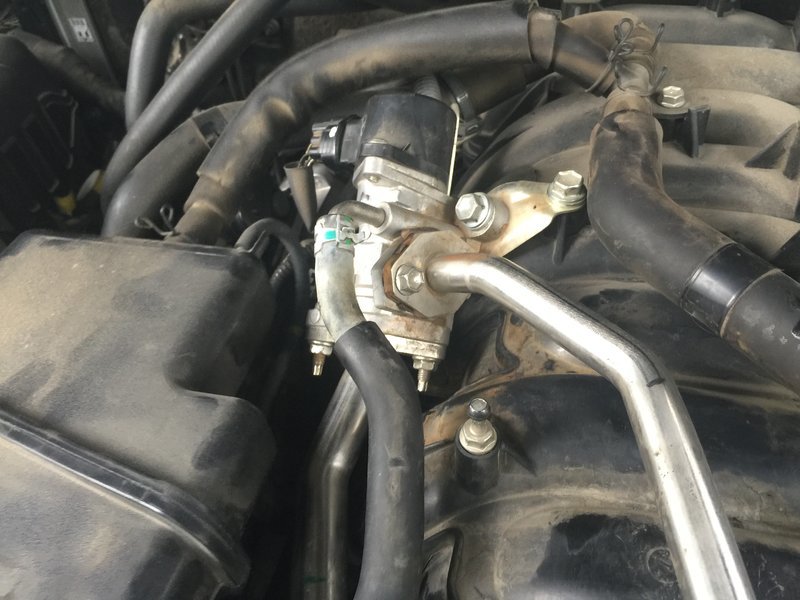

    Step 1: Locate EGR Valve. See pic below, this is it (the one with the silver hard line going into it. Again DO NOT REMOVE HOSES!! These are the same coolant circuit.



    Step 2: Free EGR valve by removing top hardline, then lower hardline and 3 bolts on EGR valve bracket. Will need a 10mm and 12 mm socket for this. Will need a 12 mm wrench as one bolt is hard to get to and not enough space for a socket. (previous picture shown)

    Step 3: Clean hard lines, EGR valve (both spaces), let enough time to pass for cleaner to evaporate as you don't want this injected into your engine on startup. Also clean flanges.





    Final Step: Re-assemble everything. It is normal that first engine crank will not start truck since pressure in EGR and intake system is lost. Should crank on #2 try.

    Second Final Step: Take a badass pic of your Tundra (See below, 112k miles, 100% stock and proud)



    Attached Files:

    Last edited: Aug 1, 2016
  2. Jul 31, 2016 at 10:40 PM
    #2
    csuviper

    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,754
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    Very nice. Good work.

    ramonortiz55 likes this.
  3. Aug 1, 2016 at 1:13 AM
    #3
    David2013Tundra

    David2013Tundra New Member

    Joined:
    Aug 30, 2015
    Member:
    #1735
    Messages:
    40
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2013 Tundra DC 5.7
    Excellent write up. How often do you perform the cleaning? I am at 50k now. Thanks

  4. Aug 1, 2016 at 6:16 AM
    #4
    Nor7

    Nor7 [OP] Chilton Manual Guy

    Joined:
    Oct 19, 2015
    Member:
    #1989
    Messages:
    880
    Gender:
    Male
    Texas
    Vehicle:
    2011 Tundra 4.6L Double Cab
    It's the first time I did it, I wish I had done it at 50k intervals, there was some solid carbon deposits that fell out of some of the pipes.

  5. Aug 1, 2016 at 6:28 AM
    #5
    matluth

    matluth Fish On!

    Joined:
    Apr 20, 2014
    Member:
    #378
    Messages:
    6,489
    Gender:
    Male
    First Name:
    Matt
    Aurora CO
    Vehicle:
    2007 Slate Metallic 5.7L Tundra DC SR5 4X4
    18"X9" FN BFD's rims, 295/70R/18E Cooper Discoverer STT Pro's, upgraded to Old Man EMU coil-overs/shocks. Toytec shackles Next: true dual exhaust, new UCA's.
    Nice work. By the way we use CRC here at work. Good stuff.

  6. Aug 1, 2016 at 6:46 AM
    #6
    Ancient1

    Ancient1 New Member

    Joined:
    Apr 18, 2016
    Member:
    #3173
    Messages:
    76
    Gender:
    Male
    Tallahassee
    Vehicle:
    2012 rclb tundra 4x4
    Thanks for the detailed description and pics. I'll be doing this when the 100 degree weather subsides.

  7. Aug 1, 2016 at 9:11 PM
    #7
    David2013Tundra

    David2013Tundra New Member

    Joined:
    Aug 30, 2015
    Member:
    #1735
    Messages:
    40
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2013 Tundra DC 5.7
    Thanks. I guess I have some work to do on my Tundra.

  8. Sep 14, 2016 at 8:25 AM
    #8
    markiemark9

    markiemark9 New Member

    Joined:
    Feb 11, 2016
    Member:
    #2660
    Messages:
    26
    Gender:
    Male
    First Name:
    Mark
    Omaha, NE
    Vehicle:
    2011 Tundra SR5 Double Cab
    RC 3/1 Leveling Kit, Blacked-out badges, weathertech floor liners, low-profile toolbox, paracord wrapped grab handles, 33" Toyo Open Country M/T Tires
    Fantastic write-up! On the to-do list!

  9. Sep 14, 2016 at 9:49 AM
    #9
    TheBeast

    TheBeast Mr Line-X

    Joined:
    Apr 27, 2016
    Member:
    #3246
    Messages:
    1,099
    Gender:
    Male
    SoCal
    Vehicle:
    2012 CM 4x4 TRD
    oh nooooooooooo ;)

    Great write up. thanks !

  10. Sep 18, 2016 at 11:34 AM
    #10
    Wynnded

    Wynnded Wait, what?

    Joined:
    Apr 20, 2014
    Member:
    #379
    Messages:
    614
    Gender:
    Male
    Rockies
    Vehicle:
    2011 RCSB 5.7L AWD Tundra
    OEM Upgrades
    If I may suggest, maybe add in the OP that this is for the 4.6L engine. The 5.7L doesn't have EGR.

  11. Sep 18, 2016 at 12:14 PM
    #11
    MookTastic

    MookTastic Because I was inverted!

    Joined:
    Jul 16, 2016
    Member:
    #3895
    Messages:
    67
    Gender:
    Male
    First Name:
    Trice
    Wichita Falls TX
    Vehicle:
    2013 5.7L White D/C TSS Offroad 4x4
    Definitely on the to do list. What did you use to clean the EGR?

  12. Sep 18, 2016 at 1:58 PM
    #12
    Nor7

    Nor7 [OP] Chilton Manual Guy

    Joined:
    Oct 19, 2015
    Member:
    #1989
    Messages:
    880
    Gender:
    Male
    Texas
    Vehicle:
    2011 Tundra 4.6L Double Cab
    The 5.7 sure does have EGR. May not look identical. It it's there and can be cleaned the same way. I can post the instructions for that later

    Wynnded likes this.
  13. Sep 18, 2016 at 1:59 PM
    #13
    Nor7

    Nor7 [OP] Chilton Manual Guy

    Joined:
    Oct 19, 2015
    Member:
    #1989
    Messages:
    880
    Gender:
    Male
    Texas
    Vehicle:
    2011 Tundra 4.6L Double Cab
    Used carb cleaner for the EGR

    MookTastic likes this.
  14. Sep 18, 2016 at 2:19 PM
    #14
    Wynnded

    Wynnded Wait, what?

    Joined:
    Apr 20, 2014
    Member:
    #379
    Messages:
    614
    Gender:
    Male
    Rockies
    Vehicle:
    2011 RCSB 5.7L AWD Tundra
    OEM Upgrades
    Maybe my Google-Fu is not working today, I can't find anything on it. I was thinking of doing this today, but not being able to find anything has gotten me sidetracked. I await your findings.

  15. Sep 20, 2016 at 2:35 PM
    #15
    MookTastic

    MookTastic Because I was inverted!

    Joined:
    Jul 16, 2016
    Member:
    #3895
    Messages:
    67
    Gender:
    Male
    First Name:
    Trice
    Wichita Falls TX
    Vehicle:
    2013 5.7L White D/C TSS Offroad 4x4
    Would one of or both of these work for all 3 jobs?image.jpg

  16. Sep 21, 2016 at 9:38 AM
    #16
    Nor7

    Nor7 [OP] Chilton Manual Guy

    Joined:
    Oct 19, 2015
    Member:
    #1989
    Messages:
    880
    Gender:
    Male
    Texas
    Vehicle:
    2011 Tundra 4.6L Double Cab
    Sir you are correct, its not an EGR persay on the 5.7 but it there is a canister that injects hot gasses just downstream of the Throttle Body just like a convenstional EGR. If you'd like instructions for that I can get them to you but I imagine it will not be near as dirty.

    Get both. Don't use the carb cleaner on the MAF, and the MAF cleaner may not be strong enough to clean the EGR valve.

    Wynnded likes this.
  17. Sep 21, 2016 at 10:28 AM
    #17
    Wynnded

    Wynnded Wait, what?

    Joined:
    Apr 20, 2014
    Member:
    #379
    Messages:
    614
    Gender:
    Male
    Rockies
    Vehicle:
    2011 RCSB 5.7L AWD Tundra
    OEM Upgrades
    Huh, I wonder what they're calling that then. I suppose that if they're not "exhaust" gases, it's not technically EGR, as you mention. Well, if you have some information on it, I would be interested in reading and hopefully learning about it. If you have access to it, I'd be obliged if you'd be able to share it. At your leisure of course. Thanks!

  18. Sep 21, 2016 at 10:45 AM
    #18
    Nor7

    Nor7 [OP] Chilton Manual Guy

    Joined:
    Oct 19, 2015
    Member:
    #1989
    Messages:
    880
    Gender:
    Male
    Texas
    Vehicle:
    2011 Tundra 4.6L Double Cab
    Not much on it but this is what I could find. Parts locations. Looks like there's an air injection spot on the back of your engine.


    Attached Files:

    Wynnded likes this.
  19. Sep 21, 2016 at 10:47 AM
    #19
    Nor7

    Nor7 [OP] Chilton Manual Guy

    Joined:
    Oct 19, 2015
    Member:
    #1989
    Messages:
    880
    Gender:
    Male
    Texas
    Vehicle:
    2011 Tundra 4.6L Double Cab
    Is yours a 4x4? I ask because I'm looking at upgrading to a 5.7L 4x4. My question is does it seem slugish to you compared to a 2WD? I test drove a 4x4 once with a 5.7 and it seemed heavier and slower than my 4.6 2wd.

    Edit: Previously i've driven my father in law's 5.7L and it seemed quick as hell but it was also a 2WD.

  20. Sep 21, 2016 at 11:26 AM
    #20
    Wynnded

    Wynnded Wait, what?

    Joined:
    Apr 20, 2014
    Member:
    #379
    Messages:
    614
    Gender:
    Male
    Rockies
    Vehicle:
    2011 RCSB 5.7L AWD Tundra
    OEM Upgrades
    Boy you were right, there isn't much there....

    I've never driven a 2WD, so I don't have a reference. There isn't much use for them here. Pretty unusual to even see one. The only real difference that I can think of would be the in the weight of the front drive. Maybe another thing would be the final drive ratio, but I think that +90% of the 5.7Ls have the tow package and the lowest (4.30) gearing. Unless you tested a 4x4 5.7L that didn't by mere chance.

    My truck is a RCSB, it's quick. In theory, the only potentially faster configuration would be a RCSB 2WD. In stock form.
