DIY: 3rd Gen Mesh Grill

Discussion in '3rd Gen Tundras (2014+)' started by SMSmitty, Nov 8, 2015.

  1. Nov 8, 2015 at 2:26 PM
    #1
    SMSmitty

    SMSmitty [OP] New Member

    Joined:
    Sep 1, 2015
    Member:
    #1752
    Messages:
    139
    Gender:
    Male
    First Name:
    Sam
    New Hampshire
    Vehicle:
    2015 TRD Pro, Super White
    LED Light bar in grille, 35'' BFG AT KO2, Method Wheels, Pro-Runner Flares, LED back up lights, Extang trifold 2,
    If your like me, not ready to spend $200+ on a mesh grill and watch craigslist day in and day out
    "Just in case".
    I came across a 2014 Grille Insert for $15.
    and spent less than $35.00 on parts at Home Depot. so for a total of $50. Had a bad ass grill.

    [​IMG]

    Parts List
    -3RD gen Grill
    -bag of small zip ties
    -mesh
    -primer
    -Paint in the color of your choice. I used Gloss Black

    Step 1:

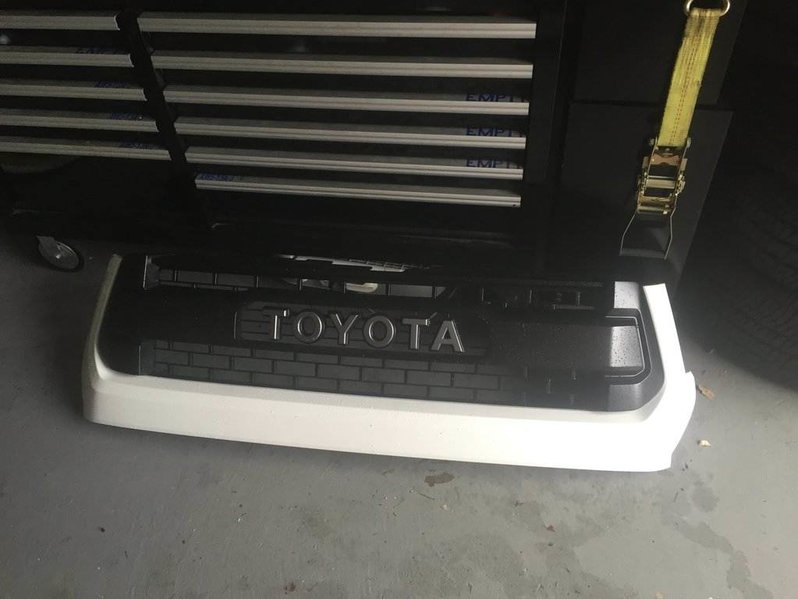

    Find a grill to work on. (Craigslist, Forums, OfferUp, ect...) Or if you're brave you can work on the one already on your truck. I found a 2014 grill from a TRD OR tundra. is slightly different from a TRD Pro grill on the top side. so be sure you to account for that when measuring out your Mesh.

    Step 2:

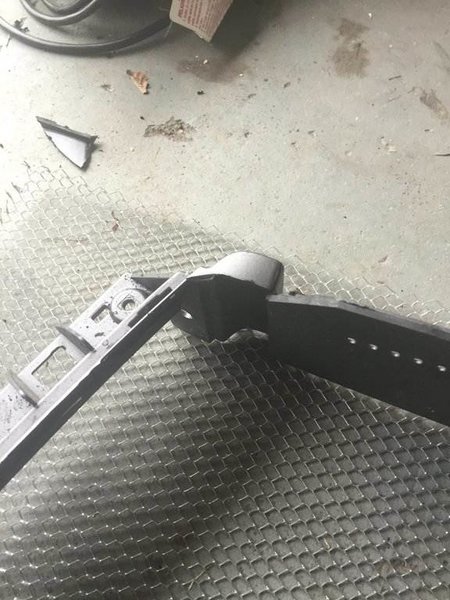

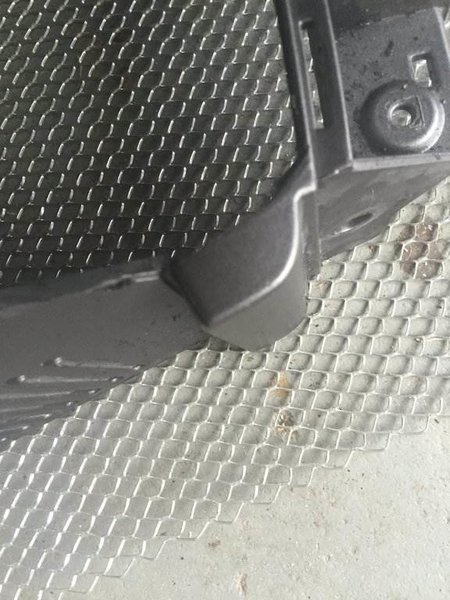

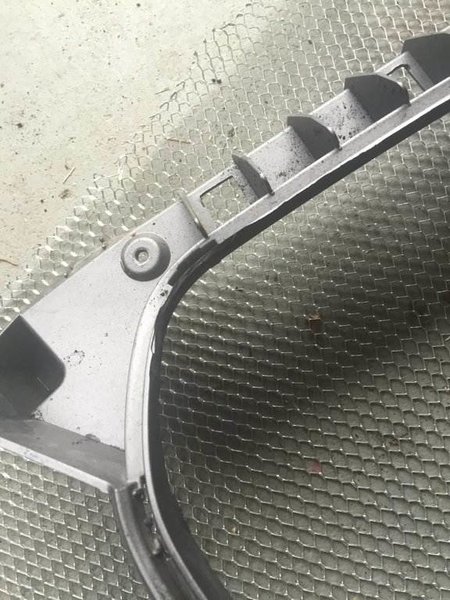

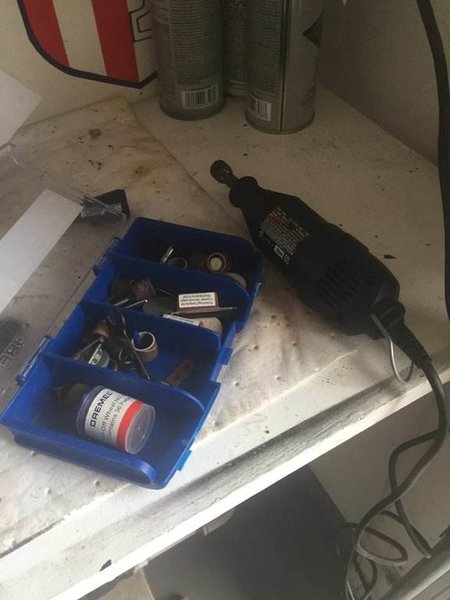

    Once you have you grill you need to separate it from the surround. there are 4 screws and some retention tabs(super easy)then remove the center and shave down all the excess plastic. then your going to need to drill small holes throughout the rim go the grill so that you can feed the zip ties through.
    Step 3:

    measure and cut out your mesh. for the grill i used wire mesh i found at Home Depot. in came in a 6x3 ft sheet.IMG_1851.jpg
    Step 4:

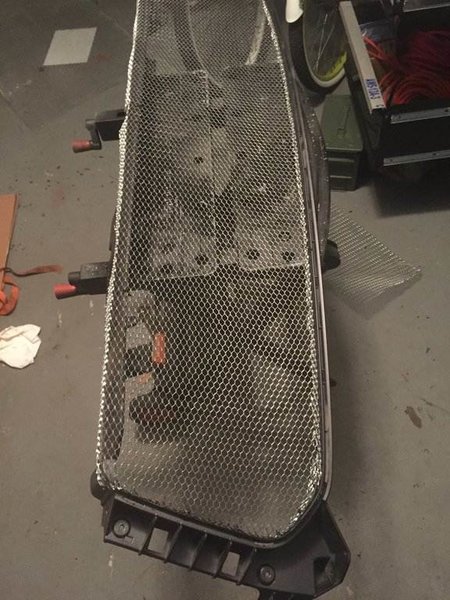

    once the mesh is cut, bend the top side in about 2.5/3 inches. then measure down from the top bend 11 3/4 inches and bend it inwards. then using tin snips, your gonna trim the lower bend to about 1 inch. once that is done, zip tie the mesh to the frame on the lower end and the upper corners.
    Step 5:

    This is the difficult part. your going to need to cut relief cuts and carefully bend the left and right sides to match the contours of the frame.and zip tie them. using a small light hammer, contour your mesh to your liking. then shape the upper left and right corners to match the grill surround thats on the hood. for this you need to test fit the grill and close the hood until its where you want it.
    Step 6:

    Prime and Paint. i used Rustolium Self Etching Primer, and Gloss Black paint. after the paint is dry you can place the badges/trim you would like on the grill. i used 80lb double sided tape.


    Step 7:

    Reinstall the shroud, and then install on your tuck. your done!
    I also installed some Window screen to help blacken behind the grill
    IMG_1866.jpg IMG_1873.jpg IMG_1883.jpg IMG_1885.jpg IMG_1888.jpg

    [


    Attached Files:

  2. Nov 8, 2015 at 3:47 PM
    #2
    csuviper

    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,743
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    Awesome. Good write up. I will add to the DIY write up page.

    bandit, MotoTundra and SMSmitty like this.
  3. May 21, 2016 at 1:22 PM
    #3
    FirstGenTundra

    FirstGenTundra ΜΟΛΩΝ ΛΑΒΕ

    Joined:
    Feb 18, 2016
    Member:
    #2715
    Messages:
    425
    Gender:
    Male
    First Name:
    Daniel
    Northern Virginia
    Vehicle:
    2014 Toyota Tundra TRD
    Best looking grill I've seen yet for a 3rd gen. Works beautifully with your white truck. :rolleyes:

  4. May 21, 2016 at 4:56 PM
    #4
    RowdyRon

    RowdyRon Not too old to play

    Joined:
    Jul 8, 2015
    Member:
    #1501
    Messages:
    3,219
    Gender:
    Male
    First Name:
    Ron
    Bentonville, AR
    Vehicle:
    2015 Radiant Red TSS Doublecab 4X4 Off Road
    Deck rail system, Bed divider, door sill protectors, LED reverse light bars, Aries Bull Bar with 28" 180 watt LED light bar, LED step lights, LED bed lights, driver-side grab handle, TRD Rear Sway Bar, BedRug bed mat and tailgate mat, Morimoto Fog Lights, more to come.....
    Nice job!

  5. May 21, 2016 at 5:17 PM
    #5
    MotoTundra

    MotoTundra Adrenaline Addict

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    2,382
    Gender:
    Male
    Vehicle:
    14' Black TRD CM
    TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) TRD Pro Grill BakFlip VP Tonneau w/BakBox Dipped wheels & bumpers Undercover Swingcase SunTek Paint Protection film Yellow Lamin-X Fog Overlays Tint Bedmat
    Nice DIY, thanks for taking the time to write it!

  6. Jun 30, 2016 at 11:26 AM
    #6
    Messenger1

    Messenger1 New Member

    Joined:
    Jun 30, 2016
    Member:
    #3730
    Messages:
    2
    Gender:
    Male
    This is an absolutely amazing post for a great DIY project. I will post mine shortly - very similar in the way we approached the project. The main difference with my grille is probably the opening size of the wire mesh - I went all the way through to the end with mine and ended up realizing that the weave on the mesh I used was probably too tight. I ended up hating the way it looked because I could barely see any openings in the mesh. I just got a bunch of samples of wire mesh - www.bwire.com had sent to me, and I am in the process of deciding which sized opening and wire diameter I am going to use to replace my original wire mesh.

    Do you have any idea on the specs of the mesh you used? Yours cam out really great, and I want to try to match it as closely as possible. Any idea on the opening size? Wire diameter?

    Thanks - and again - excellent stuff here, thanks for posting. Mine should be up soon....

  7. Jun 30, 2016 at 3:31 PM
    #7
    SMSmitty

    SMSmitty [OP] New Member

    Joined:
    Sep 1, 2015
    Member:
    #1752
    Messages:
    139
    Gender:
    Male
    First Name:
    Sam
    New Hampshire
    Vehicle:
    2015 TRD Pro, Super White
    LED Light bar in grille, 35'' BFG AT KO2, Method Wheels, Pro-Runner Flares, LED back up lights, Extang trifold 2,
    Honestly I just used some mesh wire I found at Home Depot

  8. Jun 30, 2016 at 3:48 PM
    #8
    rons23

    rons23 Next Round is on me! Live OBX

    Joined:
    Sep 18, 2014
    Member:
    #625
    Messages:
    2,164
    Gender:
    Male
    First Name:
    Ron
    Kill Devil Hills
    Vehicle:
    2008 Nautical Blue TRD
    Sabm (Gtek-Fab), Blake Carbon Diamond Plate door sil protecters, and Air Dam mod, Black Rivited Grill, Devil Horns- Black Anodized(Diaz Fabrication), Hid's in Low Beams and Fogs -6000k, Piaa Extreme for High Beams. Black Rhino Step Tubes, Razir Led interior Lights (white), Low Profile Black Diamond Plate Tool Box, Trd accesories, Weather Tech Mats, Carbon Fiber Shorty Antenna, Drl's, Plasta Dipped Badges + Front Grill Surround
    Nice work there,SmSmitty

  9. Oct 28, 2016 at 11:37 AM
    #9
    AnonVet

    AnonVet New Member

    Joined:
    Sep 2, 2016
    Member:
    #4410
    Messages:
    274
    Gender:
    Male
    First Name:
    Dan
    Canyon Country
    Vehicle:
    2015 Tundra SR5 CM Lifted and Leveled
    3in Level, Bilstein Shocks, 33x18x9.5 M/T's, murdered out and debadged, LED's all around, and some other stuff I can't think of
    this is way to badass!!!! great write up and great look!
