Creating back lit TOYOTA letters for Pro Grill printed in clear ABS

Discussion in 'Lighting' started by prerunnerseth, Jan 21, 2020.

  1. Jan 21, 2020 at 4:16 PM
    #1
    prerunnerseth

    prerunnerseth [OP] New Member

    Joined:
    May 15, 2017
    Member:
    #7723
    Messages:
    521
    Gender:
    Male
    Apex, NC
    Vehicle:
    2015 MGM Limited 4x4
    I saw a someone had made shadow back lit letters for the TRD Pro Grill. I have decided to give this a try with my own spin. I will be 3D printing the letters using clear abs filament. I will then paint the raised part on top with silver paint (to reflect light back in) then final coat with MGM. I have started with the T. The model has been designed to be screwed into place from the back side using the alignment holes. Right now it is designed to use 3 x 5mm through hole LEDs. I may change this once I finish the first prototype. Once the project is complete I will publish the models.

    Here is the model for the T to give you an idea.
    toyota T 1.jpg toyota T 2.jpg

    mlucas555, rodm1, Rustyscrew and 14 others like this.
  2. Jan 21, 2020 at 5:05 PM
    #2
    Jim LE 1301

    Jim LE 1301 Camaro Lover, SSEM # 11

    Joined:
    Apr 29, 2018
    Member:
    #14884
    Messages:
    13,260
    Gender:
    Male
    First Name:
    Jim
    Hudson Valley, New York
    Vehicle:
    2018 MGM Tundra TRD Sport Double Cab
    That is cool.:thumbsup:

    saybng likes this.
  3. Jan 21, 2020 at 5:10 PM
    #3
    saybng

    saybng Just a member.

    Joined:
    Dec 13, 2015
    Member:
    #2243
    Messages:
    1,984
    Gender:
    Male
    First Name:
    Gary
    Ventura CA
    Vehicle:
    16 Tundra 1794 CM in BLACK!
    Method Nv's, falken wildpeak 275.65.20 Dirty deeds exhaust, 5100's all around...nothin fancy.
    Cant wait to see you progress on this..:thumbsup:

  4. Jan 21, 2020 at 5:12 PM
    #4
    TRDFerguson

    TRDFerguson (╯°□°)╯︵ ┻━┻

    Joined:
    Oct 18, 2018
    Member:
    #20730
    Messages:
    1,020
    Gender:
    Male
    First Name:
    Jake
    Arizona
    Vehicle:
    2018 MGM TRD Off Road
    TRD Pro suspension, Falken AT3w's, wireless CarPlay, sub/amp, front camera, remote start w/ phone app, DIY pop-n-lock, footwell lighting, USB chargers, center console wireless charger, debadged, stickers and stuff
  5. Jan 21, 2020 at 5:15 PM
    #5
    Black@Blue19

    Black@Blue19 New Member

    Joined:
    Dec 16, 2018
    Member:
    #23066
    Messages:
    719
    Gender:
    Male
    First Name:
    Ken
    Galveston County
    Vehicle:
    19Tundra TRD Sport 4X4 CrewMAX
    TRD upgrades, everything except leather, sunroof, and electric passenger seat
    Way nice idea. Should look dang good!!!:)

  6. Jan 21, 2020 at 5:21 PM
    #6
    prerunnerseth

    prerunnerseth [OP] New Member

    Joined:
    May 15, 2017
    Member:
    #7723
    Messages:
    521
    Gender:
    Male
    Apex, NC
    Vehicle:
    2015 MGM Limited 4x4
    May have to switch to solid infill. Can see the infill through the sides. May not matter though. Will see when its done. Will probably tweak some settings though as it's not printing the best. My first time using this clear filament.


  7. Jan 21, 2020 at 5:38 PM
    #7
    Midnite72

    Midnite72 Anything DIRT !!

    Joined:
    May 26, 2018
    Member:
    #15623
    Messages:
    688
    Gender:
    Male
    First Name:
    Bill
    Northern MD
    Vehicle:
    18 SR 5.7 4x4
    2” level P&P sliders
    VERY NICE !!

    :popcorn:

  8. Jan 21, 2020 at 6:42 PM
    #8
    Johnsonman

    Johnsonman New Member

    Joined:
    Nov 25, 2019
    Member:
    #39132
    Messages:
    590
    Gender:
    Male
    Austin
    Vehicle:
    Sequoia
    LED headlamps/fogs; interior footlamps.
  9. Jan 21, 2020 at 7:45 PM
    #9
    GAknight

    GAknight New Member

    Joined:
    Aug 6, 2017
    Member:
    #8933
    Messages:
    1,476
    Gender:
    Male
    Shade of a Pine, GA
    Vehicle:
    '14 TSS 4x4
    3" level kit, Icon shocks, rear bags S&B CAI, anytime fog lights, LEDs, and...list growing.

    ZappBrannigan likes this.
  10. Jan 22, 2020 at 4:11 AM
    #10
    prerunnerseth

    prerunnerseth [OP] New Member

    Joined:
    May 15, 2017
    Member:
    #7723
    Messages:
    521
    Gender:
    Male
    Apex, NC
    Vehicle:
    2015 MGM Limited 4x4
    So the bottom layers need some help. I just need to tweak some settings. The top layers came out sweet. Its definitely good enough to test how well it carries the light. Ill get the raised part painted and wire up the leds to test. Overall though it is very encouraging.


    Okietundra, rodm1, Ostrich and 5 others like this.
  11. Jan 22, 2020 at 5:44 AM
    #11
    Jim LE 1301

    Jim LE 1301 Camaro Lover, SSEM # 11

    Joined:
    Apr 29, 2018
    Member:
    #14884
    Messages:
    13,260
    Gender:
    Male
    First Name:
    Jim
    Hudson Valley, New York
    Vehicle:
    2018 MGM Tundra TRD Sport Double Cab
    Nice. :thumbsup:

  12. Jan 22, 2020 at 5:46 AM
    #12
    azTony

    azTony New Member

    Joined:
    Sep 16, 2017
    Member:
    #9693
    Messages:
    876
    Gender:
    Male
    First Name:
    Tony
    Sun Lakes, AZ
    Vehicle:
    *** OV Tune Order #4481 *** ECU xxxx ***
    2018 Tundra Platimun with Icon Stage 9 w/3.0 and billet UCA, Harrop Elockers, 5.29 on 35’s
  13. Jan 22, 2020 at 5:56 AM
    #13
    prerunnerseth

    prerunnerseth [OP] New Member

    Joined:
    May 15, 2017
    Member:
    #7723
    Messages:
    521
    Gender:
    Male
    Apex, NC
    Vehicle:
    2015 MGM Limited 4x4

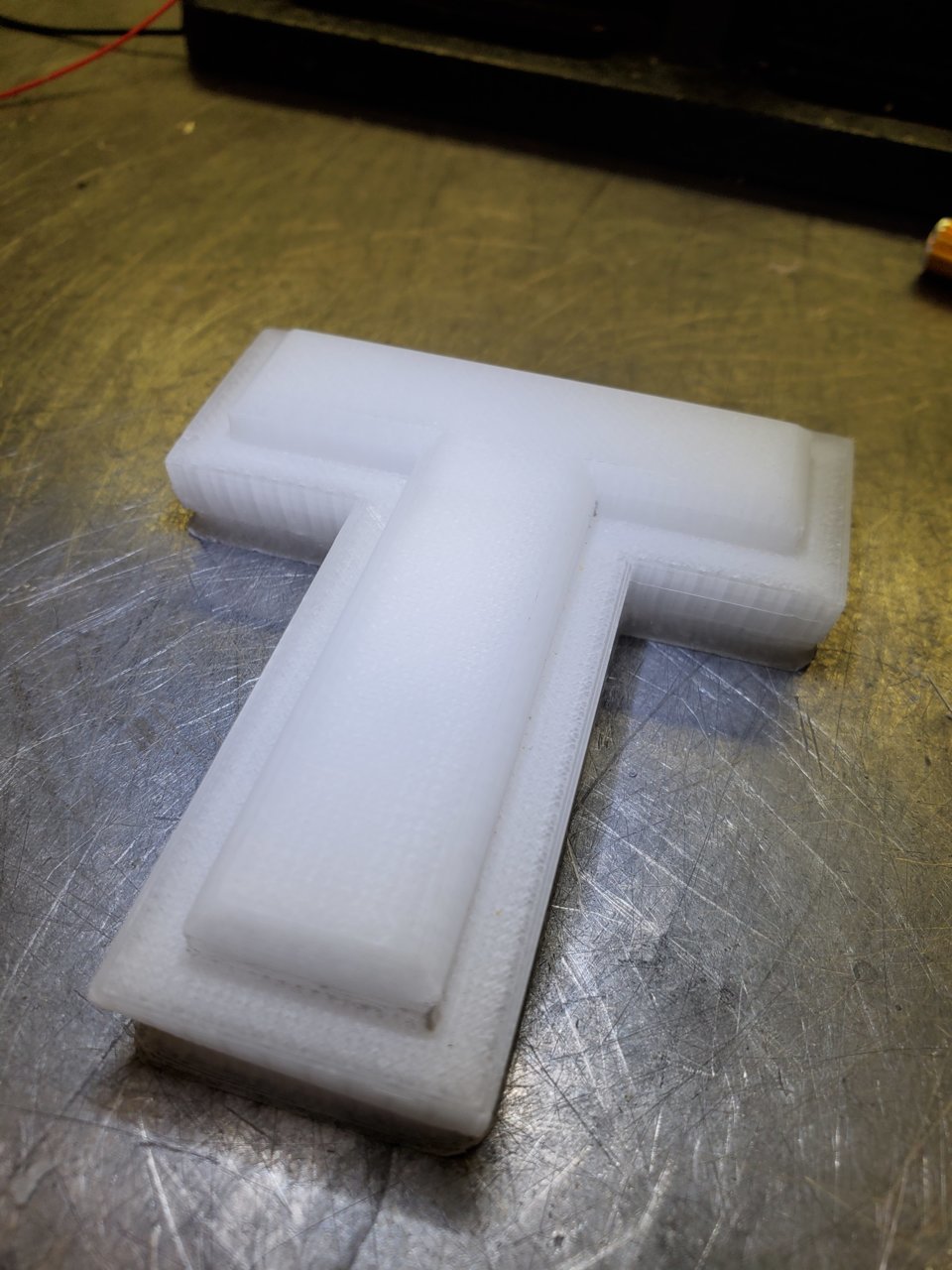

    Sanded it a little to make the surface smoother and more consistant. Looks a lot better. Also going to try beveling the part that will stay translucent so that i can print it upside down. The channels for the leds and wiring came out really bad.

    20200122_080510.jpg 1579701286376_toyota t v2.jpg


    Attached Files:

  14. Jan 22, 2020 at 6:02 AM
    #14
    TXRailRoads73

    TXRailRoads73 CRÜE

    Joined:
    May 30, 2016
    Member:
    #3487
    Messages:
    45,060
    Gender:
    Male
    First Name:
    Adam
    THE ONLY State, TEXAS
    Vehicle:
    IN THE WORX....
    So yours are going to be one solid piece? I have these already, made by someone else

  15. Jan 22, 2020 at 6:03 AM
    #15
    prerunnerseth

    prerunnerseth [OP] New Member

    Joined:
    May 15, 2017
    Member:
    #7723
    Messages:
    521
    Gender:
    Male
    Apex, NC
    Vehicle:
    2015 MGM Limited 4x4
    Yes. Will be one solid piece.

    TXRailRoads73 likes this.
  16. Jan 22, 2020 at 6:08 AM
    #16
    Rubberdown

    Rubberdown Spilling my guts here.

    Joined:
    Jan 23, 2019
    Member:
    #24972
    Messages:
    731
    I have tried edge lighting 3D printed stuff and didn’t have great results. Since it isn’t a single solid piece the light diffused throughout the piece and it didn’t really light up as I hoped.

    Your use case seems more in line with a CNC router carved piece of acrylic, made of multiple pieces and glued together.

  17. Jan 22, 2020 at 6:10 AM
    #17
    prerunnerseth

    prerunnerseth [OP] New Member

    Joined:
    May 15, 2017
    Member:
    #7723
    Messages:
    521
    Gender:
    Male
    Apex, NC
    Vehicle:
    2015 MGM Limited 4x4
    I tested it already with some blue leds. I actually think it's going to work pretty good. I have some white leds coming in tomorrow. I dont need to have perfect lighting for this to work well. We will see. Would probably be perfect on a SLA printer.

  18. Jan 22, 2020 at 6:12 AM
    #18
    TundraDude18

    TundraDude18 You are only coming through in waves ...

    Joined:
    Jan 20, 2019
    Member:
    #24842
    Messages:
    900
    Gender:
    Male
    #24, 'Merica
    Vehicle:
    '18 Quicksand Limited CM
  19. Jan 22, 2020 at 6:32 AM
    #19
    prerunnerseth

    prerunnerseth [OP] New Member

    Joined:
    May 15, 2017
    Member:
    #7723
    Messages:
    521
    Gender:
    Male
    Apex, NC
    Vehicle:
    2015 MGM Limited 4x4
    Covered up the raised part with electrical tape to test. There are definitely hot spots. They're not as noticeable in person as they are on the phone. I think it will looks good from any amount of distance. if not i can add more smaller LEDs to get more even lighting.


  20. Jan 22, 2020 at 7:15 AM
    #20
    13TundraRW

    13TundraRW New Member

    Joined:
    Apr 11, 2019
    Member:
    #28966
    Messages:
    33
    Gender:
    Male
    First Name:
    Kyle
    San Diego, CA
    Vehicle:
    2013 White Tundra CM RW
    Looking good. Can't wait to see it finished.

  21. Jan 22, 2020 at 7:19 AM
    #21
    Jim LE 1301

    Jim LE 1301 Camaro Lover, SSEM # 11

    Joined:
    Apr 29, 2018
    Member:
    #14884
    Messages:
    13,260
    Gender:
    Male
    First Name:
    Jim
    Hudson Valley, New York
    Vehicle:
    2018 MGM Tundra TRD Sport Double Cab
    :thumbsup:

  22. Jan 22, 2020 at 12:37 PM
    #22
    BlueRibbon4x4

    BlueRibbon4x4 New Member

    Joined:
    Aug 16, 2018
    Member:
    #18204
    Messages:
    406
    Gender:
    Male
    First Name:
    Geno
    Vehicle:
    2015 Blue Ribbon TRD 4x4
    They look great. Do you have a link on the leds you’re using? How will you waterproof them?

  23. Jan 22, 2020 at 12:40 PM
    #23
    prerunnerseth

    prerunnerseth [OP] New Member

    Joined:
    May 15, 2017
    Member:
    #7723
    Messages:
    521
    Gender:
    Male
    Apex, NC
    Vehicle:
    2015 MGM Limited 4x4
    Just using generic 5mm 20mA leds. They fit inside a channel on the back that I will fill with epoxy.

    NewImprovedRon and BlueRibbon4x4 like this.
  24. Jan 22, 2020 at 12:43 PM
    #24
    BlueRibbon4x4

    BlueRibbon4x4 New Member

    Joined:
    Aug 16, 2018
    Member:
    #18204
    Messages:
    406
    Gender:
    Male
    First Name:
    Geno
    Vehicle:
    2015 Blue Ribbon TRD 4x4
    Ah gotcha. I guess I coulda figured that out if I paid attention to your original photo. Haha!

  25. Jan 22, 2020 at 12:59 PM
    #25
    TXRailRoads73

    TXRailRoads73 CRÜE

    Joined:
    May 30, 2016
    Member:
    #3487
    Messages:
    45,060
    Gender:
    Male
    First Name:
    Adam
    THE ONLY State, TEXAS
    Vehicle:
    IN THE WORX....
    What about brighter better quality LEDs? When completed, going to make and sell?

  26. Jan 22, 2020 at 1:06 PM
    #26
    vegas4x4

    vegas4x4 Blaaack

    Joined:
    Jul 11, 2019
    Member:
    #33104
    Messages:
    357
    Gender:
    Male
    Las Vegas
    Vehicle:
    2016 Black TRD CM 4x4
    This is sweet. Im in to see the how this progresses

  27. Jan 23, 2020 at 6:54 AM
    #27
    Headlight Revolution

    Headlight Revolution New Member Vendor

    Joined:
    Aug 30, 2018
    Member:
    #18773
    Messages:
    667
    Atlanta, GA
    Love seeing the Creativity on this Page, Nice Work! :)

    NewImprovedRon and smslavin like this.
  28. Jan 23, 2020 at 7:42 AM
    #28
    prerunnerseth

    prerunnerseth [OP] New Member

    Joined:
    May 15, 2017
    Member:
    #7723
    Messages:
    521
    Gender:
    Male
    Apex, NC
    Vehicle:
    2015 MGM Limited 4x4
    So i printed once upside down and it came out like crap. Then I learned about the issues with my model that were causing it to not put support under the channels in the bottom for the wires/LEDs and got it going again right side up, but this time too much support and it basically filled the channels. ill have to adjust the supports and reprint today. Other than the support underneath the rest of the third attemps came out reallly good.

    20200123_104534.jpg 20200123_104529.jpg

    Last edited: Jan 23, 2020
  29. Jan 23, 2020 at 11:53 AM
    #29
    prerunnerseth

    prerunnerseth [OP] New Member

    Joined:
    May 15, 2017
    Member:
    #7723
    Messages:
    521
    Gender:
    Male
    Apex, NC
    Vehicle:
    2015 MGM Limited 4x4
    Managed to dig out the features enough to put the white LEDs in for another test. These look even more awesome!


  30. Jan 23, 2020 at 12:25 PM
    #30
    smslavin

    smslavin On a plane...

    Joined:
    Jul 15, 2017
    Member:
    #8578
    Messages:
    6,490
    Gender:
    Male
    First Name:
    Sean
    Denver, CO
    Vehicle:
    2016 Tundra CrewMax SR5
    this. there are smart peeps running around this board.
