Coilover v.s. Drop Bracket (cutting crossmember)

Discussion in 'Suspension' started by Snoozer, Dec 2, 2017.

  1. Dec 2, 2017 at 5:23 PM
    #1
    Snoozer

    Snoozer [OP] New Member

    Joined:
    Mar 17, 2017
    Member:
    #6823
    Messages:
    35
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 MGM Sequoia Limited 4x4
    carseats
    "Search Button". There. Got that out of the way. I searched multiple truck forums all at once using this thing called "Google", and I did NOT find the answer to my question. So if my question annoys you, because you think you've heard it before, please do 1 of 2 things.

    1. Point me to the thread that answers it.
    2. Move along to another thread.
    :hattip:

    Ok. Simple question for those who actually may KNOW the answer here. I'm NOT looking for "well, my cousin, who's a mechanic at Grease Monkey told me...". :burp:

    Does cutting the crossmember in a Drop Bracket lift sacrifice the overall strength/integrity/rigidity (yes, I know they're different things) of the frame/chassis when installing a quality drop bracket lift system? Forget the brands that provide :cookiemonster: hardware that I've read threads about on here. Lets just compare the respectable, top notch systems here.

    For example purposes only, lets compare a BDS 4.5" drop bracket system (crossmember cut required) to an ICON 0-3.5" coilover system (pick a "stage"). -BTW, price, ride quality, add-ons mean :poking: here. Just the facts.

    If you take a SR5 Tundra Crewmax on 35s into Moab, on a trail that has a bit of technical rock crawling that requires a respectable breakover, approach, and departure angles, but also offers 50+ mph sand trail romps in between obstacles (the best of 4-wheeling)... :mudding:which setup is going to come out on top? I'm not taking about ride quality here. Lets assume both setups offer a great ride on/off road, with the same performance suspension-wise.

    Its a valid question. You can have the most bada$$ Coilover setup on the market... but if you get high centered on some granite rock or sand whoop, you're breaking out the HiLift jack, winch, and/or getting some buddies to jump up/down on the bumpers to break you loose. Breakover angle is important! However, IF those extra 2-4 inches of Drop Bracket lift mean that your frame is compromised (strength-wise), or that you'll need a new alignment after every trail run because you now have more “anchor points” holding your front suspension together, since you’ve cut the crossmember for a drop bracket subframe.... :duel:


    :spy::stirthepot:

    Last edited: Dec 3, 2017
  2. Dec 2, 2017 at 5:32 PM
    #2
    TXRailRoadBandit73

    TXRailRoadBandit73 YOTAS,RAILROADER,RÖKnRÖLLN',BEER,MAX/GEMMA

    Joined:
    May 30, 2016
    Member:
    #3487
    Messages:
    50,305
    Gender:
    Male
    First Name:
    Adam
    The 956, TEXAS
    None yet
    Once cross member is cut no turning back

  3. Dec 2, 2017 at 5:38 PM
    #3
    Backslider

    Backslider Thirsty...

    Joined:
    Jun 7, 2016
    Member:
    #3553
    Messages:
    3,138
    Gender:
    Male
    First Name:
    Mike
    Tooele, UT
    Vehicle:
    2022 GMC Sierra AT4 L5P - 2017 4runner SR5P - 2023 Tesla Model 3 LR
    I don't know the answer, but THIS is how you ask a question!

  4. Dec 2, 2017 at 5:43 PM
    #4
    TheBeast

    TheBeast The Beach

    Joined:
    Apr 27, 2016
    Member:
    #3246
    Messages:
    12,518
    Gender:
    Male
    SoCal
    Vehicle:
    2012
  5. Dec 2, 2017 at 5:46 PM
    #5
    4x4_Angel

    4x4_Angel Perfectly Imperfect Tomboy....TTC #132

    Joined:
    Jul 30, 2017
    Member:
    #8830
    Messages:
    24,213
    Gender:
    Female
    First Name:
    Bree
    Funky Town, Texas
    Vehicle:
    2014 SR5 CM Silver Sky
    ToyTec BOSS Lift, FRAC, 18" Fuel Pump wheels, Nitto Ridge Grapplers
  6. Dec 2, 2017 at 5:52 PM
    #6
    Jsena

    Jsena Trend setter, not a follower!!

    Joined:
    Mar 20, 2017
    Member:
    #6889
    Messages:
    8,206
    Gender:
    Male
    First Name:
    Jay
    Las Vegas, NV
    Vehicle:
    A Bad Bissshhhh
    7 inch BDS LIFT, 22x10 RBP wheels 37 inch Atturo MT Tires, Flowmaster, Bullydog Tuner
    they make those crossmembers for off roaring. They’re not gonna break

  7. Dec 2, 2017 at 6:03 PM
    #7
    TheBeast

    TheBeast The Beach

    Joined:
    Apr 27, 2016
    Member:
    #3246
    Messages:
    12,518
    Gender:
    Male
    SoCal
    Vehicle:
    2012
    getting close to those 10,000 posts :spy::spy:

    Black Wolf and 4x4_Angel[QUOTED] like this.
  8. Dec 2, 2017 at 6:04 PM
    #8
    TheBeast

    TheBeast The Beach

    Joined:
    Apr 27, 2016
    Member:
    #3246
    Messages:
    12,518
    Gender:
    Male
    SoCal
    Vehicle:
    2012
    paging @Spvrtan :D

    4x4_Angel likes this.
  9. Dec 2, 2017 at 6:24 PM
    #9
    4x4_Angel

    4x4_Angel Perfectly Imperfect Tomboy....TTC #132

    Joined:
    Jul 30, 2017
    Member:
    #8830
    Messages:
    24,213
    Gender:
    Female
    First Name:
    Bree
    Funky Town, Texas
    Vehicle:
    2014 SR5 CM Silver Sky
    ToyTec BOSS Lift, FRAC, 18" Fuel Pump wheels, Nitto Ridge Grapplers
    Only reason i know is because you guys point it out :p

    Black Wolf and TheBeast[QUOTED] like this.
  10. Dec 2, 2017 at 8:41 PM
    #10
    14burrito

    14burrito IG @14burrito

    Joined:
    Dec 14, 2014
    Member:
    #798
    Messages:
    3,819
    Vehicle:
    2014 SR5 CM 4x4 5.7
    @ADSracingshocks - F 3 point ohh / R 2.5 - w/clickers @camburgracing - uniball UCA @rigidindustries - 40" amber/white split, Dually XL, D2 @coopertires - 35/12.5/17 STT MAXX @bayareametalfab - low pro bed rack @toyotausa - 17" rock warrior @sdhqoffroad - rock sliders, a-pillar @hondogarage / @apple / @gaiagps / @dualgps- navigation @wheelersoffroadinc - superbumps
    Not true. @sdhq_offroad has done cuatom cross members for people who did a 6" but wanted to go back to a normal 3" coilover lift.

    zachzap361 likes this.
  11. Dec 2, 2017 at 8:55 PM
    #11
    blue16

    blue16 New Member

    Joined:
    Feb 5, 2017
    Member:
    #6237
    Messages:
    2,817
    Gender:
    Male
    First Name:
    steve
    Mesa AZ
    Vehicle:
    2016 tundra
  12. Dec 2, 2017 at 9:03 PM
    #12
    TXRailRoadBandit73

    TXRailRoadBandit73 YOTAS,RAILROADER,RÖKnRÖLLN',BEER,MAX/GEMMA

    Joined:
    May 30, 2016
    Member:
    #3487
    Messages:
    50,305
    Gender:
    Male
    First Name:
    Adam
    The 956, TEXAS
    None yet
    Well I've called all Houston area shops n say no beuno

  13. Dec 2, 2017 at 9:16 PM
    #13
    BlueFalconActual

    BlueFalconActual Field Day Inspector Extraordinaire

    Joined:
    Jun 1, 2016
    Member:
    #3495
    Messages:
    1,627
    Gender:
    Male
    First Name:
    Kevin
    29 Palms, CA
    Vehicle:
    Tundra-less
    Did someone say something about cutting members?
    [​IMG]

  14. Dec 2, 2017 at 9:22 PM
    #14
    landphil

    landphil Fish are food, not friends!

    Joined:
    Oct 9, 2016
    Member:
    #4814
    Messages:
    4,319
    Gender:
    Male
    First Name:
    Phil
    BC, Canada
    Vehicle:
    ‘08 TRD doublecab
    Crossmember, not crossdresser.

  15. Dec 2, 2017 at 9:28 PM
    #15
    TXRailRoadBandit73

    TXRailRoadBandit73 YOTAS,RAILROADER,RÖKnRÖLLN',BEER,MAX/GEMMA

    Joined:
    May 30, 2016
    Member:
    #3487
    Messages:
    50,305
    Gender:
    Male
    First Name:
    Adam
    The 956, TEXAS
    None yet
    Gotta be damn good welder

  16. Dec 3, 2017 at 12:24 PM
    #16
    Snoozer

    Snoozer [OP] New Member

    Joined:
    Mar 17, 2017
    Member:
    #6823
    Messages:
    35
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 MGM Sequoia Limited 4x4
    carseats
    If you’re referring here to the Drop Bracket as a “crossmember” (which they effectively are) I believe that SOME of them are built strong enough for offroad... but certainly not “all”. -For example, personally, I wouldn’t subject a 12 inch “:infantry:-proof” Drop Bracket to the strains of a challenging offroad trail. There’s just too much leverage in the pieces of that size of a “Drop Bracket” lift. I recently read a Tundras.com thread where a member claimed that the Zone reps flat out told a customer that the Zone kit wasn’t built for offroad...

    In any case, my original question isn’t whether the Drop Bracket itself would “break” or not. I’m familiar enough with the concept and construction of Drop Bracketry and what makes them “strong”...

    My question,reworded:
    I’m wondering if cutting out the OEM welded crossmember and replacing it with a bolt-in crossmember/sub-frame assembly would compromise the integrity of the front end as a whole. A “pavement princess” Tundra doesn’t have to worry as much about it as a Tundra that flexes the framerails on Moab’s Golden Spike trail. If comparing a BDS 4.5” to an ICON 3.5” lifted Tundra, and subjecting both to a respectably difficult offroad trail, which truck is going to have a crooked steering wheel and front end problems at the end of the day? -And that’s certainly not the only aspect to be concerned with. But I’m trying to keep it simple and general here.

    Am I conveying my actual question clear enough? I’m trying to.:playball:

    Last edited: Dec 3, 2017
    Sunnier likes this.
  17. Dec 3, 2017 at 12:29 PM
    #17
    Snoozer

    Snoozer [OP] New Member

    Joined:
    Mar 17, 2017
    Member:
    #6823
    Messages:
    35
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 MGM Sequoia Limited 4x4
    carseats
    ...Where your LCAs were once bolted into a fixed and welded portion of the frame, they are now bolted to an assembly of pieces that are also bolted together and then bolted onto the frame.

    Perhaps with a top notch kit like BDS, where the crossmembers (front and rear) are boxed-in together with a rugged skid plate, this may actually be “stronger” than the OEM one piece crossmember that gets cut? -A rigid, 3-sided box, also connected to suspension and steering components. But those pieces are still all bolted together, not welded. This is what I’m trying to wrap my head around.

    Last edited: Dec 3, 2017
    Sunnier likes this.
  18. Dec 3, 2017 at 1:11 PM
    #18
    Sunnier

    Sunnier Pity the warrior that slays all his foes

    Joined:
    Aug 21, 2017
    Member:
    #9171
    Messages:
    12,266
    First Name:
    Sunny
    San Diego, CA
    Vehicle:
    2017 Inferno Tundra DC TRD & Longtravel 1st Gen, Banner/ HulkSmash build
    :popcorn: I'll check back. Either learn something really beneficial, or see how this thread goes sideways....

  19. Dec 3, 2017 at 1:24 PM
    #19
    Snoozer

    Snoozer [OP] New Member

    Joined:
    Mar 17, 2017
    Member:
    #6823
    Messages:
    35
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 MGM Sequoia Limited 4x4
    carseats
    I'm hoping a chassis/suspension engineer chimes in with a clear answer and SolidWorks Pro Simulation pictures of metal strain and fatigue to back up the claim. :thumbsup::cool:

    I "think" I may already know the answer, but I wouldn't be asking here if I did.

    When I built my last rock crawler, I removed 1 midship OEM crossmember (bolted to the frame at the GM plant in 1976). But I also fabricated and added 2 rear crossmembers (also bolted to the frame). It really stiffened up the miserable frame flex those 1/2 ton rigs had offroad. But also left enough flex that I wasn't tearing holes in the frame.

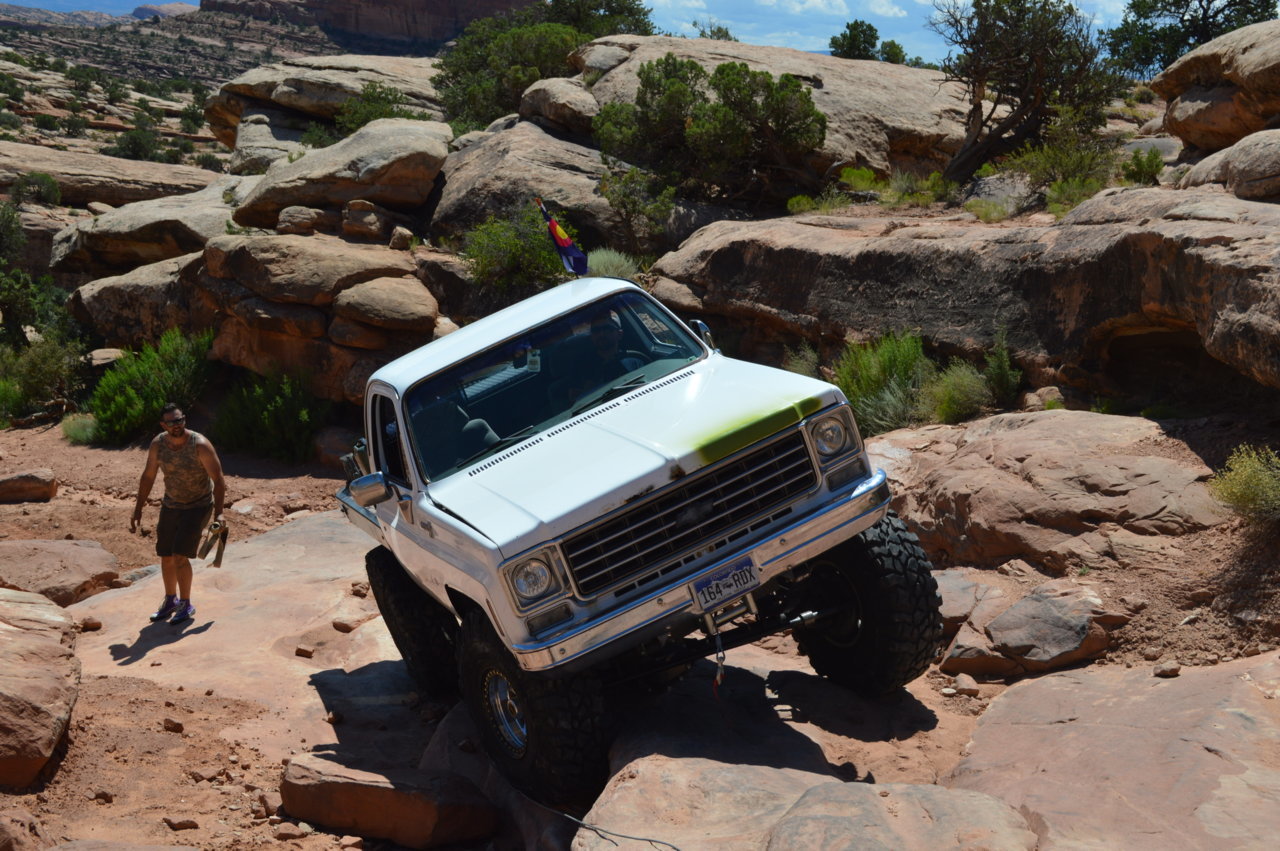

    [​IMG]
