Bumper LED reverse lights...

Discussion in 'Lighting' started by TTU19, Dec 13, 2016.

  1. Dec 13, 2016 at 7:39 AM
    #1
    TTU19

    TTU19 [OP] Wreck 'Em

    Joined:
    Jul 19, 2016
    Member:
    #3918
    Messages:
    2,179
    Gender:
    Male
    First Name:
    Wes
    Tx
    Vehicle:
    2021 TRD Sport
    I've seen a few people do this, but was thinking of adding some LEDs under the back bumper to use as additional reverse lighting. I want something that is pretty low profile and not stick way out. Does anyone have some they can recommend?

    Also, if anyone can offer some advice on how to install those, I would be greatly appreciated. I would assume I'd tap into the reverse wires on the taillights, but not 100% sure.

    I'm also curious if I was able to run a toggle switch to them, so I could turn them on even when not backing up, but still have them to come on automatically when I put it in reverse.

    Anyone got any input? Thanks..!

  2. Dec 13, 2016 at 7:49 AM
    #2
    MotoTundra

    MotoTundra The Ocho

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    7,515
    Gender:
    Male
    First Name:
    Don
    -TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) -Baja Designs Squadron R Sport Aux lights. -TRD Pro Grill -TRD Rear Sway Bar -BakFlip VP Tonneau w/BakBox -Dipped wheels & bumpers -Iron Cross HD steps -Undercover Swingcase -SunTek Paint Protection film -Tinted glass -Bedmat -OEM Towing Mirrors
  3. Dec 13, 2016 at 8:32 AM
    #3
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    332
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
  4. Dec 13, 2016 at 8:35 AM
    #4
    TTU19

    TTU19 [OP] Wreck 'Em

    Joined:
    Jul 19, 2016
    Member:
    #3918
    Messages:
    2,179
    Gender:
    Male
    First Name:
    Wes
    Tx
    Vehicle:
    2021 TRD Sport
    That does look a lot cleaner than bolting on under. How difficult is it to cut the hole in the bumper?

  5. Dec 13, 2016 at 8:38 AM
    #5
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    332
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
    Not too bad. I used a sawsall with a metal cutting blade. Others have used an air powered cutoff tool. I would suggest making a test hole in something that is easy to cut like an old cutting board to make sure you get the hole big enough. I made mine a bit too small and had to file it out to fit. That sucked.

    TruckyTruck likes this.
  6. Dec 13, 2016 at 8:48 AM
    #6
    NewImprovedRon

    NewImprovedRon Hey! Get off my grass!

    Joined:
    Jul 8, 2015
    Member:
    #1501
    Messages:
    13,218
    Gender:
    Male
    First Name:
    Ron
    Bentonville, AR
    Vehicle:
    2015 Radiant Red TSS Doublecab 4X4 Off Road
    Deck rail system, Bed divider, door sill protectors, LED reverse light bars, Aries Bull Bar with 28" 180 watt LED light bar, LED step lights, LED bed lights, driver-side grab handle, TRD Rear Sway Bar, BedRug bed mat and tailgate mat, Morimoto Fog Lights, more to come.....

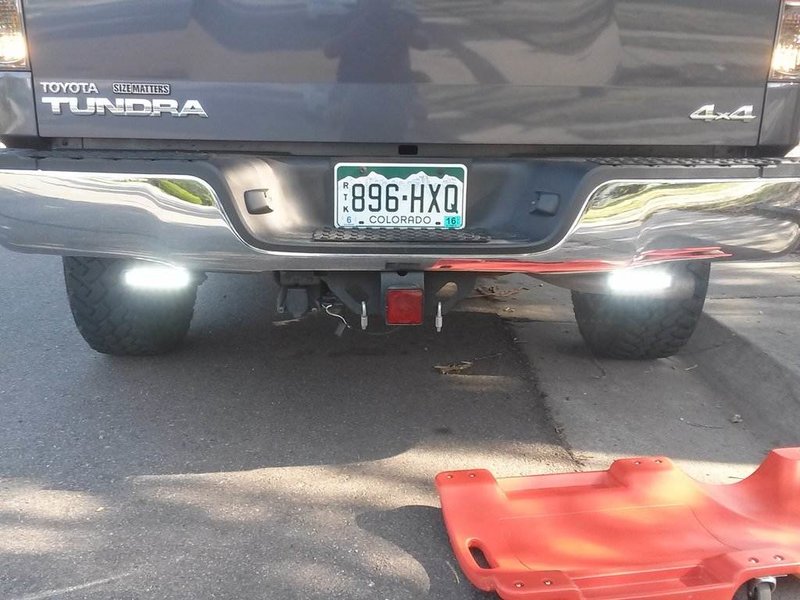

    Here is what I did Wes:


    I used a relay with the added reverse lights but you can get away without one and just tap into the reverse light circuit at the tail lights. If you want to also have the ability to switch them on, you will most likely need to add a diode to the positive wire connection for the accessory lights to come on when you're transmission is not in reverse.

  7. Dec 13, 2016 at 8:58 AM
    #7
    TTU19

    TTU19 [OP] Wreck 'Em

    Joined:
    Jul 19, 2016
    Member:
    #3918
    Messages:
    2,179
    Gender:
    Male
    First Name:
    Wes
    Tx
    Vehicle:
    2021 TRD Sport
    I need to learn more about relay's, I have very little understanding of those. Then you lost me with a diode, haha. Maybe all that would be too difficult.

    zcarpenter92 likes this.
  8. Dec 13, 2016 at 9:30 AM
    #8
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    332
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
    Relay's are certainly worth reading about! So many neat things one can do. I added more horns to my truck using a relay. Best $5 mod that is out there! They are pretty simple. You have the coil in the relay that is powered by whatever switched power you put into it. In my horn example, pressing the horn on my steering wheel completes the circuit for the horns and also completes the circuit through the coil in my relay. This causes the add-on horns to receive power through the relay from the battery. If I tried to power the extra horns with the power from the stock horn, it would blow the fuse.

    http://www.parts-express.com/cat/12v-relays-sockets/399

    Be sure to get the wiring harness with it. There is a diagram on the relay showing what each wire is for. It can be a bit confusing, but there are lots of diagrams online and people here would certainly be willing to help.

  9. Dec 13, 2016 at 9:46 AM
    #9
    TTU19

    TTU19 [OP] Wreck 'Em

    Joined:
    Jul 19, 2016
    Member:
    #3918
    Messages:
    2,179
    Gender:
    Male
    First Name:
    Wes
    Tx
    Vehicle:
    2021 TRD Sport
    Uhh.. yeah those look confusing as hell, ha. I wouldn't even know which one I'd need or where to put it, ha. Hummm...

  10. Dec 13, 2016 at 12:17 PM
    #10
    NewImprovedRon

    NewImprovedRon Hey! Get off my grass!

    Joined:
    Jul 8, 2015
    Member:
    #1501
    Messages:
    13,218
    Gender:
    Male
    First Name:
    Ron
    Bentonville, AR
    Vehicle:
    2015 Radiant Red TSS Doublecab 4X4 Off Road
    Deck rail system, Bed divider, door sill protectors, LED reverse light bars, Aries Bull Bar with 28" 180 watt LED light bar, LED step lights, LED bed lights, driver-side grab handle, TRD Rear Sway Bar, BedRug bed mat and tailgate mat, Morimoto Fog Lights, more to come.....
    It isn't that tough Wes once you read up on them and sketch out on paper where the wires hook up and what they do. A relay is just a switch. You power it by using a low-amp trigger wire to complete a circuit in it that powers something normally more power hungry, like a light bar.

  11. Dec 13, 2016 at 12:24 PM
    #11
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    332
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
    Ron's bang on! Its not too hard to figure out. And really, if you do it wrong all you are likely to get is a little bit of 12V lightning!

  12. Dec 14, 2016 at 11:47 AM
    #12
    TTU19

    TTU19 [OP] Wreck 'Em

    Joined:
    Jul 19, 2016
    Member:
    #3918
    Messages:
    2,179
    Gender:
    Male
    First Name:
    Wes
    Tx
    Vehicle:
    2021 TRD Sport
    So how do you think these compare to some from Rigid? Besides them being about $150 more.. yikes.

  13. Dec 14, 2016 at 1:01 PM
    #13
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    332
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
    Hard to say really, as I haven't ever bought any Rigid products. I bought a replacement pair already as backups in case either of these ones die. I've had them in now for many months....... but its also not like I drive around backwards, so they have only been on for probably less than a half hour. They are however, nice and bright and I can see everything back there when they are on!

    Like many others when it came to LED lights, I went with the cheap ones and justified it by saying that I can replace the cheap ones many times over and still not be at the same cost as the expensive ones. I'd also be concerned with someone stealing them if they said Rigid on them.

    Someone else may have more to say about the pattern of light thrown out etc in comparing the two.... on that topic I know nothing.

    TruckyTruck and TTU19 [OP] like this.
  14. Dec 14, 2016 at 1:14 PM
    #14
    TTU19

    TTU19 [OP] Wreck 'Em

    Joined:
    Jul 19, 2016
    Member:
    #3918
    Messages:
    2,179
    Gender:
    Male
    First Name:
    Wes
    Tx
    Vehicle:
    2021 TRD Sport
    Yeah, that makes a lot of sense.

  15. Dec 14, 2016 at 1:22 PM
    #15
    NewImprovedRon

    NewImprovedRon Hey! Get off my grass!

    Joined:
    Jul 8, 2015
    Member:
    #1501
    Messages:
    13,218
    Gender:
    Male
    First Name:
    Ron
    Bentonville, AR
    Vehicle:
    2015 Radiant Red TSS Doublecab 4X4 Off Road
    Deck rail system, Bed divider, door sill protectors, LED reverse light bars, Aries Bull Bar with 28" 180 watt LED light bar, LED step lights, LED bed lights, driver-side grab handle, TRD Rear Sway Bar, BedRug bed mat and tailgate mat, Morimoto Fog Lights, more to come.....
    I bought an extra set as well when I purchased my add-on reverse LED's. Haven't had to use them yet. The originals are going strong and they are very bright! I like the kind like I got because you have the ability to aim them up/down left/right, which you can't do if you cut a hole in the bumper and mount them. I've had mine on for almost a year now...

    Law323 and TruckyTruck like this.
  16. Dec 14, 2016 at 1:26 PM
    #16
    AnonVet

    AnonVet That's what she said!

    Joined:
    Sep 2, 2016
    Member:
    #4410
    Messages:
    1,350
    Gender:
    Male
    First Name:
    Dan
    Weatherford TX
    Vehicle:
    2015 TRD SR5 CM
    8 inch pro comp 35x12.5 RPB Repulsars 18x9 Rhino Glamis Murdered out Spyder heads Smoked tails Leds all around her Debadged CNCd tundra grill Chopper and modified front bumper The lost goes on....
    To be honest, you'll be happy you took this project up. It's very simple and almost as easy as plug and play, aside from the cutting and drilling. Have a couple of extra back up fuses and some extra time, the worst that can happen is they don't work. Best case scenario, that little light bulb goes off in your head about all the other uses of relays and then you'll begin to love electronics. to answer your question about them coming on when you put the truck in reverse, it's just as everyone else said, tap into the reverse light and you'll be good to go. If you need a hand in doing that, I can always help. Also, if you want them to come on at the turn of a switch, you'll just need to wire in a switch that will provide that 12V when you hit it. That's pretty straight forward also. When all else fails, someone on google has tried to do the exact same thing you are and has failed and learned from it... so just google and you'll be surprised as to what you can come up with. I can help guide ya through the process if you'd like. Just holler. I'm an electronics engineer on the most badass fighter jet in the world so I have a little background in this.

  17. Dec 14, 2016 at 2:18 PM
    #17
    AnonVet

    AnonVet That's what she said!

    Joined:
    Sep 2, 2016
    Member:
    #4410
    Messages:
    1,350
    Gender:
    Male
    First Name:
    Dan
    Weatherford TX
    Vehicle:
    2015 TRD SR5 CM
    8 inch pro comp 35x12.5 RPB Repulsars 18x9 Rhino Glamis Murdered out Spyder heads Smoked tails Leds all around her Debadged CNCd tundra grill Chopper and modified front bumper The lost goes on....
    Screenshot_20161214-140629.jpg I'm at work so didn't have a chance to draw one up, but here is a pretty simplistic pic of the wiring. Hopefully this will help curb some of the bubblegut about taking on the project.

  18. Dec 14, 2016 at 2:21 PM
    #18
    TTU19

    TTU19 [OP] Wreck 'Em

    Joined:
    Jul 19, 2016
    Member:
    #3918
    Messages:
    2,179
    Gender:
    Male
    First Name:
    Wes
    Tx
    Vehicle:
    2021 TRD Sport
    Thanks, it's the relays that throw me off. Where do I plug the relay in at on the truck? Or is it a stand alone thing? Could I also tie it into the reverse lights so that they come on when in reverse, even when the switch is off?

    AnonVet likes this.
  19. Dec 14, 2016 at 2:22 PM
    #19
    AnonVet

    AnonVet That's what she said!

    Joined:
    Sep 2, 2016
    Member:
    #4410
    Messages:
    1,350
    Gender:
    Male
    First Name:
    Dan
    Weatherford TX
    Vehicle:
    2015 TRD SR5 CM
    8 inch pro comp 35x12.5 RPB Repulsars 18x9 Rhino Glamis Murdered out Spyder heads Smoked tails Leds all around her Debadged CNCd tundra grill Chopper and modified front bumper The lost goes on....
    Yes to the switch question and yes, the relay is pretty much it's own deal. Just mount it where you see fit. It'll come in a little black box with a clip or something to run a screw or bolt through to mount it.

    NewImprovedRon and TruckyTruck like this.
  20. Dec 14, 2016 at 2:24 PM
    #20
    AnonVet

    AnonVet That's what she said!

    Joined:
    Sep 2, 2016
    Member:
    #4410
    Messages:
    1,350
    Gender:
    Male
    First Name:
    Dan
    Weatherford TX
    Vehicle:
    2015 TRD SR5 CM
    8 inch pro comp 35x12.5 RPB Repulsars 18x9 Rhino Glamis Murdered out Spyder heads Smoked tails Leds all around her Debadged CNCd tundra grill Chopper and modified front bumper The lost goes on....
    The relay works as a magnet. When power is applied, it flips and you hear a click, that means the contacts are closed and power is flowing. they are also nice for troubleshooting. When you hear the click, you know power isn't an issue. They work similar to a light, they either work or don't.

    NewImprovedRon and TruckyTruck like this.
  21. Dec 14, 2016 at 2:30 PM
    #21
    TNTundra08

    TNTundra08 New Member

    Joined:
    Mar 4, 2015
    Member:
    #1027
    Messages:
    747
    Gender:
    Male
    First Name:
    Blake
    Vehicle:
    2008 DC 4x4
    3/1 lift. 20x9 Method standards, machine face. 305/55/20 nitto trail grapplers
    Could you give a little more detail for how to hook up the diode? I have mine wired directly to my reverse lights and want to run a switch but have no clue what do to with the diode. I've ran relays and what not for my other two light bars so I get that but never a diode.

  22. Dec 14, 2016 at 2:33 PM
    #22
    TTU19

    TTU19 [OP] Wreck 'Em

    Joined:
    Jul 19, 2016
    Member:
    #3918
    Messages:
    2,179
    Gender:
    Male
    First Name:
    Wes
    Tx
    Vehicle:
    2021 TRD Sport
    That makes a little more sense. I was thinking it was like the relay fuses in the fuse box. I didn't understand how to add one and wire it up, ha. Watching a youtube video now.

  23. Dec 14, 2016 at 2:36 PM
    #23
    TTU19

    TTU19 [OP] Wreck 'Em

    Joined:
    Jul 19, 2016
    Member:
    #3918
    Messages:
    2,179
    Gender:
    Male
    First Name:
    Wes
    Tx
    Vehicle:
    2021 TRD Sport
    Where in this diagram would you wire it to the stock reverse lights?

  24. Dec 14, 2016 at 2:38 PM
    #24
    AnonVet

    AnonVet That's what she said!

    Joined:
    Sep 2, 2016
    Member:
    #4410
    Messages:
    1,350
    Gender:
    Male
    First Name:
    Dan
    Weatherford TX
    Vehicle:
    2015 TRD SR5 CM
    8 inch pro comp 35x12.5 RPB Repulsars 18x9 Rhino Glamis Murdered out Spyder heads Smoked tails Leds all around her Debadged CNCd tundra grill Chopper and modified front bumper The lost goes on....
    I'll add that here in a few, about to leave work and my drive is about an hour and a half to the house.

    TruckyTruck and TTU19 [OP] like this.
  25. Dec 14, 2016 at 2:43 PM
    #25
    NewImprovedRon

    NewImprovedRon Hey! Get off my grass!

    Joined:
    Jul 8, 2015
    Member:
    #1501
    Messages:
    13,218
    Gender:
    Male
    First Name:
    Ron
    Bentonville, AR
    Vehicle:
    2015 Radiant Red TSS Doublecab 4X4 Off Road
    Deck rail system, Bed divider, door sill protectors, LED reverse light bars, Aries Bull Bar with 28" 180 watt LED light bar, LED step lights, LED bed lights, driver-side grab handle, TRD Rear Sway Bar, BedRug bed mat and tailgate mat, Morimoto Fog Lights, more to come.....
    Last edited: Dec 14, 2016
    Law323, joonbug, 831Tun and 2 others like this.
  26. Dec 14, 2016 at 2:44 PM
    #26
    TTU19

    TTU19 [OP] Wreck 'Em

    Joined:
    Jul 19, 2016
    Member:
    #3918
    Messages:
    2,179
    Gender:
    Male
    First Name:
    Wes
    Tx
    Vehicle:
    2021 TRD Sport
    No rush at all. Thanks!

  27. Dec 14, 2016 at 8:04 PM
    #27
    TruckyTruck

    TruckyTruck Dumbest Username

    Joined:
    Jan 6, 2014
    Member:
    #20
    Messages:
    3,563
    Gender:
    Male
    First Name:
    Gary
    Texas
    Good stuff here!

    NewImprovedRon likes this.
  28. Dec 14, 2016 at 9:27 PM
    #28
    MotoTundra

    MotoTundra The Ocho

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    7,515
    Gender:
    Male
    First Name:
    Don
    -TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) -Baja Designs Squadron R Sport Aux lights. -TRD Pro Grill -TRD Rear Sway Bar -BakFlip VP Tonneau w/BakBox -Dipped wheels & bumpers -Iron Cross HD steps -Undercover Swingcase -SunTek Paint Protection film -Tinted glass -Bedmat -OEM Towing Mirrors
  29. Dec 14, 2016 at 9:55 PM
    #29
    AnonVet

    AnonVet That's what she said!

    Joined:
    Sep 2, 2016
    Member:
    #4410
    Messages:
    1,350
    Gender:
    Male
    First Name:
    Dan
    Weatherford TX
    Vehicle:
    2015 TRD SR5 CM
    8 inch pro comp 35x12.5 RPB Repulsars 18x9 Rhino Glamis Murdered out Spyder heads Smoked tails Leds all around her Debadged CNCd tundra grill Chopper and modified front bumper The lost goes on....
    Put some family time in tonight so didn't get to draw up a schematic with the brake light but will definitely do that tomorrow.

    TTU19 [OP] and 831Tun like this.
  30. Dec 14, 2016 at 10:46 PM
    #30
    831Tun

    831Tun crazy Bastrd

    Joined:
    Jun 7, 2016
    Member:
    #3549
    Messages:
    10,976
    Gender:
    Male
    First Name:
    Warren
    Santa Cruz
    Vehicle:
    '16 CM limited
    TC LT w/ king 2.5 C/O and bypass, ADS bypass rear, Toytech shackles, TRD dual exhaust dumped, KM3 37s on Method standard +18. N_Fab front bumper, Westin rear w/ hitch relocate, RCI skids, Desert Eagle tranny skid, All Pro sliders, ARB dual compressor, 5.29 gears and ARB rear locker
    Thanks AnonVet for your help here. It's a project I've been considering. With the help from you and RowdyRon I feel I can get this done reasonably quickly. Then, on to cargo lighting and puddle lights under the truck.

    NewImprovedRon likes this.
