Bed Lights

Discussion in '2.5 Gen Tundras (2014-2021)' started by garciahomes, Nov 28, 2022.

  1. Nov 28, 2022 at 5:08 PM
    #1
    garciahomes

    #1
    garciahomes [OP] New Member

    Joined:
    Sep 17, 2020
    Member:
    #52367
    Messages:
    34
    Gender:
    Male
    Not a bad install, lots of meticulous work to hide the wires. That is time consuming.20221128_174751.jpg 20221128_174732.jpg 20221128_174715.jpg

    garciahomes, Nov 28, 2022
    #1
    Wallygator, bulldog93, 1lowlife and 8 others like this.
  2. Nov 28, 2022 at 5:11 PM
    #2
    Taco-Spike

    #2
    Taco-Spike Gateway from Tacoma World ~ ended up here

    Joined:
    Apr 25, 2021
    Member:
    #62293
    Messages:
    4,666
    Gender:
    Male
    512
    Vehicle:
    16 Tacoma TRD Sport DCSB / 17 Tundra 5.7L 4X4 CM
    Two Trucks
    Nice job

    Taco-Spike, Nov 28, 2022
    #2
  3. Nov 28, 2022 at 5:15 PM
    #3
    Midnite72

    #3
    Midnite72 Anything DIRT !!

    Joined:
    May 26, 2018
    Member:
    #15623
    Messages:
    889
    Gender:
    Male
    First Name:
    Bill
    Northern MD
    Vehicle:
    18 SR 5.7 4x4
    2” level P&P sliders
    Nice job !

    Here is mine


    Midnite72, Nov 28, 2022
    #3
    Wallygator, Porschetech29, garciahomes[OP] and 1 other person like this.
  4. Nov 28, 2022 at 5:39 PM
    #4
    Tundra234

    #4
    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    18,139
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them
    Nice. I'll take pics of mine after I clean the bed out.

    Tundra234, Nov 28, 2022
    #4
    garciahomes[QUOTED][OP] likes this.
  5. Dec 3, 2022 at 8:16 PM
    #5
    Trentimus

    #5
    Trentimus New Member

    Joined:
    Apr 2, 2022
    Member:
    #76724
    Messages:
    141
    Gender:
    Male
    First Name:
    Trent
    Vehicle:
    2019 Tundra Off Road
    Nfab bars, undercover armor cover, hottails
    Very nice! I need to do this too, did you get the OEM Kit or what did you buy?

    Trentimus, Dec 3, 2022
    #5
  6. Dec 4, 2022 at 6:39 AM
    #6
    Charliebrn

    #6
    Charliebrn New Member

    Joined:
    Sep 7, 2020
    Member:
    #51912
    Messages:
    231
    Gender:
    Male
    NW Ohio
    Vehicle:
    2017 DC Limited 4x4 Tundra
    Tyger Folding Tonneau cover Polished stainless running boards LED interior lighting VLED Footwell Kit LED Bed lighting
    What switch is that? I’ve got a simple toggle on mine that needs replacing…and maybe relocating. I like that spot, any risk of hitting it when loading stuff up?

    Charliebrn, Dec 4, 2022
    #6
  7. Dec 12, 2022 at 11:11 AM
    #7
    garciahomes

    #7
    garciahomes [OP] New Member

    Joined:
    Sep 17, 2020
    Member:
    #52367
    Messages:
    34
    Gender:
    Male
    I used the kit below from Amazon and modifed it to fit. The LED strips are like those for home use, I measured with my OEM rails for mounting stuff. Pulled the endcaps of the LED enclosure and cut them where the lines are marked to cut. Similar to what is used in homes with an enclosure. Ran mine from the rear of the truck to the front end of the rails, there is a hole on each end of the bed by the rails, dropped the wires in there and they come out under the truck. Rewired and modified harness from there. Mounted the switch where you see it via another hole that is in the bed by the tailgate. Used 3M VHB tape on the lights and switch. The two sided that came on the lights was garbage.

    Nilight -
    $21 TR-05 2PCS 60" 180 LEDs Bed Strip Kit with Waterproof on/Off Switch Blade Fuse 2-Way Splitter Extension Cable for Cargo, Pickup Truck, SUV, RV, Boat , 2 Years Warranty
    TR-05 2PCS 60 Inch 180 LEDs Bed Strip Kit with Waterproof on/Off Switch Blade Fuse 2-Way Splitter Extension Cable for Cargo, Pickup Truck, SUV, RV, Boat , 2 Years Warranty

    garciahomes, Dec 12, 2022
    #7
    bulldog93 and SwitchThrottle like this.
  8. Dec 12, 2022 at 11:13 AM
    #8
    garciahomes

    #8
    garciahomes [OP] New Member

    Joined:
    Sep 17, 2020
    Member:
    #52367
    Messages:
    34
    Gender:
    Male
    I used the switch that came with the kit below, no chance of banging it up. Tailgate closes well. Only thing to make sure you dont get the wires tangled up with the spring\cylinder for the tailgate which you can see when running the wire from under the truck.

    Nilight -
    $21 TR-05 2PCS 60" 180 LEDs Bed Strip Kit with Waterproof on/Off Switch Blade Fuse 2-Way Splitter Extension Cable for Cargo, Pickup Truck, SUV, RV, Boat , 2 Years Warranty
    TR-05 2PCS 60 Inch 180 LEDs Bed Strip Kit with Waterproof on/Off Switch Blade Fuse 2-Way Splitter Extension Cable for Cargo, Pickup Truck, SUV, RV, Boat , 2 Years Warranty

    garciahomes, Dec 12, 2022
    #8
    bulldog93 likes this.
  9. Dec 27, 2022 at 7:11 PM
    #9
    Canivito2000

    #9
    Canivito2000 New Member

    Joined:
    Dec 18, 2022
    Member:
    #88825
    Messages:
    2
    Gender:
    Male
    First Name:
    Vito
    Vehicle:
    2021 Tundra SR5
    I recently bought the swing cases and they block my current bed lights. Is there a chance I could remove those and use the wire that’s already there to connect in these lights?

    Canivito2000, Dec 27, 2022
    #9
  10. Dec 28, 2022 at 9:52 AM
    #10
    garciahomes

    #10
    garciahomes [OP] New Member

    Joined:
    Sep 17, 2020
    Member:
    #52367
    Messages:
    34
    Gender:
    Male
    I'm certain you can, the harness that comes in the kit is very adaptable. It comes with its ideal method of connecting, yet it can be modified to suit your needs. I was thinking of swing cases, too; my tonneau has levers that lock it in, and I may not be able to use them.

    garciahomes, Dec 28, 2022
    #10
  11. Dec 28, 2022 at 11:09 AM
    #11
    1lowlife

    #11
    1lowlife Toxic prick and pavement princess..

    Joined:
    May 4, 2016
    Member:
    #3296
    Messages:
    10,815
    First Name:
    DADA
    THE GREAT STATE OF TEXAS
    Vehicle:
    2014 MGM DC SR5
    I have one swing case so I moved the light to the front on that side.

    09DAF22E-1F05-42DE-9940-0846F07AD48F_zps_e166a25b46fefee00a8ec5fb9dca69d1b707bbe9.jpg

    I would do something like the OP did if I had to do it over..
    I'd certainly think you could tap these into your current bed light wiring..

    1lowlife, Dec 28, 2022
    #11
    NewImprovedRon likes this.
  12. Jan 1, 2023 at 6:29 PM
    #12
    SwitchThrottle

    #12
    SwitchThrottle Living in Idiocracy

    Joined:
    Jan 5, 2022
    Member:
    #72688
    Messages:
    1,302
    Gender:
    Male
    Vehicle:
    2021 Barcelona CrewMax
    That kit has been in my Amazon "saved for later" cart since summertime. Had a few occasions where i kicked myself for not committing to the install already. Light coverage looks great. Did tape them to the bottom side of your bed rails?

    SwitchThrottle, Jan 1, 2023
    #12
  13. Jan 2, 2023 at 7:50 AM
    #13
    garciahomes

    #13
    garciahomes [OP] New Member

    Joined:
    Sep 17, 2020
    Member:
    #52367
    Messages:
    34
    Gender:
    Male
    I have a handful of items in my saved items too. I used this tape
    $10 3M Genuine 1/2" (12mm) x 15 Ft VHB Double Sided Foam Adhesive Tape 5952 Grey Automotive Mounting Very High Bond Strong Industrial Grade (1/2" (w) x 15 ft)
    https://www.amazon.com/gp/product/B00MAQBPEM?ie=UTF8 to stick the lights on the bed rails that are stock from the dealer. Referring to the rails for mounting stuff.....dont know the technical name.

    The stock tape on the lights does not work well. I removed it and used the one from the link above. Also used it to stick the switch on the bed, the switch has a small hole from the factory. Filled it with silicone, good to go.

    garciahomes, Jan 2, 2023
    #13
    HulkSmurf14 likes this.
  14. Jan 2, 2023 at 10:49 AM
    #14
    SwitchThrottle

    #14
    SwitchThrottle Living in Idiocracy

    Joined:
    Jan 5, 2022
    Member:
    #72688
    Messages:
    1,302
    Gender:
    Male
    Vehicle:
    2021 Barcelona CrewMax

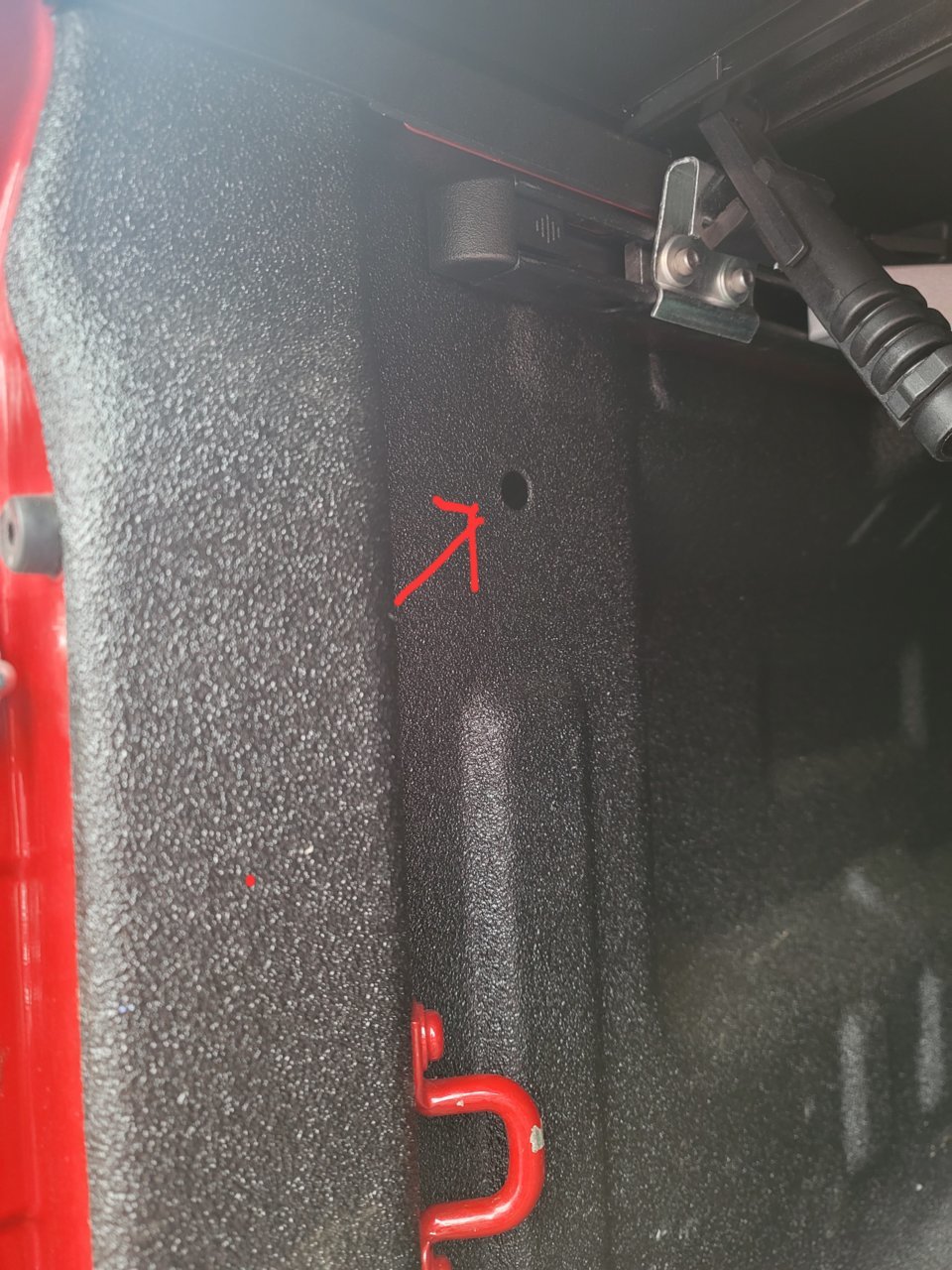

    That was what my plan was too...well except for the switch. I was gonna put one of these (
    $8 APIELE 16mm Momentary Push Button Switch High Round Cap Waterproof Aluminum Shell High Flush Screw Terminals 250V AC 5A 12V 36V DC 2A 1NO SPST (Red)
    https://www.amazon.com/dp/B08F3BGF68) in the existing driver side hole just under the tailgate end of the bed rail.


    Was debating making that an override switch to work in conjunction with a magnetic switch.

    I have a spool of that 3m tape from a different project.


    Attached Files:

    SwitchThrottle, Jan 2, 2023
    #14
  15. Jan 2, 2023 at 4:21 PM
    #15
    garciahomes

    #15
    garciahomes [OP] New Member

    Joined:
    Sep 17, 2020
    Member:
    #52367
    Messages:
    34
    Gender:
    Male

    I would use that switch in the same hole I mounted mine. Less prone to be messed with (kids), I considered a magnetic switch too. Didnt feel like running more wire.

    garciahomes, Jan 2, 2023
    #15
