Aux back up lights

Discussion in 'Lighting' started by Pudge, May 9, 2018.

Page 2 of 2
  1. May 11, 2018 at 11:00 PM
    #31
    Cuzican

    #31
    Cuzican New Member

    Joined:
    Jul 14, 2017
    Member:
    #8556
    Messages:
    692
    Gender:
    Male
    First Name:
    Chris
    Louisiana
    Vehicle:
    2017 Black Platinum Crewmax Tundra
    8" Lift, 22x10 Fuel Forged FF19, 37x13.50r22 Trail Grapplers, Amp Research steps, Spyder black smoked headlights with 35w HID's, all interior lights LED, Undercover tonneau.

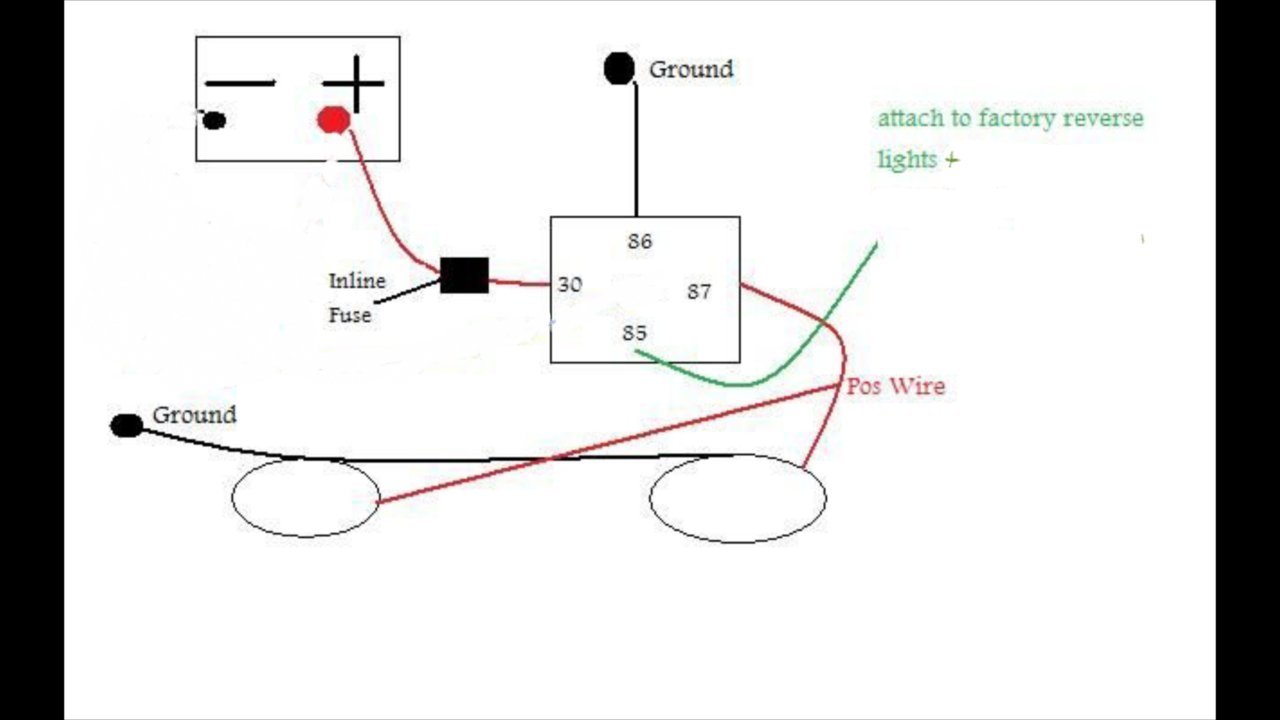

    Attached diagram will show you how to have them on a switch and come on with vehicle in reverse using a SPDT Bosch style relay.

    If you have no need for the switch (see the second diagram), just purchase a SPST Bosch style relay and it won't have a pin 87A, so the wires going to it and the switch won't be there.




    Cuzican, May 11, 2018
    #31
    Pudge[QUOTED][OP] likes this.
  2. Jul 25, 2018 at 7:08 PM
    #32
    mgm16trdpro

    #32
    mgm16trdpro Certified Modoholic

    Joined:
    Feb 7, 2017
    Member:
    #6258
    Messages:
    4,239
    Gender:
    Male
    First Name:
    Mike
    Northern NJ
    Vehicle:
    2016 mgm trd pro crewmax
    Ici magnum side steps in linex, factory spray in bed liner, remote start,afe pro dry filter, dap tune,sso slimline hybrid OEM bumper with baja designs 30" s8 driving combo,warn platinum xeon winch, baha designs squadron sport fogs in amber wide cornering with fog pocket kit, gtr headlight LEDs, 295/70r18 nitro ridge grapplers, g2 painted red calipers, 1.25 spidertrax spacers, bed slide pro 1000 se and 5 bin package, diamondback HD bed cover with ATV package and black package, 2 auto access led strips in bed, husky full coverage exact contour mats with custom logos, V led leds interior lights, tuffskinz mid console/&rear cupholder package, mid console tray and organizer, 2 JL 10s in custom sub box, 4 Hertz door speakers,2 hertz tweeters, other audio upgrades, tinted front windows, weathertech in channel rain guards, artic coating, reverse tail light section and third brake tint, ami big stick antenna, 2 CB shims +3 shackle, cb steer kit, Trd dual exhaust, trd skid plate, vled footwell kits front and back, factor 55 winch fairlead and prolink, gen y torsion hitch, bushwacker color matched fender flares with black powder coated rivets, trd rear sway bar, covercraft cargo bar and cargo net, recovery gear, custom shifter and middle console.I'm sure other things I'm forgetting too
    Hey Chris love the way u set it up. I just got same lights myself and was thinking bout doing same. Are the lights holding up well? Any issues with water or going out ect? Want to be sure before I drill holes and make mistake. Any help greatly appreciated. Tia.

    mgm16trdpro, Jul 25, 2018
    #32
    TXRailRoadBandit73 likes this.
  3. Jul 25, 2018 at 7:09 PM
    #33
    TXRailRoadBandit73

    #33
    TXRailRoadBandit73 YOTAS,RAILROADIN',RÖKnRÖLLN',BEER,MAX/GEMMA

    Joined:
    May 30, 2016
    Member:
    #3487
    Messages:
    50,708
    Gender:
    Male
    First Name:
    Adam
    The 956, TEXAS
    None yet
    I still need to do this!

    TXRailRoadBandit73, Jul 25, 2018
    #33
    mgm16trdpro[QUOTED] likes this.
  4. Jul 25, 2018 at 7:26 PM
    #34
    Stumpjumper

    #34
    Stumpjumper Not a new member

    Joined:
    Sep 15, 2016
    Member:
    #4546
    Messages:
    3,429
    Gender:
    Male
    Fate, Tx
    Vehicle:
    2017 Tundra TSS 4x4
    I did not either. I swapped the reverse light bulbs in tailights to LEDs. I also have backup leds on boat trailer along with surge brakes that are wired to reverse circuit. Never had an over load. I put leds in cargo light and it gives me all the light I need to hook up trailer. If I need more I can just set brake, turn key to on and put in reverse. No need for switch and all the extra wires.

    Stumpjumper, Jul 25, 2018
    #34
  5. Jul 26, 2018 at 3:06 AM
    #35
    Cuzican

    #35
    Cuzican New Member

    Joined:
    Jul 14, 2017
    Member:
    #8556
    Messages:
    692
    Gender:
    Male
    First Name:
    Chris
    Louisiana
    Vehicle:
    2017 Black Platinum Crewmax Tundra
    8" Lift, 22x10 Fuel Forged FF19, 37x13.50r22 Trail Grapplers, Amp Research steps, Spyder black smoked headlights with 35w HID's, all interior lights LED, Undercover tonneau.
    No problems yet, lights are holding up great, no water, or bulbs out. I've been so happy with them that I put a set on my work truck and I've got a set I'm adding to my 20' flat bed trailer, so it'll finally have some reverse lights.

    Cuzican, Jul 26, 2018
    #35
    Stormtrooper81, NewImprovedRon and mgm16trdpro[QUOTED] like this.
  6. Jul 26, 2018 at 3:59 AM
    #36
    Cuzican

    #36
    Cuzican New Member

    Joined:
    Jul 14, 2017
    Member:
    #8556
    Messages:
    692
    Gender:
    Male
    First Name:
    Chris
    Louisiana
    Vehicle:
    2017 Black Platinum Crewmax Tundra
    8" Lift, 22x10 Fuel Forged FF19, 37x13.50r22 Trail Grapplers, Amp Research steps, Spyder black smoked headlights with 35w HID's, all interior lights LED, Undercover tonneau.
    I never specifically mentioned it, but to mount them to the hitch, I drilled and tapped the hole and just bolted the inner mount to the hitch. The outer mounting bracket is not one that came with the light, it is just a piece of either 3/4" or 1" aluminum flat bar that I bent a right angle in, mounted it to the bumper, to see where the hole needed to be for the light, removed it, drilled the hole and cut it to length.

    Last edited: Jul 26, 2018
    Cuzican, Jul 26, 2018
    #36
    mgm16trdpro likes this.
  7. Jul 26, 2018 at 7:17 AM
    #37
    nk1794

    #37
    nk1794 Always torque to spec

    Joined:
    Jan 24, 2018
    Member:
    #12420
    Messages:
    3,752
    Gender:
    Male
    San Jose, CA
    Vehicle:
    2016 1794
    SnugTop, TRD Catback, DECKed Storage, TRD Sway Bar, ESP Under Seat Storage, Blackvue DR750S-2CH Dashcam
    Great mod! Adding this to my list.

    nk1794, Jul 26, 2018
    #37
  8. Jul 26, 2018 at 2:26 PM
    #38
    _SP_

    #38
    _SP_ New Member

    Joined:
    Jul 21, 2018
    Member:
    #17224
    Messages:
    126
    Gender:
    Male
    First Name:
    Shawn
    Vehicle:
    2014 1794 Edition
    de-chromed

    Nice I think I have the same set

    [​IMG]
    [​IMG]

    _SP_, Jul 26, 2018
    #38
    Stormtrooper81 and NewImprovedRon like this.
  9. Nov 30, 2020 at 5:04 AM
    #39
    AlexJet

    #39
    AlexJet New Member

    Joined:
    Sep 30, 2020
    Member:
    #52986
    Messages:
    115
    Gender:
    Male
    Vehicle:
    2021 TRD Offroad CrewMax
    Is there an option to mount some lights around license plate?
    I thought the bumper ends are metalic, but mid section is plastic.

    AlexJet, Nov 30, 2020
    #39
  10. Dec 7, 2020 at 10:29 PM
    #40
    Eleventeen

    #40
    Eleventeen New Member

    Joined:
    Jan 21, 2018
    Member:
    #12338
    Messages:
    31
    Gender:
    Male
    First Name:
    Louis
    Vehicle:
    2016 Black CM Tundra
    Eleventeen, Dec 7, 2020
    #40
  11. Dec 8, 2020 at 5:16 AM
    #41
    AlexJet

    #41
    AlexJet New Member

    Joined:
    Sep 30, 2020
    Member:
    #52986
    Messages:
    115
    Gender:
    Male
    Vehicle:
    2021 TRD Offroad CrewMax
    AlexJet, Dec 8, 2020
    #41
  12. Dec 9, 2020 at 8:52 PM
    #42
    Eleventeen

    #42
    Eleventeen New Member

    Joined:
    Jan 21, 2018
    Member:
    #12338
    Messages:
    31
    Gender:
    Male
    First Name:
    Louis
    Vehicle:
    2016 Black CM Tundra
    the rears are wired to a SP9100 and to the reverse lights via toggle in the cab

    IMG_3298.jpg IMG_3299.jpg

    Eleventeen, Dec 9, 2020
    #42
  13. Dec 9, 2020 at 8:54 PM
    #43
    Eleventeen

    #43
    Eleventeen New Member

    Joined:
    Jan 21, 2018
    Member:
    #12338
    Messages:
    31
    Gender:
    Male
    First Name:
    Louis
    Vehicle:
    2016 Black CM Tundra

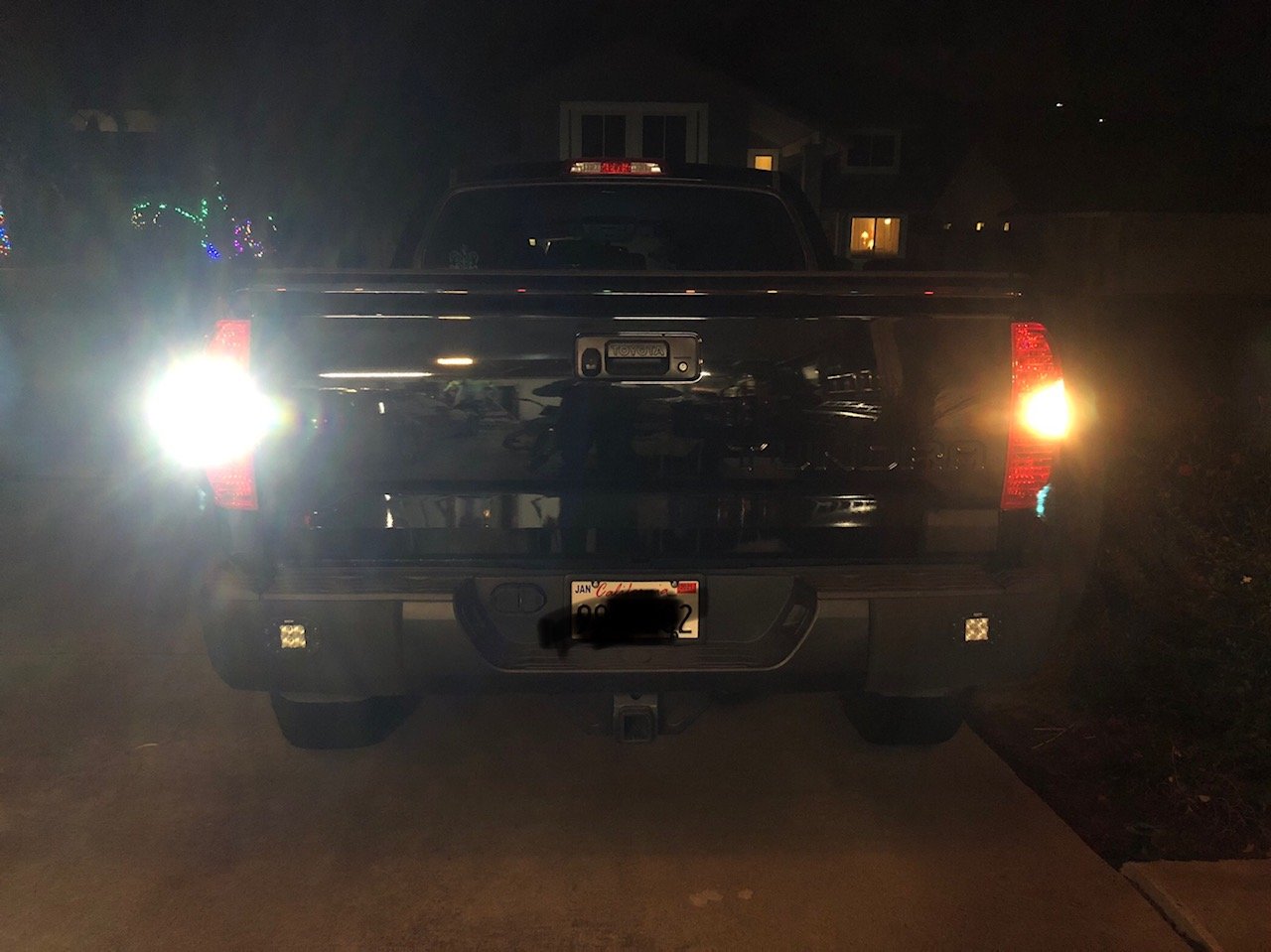

    the aux reverse lights are from Westin. got them used for like $30 I think. the reverse bulbs in the tail lights are from ALLA Lighting on Amazon. first pic shows stock vs. the change. very bright fro sure. I'll get a night pic and post up soon

    Eleventeen, Dec 9, 2020
    #43
  14. Dec 9, 2020 at 8:57 PM
    #44
    Eleventeen

    #44
    Eleventeen New Member

    Joined:
    Jan 21, 2018
    Member:
    #12338
    Messages:
    31
    Gender:
    Male
    First Name:
    Louis
    Vehicle:
    2016 Black CM Tundra
    sorry one more detail... I used the stock rear bumper, took it off, cut the holes for the lights, Line-Xed the bumper then reinstalled.

    Eleventeen, Dec 9, 2020
    #44
  15. Dec 12, 2020 at 6:20 PM
    #45
    Cuzican

    #45
    Cuzican New Member

    Joined:
    Jul 14, 2017
    Member:
    #8556
    Messages:
    692
    Gender:
    Male
    First Name:
    Chris
    Louisiana
    Vehicle:
    2017 Black Platinum Crewmax Tundra
    8" Lift, 22x10 Fuel Forged FF19, 37x13.50r22 Trail Grapplers, Amp Research steps, Spyder black smoked headlights with 35w HID's, all interior lights LED, Undercover tonneau.
    Cuzican, Dec 12, 2020
    #45
  16. Dec 13, 2020 at 8:47 AM
    #46
    AlexJet

    #46
    AlexJet New Member

    Joined:
    Sep 30, 2020
    Member:
    #52986
    Messages:
    115
    Gender:
    Male
    Vehicle:
    2021 TRD Offroad CrewMax
    AlexJet, Dec 13, 2020
    #46
  17. Dec 20, 2020 at 12:13 PM
    #47
    Eleventeen

    #47
    Eleventeen New Member

    Joined:
    Jan 21, 2018
    Member:
    #12338
    Messages:
    31
    Gender:
    Male
    First Name:
    Louis
    Vehicle:
    2016 Black CM Tundra
    Here it is


    Eleventeen, Dec 20, 2020
    #47
  18. Dec 20, 2020 at 1:25 PM
    #48
    19crewmaxTRD

    #48
    19crewmaxTRD Tundra Enthusiast

    Joined:
    Sep 1, 2019
    Member:
    #35470
    Messages:
    395
    Gender:
    Male
    First Name:
    Seth
    Vehicle:
    2019 white tundra crewmax
    Has anybody just taped into the 7 pin trailer plug? There is a reverse light circuit to that plug correct?

    19crewmaxTRD, Dec 20, 2020
    #48
  19. Dec 20, 2020 at 1:42 PM
    #49
    Jim LE 1301

    #49
    Jim LE 1301 Camaro Lover, SSEM # 11,TTC#179

    Joined:
    Apr 29, 2018
    Member:
    #14884
    Messages:
    29,531
    Gender:
    Male
    First Name:
    Jim
    Hudson Valley, New York
    Vehicle:
    2018 MGM Tundra TRD Sport Double Cab
    Yes, I tapped into mine.

    Jim LE 1301, Dec 20, 2020
    #49
Page 2 of 2
