Audio assistance needed please

Discussion in 'Audio & Video' started by HoppyEOD, Oct 2, 2019.

  1. Oct 2, 2019 at 4:04 PM
    #1
    HoppyEOD

    #1
    HoppyEOD [OP] New Member

    Joined:
    May 11, 2019
    Member:
    #30383
    Messages:
    2
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2019 TUNDRA SR5
    Hello first post/question yall.

    Im upgrading from factory sound sytem. Keepin head unit and replacing everything beyond it. Ihave hit a snag. Looking at posted pin outs feom factory amp, i see the colors of my wires do not match what is posted.

    I am trying to go from factory amp to sound processor to aftermarket amps.

    Does anyone have a real and true pinout from the factory amp? I could really use the assistance. Any advice appreciated.

    2019 Tundra SR5 4X4

    HoppyEOD, Oct 2, 2019
    #1
  2. Oct 2, 2019 at 4:10 PM
    #2
    Sas

    #2
    Sas Humor is everywhere

    Joined:
    Jul 16, 2018
    Member:
    #17087
    Messages:
    4,406
    Gender:
    Male
    First Name:
    Jason
    OKC, OK
    Vehicle:
    '17 SR5 CM TSS 4WD MGM 5.7 FF
    Lost track after #1.
    Some searching will likely convince you to replace the factory amp. Search for OEM Audio Plus, Tech12Volts and Taco Tunes here on the site. Those are the main three people use. FYI, I'll be going the OEM Audio Plus route for my next mod.

    Sas, Oct 2, 2019
    #2
  3. Oct 3, 2019 at 6:24 AM
    #3
    FUBAR

    #3
    FUBAR New Member

    Joined:
    Mar 7, 2019
    Member:
    #27236
    Messages:
    56
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2019 Tundra TRD crewmax
    FUBAR, Oct 3, 2019
    #3
  4. Oct 3, 2019 at 6:34 AM
    #4
    purplenova

    #4
    purplenova Not a new member

    Joined:
    Nov 9, 2018
    Member:
    #21513
    Messages:
    1,078
    Gender:
    Male
    First Name:
    Tom
    Ohio
    Vehicle:
    2016 Tundra Crewmax SR5
    Pillar Tape, Bullet Liner, 20% Tint, Tyger Star Armor, Kenwood Amp, Tech12volts JL Tweeters, Dasaita G13, Fumoto Valve, Driver Side Grab Handle

    I just finished my upgrade at the end of August or so.

    Question - do you have the JBL system? Going to assume "NO" since its an SR5.
    I have a 2016 SR5, non jbl

    If you DO NOT have the JBL system, you do not need the factory amp, just remove it and use the sound processor and the other amp and you should be fine. since I just finished mine, I can assist the best I can just shoot me a PM and I will try.

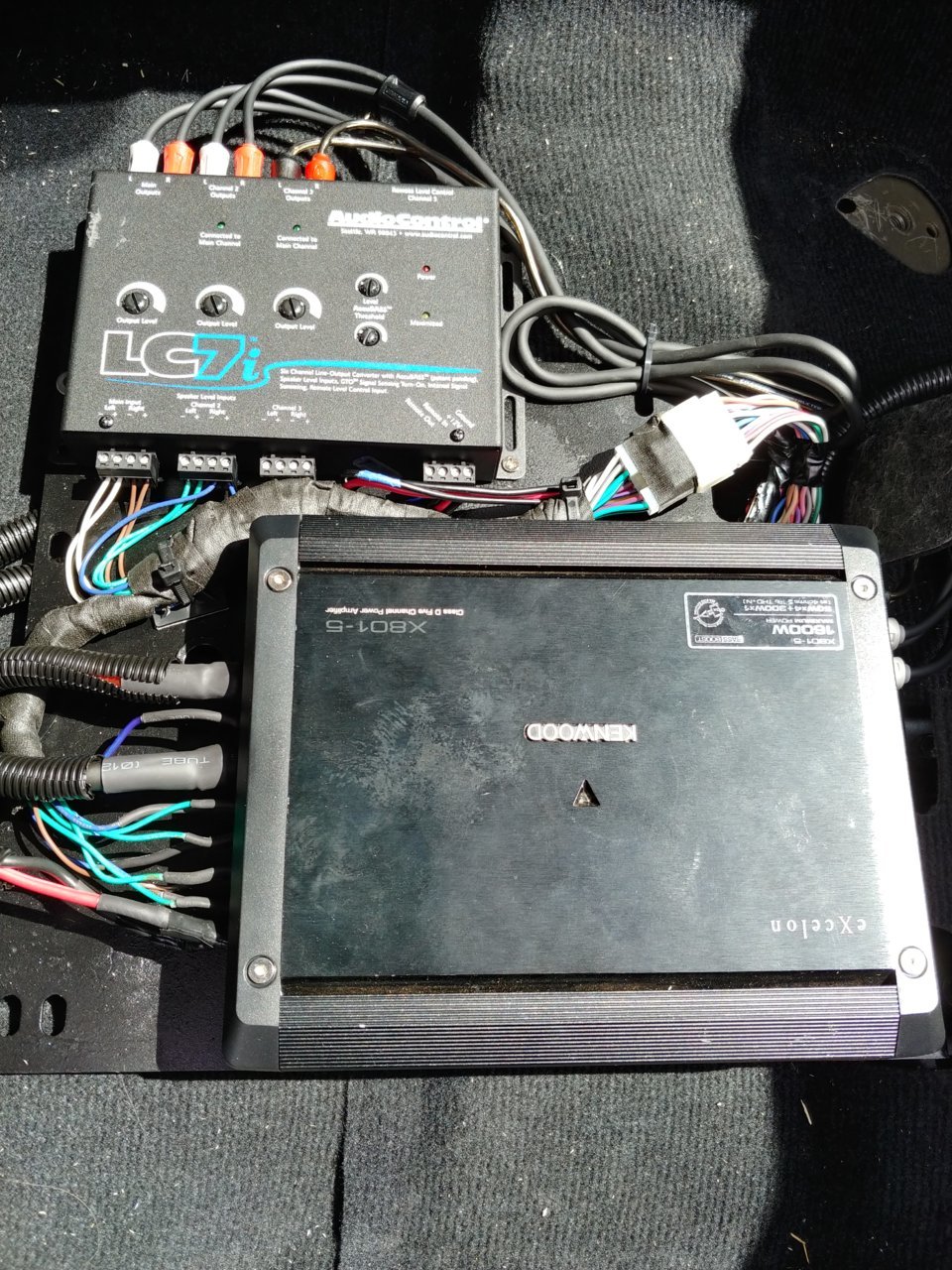

    Amp Upgrade.jpg

    Last edited: Oct 3, 2019
    purplenova, Oct 3, 2019
    #4
  5. Oct 4, 2019 at 6:24 PM
    #5
    HoppyEOD

    #5
    HoppyEOD [OP] New Member

    Joined:
    May 11, 2019
    Member:
    #30383
    Messages:
    2
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2019 TUNDRA SR5
    Not to sound like an idiot but, how do I PM. Yeah, i know sad but i can explain

    HoppyEOD, Oct 4, 2019
    #5
  6. Oct 4, 2019 at 6:44 PM
    #6
    purplenova

    #6
    purplenova Not a new member

    Joined:
    Nov 9, 2018
    Member:
    #21513
    Messages:
    1,078
    Gender:
    Male
    First Name:
    Tom
    Ohio
    Vehicle:
    2016 Tundra Crewmax SR5
    Pillar Tape, Bullet Liner, 20% Tint, Tyger Star Armor, Kenwood Amp, Tech12volts JL Tweeters, Dasaita G13, Fumoto Valve, Driver Side Grab Handle
    Top right - inbox - start new conversation

    purplenova, Oct 4, 2019
    #6
  7. Oct 4, 2019 at 6:49 PM
    #7
    r1-superstar

    #7
    r1-superstar Kailua Boy

    Joined:
    Jun 20, 2018
    Member:
    #16296
    Messages:
    1,672
    First Name:
    DB
    UTAH
    Vehicle:
    2018 TUNDRA CM SR5 TRD SPORT 4x4 MGM
    Post #11
    https://www.tundras.com/threads/supes-2018-mgm-sr5-cm-sport-build.38149/

    r1-superstar, Oct 4, 2019
    #7
  8. Oct 7, 2019 at 12:32 PM
    #8
    purplenova

    #8
    purplenova Not a new member

    Joined:
    Nov 9, 2018
    Member:
    #21513
    Messages:
    1,078
    Gender:
    Male
    First Name:
    Tom
    Ohio
    Vehicle:
    2016 Tundra Crewmax SR5
    Pillar Tape, Bullet Liner, 20% Tint, Tyger Star Armor, Kenwood Amp, Tech12volts JL Tweeters, Dasaita G13, Fumoto Valve, Driver Side Grab Handle
    Check your inbox -sent you a PM .

    purplenova, Oct 7, 2019
