ARB Summit Bumper is awesome but a pain to install

Just ordered the ARB 3415020K Summit Front Bumper and installing the
WARN Zeon 12-S Platinum 95960 and using VLEDS 9006
V25 Monochrome Series Dual Color White / Yellow 9005 9006 to replace the halogen fog lights.
Question I have is do I need to purchase the ARB Summit Bar Winch Install Kit with USA NP bracket or does it come with the bumper? If I don’t any additional parts going to tackle this next weekend. Thanks!



What's the best way to wire up the DRL and turn signal light on these? The ARB instructions show scotch locks, but those things are terrible. Maybe an adapter harness off the turn signal if such a thing is even available?

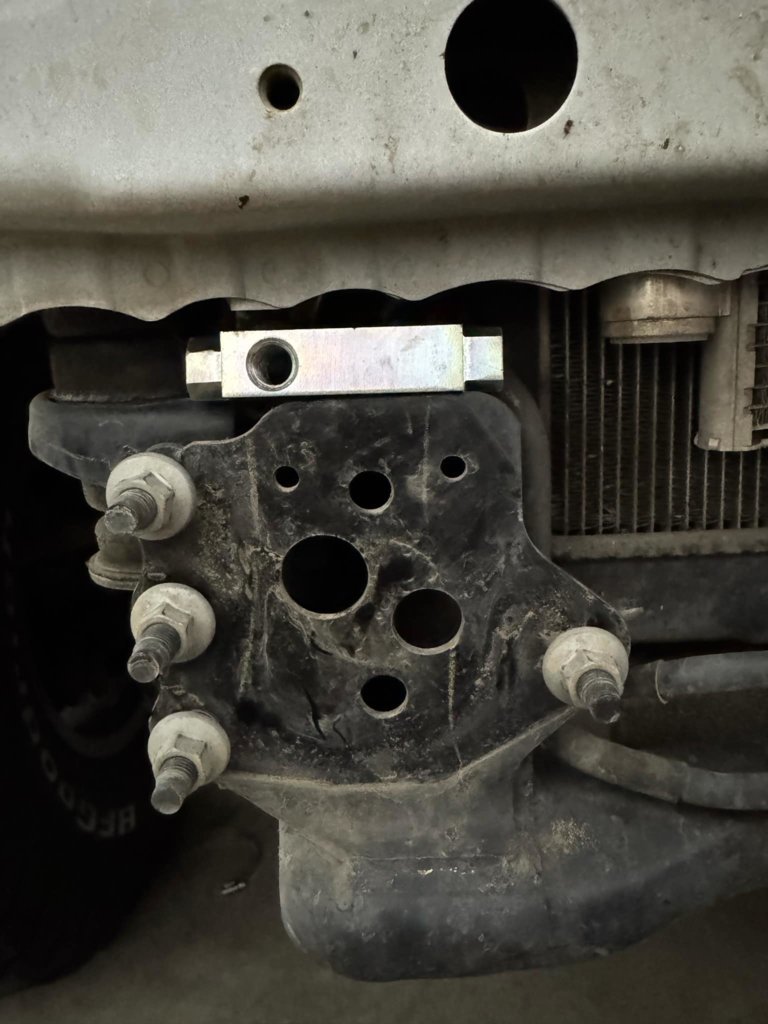

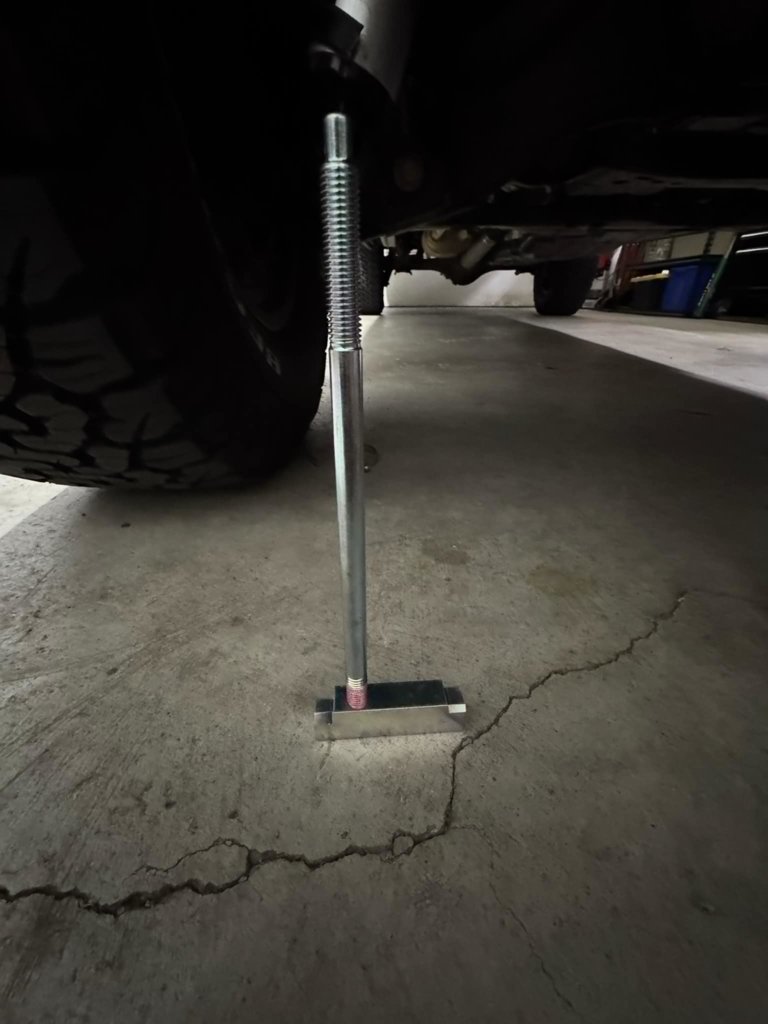

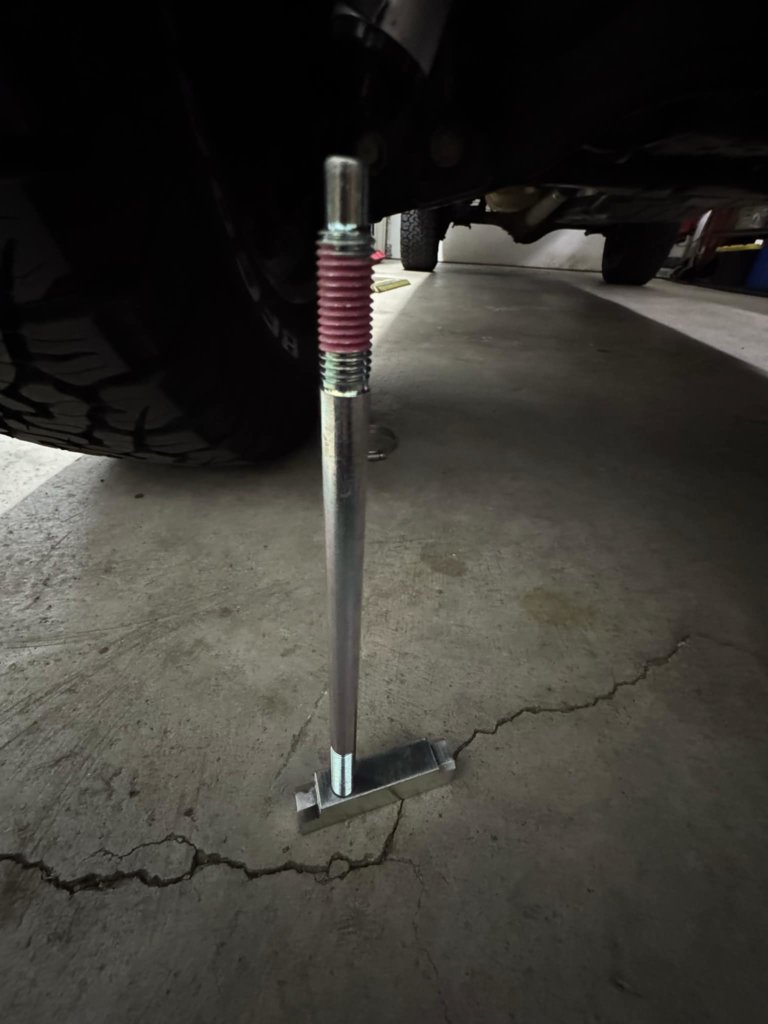

Need help with the orientation off the clevis nut. My pictures show this looking straight in front of the truck passenger side. So does the clevis nut mounting hole goes towards the outside towards the tire or inside towards the engine? Also does the short thread with the thread locker towards the clevis nut or the long thread with no thread locker towards the clevis nut?



Wondering the same thing.



I ended up making arrangements to have my body shop install the bumper since they are fixing damage from a cow strike. Going to have them leave the wiring part alone and do some digging when I get it back. I'll post an update. My last resort is to use posi-taps but I think there's probably a way if I can source the connectors for the turn signal bulb.



Wouldn’t it make sense that the fog lights would just be plug and play instead of having to use the ARB harness? The only thing would have to wire the daytime running and turn signal right?



This one did it's job.

....in Guinea
https://www.zerohedge.com/medical/guinea-deadliest-place-world-drive-worse-libya



Can you please provide Amazon link to the H11 pigtail sockets, appreciate it.



Where you able to find a pigtail adapter?



Can someone please confirm if this is correctly orientation before I start cutting? Thanks

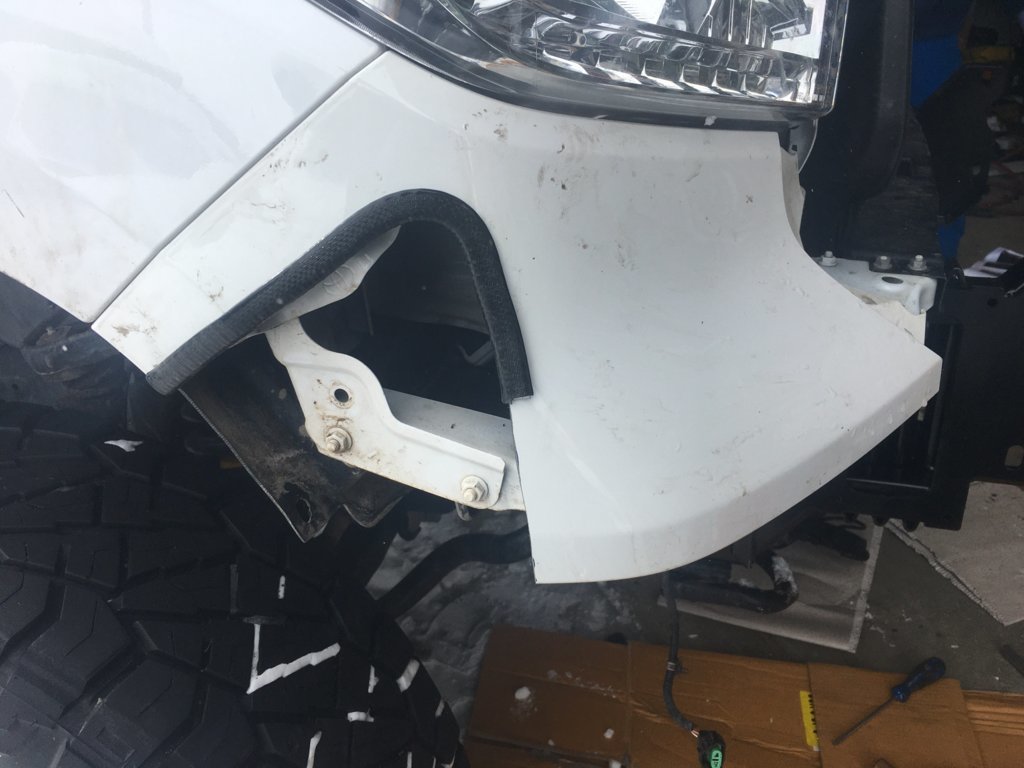

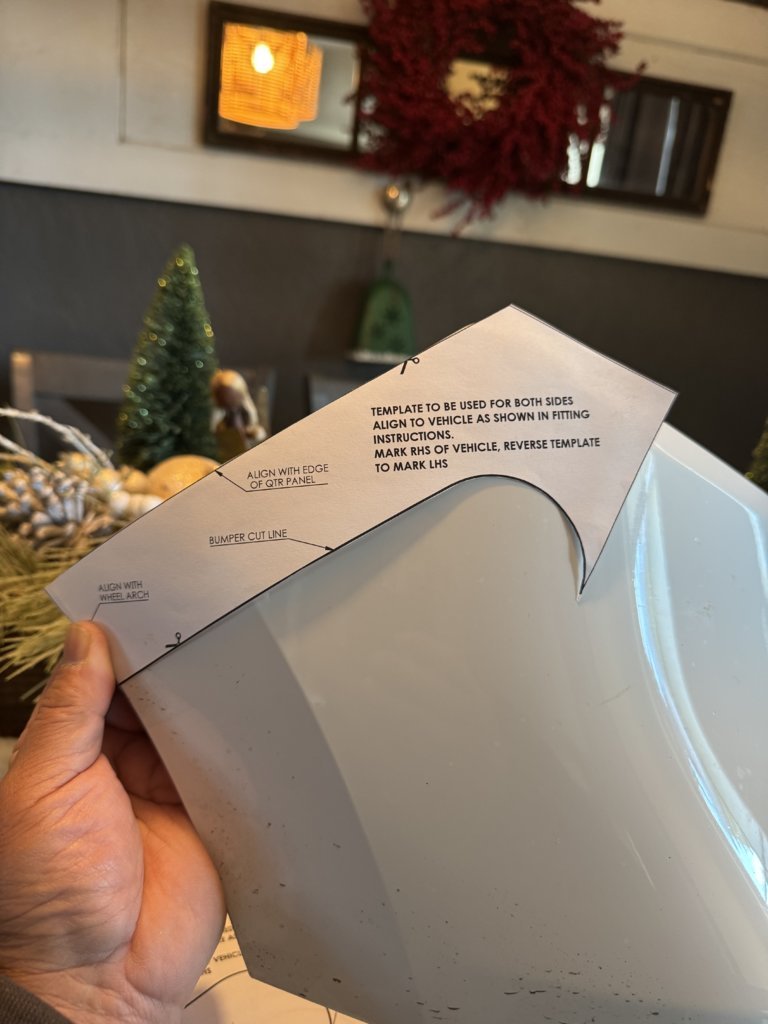

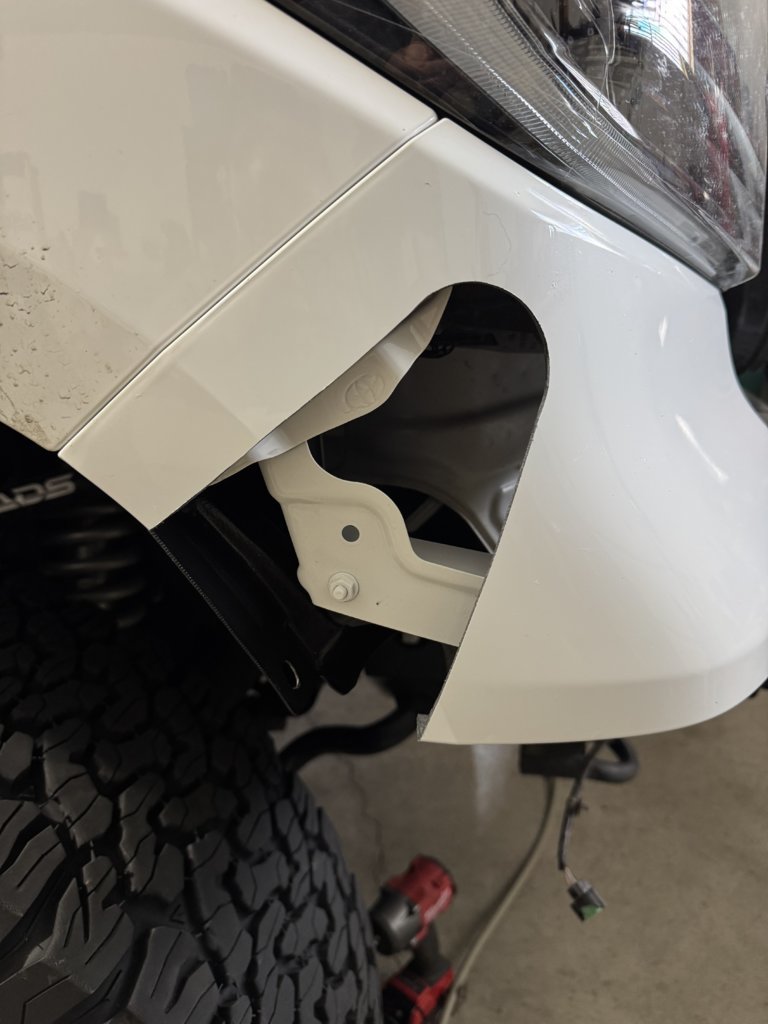

So I’ve been winging it and hopefully I’m doing it right. Instructions are horrible. Just cut the bumper trim panels, comparing my cut to @Marshwalker picture posted, am I not cutting out enough? Instructions gives you a template to trace out but not real clear where the other cut finishes at. Top picture is @Marshwalker and Bottom picture is mine. Any help would be great, don’t want to cut out too much. Thanks



Anybody?



Can you post a close up of the dog lights? I just put the bumper in and need to put my Bajas in.



My body shop wasn’t comfortable modifying the grill and fender extensions so I’ll be DIYing my bumper. This thread should be very helpful.
