Amp wiring

Discussion in 'Audio & Video' started by Dannyo, Feb 14, 2019.

  1. Feb 14, 2019 at 7:45 AM
    #1
    Dannyo

    Dannyo [OP] New Member

    Joined:
    Feb 14, 2019
    Member:
    #26070
    Messages:
    11
    Gender:
    Male
    hey guys does anyone know the wiring diagram for the 2018 tundra with the stock amp. the wire colors seam to be different from what i have seen. I’m trying to add a line out converter for a amplifier and sub

  2. Feb 14, 2019 at 8:16 AM
    #2
    Makoy339

    Makoy339 Mod Her Once, Mod Her Right !!!

    Joined:
    Jun 22, 2018
    Member:
    #16360
    Messages:
    478
    Gender:
    Male
    Vehicle:
    Super White TRD
    TRD parts
  3. Feb 14, 2019 at 8:25 AM
    #3
    Dannyo

    Dannyo [OP] New Member

    Joined:
    Feb 14, 2019
    Member:
    #26070
    Messages:
    11
    Gender:
    Male

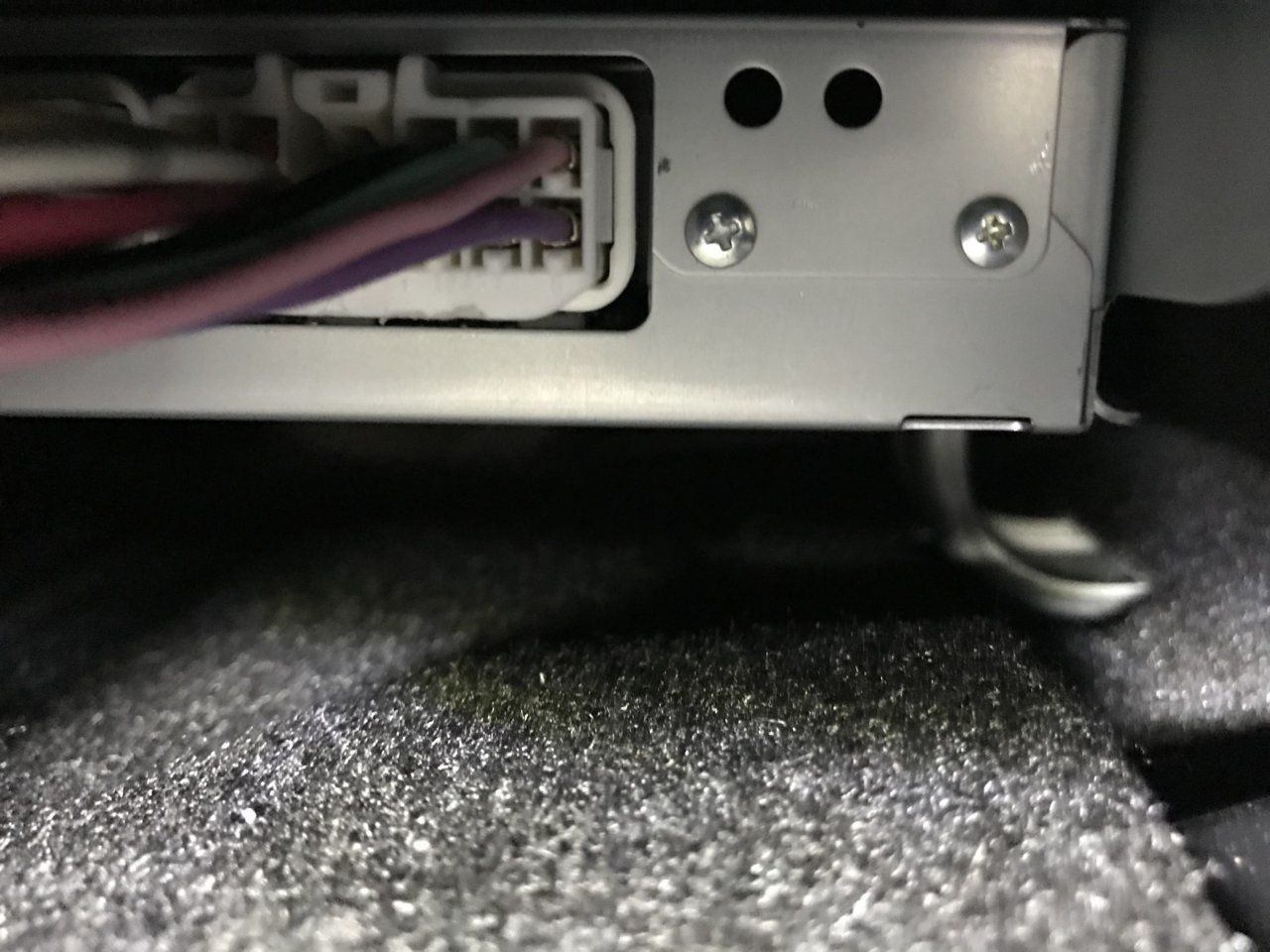

    My wiring looks different from your diagram



    Attached Files:

  4. Feb 14, 2019 at 8:28 AM
    #4
    TRDFerguson

    TRDFerguson Proud 2.5nd Gen Owner

    Joined:
    Oct 18, 2018
    Member:
    #20730
    Messages:
    2,381
    Gender:
    Male
    First Name:
    Jake
    Arizona
    Vehicle:
    2018 MGM TRD Off Road
    TRD Pro suspension, Falken AT3w's, wireless CarPlay, sub/amp, front camera, remote start w/ phone app, DIY pop-n-lock, footwell lighting, USB chargers, center console wireless charger, debadged, stickers and stuff
    The colors are different, but the pin positions are the same. I put in an amp with high level inputs a few weeks ago and that diagram worked for me.

    Fireman/68W and 040Tundra like this.
  5. Feb 14, 2019 at 8:39 AM
    #5
    Dannyo

    Dannyo [OP] New Member

    Joined:
    Feb 14, 2019
    Member:
    #26070
    Messages:
    11
    Gender:
    Male
    OK thanks bud that wiring color threw me off

  6. Feb 14, 2019 at 9:52 AM
    #6
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    330
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
  7. Feb 15, 2019 at 2:23 AM
    #7
    Dannyo

    Dannyo [OP] New Member

    Joined:
    Feb 14, 2019
    Member:
    #26070
    Messages:
    11
    Gender:
    Male
    TRDFerguson what 4 pins did you tap into

  8. Feb 15, 2019 at 8:21 AM
    #8
    TRDFerguson

    TRDFerguson Proud 2.5nd Gen Owner

    Joined:
    Oct 18, 2018
    Member:
    #20730
    Messages:
    2,381
    Gender:
    Male
    First Name:
    Jake
    Arizona
    Vehicle:
    2018 MGM TRD Off Road
    TRD Pro suspension, Falken AT3w's, wireless CarPlay, sub/amp, front camera, remote start w/ phone app, DIY pop-n-lock, footwell lighting, USB chargers, center console wireless charger, debadged, stickers and stuff
    I did 3, 8, 9 and 10 on J145 and everything worked well. I had also tried tapping the output feeds for the rears but ended up doing weird things to the amp. Using the signal feeds is clean and shouldn't muck up the power to any of the stock woofers.

    Dannyo [OP] likes this.
  9. Mar 20, 2019 at 12:17 PM
    #9
    Chuckt127

    Chuckt127 New Member

    Joined:
    Mar 20, 2019
    Member:
    #27866
    Messages:
    3
    Gender:
    Male
    First Name:
    Chuck
    Vehicle:
    2018 tundra crewmax trd offroad
    Funny I'm running Into the same issue with colors. My colors are the same as yours dannyo.... good info

    Last edited: Mar 20, 2019
  10. Aug 26, 2019 at 4:36 PM
    #10
    Ob1

    Ob1 New Member

    Joined:
    Sep 2, 2018
    Member:
    #18937
    Messages:
    53
    Gender:
    Male
    I have a 2018 non JBL as well, and pin 3 of J144 is powered at all times. Whether radio on or off. Doesn't behave like a remote at all hence my amp is always on.
    This is frustrating.
    After removing both connectors and shooting the wires, wallah !!! No remote. Not one pin powers on an off with the radio.
    Anybody???

  11. Aug 26, 2019 at 4:39 PM
    #11
    TRDFerguson

    TRDFerguson Proud 2.5nd Gen Owner

    Joined:
    Oct 18, 2018
    Member:
    #20730
    Messages:
    2,381
    Gender:
    Male
    First Name:
    Jake
    Arizona
    Vehicle:
    2018 MGM TRD Off Road
    TRD Pro suspension, Falken AT3w's, wireless CarPlay, sub/amp, front camera, remote start w/ phone app, DIY pop-n-lock, footwell lighting, USB chargers, center console wireless charger, debadged, stickers and stuff
    What's your end goal here? And are you running a stock or aftermarket deck?

  12. Aug 26, 2019 at 9:59 PM
    #12
    Ob1

    Ob1 New Member

    Joined:
    Sep 2, 2018
    Member:
    #18937
    Messages:
    53
    Gender:
    Male
    Right now I'm still on the OEM radio. Unfortunately both of my amps are staying powered on as long as the key is turned, regardless of radio status. I did use pin 3 as the accessory remote. Funny thing is that my radio is always running when I'm driving anyway, thus I shouldn't care.
    But unfortunately I do.

    Last edited: Jan 12, 2020
  13. Jan 17, 2021 at 6:42 AM
    #13
    WardCo15

    WardCo15 New Member

    Joined:
    Jan 17, 2021
    Member:
    #57720
    Messages:
    1
    Gender:
    Male
    First Name:
    Cote
    Vehicle:
    2018 Tundra Crewmax TRD
    @TRDFerguson when you say it did weird things to the amp are you referring to the stock under seat amp? I am having an issue where I tapped into the speaker outputs and now my door speakers don’t work. Is this what happened to you? Will tapping the signal lines instead work?

  14. Mar 8, 2021 at 4:47 PM
    #14
    Miguel909_

    Miguel909_ New Member

    Joined:
    Mar 8, 2021
    Member:
    #60161
    Messages:
    7
    Gender:
    Male
    Anyone know how to add a 4 channel amp to 17 tundra dont mind cutting and splicing wires

  15. Mar 8, 2021 at 5:17 PM
    #15
    Mallcrl

    Mallcrl New Member

    Joined:
    Dec 27, 2020
    Member:
    #56690
    Messages:
    198
    Gender:
    Male
    First Name:
    Anand
    Maryland
    Vehicle:
    '21 DC SR5 SX
    There's no need to cut and splice wires, it's 2021, there's a harness for basically everything.

    Does your truck have the JBL or non-JBL stereo?

  16. Mar 8, 2021 at 5:30 PM
    #16
    Miguel909_

    Miguel909_ New Member

    Joined:
    Mar 8, 2021
    Member:
    #60161
    Messages:
    7
    Gender:
    Male
    Its the non jbl

  17. Mar 8, 2021 at 5:31 PM
    #17
    Mallcrl

    Mallcrl New Member

    Joined:
    Dec 27, 2020
    Member:
    #56690
    Messages:
    198
    Gender:
    Male
    First Name:
    Anand
    Maryland
    Vehicle:
    '21 DC SR5 SX

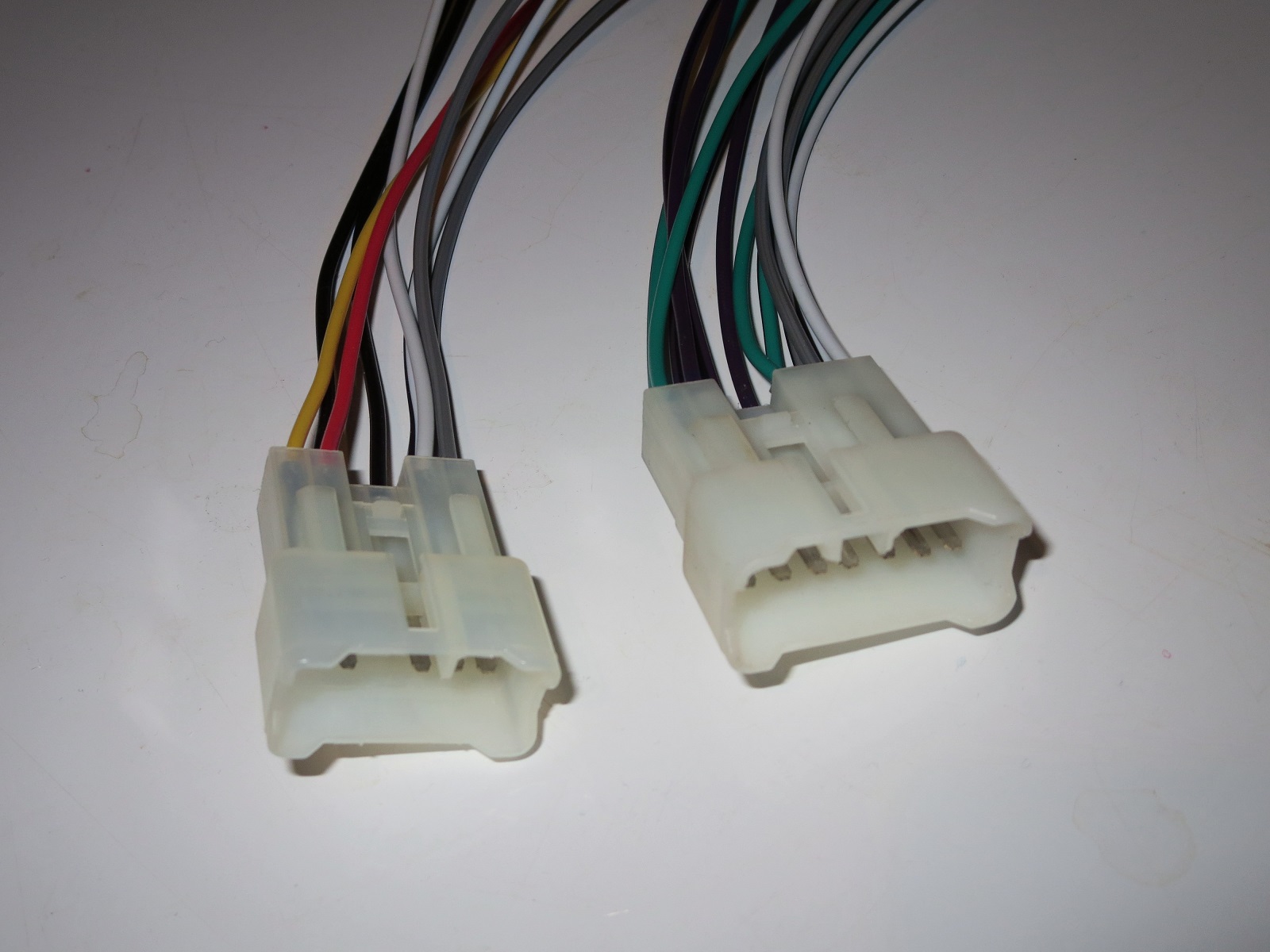

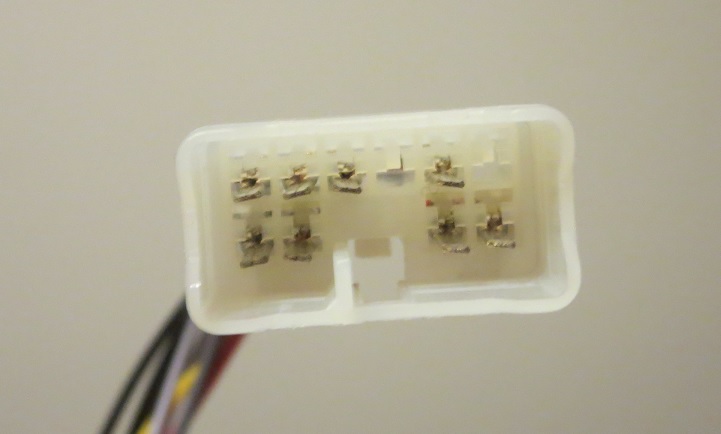

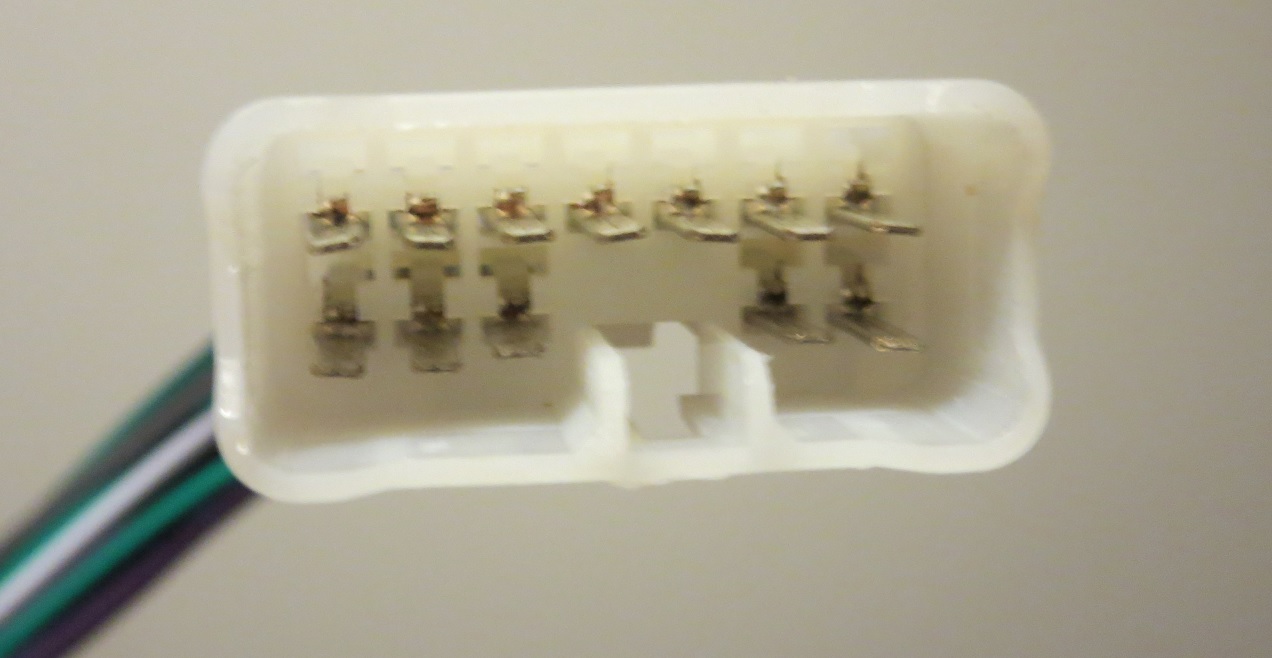

    This will plug into both harnesses at the factory amp, giving you speaker level inputs into your aftermarket amp and the speaker outputs to the door speakers. The dash corner speakers and center channel speaker are powered directly off the head unit

    https://www.autoharnesshouse.com/41112.html

    Desolate likes this.
  18. Mar 8, 2021 at 5:32 PM
    #18
    AZBoatHauler

    AZBoatHauler Desert Dweller

    Joined:
    Aug 13, 2019
    Member:
    #34576
    Messages:
    1,740
    Gender:
    Male
    First Name:
    Adam
    Arizona
    Vehicle:
    2017 CM LTD TRD 4x4 MGM
    6112 and 5160 w/ CB +2, JL Audio with Kenwood HU, DD 10" Exhaust, RC light bar BD fogs, Platinum LED headlights, RCI skids
    Email James at tech12volt@gmail.com
    He will get you all the harness connections you need.

  19. Mar 8, 2021 at 5:35 PM
    #19
    Miguel909_

    Miguel909_ New Member

    Joined:
    Mar 8, 2021
    Member:
    #60161
    Messages:
    7
    Gender:
    Male
    Thank you

  20. Mar 8, 2021 at 5:45 PM
    #20
    Miguel909_

    Miguel909_ New Member

    Joined:
    Mar 8, 2021
    Member:
    #60161
    Messages:
    7
    Gender:
    Male
    One last question how will i get the speaker input “rca” signal from that harness

  21. Mar 8, 2021 at 5:45 PM
    #21
    Miguel909_

    Miguel909_ New Member

    Joined:
    Mar 8, 2021
    Member:
    #60161
    Messages:
    7
    Gender:
    Male
    Can i use a high to low converter to tap in

  22. Mar 8, 2021 at 5:47 PM
    #22
    AZBoatHauler

    AZBoatHauler Desert Dweller

    Joined:
    Aug 13, 2019
    Member:
    #34576
    Messages:
    1,740
    Gender:
    Male
    First Name:
    Adam
    Arizona
    Vehicle:
    2017 CM LTD TRD 4x4 MGM
    6112 and 5160 w/ CB +2, JL Audio with Kenwood HU, DD 10" Exhaust, RC light bar BD fogs, Platinum LED headlights, RCI skids
    You got it. You wire up a line out converter.

  23. Mar 8, 2021 at 5:49 PM
    #23
    TRDFerguson

    TRDFerguson Proud 2.5nd Gen Owner

    Joined:
    Oct 18, 2018
    Member:
    #20730
    Messages:
    2,381
    Gender:
    Male
    First Name:
    Jake
    Arizona
    Vehicle:
    2018 MGM TRD Off Road
    TRD Pro suspension, Falken AT3w's, wireless CarPlay, sub/amp, front camera, remote start w/ phone app, DIY pop-n-lock, footwell lighting, USB chargers, center console wireless charger, debadged, stickers and stuff
    A lot of amps will have high level inputs too. But a LOC is a sure way to do it.

  24. Mar 8, 2021 at 5:51 PM
    #24
    Mallcrl

    Mallcrl New Member

    Joined:
    Dec 27, 2020
    Member:
    #56690
    Messages:
    198
    Gender:
    Male
    First Name:
    Anand
    Maryland
    Vehicle:
    '21 DC SR5 SX
    James @ Tech12Volts can definitely get you on the right path, additionally, I would strongly recommend spending a few hours and reading through the threads here to get you up to speed on the workings of the factory stereo components and general electrics of these trucks

  25. Mar 8, 2021 at 6:00 PM
    #25
    Miguel909_

    Miguel909_ New Member

    Joined:
    Mar 8, 2021
    Member:
    #60161
    Messages:
    7
    Gender:
    Male
    Thanks for the all the help

  26. Jul 17, 2021 at 9:54 PM
    #26
    Unholysinz

    Unholysinz New Member

    Joined:
    Jul 17, 2021
    Member:
    #65666
    Messages:
    1
    Gender:
    Male
    I see that the wiring diagram has output to speaker connections and signal to speaker connections what's the difference. Which cable would I use to plug into my lc7i?
