Aftermarket stereo ?

Discussion in '1st Gen Tundras (2000-2006)' started by EastTexasTundra, May 7, 2025 at 10:47 AM.

  1. May 7, 2025 at 10:47 AM
    #1
    EastTexasTundra

    EastTexasTundra [OP] New Member

    Joined:
    Apr 7, 2025
    Member:
    #133126
    Messages:
    16
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    White 01 SC
    Hey guys so I ordered the metra harness for my truck. Hooked up the wires as they called for and everything works except my illumination. It shows orange to orange. I been racking my brain as to why this isn't working. I had my truck started and headlights on as I've read on here but nothing changed. I have a 01 RC with no amp. Can someone please tell me if I'm not doing something right?

    G_unit3000 likes this.
  2. May 7, 2025 at 1:02 PM
    #2
    G_unit3000

    G_unit3000 New Member

    Joined:
    Jun 25, 2024
    Member:
    #118959
    Messages:
    208
    First Name:
    Gman
    North East
    Vehicle:
    2005 Tundra DC 4x4
    This was a point of recent discussion on here with regard to DCs, not sure if the same applies to SC. I am still interested in trying to hook this up to my headunit as well
    @shifty` @BubbaW

  3. May 7, 2025 at 1:34 PM
    #3
    shifty`

    shifty` In South Dakota Trouble ain't hard to find

    Joined:
    Jun 20, 2020
    Member:
    #48239
    Messages:
    28,656
    ATL
    Vehicle:
    '06 AC Limited V8/4WD
    (see signature for truck info)
    Indeed, we did discuss this and it started here: https://www.tundras.com/threads/another-jbl-amp-bypass-thread.153750/page-3#post-3889141

    And it continues into page 4.

    Here's the reality I'd share with you: My Metra harness has the dimmer/illumination wire. My radio has the dimmer/illumination wire. My OEM harness has the green/white illumination wire. I have all of it hooked up. Dimmer doesn't work as I'd expect. I still needed to go manually into both radios I've had in my truck, and set the dimming manually. Fortunately, my most recent one has a light sensor on it and you can set it to auto-dim or not.

    I have yet to see anyone actually get auto-dimming to work on modern touch-screen head units. It seems it works with the OEM head unit that has backlit buttons, but it doesn't seem to function on either of my Alpine heads thus far.

    G_unit3000[QUOTED] likes this.
  4. May 7, 2025 at 10:55 PM
    #4
    EastTexasTundra

    EastTexasTundra [OP] New Member

    Joined:
    Apr 7, 2025
    Member:
    #133126
    Messages:
    16
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    White 01 SC
    Could wiring the dimmer wire on the radio to the dimmer switch be a solution? I'll have to check the manual on my head unit to see if it has a dimming setting. Thanks for the info. Apparently I suck at using the search on here because I tried several different wordings to try and find something in this exact issue on non amplified stock stereos and couldn't find anything.

    G_unit3000 likes this.
  5. May 8, 2025 at 3:54 AM
    #5
    NickB_01TRD

    NickB_01TRD You don't need less cars, just more driveway.

    Joined:
    Jun 16, 2021
    Member:
    #64346
    Messages:
    2,688
    Gender:
    Male
    First Name:
    Nick
    KY
    Vehicle:
    01 Tundra V8 4X4 AC SR5 TRD
    It seems like the illumination wire is present on almost every aftermarket radio even though it seems to do absolutely nothing. When I had a basic single din in my truck with the illumination wire hooked up it did nothing, but with my touch screen Sony unit, it works perfectly. Main point here is, I'd say there's nothing wrong with the truck side, it just depends if the radio supports it or not.

    G_unit3000 likes this.
  6. May 8, 2025 at 4:29 AM
    #6
    KNABORES

    KNABORES Sarcasm incoming

    Joined:
    Jan 1, 2020
    Member:
    #40572
    Messages:
    13,882
    Gender:
    Male
    Arkansas
    Vehicle:
    2000 Limited TRD AC 4X4 Thunder Grey 278k miles. *SOLD* 2019 Limited TRD CM 4x4
    Bilstein 5100's on the forbidden notch Husky HD rear leafs 16x8 Eagle Alloy 187's with 285/75/16 MagnaFlow 3" flow through Pioneer touchscreen with backup camera Full interior and dash LED conversion Trailer brake controller with 7 pin Bedliner coat bumpers & trim ARE Mpulse topper - Rhino Vortex rack
    My 2000 AC equipped originally with non JBL 6 speaker system was replaced with a Pioneer double din touch screen non Apple car play. Think it’s an AVX or AVH series head unit. Has a dimmer wire, dims when the lights are turned on at night. Not sure if the issue is difference in truck wiring, or difference in head units? My previous pioneer single din I had for years also dimmed with the headlights activated.

    PNW15 and G_unit3000 like this.
  7. May 8, 2025 at 6:12 AM
    #7
    shifty`

    shifty` In South Dakota Trouble ain't hard to find

    Joined:
    Jun 20, 2020
    Member:
    #48239
    Messages:
    28,656
    ATL
    Vehicle:
    '06 AC Limited V8/4WD
    (see signature for truck info)
    I think what Nick said and K alluded to may be it: If the radio doesn't support the dimmer function as your truck is wired, there's not much you can do.

    Maybe theres more than one way head units treat the dimmer wire? Maybe some are looking for changes in resistance, others in voltage? I can really only guess, and do what others have done: Share my experience.

    I can tell you from that other thread I linked, Metra's 8117 harness for our trucks doesn't even include a dimmer wire you can attach to your head unit, even though the green/white wire is present in the OEM harness the Metra plugs into. The Metra 8121 harness does. https://www.tundras.com/threads/another-jbl-amp-bypass-thread.153750/page-3#post-3889141

    It's a riddle, wrapped in a mystery, inside an enigma I guess.

    G_unit3000 and Kalannar97 like this.
  8. May 8, 2025 at 6:36 AM
    #8
    ATBAV8

    ATBAV8 New Member

    Joined:
    Dec 1, 2023
    Member:
    #107779
    Messages:
    808
    Tempe, AZ
    Vehicle:
    2003 V8 SR5, Access Cab, 4x4, White
    The only thing the dimmer does in my aftermarket head units in both my 1GT and 5th Gen 4Runner is turn it from "light" mode to "dark" mode when the headlights go on. Much like the settings in your phone. This is OK, but I sure do wish there was a way to actually dim the backlighting. It's still pretty bright at night.

    G_unit3000 and 1lowlife like this.
  9. May 8, 2025 at 6:52 AM
    #9
    shifty`

    shifty` In South Dakota Trouble ain't hard to find

    Joined:
    Jun 20, 2020
    Member:
    #48239
    Messages:
    28,656
    ATL
    Vehicle:
    '06 AC Limited V8/4WD
    (see signature for truck info)
    That may actually be what my Alpine is doing, then. The display brightness doesn't seem to change, but in CarPlay I do remember it kicking from white background to black background.

    But I found their ilx-W770 to be much dimmer than the ilx-W650 model I had prior that I found forcing CarPlay into 'dark theme' but putting the head unit in 'always-Daytime' with the brightness all the way up was my only means for sanity.

    G_unit3000 likes this.
  10. May 9, 2025 at 8:01 PM
    #10
    G_unit3000

    G_unit3000 New Member

    Joined:
    Jun 25, 2024
    Member:
    #118959
    Messages:
    208
    First Name:
    Gman
    North East
    Vehicle:
    2005 Tundra DC 4x4

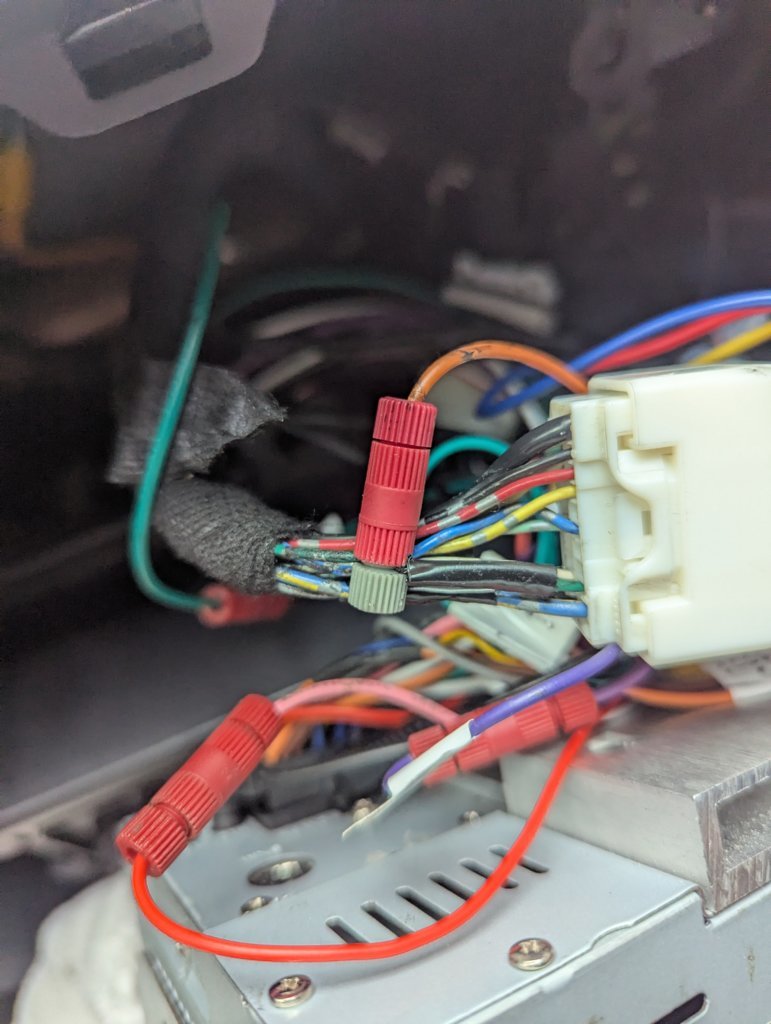

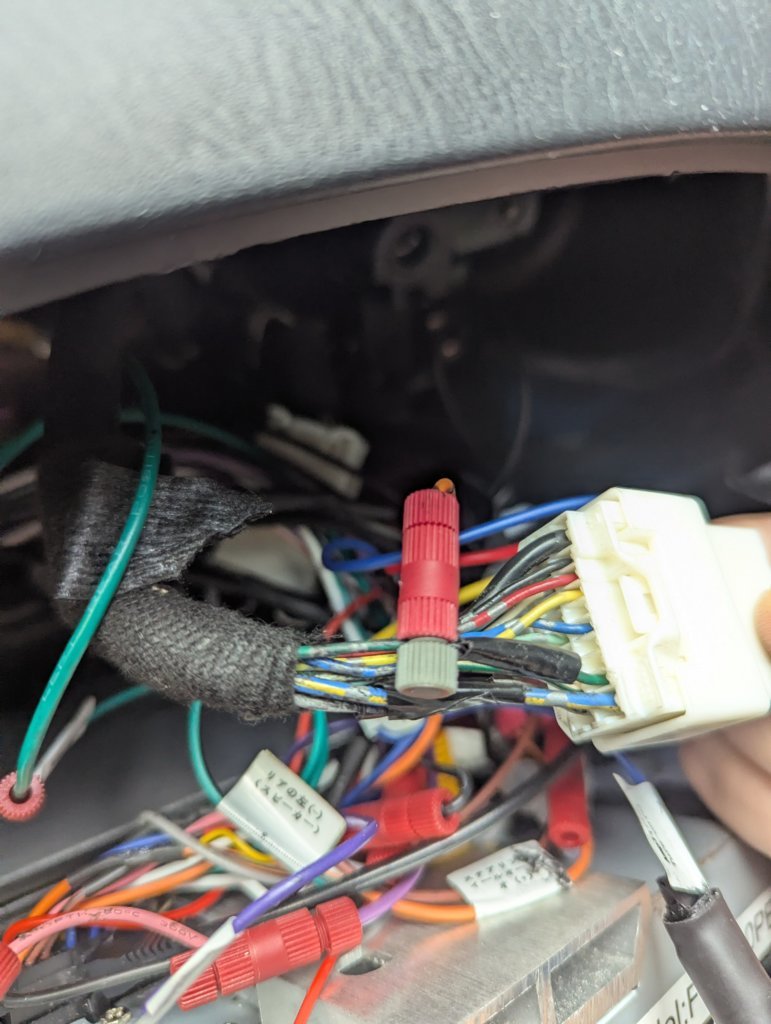

    So if I was to try messing with dimming function over this weekend, I could simply connect the orange "dimmer" wire on the headunit harness with a Positap to the green/white "illumination" wire on the OEM harness?

  11. May 10, 2025 at 9:40 AM
    #11
    shifty`

    shifty` In South Dakota Trouble ain't hard to find

    Joined:
    Jun 20, 2020
    Member:
    #48239
    Messages:
    28,656
    ATL
    Vehicle:
    '06 AC Limited V8/4WD
    (see signature for truck info)
    If your Metra harness didn't have one, in theory, that should do the job.

    Just make sure you grab the correct green/white wire. Isn't the negative, like, white with a green stripe and positive is green with a white stripe? I'd need to scroll back to our prior conversations with Bubba to pick through the EWD pages to confirm.

  12. May 10, 2025 at 10:58 AM
    #12
    G_unit3000

    G_unit3000 New Member

    Joined:
    Jun 25, 2024
    Member:
    #118959
    Messages:
    208
    First Name:
    Gman
    North East
    Vehicle:
    2005 Tundra DC 4x4

  13. May 10, 2025 at 11:01 AM
    #13
    G_unit3000

    G_unit3000 New Member

    Joined:
    Jun 25, 2024
    Member:
    #118959
    Messages:
    208
    First Name:
    Gman
    North East
    Vehicle:
    2005 Tundra DC 4x4
  14. May 10, 2025 at 11:04 AM
    #14
    G_unit3000

    G_unit3000 New Member

    Joined:
    Jun 25, 2024
    Member:
    #118959
    Messages:
    208
    First Name:
    Gman
    North East
    Vehicle:
    2005 Tundra DC 4x4

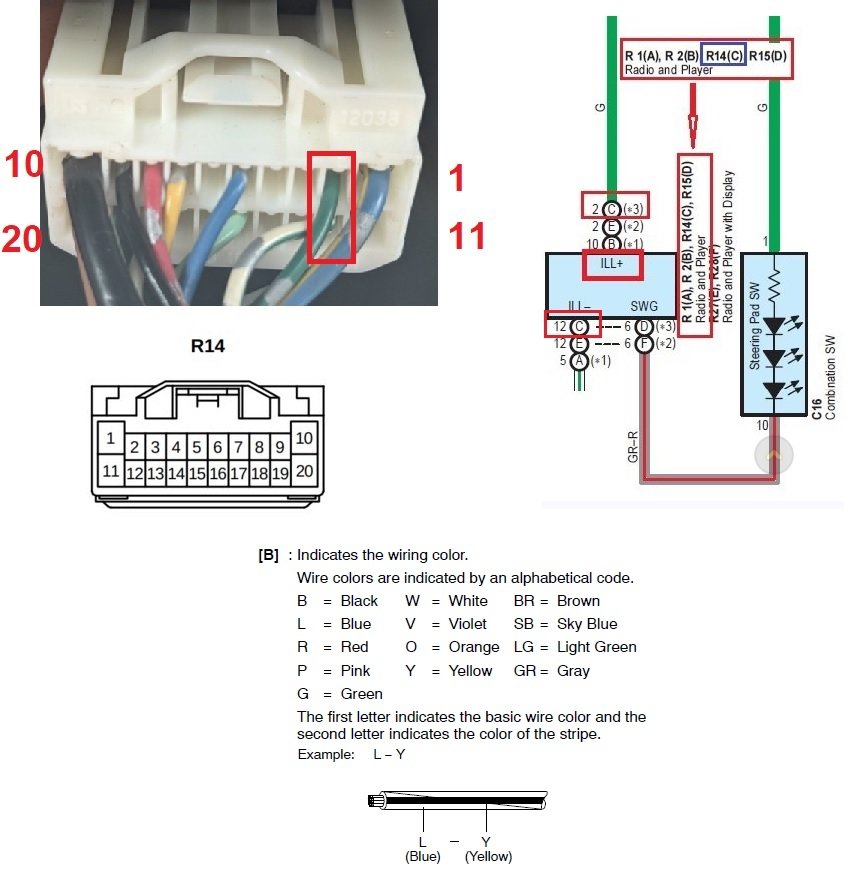

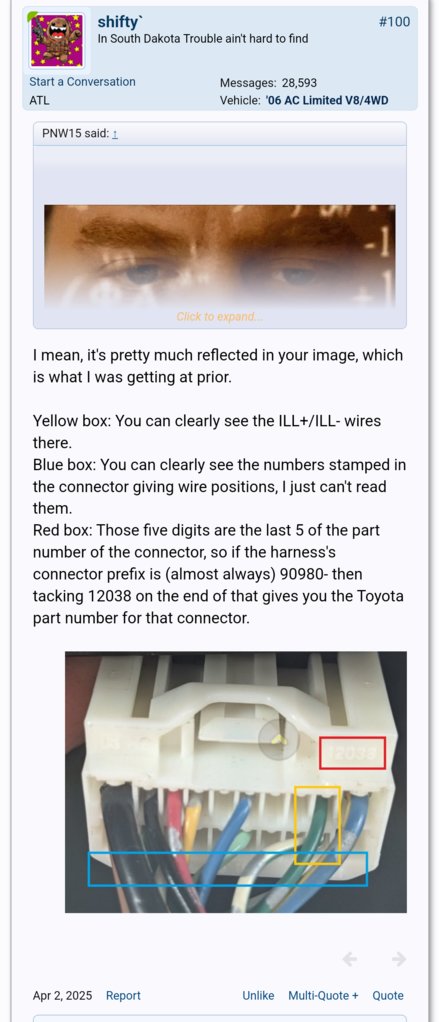

    Reading back through, looks like the solid green with silver marks as well as the green/white with silver marks in the Yellow box in photo above carry the illumination +/-

  15. May 10, 2025 at 1:01 PM
    #15
    BubbaW

    BubbaW Blessed 2 B above Ground

    Joined:
    Aug 19, 2019
    Member:
    #34845
    Messages:
    3,787
    First Name:
    Bubba
    Where Eagles Nest
    Vehicle:
    04 DC LTD 4X4 4.7 V8
    T150 Lover

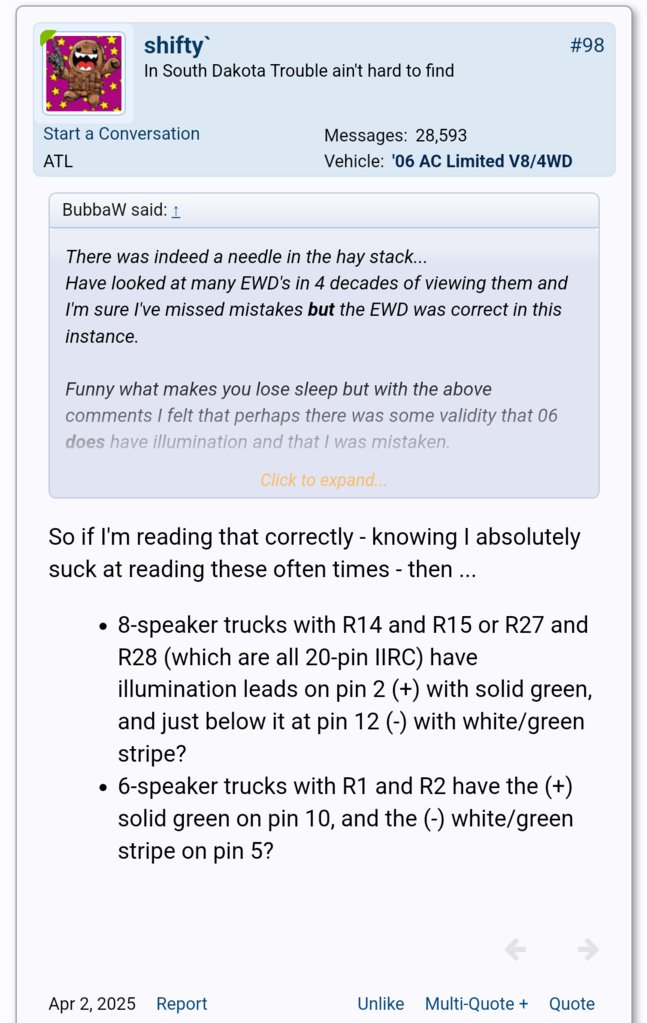

    True but with slight correction. The solid Green(pin 2) is ILL+ and the White/with Green tracer(pin12) is ILL-

    I point out the use of green/white versus White/green because when we're looking for ground conductors for whatever reason, Toyota marks them White/Green, White/Blue, White/Black and Black


    G_unit3000[QUOTED] and shifty` like this.
  16. May 10, 2025 at 6:34 PM
    #16
    G_unit3000

    G_unit3000 New Member

    Joined:
    Jun 25, 2024
    Member:
    #118959
    Messages:
    208
    First Name:
    Gman
    North East
    Vehicle:
    2005 Tundra DC 4x4
    Good info and I definitely appreciate the additional detail and explanation. I didn't get to this today so maybe tomorrow
