2015 tundra brake controller harness

Discussion in '3rd Gen Tundras (2014+)' started by 1G3-TRD, Feb 11, 2015.

  1. Feb 11, 2015 at 10:24 AM
    #1
    1G3-TRD

    1G3-TRD [OP] New Member

    Joined:
    Jul 2, 2014
    Member:
    #486
    Messages:
    514
    Gender:
    Male
    First Name:
    Aaron
    Vehicle:
    2014 double cab TRD off road
    For some reason Toyota decided to change the plug and location so i thought I would share some info for anyone trying to hook up a brake controller to a 2015 tundra.
    Step 1: remove the 10mm. Bolt under dashbelow tpms reset button
    [​IMG]
    Step 2: pull lower lash pannel out carefully
    [​IMG]
    Step 3: carefully pull out the pannel with traction control button and tow haul button
    [​IMG]
    Step 4: the white plug is located behind this pannel. Plug in brake controller and replace dash pannels, and install brake controller and be sure to clear the knee airbag
    [​IMG]
    [​IMG]

    Btw it takes a different plug than previous years and they don't come with the trucks anymore

    Halfjap, dcsleeper408 and MotoTundra like this.
  2. Feb 11, 2015 at 11:10 AM
    #2
    Relentless

    Relentless Tundra newb Vendor

    Joined:
    Jan 6, 2014
    Member:
    #19
    Messages:
    759
    Gender:
    Male
    First Name:
    Eric
    East of the Sierras(Reno), Nevada
    Vehicle:
    '14 Crewmax SR5 TRD 4x4
    Just a few, more to come
    Thanks, I'll be adding one to my truck this spring

  3. Feb 11, 2015 at 1:18 PM
    #3
    csuviper

    csuviper Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    8,858
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2012 Rock Warrior 5.7L 4X4
    Some Mods :) See build thread for details
    Good write-up! Thanks for the info.

  4. Feb 12, 2015 at 8:25 AM
    #4
    havasubud

    havasubud New Member Vendor

    Joined:
    Nov 2, 2014
    Member:
    #705
    Messages:
    151
    Gender:
    Male
    First Name:
    Earl
    Vehicle:
    2014 Tundra Crewmax TRD Blue Ribbon Metalic
    TRD Sway bar, Line-X spray in bedliner, Amp Research bed step, BakFlip G2, Sound 2.0 digital audio enhancer and TRD Pro grill
    If you want the factory controller, these are the part numbers needed: Controller(They call it a relay) 89547-0c010 and the panel it goes into is 55447-0c020-c0 Pretty slick and you dont have to mount it below the panel. It also comes up on your info screen in the middle of the gauge cluster.

    Tundra505, JKTundra01 and George14 like this.
  5. Feb 14, 2015 at 6:17 AM
    #5
    mdavis

    mdavis Tiger Life

    Joined:
    Feb 13, 2015
    Member:
    #966
    Messages:
    2,284
    Gender:
    Male
    First Name:
    Michael
    Rock Hill, SC
    Vehicle:
    2015 Tundra SR5, 5.7, 4X4
    Tow Mirrors, 275/60R20 Toyo AT2's
    Do you have any pics of this installed?

  6. Feb 22, 2015 at 6:32 PM
    #6
    havasubud

    havasubud New Member Vendor

    Joined:
    Nov 2, 2014
    Member:
    #705
    Messages:
    151
    Gender:
    Male
    First Name:
    Earl
    Vehicle:
    2014 Tundra Crewmax TRD Blue Ribbon Metalic
    TRD Sway bar, Line-X spray in bedliner, Amp Research bed step, BakFlip G2, Sound 2.0 digital audio enhancer and TRD Pro grill
    Its not available from Toyota yet, bummer. I have a 14 so it wont work on mine anyways. I bought a Prodigy P3 and also bought the 15 dash panel for the controller. I had a trim plate cut out and I mounted the controller in there. It is so much safer than mounting it at the bottom of the dash. What people do not realize is that there is an air bag there for the knees. If you are in an accident and that air bag is deployed, the controller is going to be part of your shins. Here is what I have:


    Attached Files:

  7. Feb 22, 2015 at 6:44 PM
    #7
    MotoTundra

    MotoTundra Adrenaline Addict

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    2,444
    Gender:
    Male
    Vehicle:
    14' Black TRD CM
    TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) TRD Pro Grill BakFlip VP Tonneau w/BakBox Dipped wheels & bumpers Undercover Swingcase SunTek Paint Protection film Yellow Lamin-X Fog Overlays Tint Bedmat
  8. Feb 23, 2015 at 5:18 PM
    #8
    mdavis

    mdavis Tiger Life

    Joined:
    Feb 13, 2015
    Member:
    #966
    Messages:
    2,284
    Gender:
    Male
    First Name:
    Michael
    Rock Hill, SC
    Vehicle:
    2015 Tundra SR5, 5.7, 4X4
    Tow Mirrors, 275/60R20 Toyo AT2's
    Thanks for the pics. That looks great! Do you have any idea when the OEM one will be available? And what is different between the 14 and 15? Sorry new to Toyota.

  9. Feb 23, 2015 at 7:17 PM
    #9
    havasubud

    havasubud New Member Vendor

    Joined:
    Nov 2, 2014
    Member:
    #705
    Messages:
    151
    Gender:
    Male
    First Name:
    Earl
    Vehicle:
    2014 Tundra Crewmax TRD Blue Ribbon Metalic
    TRD Sway bar, Line-X spray in bedliner, Amp Research bed step, BakFlip G2, Sound 2.0 digital audio enhancer and TRD Pro grill
    The 2014 has the plug in the driver side kick panel. The 2015 has a different plug to the right of the steering wheel behind the panel with the trac off button. The 15 also will have the info screen in the center of the dash letting you know the trailer brake info. Should be pretty slick, but not sure when it will be out.

  10. Feb 23, 2015 at 7:48 PM
    #10
    tat2ude39

    tat2ude39 MYota

    Joined:
    Jan 26, 2015
    Member:
    #908
    Messages:
    619
    Gender:
    Male
    First Name:
    Robert
    Gilbert, AZ
    Vehicle:
    2015 Toyota Tundra TRD Pro Inferno
    @havasubud
    So I am a new truck owner and have yet to ever haul anything. What is the purpose of this controller, how does it work, what situations warrant this need? Is it above and beyond what the "tow haul" button does?

    Thanks in Advance!

  11. Feb 24, 2015 at 10:25 AM
    #11
    MotoTundra

    MotoTundra Adrenaline Addict

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    2,444
    Gender:
    Male
    Vehicle:
    14' Black TRD CM
    TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) TRD Pro Grill BakFlip VP Tonneau w/BakBox Dipped wheels & bumpers Undercover Swingcase SunTek Paint Protection film Yellow Lamin-X Fog Overlays Tint Bedmat
    It adjusts/controls the trailer brakes, when set up properly the trailer will slow down at the same rate as your truck. The controller sends the signal to the ttailer to activate the brakes, and how much. Some controllers also have a feature in which you can manually activate the trailer brakes to "cut the slack" and reduce sway.

    Not all trailers have brakes, usually only bigger trailers or trailers meant to haul heavy loads.

  12. Feb 24, 2015 at 11:20 AM
    #12
    Relentless

    Relentless Tundra newb Vendor

    Joined:
    Jan 6, 2014
    Member:
    #19
    Messages:
    759
    Gender:
    Male
    First Name:
    Eric
    East of the Sierras(Reno), Nevada
    Vehicle:
    '14 Crewmax SR5 TRD 4x4
    Just a few, more to come
    Yes, what MotoTundra said.
    Typically states will have a law that says trailers under 2000lbs or so do not require their own brakes whereas those of higher capacity require their own brakes. This is for the safety of the vehicle and those around you. Brakes on a truck are designed to stop more than just the trucks weight, but not all that much more. If you tow more than 2000lbs you need assistance of brakes on the trailer to stop in a safe distance and time. As they sit, most trucks do not have a factory brake controller, though they have become more commonplace in the last 5 years or so on the HD and now 1/2 ton trucks. The Tundra has been one of the very last to adopt a factory trailer brake control/trailer sway control system. Its about time. Kind of disappointed they didnt introduce it in '14 with the redesign, but would just happen to be my luck they're adding a factory option on the 15's. :rolleyes:

    Edit- controller is for electric brakes, usually rental trailers and boat trailers have a 'surge' brake system that applies brakes as the trailer tries to push the tow vehicle. They do this because not every vehicle has a controller as you can see, and on a boat trailer electric brakes dont like being submerged plus the loaded/unloaded weight of the trailer varies a lot.

    Last edited: Feb 24, 2015
    MotoTundra likes this.
  13. Feb 24, 2015 at 11:53 AM
    #13
    tat2ude39

    tat2ude39 MYota

    Joined:
    Jan 26, 2015
    Member:
    #908
    Messages:
    619
    Gender:
    Male
    First Name:
    Robert
    Gilbert, AZ
    Vehicle:
    2015 Toyota Tundra TRD Pro Inferno
  14. Feb 24, 2015 at 11:55 AM
    #14
    MotoTundra

    MotoTundra Adrenaline Addict

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    2,444
    Gender:
    Male
    Vehicle:
    14' Black TRD CM
    TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) TRD Pro Grill BakFlip VP Tonneau w/BakBox Dipped wheels & bumpers Undercover Swingcase SunTek Paint Protection film Yellow Lamin-X Fog Overlays Tint Bedmat
    Same here @Relentless , figures after I buy a 14' they make the change.

    Relentless likes this.
  15. Feb 24, 2015 at 5:34 PM
    #15
    mdavis

    mdavis Tiger Life

    Joined:
    Feb 13, 2015
    Member:
    #966
    Messages:
    2,284
    Gender:
    Male
    First Name:
    Michael
    Rock Hill, SC
    Vehicle:
    2015 Tundra SR5, 5.7, 4X4
    Tow Mirrors, 275/60R20 Toyo AT2's
    Thanks for the info. I will have to keep my eye out for it. Thanks for providing the part #'s.

  16. Mar 1, 2015 at 2:47 PM
    #16
    1G3-TRD

    1G3-TRD [OP] New Member

    Joined:
    Jul 2, 2014
    Member:
    #486
    Messages:
    514
    Gender:
    Male
    First Name:
    Aaron
    Vehicle:
    2014 double cab TRD off road
    Personally I think the 14 was easier

    erm626 and MotoTundra like this.
  17. Mar 8, 2015 at 4:22 PM
    #17
    dkahs05

    dkahs05 New Member

    Joined:
    Mar 8, 2015
    Member:
    #1045
    Messages:
    13
    Gender:
    Male
    This part #55447-0c020-c0 is for 2014 are we sure this is compatible with the 2015

  18. Mar 8, 2015 at 4:33 PM
    #18
    havasubud

    havasubud New Member Vendor

    Joined:
    Nov 2, 2014
    Member:
    #705
    Messages:
    151
    Gender:
    Male
    First Name:
    Earl
    Vehicle:
    2014 Tundra Crewmax TRD Blue Ribbon Metalic
    TRD Sway bar, Line-X spray in bedliner, Amp Research bed step, BakFlip G2, Sound 2.0 digital audio enhancer and TRD Pro grill
    Yep. Same dash. I actually tried it on a friends truck.

    dkahs05 likes this.
  19. Mar 8, 2015 at 4:41 PM
    #19
    dkahs05

    dkahs05 New Member

    Joined:
    Mar 8, 2015
    Member:
    #1045
    Messages:
    13
    Gender:
    Male
  20. Mar 8, 2015 at 4:42 PM
    #20
    dkahs05

    dkahs05 New Member

    Joined:
    Mar 8, 2015
    Member:
    #1045
    Messages:
    13
    Gender:
    Male
    Thanks havasubud

  21. Mar 10, 2015 at 5:47 PM
    #21
    dkahs05

    dkahs05 New Member

    Joined:
    Mar 8, 2015
    Member:
    #1045
    Messages:
    13
    Gender:
    Male
    Just ordered my integrated brake controller and panel from EB Toyota best price I could find .

  22. Mar 10, 2015 at 9:00 PM
    #22
    havasubud

    havasubud New Member Vendor

    Joined:
    Nov 2, 2014
    Member:
    #705
    Messages:
    151
    Gender:
    Male
    First Name:
    Earl
    Vehicle:
    2014 Tundra Crewmax TRD Blue Ribbon Metalic
    TRD Sway bar, Line-X spray in bedliner, Amp Research bed step, BakFlip G2, Sound 2.0 digital audio enhancer and TRD Pro grill
    The factory one? Last I checked it wasn't available.

  23. Mar 10, 2015 at 11:55 PM
    #23
    dkahs05

    dkahs05 New Member

    Joined:
    Mar 8, 2015
    Member:
    #1045
    Messages:
    13
    Gender:
    Male
    Pretty sure. I use this part number. 89547-0c010

  24. Mar 11, 2015 at 1:21 PM
    #24
    havasubud

    havasubud New Member Vendor

    Joined:
    Nov 2, 2014
    Member:
    #705
    Messages:
    151
    Gender:
    Male
    First Name:
    Earl
    Vehicle:
    2014 Tundra Crewmax TRD Blue Ribbon Metalic
    TRD Sway bar, Line-X spray in bedliner, Amp Research bed step, BakFlip G2, Sound 2.0 digital audio enhancer and TRD Pro grill
    That part is going to back order. I just checked again and all of the depots show 0 on hand. I think it will still be a while.

  25. Mar 14, 2015 at 6:04 PM
    #25
    sinevirtussinelaus

    sinevirtussinelaus New Member

    Joined:
    Mar 9, 2015
    Member:
    #1046
    Messages:
    6
    Gender:
    Male
    First Name:
    Caleb
    New England
    Vehicle:
    2014 Tundra 5.7L Silver Sky Crewmax Platinum
    LED bed lights, LED interior/exterior lights, console vault safe, line-x, tonneau cover, bed lights, Under-Seat Rear Storage from ESPtruck.com, Stealth 38" LED Hood Bulge Light Bar, Husky X-act Contour Mats, Morimoto LED Fog lights, LED Headlights
    will the integrated brake controller be available for the 14 crewmax? At some point...I know not right now

  26. Mar 15, 2015 at 9:55 AM
    #26
    havasubud

    havasubud New Member Vendor

    Joined:
    Nov 2, 2014
    Member:
    #705
    Messages:
    151
    Gender:
    Male
    First Name:
    Earl
    Vehicle:
    2014 Tundra Crewmax TRD Blue Ribbon Metalic
    TRD Sway bar, Line-X spray in bedliner, Amp Research bed step, BakFlip G2, Sound 2.0 digital audio enhancer and TRD Pro grill
    Unfortunately not for the 14. They changed the configuration for the 15 model. I am one of those people that wants things to look as factory as possible.

  27. Mar 15, 2015 at 1:19 PM
    #27
    dkahs05

    dkahs05 New Member

    Joined:
    Mar 8, 2015
    Member:
    #1045
    Messages:
    13
    Gender:
    Male
    That's how I am also.

  28. Mar 27, 2015 at 8:21 AM
    #28
    tacouser

    tacouser New Member

    Joined:
    Mar 10, 2015
    Member:
    #1056
    Messages:
    165
    Gender:
    Male
    Chicago
    Vehicle:
    2015 SR5 Tundra Dbl Cab 4X4
    Bilstein 5100 rear, Klein train horns! Swing Case, Tekonsha P3 brake controller, Bed LED's, Weathertech window visors and floor mats,Retrofit Source Fog Lights, Bakflip cover, Ford Rapter hood leds, Hellwig rear sway bar
    Hello, I found a nice panel to use to install a brake controller under the tow/haul switch. I did a write up. It's under the towing section.

  29. Mar 27, 2015 at 3:38 PM
    #29
    Sigma_Online

    Sigma_Online New Member

    Joined:
    Mar 27, 2015
    Member:
    #1120
    Messages:
    1
    Gender:
    Male
    Vehicle:
    2015 Tundra 5.7 SR5
    Hey everyone. Just purchased my 2015 Tundra 5 days ago (up from a 2006). I used this thread to really look into this and see how to get the integrated panel/controller. I called the parts department where I bought the truck and ended up talking with the manager. He said that Toyota is NOT going to deliver them. They were told that due to a legal issue, Toyota had to stop release of the integrated controller (he speculated that it was something to do with the integrated display). He said he understood that it was in the owners manual and all the marketing materials... they were just as surprised to hear it. He was told (and carries) to supply the Tekonsha P3 as the "certified" Tundra 2015 brake control as the alternative to the integrated. I called another Toyota shop around town and they said they had heard pretty much the same thing. I went ahead and bought the Tekonsha P3 (not from them...saved like $80) and I just read Tacouser's post on what he did with the panel. I may do that soon, but will do an old school brake controller mount in my brand new truck...little disappointing, but is what it is.

  30. Apr 18, 2015 at 7:47 AM
    #30
    dkahs05

    dkahs05 New Member

    Joined:
    Mar 8, 2015
    Member:
    #1045
    Messages:
    13
    Gender:
    Male

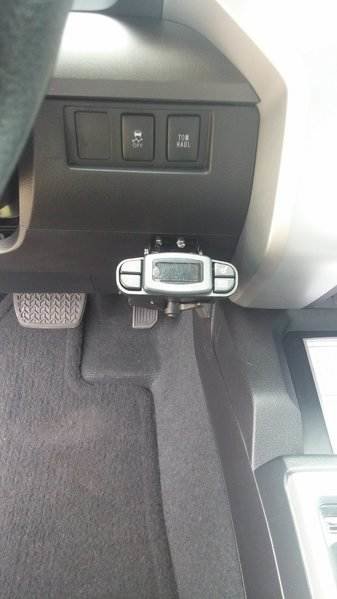

    Here is my install. It was easy. And took maybe 30 to 40 min. at the most.


    Attached Files:
