Wiring diagram for a 2012 Secondary Air Switching Valve bank 2 !

Heya, Would anyone with a 2012 Tundra, 4.6 iForce V8 have a wiring diagram for a 2012 Secondary Air Switching Valve bank 2?

The diagrams I could find all show 4 wires (I have 5) and the colors are nothing like what's in my truck.

If someone could just take a look at their Secondary Air Switching Valve bank 2 plug-in receptacle and tell me what you see from the top down I sure would appreciate it.

Thanks,
Pellarini, Virginia

The colors I have are;

• black with white stripe
• white with a black stripe
• Brown
• Blue
• Black with a blue stripe



You should be able to find everything you need here.

https://www.tundras.com/threads/ultimate-tundra-wiring-diagrams-collection.81448/



Welcome to the forum..

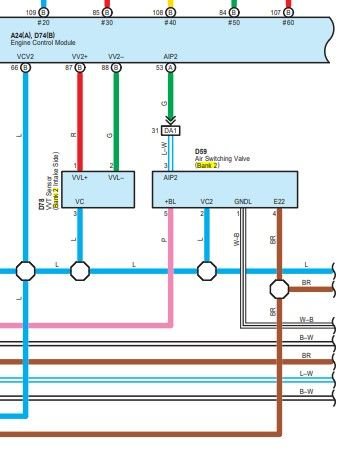

Bank 2 has 5 wires, but not the colors you described.
White with black stripe is always ground...

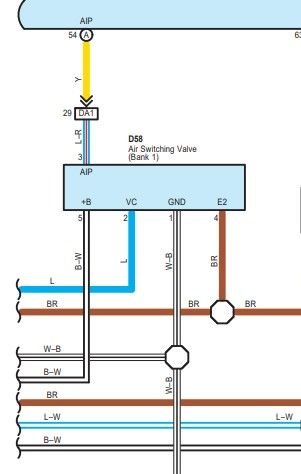

Bank 1 is a little closer...
The colors I have are;

• black with white stripe
• white with a black stripe
• Brown
• Blue
• Black with a blue stripe



This will also help. Wiring routes and connector locations.

Connectors are for 2011 but I've been using on my 2007, I'm confident it will match your 2012.

Between the EWD, wiring routes, and connector list you should be able to trace any wire in the truck. If you need help making sense of them let me know, happy to help.

Wiring routes: https://www.tundras.com/threads/public-information-2nd-gen-complete-wiring-routes.9127/
Connector List: Attached



Thanks everyone. Attached is the correct schematic for a 2012 Bank2 Air Switching Valve, provided by Jeremy.

Thanks!!
