TRD PRO TSS garnish

Ok forum members I know there has been a couple of guys who have made some 3D printed TSS garnish. I designed one that flows pretty good with the TRD Pro rectangle grille.

I have multiple different designs that you can choose from. I use ASA filament which is very weather complaint, and print everything with 100% infill so it's nice a heavy and stronger.

The garnish will work for 2014 - 2017 without the TSS sensor. This is for esthetic purposes Only. Don't have a way to see if it would work with the sensor.

There is a couple different models which you can see the pictures. All models will come with the necessary hardware to attach it to the grille. One model is designed to be a different swap with oem cover. No drilling or cutting is necessary. Then you have another model which is for the Bravehearted, it will blend in nicely with the grille.

The garnish was designed using a KOK auto parts grille which is supposedly a copy cat of a OEM.

Price is $60 which includes mounting hardware and shipping.

If you like the option with TRD in a different color it is $65.

Send me a PM and we can discuss which model you would like.

https://www.kokautoparts.com/produc...tRYITiSGk2BAjs4bp2u0rCA8uPYXJgNRoCUPMQAvD_BwE

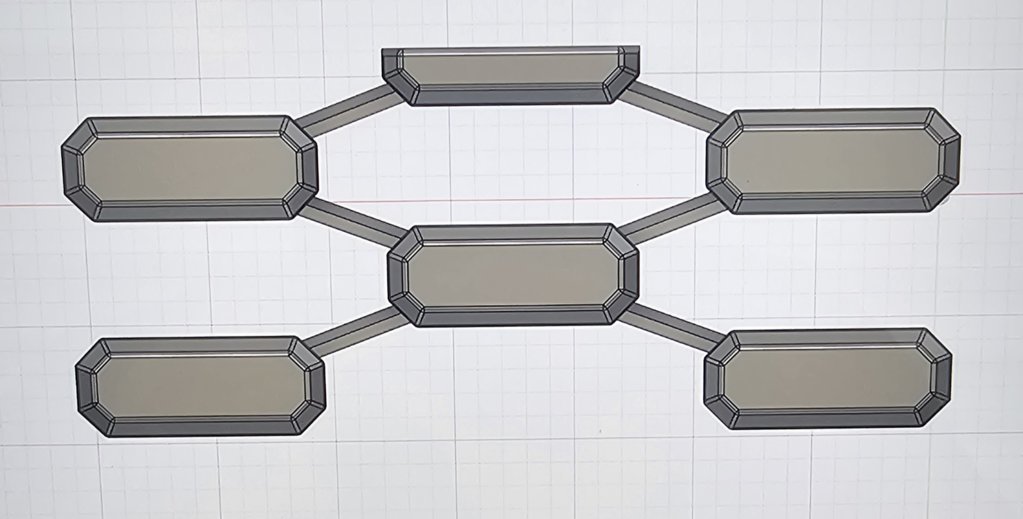

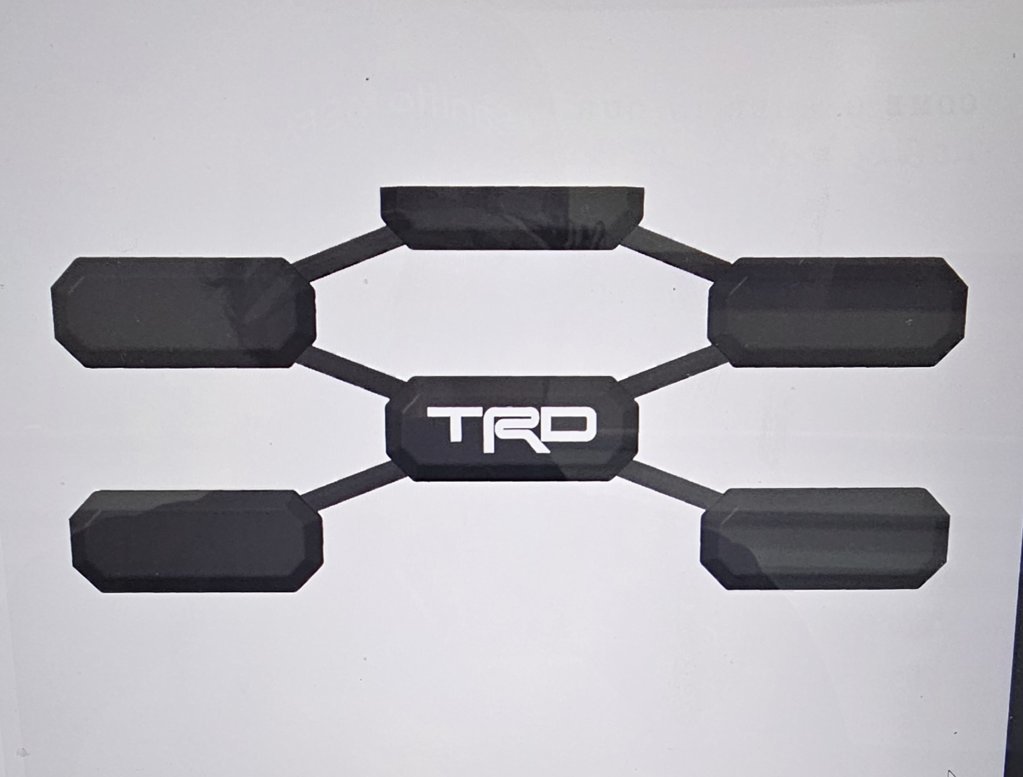

Option 1: Plain no backing direct swap

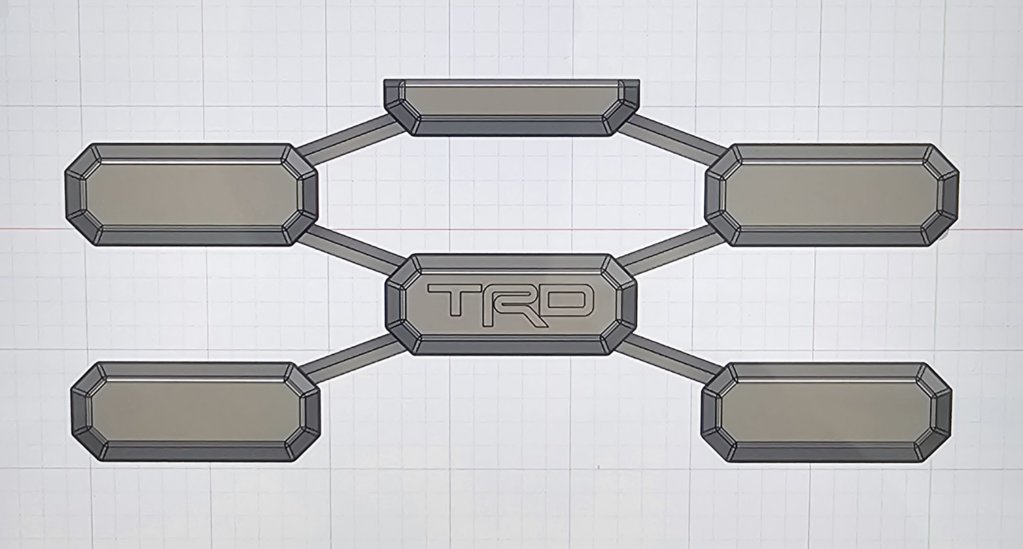

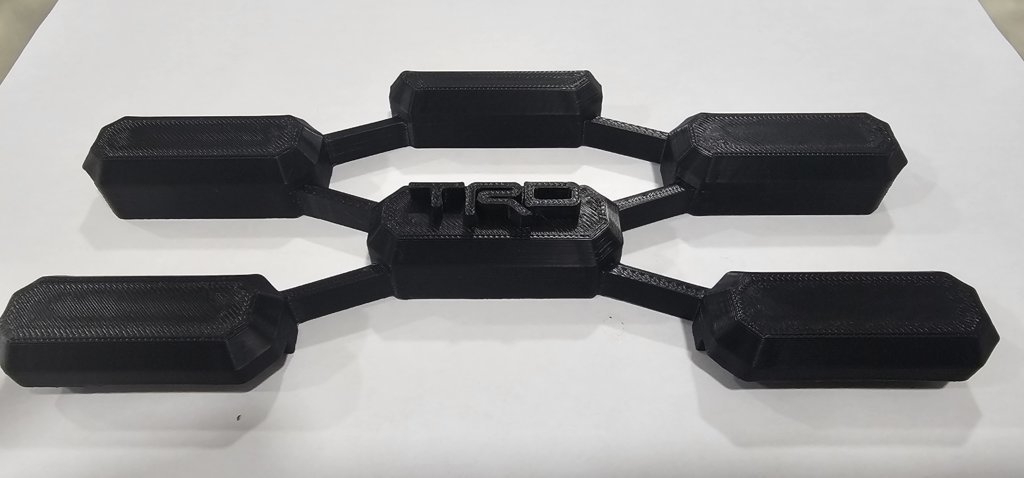

Option 2: TRD no backing direct swap

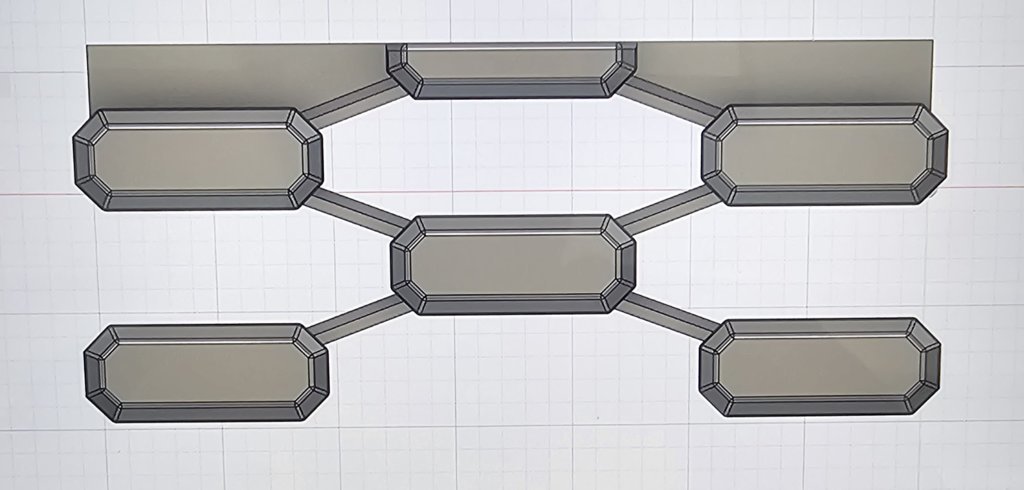

Option 3: Plain backing top corners direct swap

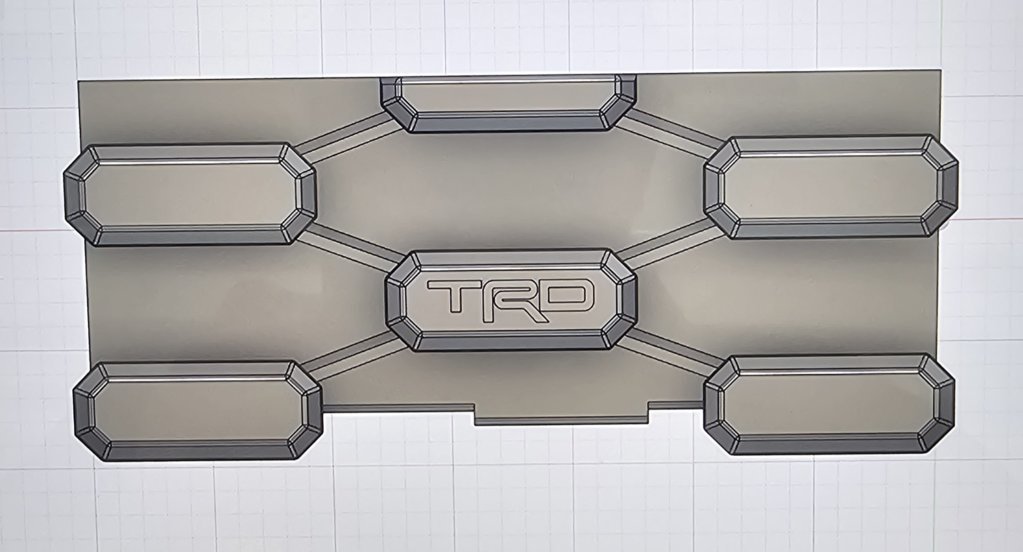

Option 4: TRD full backing direct swap

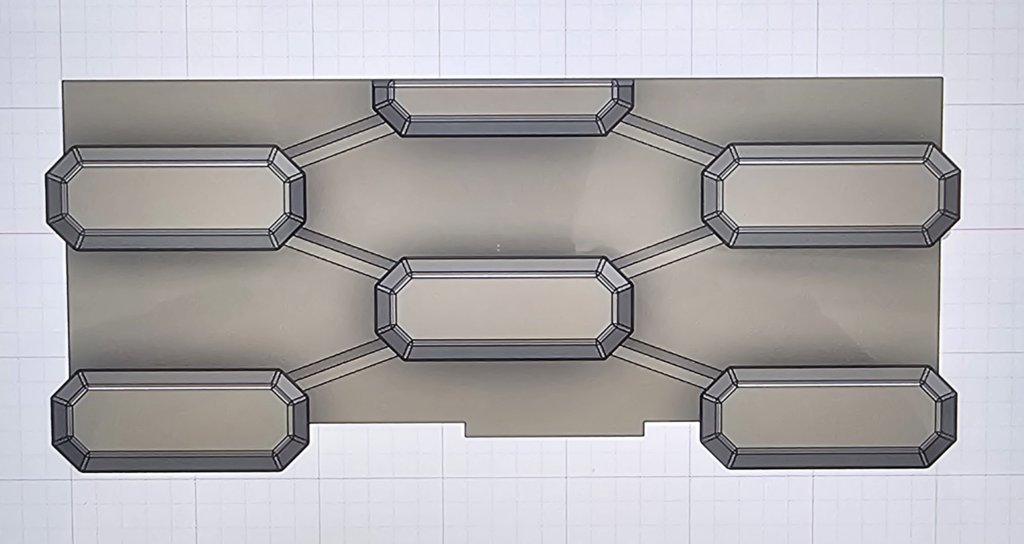

Option 5: Plain full backing direct swap


Option 6: Plain no backing you need to cut grille and install brass inserts


Option 7: TRD no backing you need to cut grille and install brass inserts


Option 8: TRD no backing two color direct swap


Option 9: TRD no backing two color you need to cut grille and install brass inserts

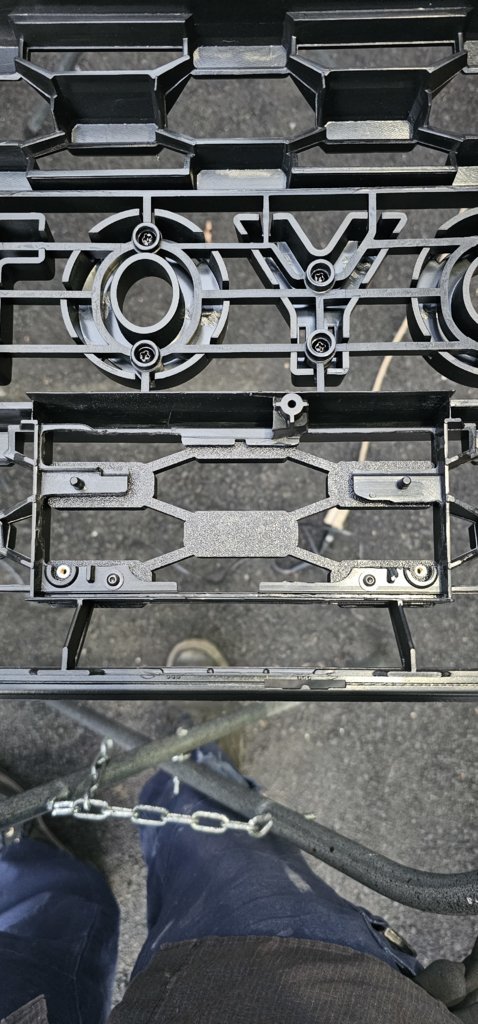

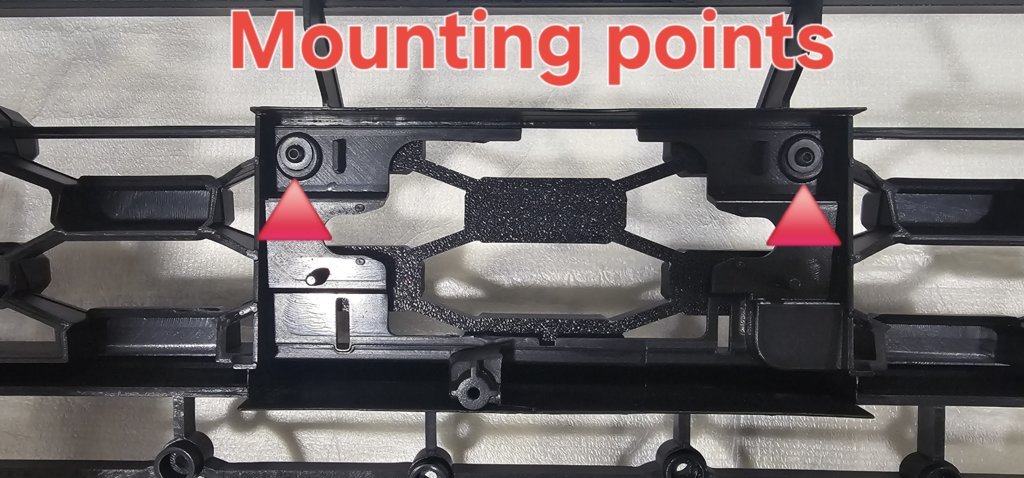

Mounting point for the direct swap


Plain Direct swap

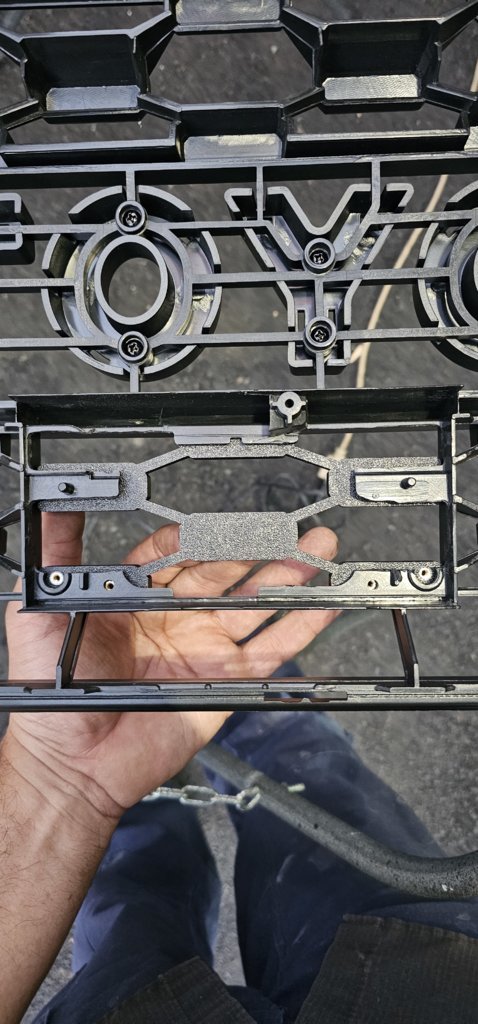

Option 6: cutting the grille



PM sent. Put me down for the one without the backing and with the TRD print.



I’ll take one vented no backer or logo.



Sounds good send me a PM

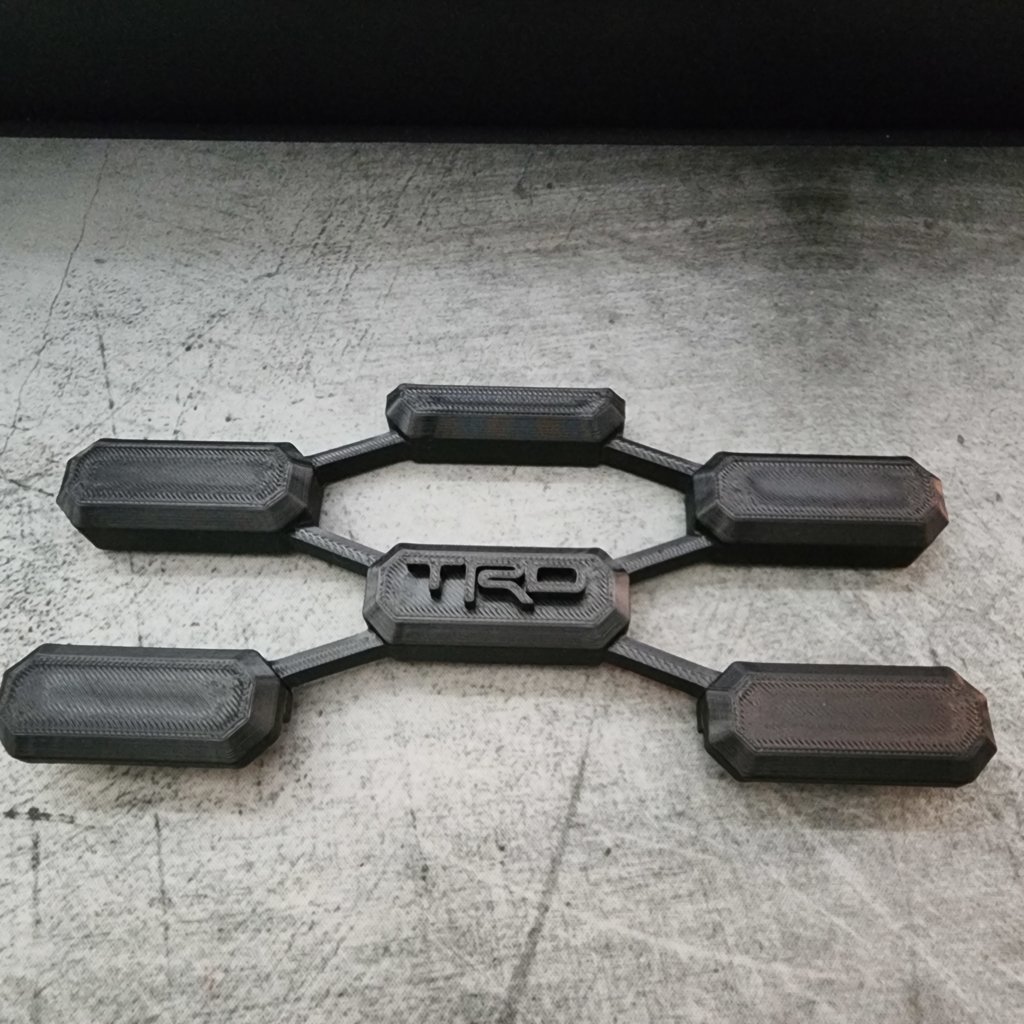

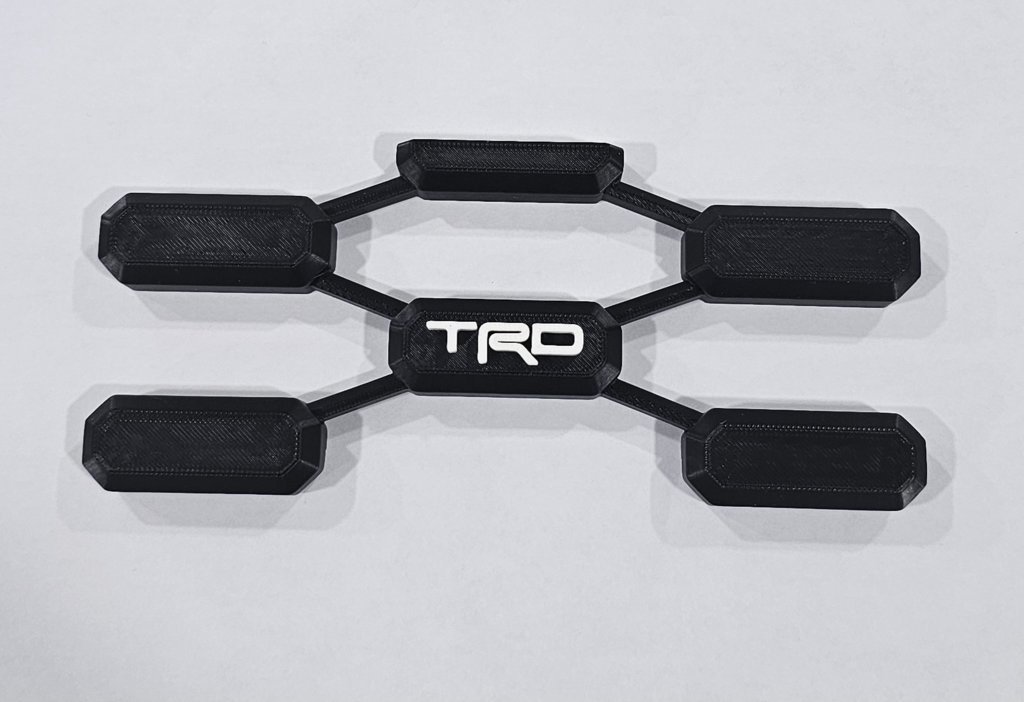

@TacomaTRD4x402 garnish is printed. Hard to see the TRD in the pictures but it's a nice touch.



This looks killer!!



Just received my garnish from @Dave8699 and must say this is great quality!



I don't have the newer pro grille yet but I jumped on this chance to get this soon as he made it available.

Now time to order that grille insert
Thanks @Dave8699



My pleasure, thank you for the support



Sent you a DM!

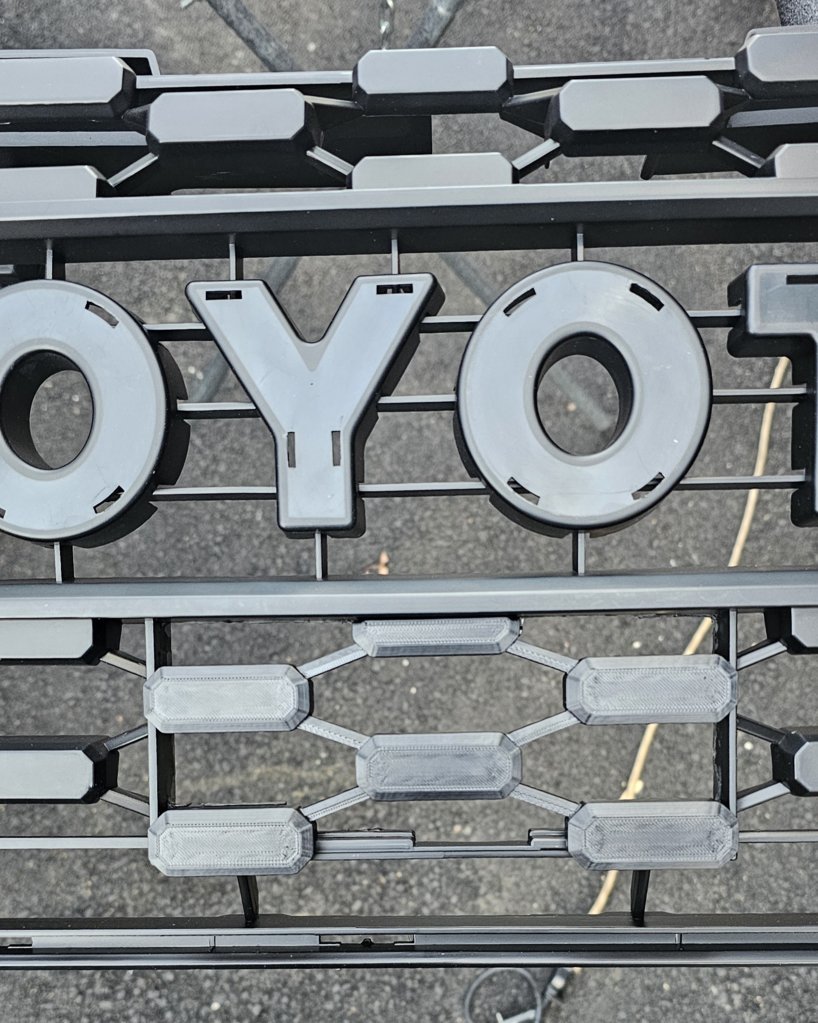

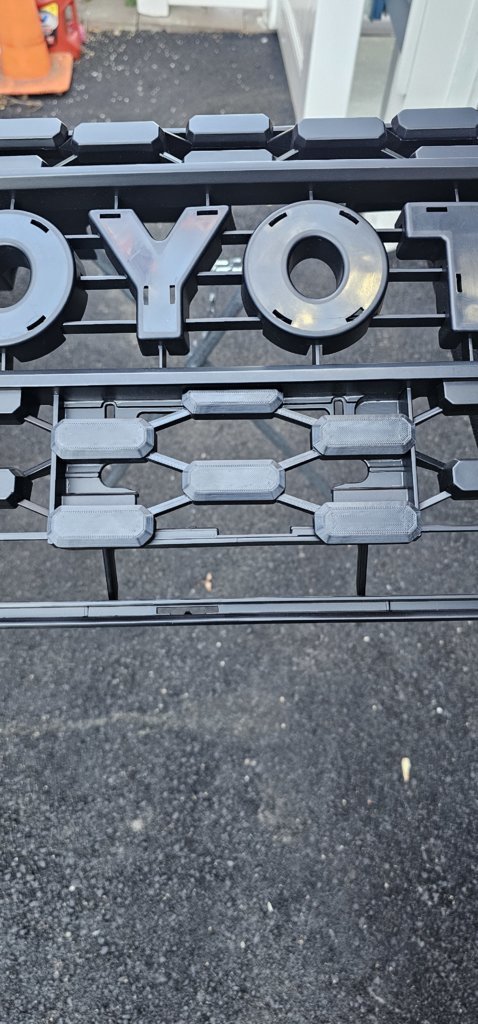

How it looks when you cut the grille in-between the garnish.



Looks good. Reminds me of the ZL1 chevy bow tie badge. One of their claims more flow lol



Funny you say that I have a ZL1 flow tie.



Hell yes!



Also mounting is tricky if you go this route. Snice you grind off material off the grille you have to figure out where to put the inserts.



Another set going out. Thank you to everyone that has ordered.



Custom made for @NJTundra_1



Do you have any pictures of these installed on a truck? Definitely interested in a set.



I'd share pics if I had mine thrown on yet lol. I actually just sanded mine and painted it.



I'd love to see it once you finish. Did you paint it gloss black to match the rest of the grille?



Yes I did



Here are some

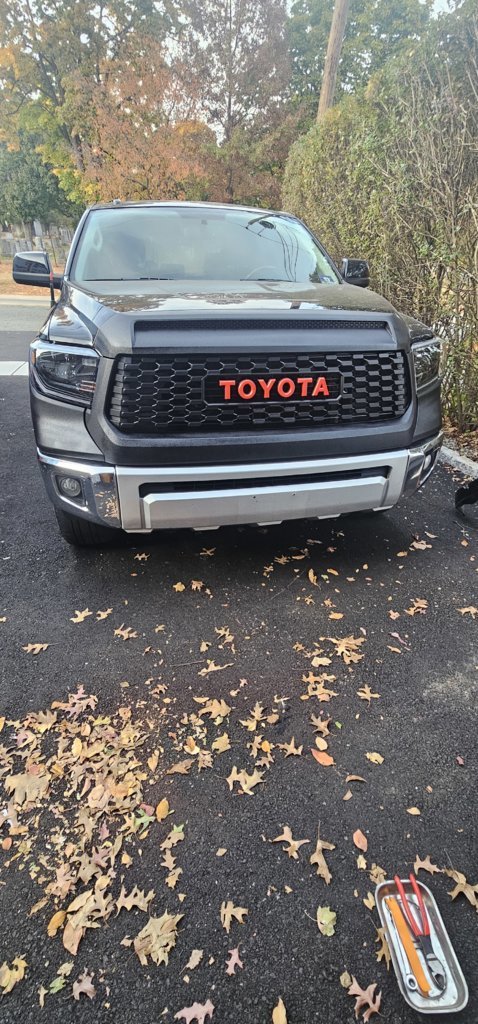

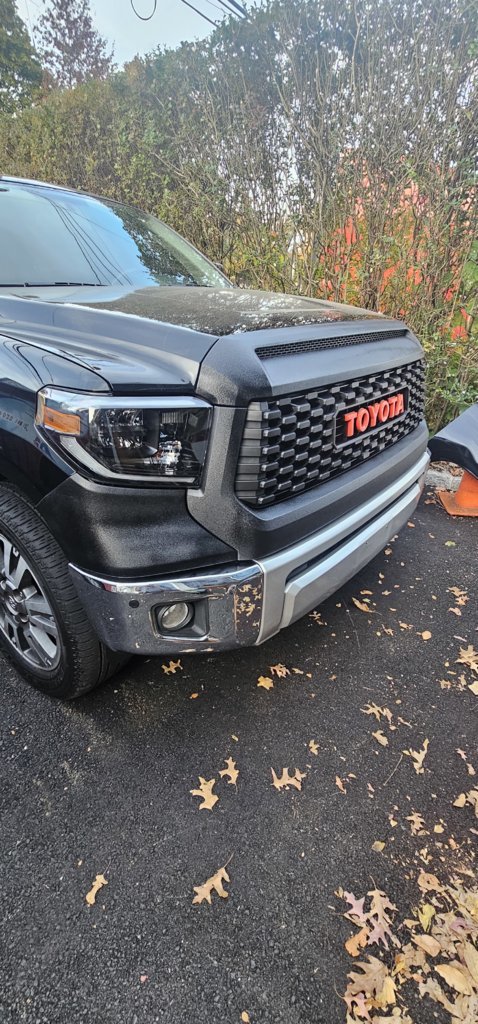

Here is mine with it on, so much better looking then either hole or that plate cover.



and youre still using the TSS sensor?



Mines a 2014 with a grill swap. Don't have a TSS sensor to worry about thankfully.



I’ve been looking for this exact piece for quite a while, nice work Dave. pM sent

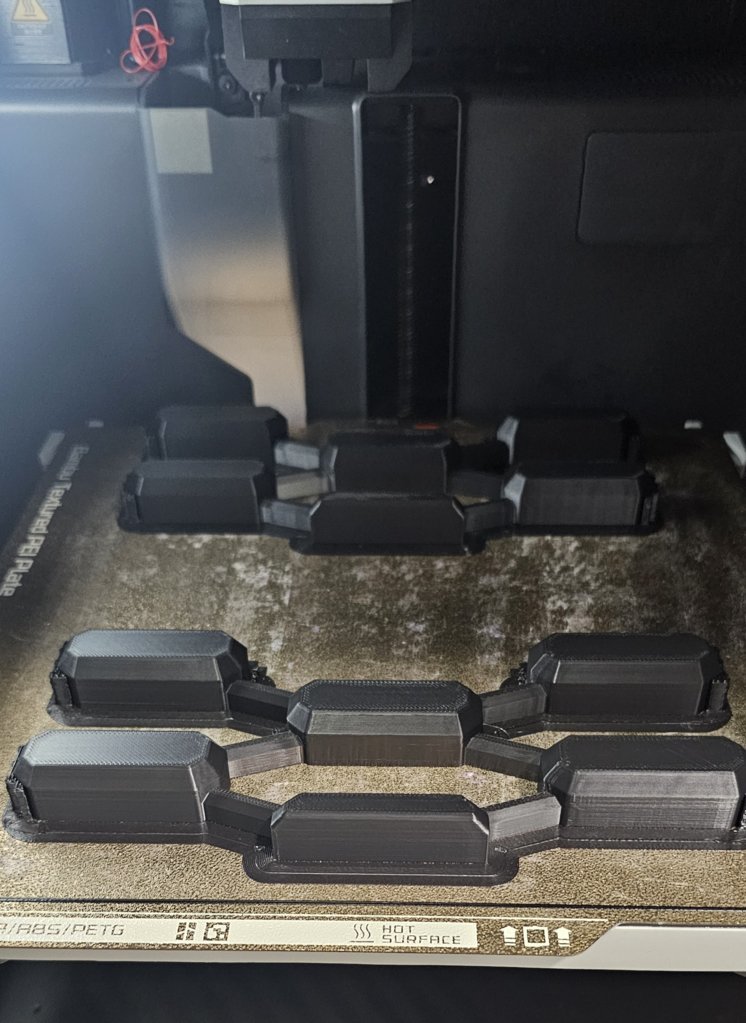

@uteman23 and @BADMOJO_Tundra I have the printer going with your garnish. Time to eliminate that ugly silver garnish.
