Toggle/Paddle switch configuration

Discussion in '3rd Gen Tundras (2022+)' started by Rockpig, Nov 11, 2024.

  1. Nov 11, 2024 at 6:25 AM
    #1
    Rockpig

    Rockpig [OP] You did what?

    Joined:
    Apr 11, 2022
    Member:
    #77029
    Messages:
    420
    Vehicle:
    08 Limited
    I'm trying to figure out the layout of the toggle/paddle switches under the infotainment system for the different trims. I know they are all laid out similarly such as w/wo locker, air suspension, traction control, etc. Could you please take a pic of your switch panel and what trim level you have. Looking to categorize SR to 1794LE and everything in between including TRD and non TRD trims.

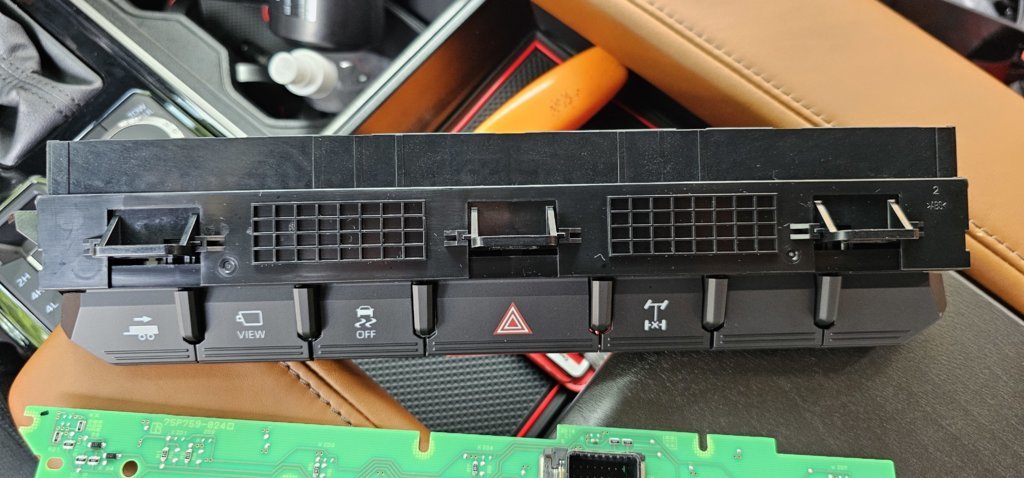

    I'm in a 1794 LE, here is my layout.


  2. Nov 11, 2024 at 6:55 AM
    #2
    DRP

    DRP Old Member

    Joined:
    Aug 20, 2023
    Member:
    #102452
    Messages:
    864
    First Name:
    Dave
    Vehicle:
    2023 1794

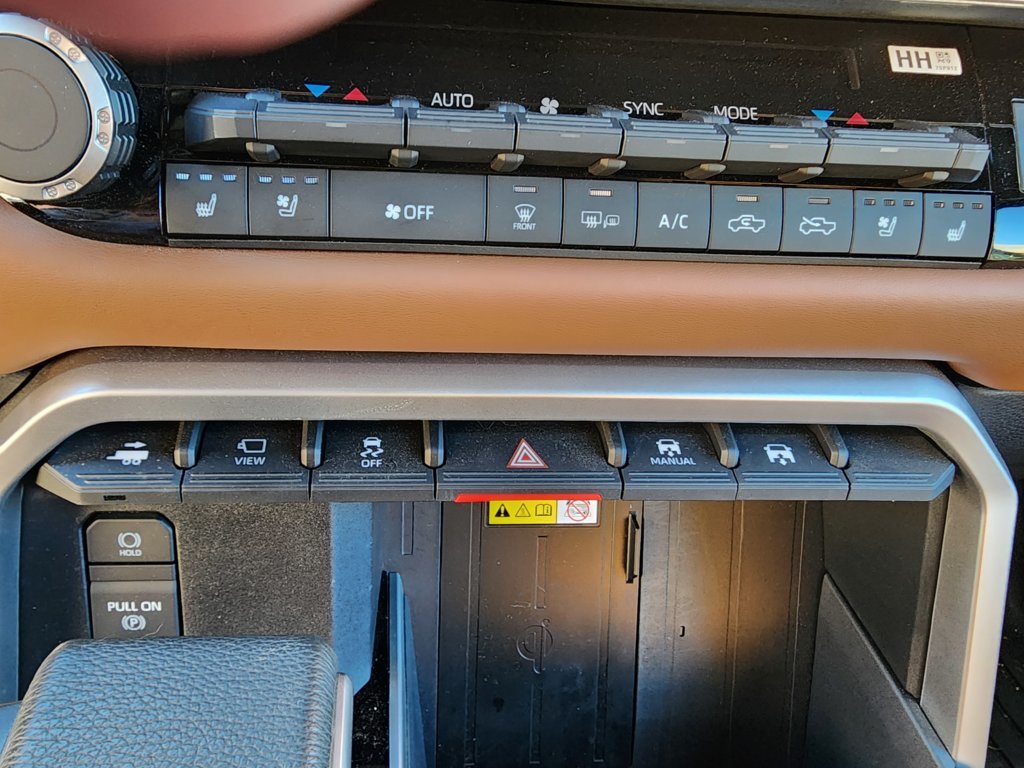

    From my 2023 1794. No TRD or Pro.


  3. Nov 11, 2024 at 10:03 AM
    #3
    Rockpig

    Rockpig [OP] You did what?

    Joined:
    Apr 11, 2022
    Member:
    #77029
    Messages:
    420
    Vehicle:
    08 Limited
    DRP-I'm assuming the two to the right of the Hazard are for factory air suspension with auto height being the one on the right? Seems obvious but just want to double check.

  4. Nov 11, 2024 at 10:17 AM
    #4
    TucsonTundra1794

    TucsonTundra1794 ASCM #6-11 I'll buy if you're willing to ship

    Joined:
    Mar 8, 2021
    Member:
    #60155
    Messages:
    2,961
    Gender:
    Male
    First Name:
    Anthony
    Tucson, AZ
    Vehicle:
    2023 1794 Edition TRD Package
    My 23’ 1794 with the TRD package has the locker as the first switch to the right of the hazard.

    Rockpig[OP] likes this.
  5. Nov 11, 2024 at 10:40 AM
    #5
    DRP

    DRP Old Member

    Joined:
    Aug 20, 2023
    Member:
    #102452
    Messages:
    864
    First Name:
    Dave
    Vehicle:
    2023 1794
    Correct. The one next to the hazard switch toggles between manual and auto and the far right is for up/down adjusting when in manual mode.:thumbsup:

    Rockpig[QUOTED][OP] likes this.
  6. Nov 11, 2024 at 2:52 PM
    #6
    BlackNBlu

    BlackNBlu Justa Member

    Joined:
    Dec 27, 2023
    Member:
    #109152
    Messages:
    998
    Gender:
    Male
    First Name:
    Rich
    MN
    Vehicle:
    24 Limited CM 5.5 Blueprint TRD OR
    5100's, 285/75/18, Air Lift bags, bits and bobs
    '24 Limited w/ TRD OR: Identical to OP

    Rockpig[OP] likes this.
  7. Nov 14, 2024 at 11:00 AM
    #7
    Tumbler

    Tumbler New Member

    Joined:
    Feb 4, 2020
    Member:
    #42158
    Messages:
    152
    Gender:
    Male
    Vehicle:
    2023 CrewMax Limited HV in MGM
    Pretty sure the manual shows all of these.
