SCS Ray 10’s leveled

yep tricked you into clicking because I don’t have a pic, but will soon! I’m that guy, I’ve read probably 100,000 or more posts on here but looking for specific ‘will it fit’ advice. So sorry everyone... here it goes:

Is anyone running 1.9” lift on he front with SCS Ray 10’s (or similar offset +25) with 295/70/18 OR 275/70/18’s? (I am going to run the Falken’s)

Pics would be much appreciated if you have either! I’m just nervous one will be too small and one will be a pain and too much trimming.

You guys rock thank you a ton in advance! (Yes I have read, reread and reread the will it fit thread and the SCS group buy thread)



From all the research I've done on here, you're going to rub quite a bit with 295s on that lift and offset. I'm going to have a 3" lift installed next week with Ray10s and 295s, and I'm still a little worried that some chopping will be necessary.



Yeah I see that too. But then you see the Pro thread where they are running stock wheels and 295/70. That’s the only part that confused me.



I assume they're having to do some chopping and/or add spacers to make that work, but like you, I really don't know.



Yeah doesn’t look like it a whole lot. Is the wheel well different on them? Anyone know?

https://www.tundras.com/threads/let’s-see-pics-stock-height-pro-with-295-70r18.31428/#post-776821

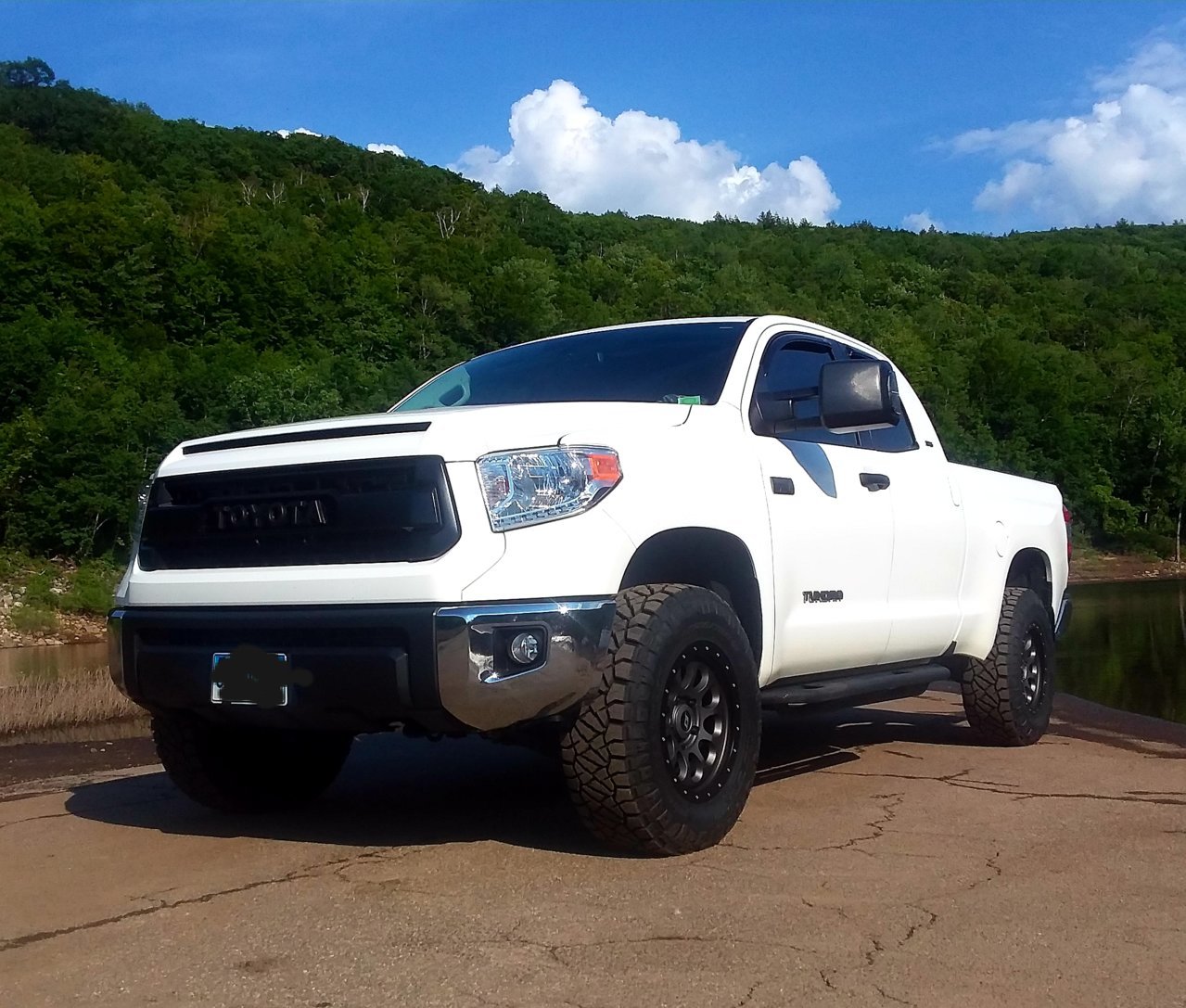

Bilstein 6112's at 1.9 setting, driver side shim with 285/70r18's on SCS Ray 10's.



4wd. Definitely helps!



What tire is that the Terra Grappler? How much trimming?



Ridge Grappler, trimmed skid plate, pushed fender well forward about a inch.



I am glad you started this thread. I was set on getting SCS +25 offset rims, 295/70/18, and 2.5” setting on 6112s in front and 5160 stock in rear.

The whole time i thought they would fit with minimal adjustments. Am i wrong???



So that pretty much answers my question 275/70 it is.



You should be good with that setup. I was lifted that height with 285/70r18 on a +18 wheel so 295/70r18 on a +25 should be good. Might have to trim the skid plate



Ok thanks



How about 6112 leveled to 1.9 with 295 70 18 on ray 10. Bmc and nfab m-rds pre runner front bumper. Do you think it can be done without rubbing?

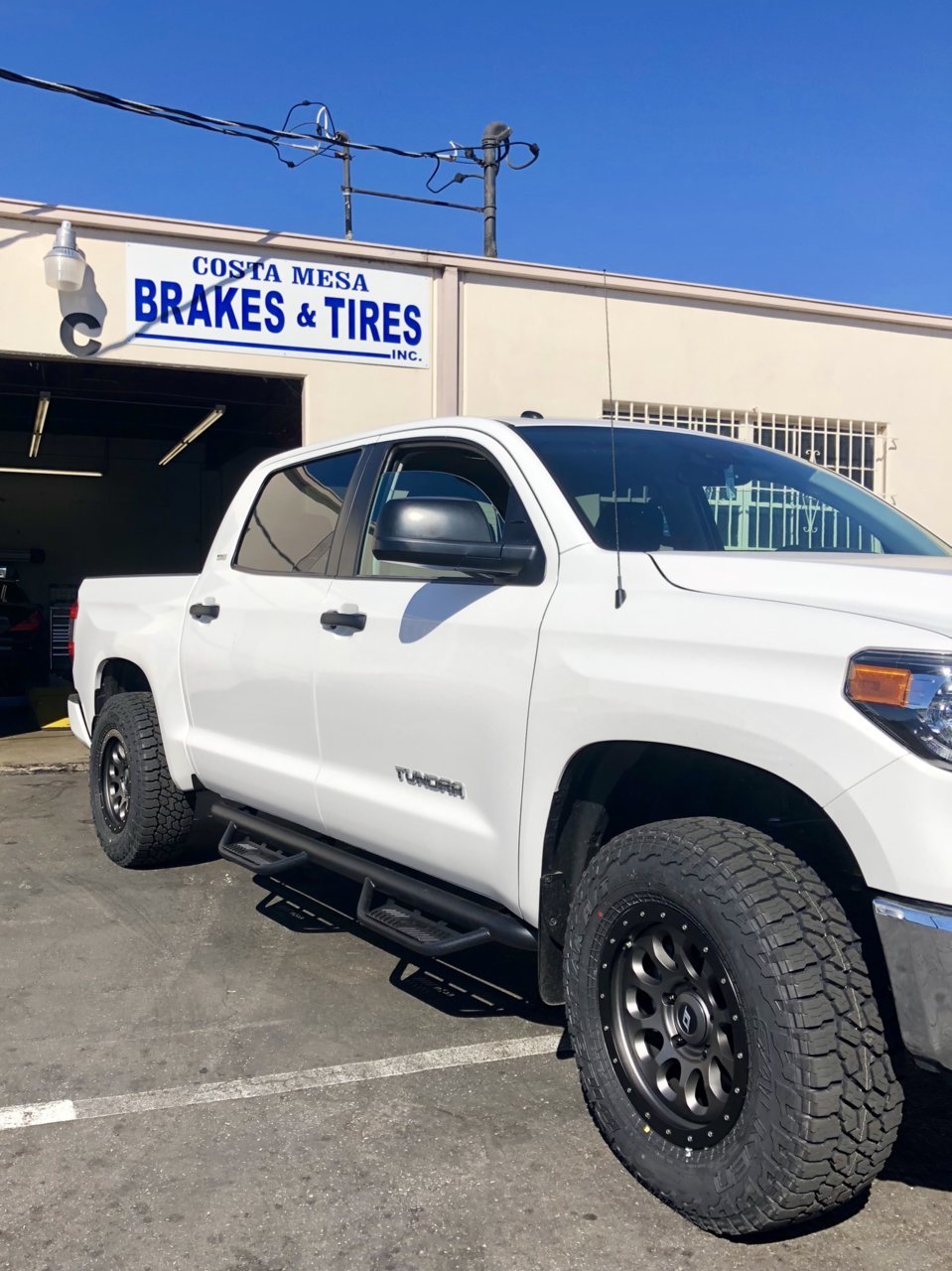

Week old 2018. Bilstein 5100s set on middle ring. 275/70/18 Falkens. Take front mud flaps off. I had to unbolt and push forward the plastic bumper liner. Drill couple new holes and screw back in. Very slight rub in reverse full lock. Ordered the Coachbuilder bumper shims to clear everything completely.

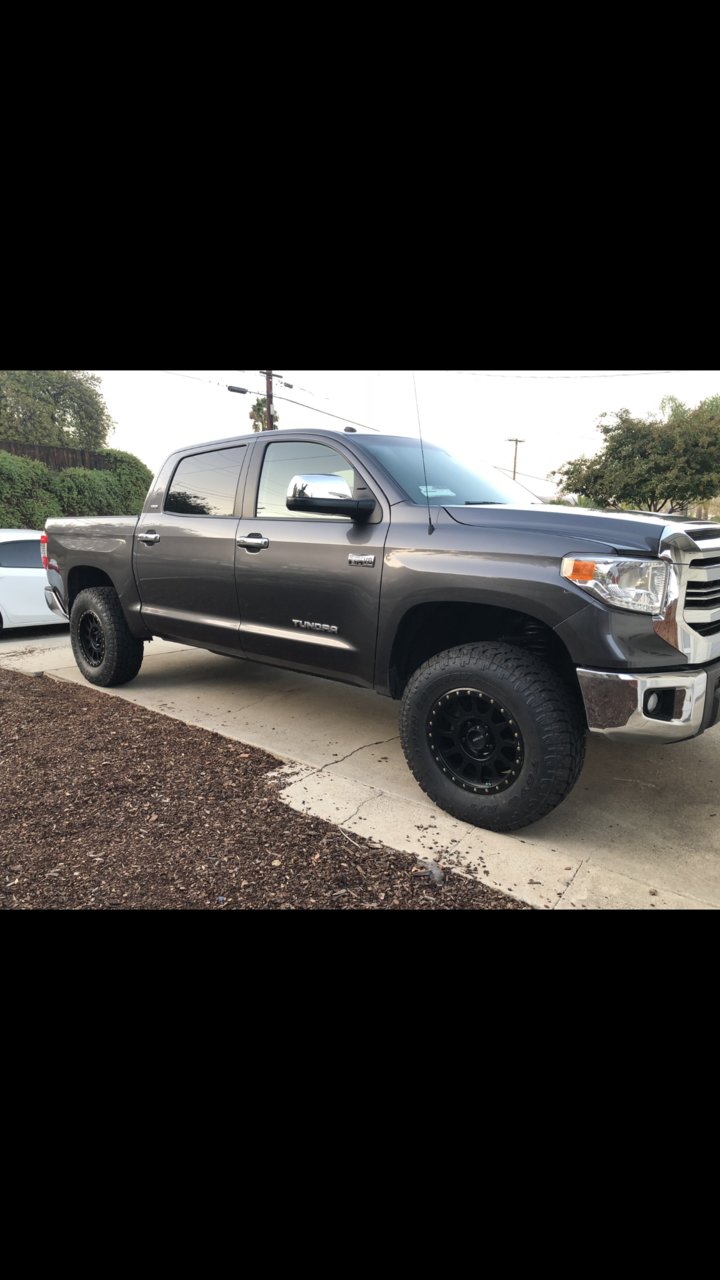

I’m running 295/70/18 on a 3/1 lift. I rubbed on the front fender liner. So I did a full removal of it. There’s a few threads on how to push the liner forward instead of removing it though.



That should work perfectly fine.



Thank you Guhner123. I think so too
