rocker panel switch

Discussion in 'Lighting' started by WolfZ, Sep 15, 2019.

  1. Sep 15, 2019 at 1:40 PM
    #1
    WolfZ

    WolfZ [OP] New Member

    Joined:
    Sep 22, 2018
    Member:
    #19696
    Messages:
    8
    Gender:
    Male

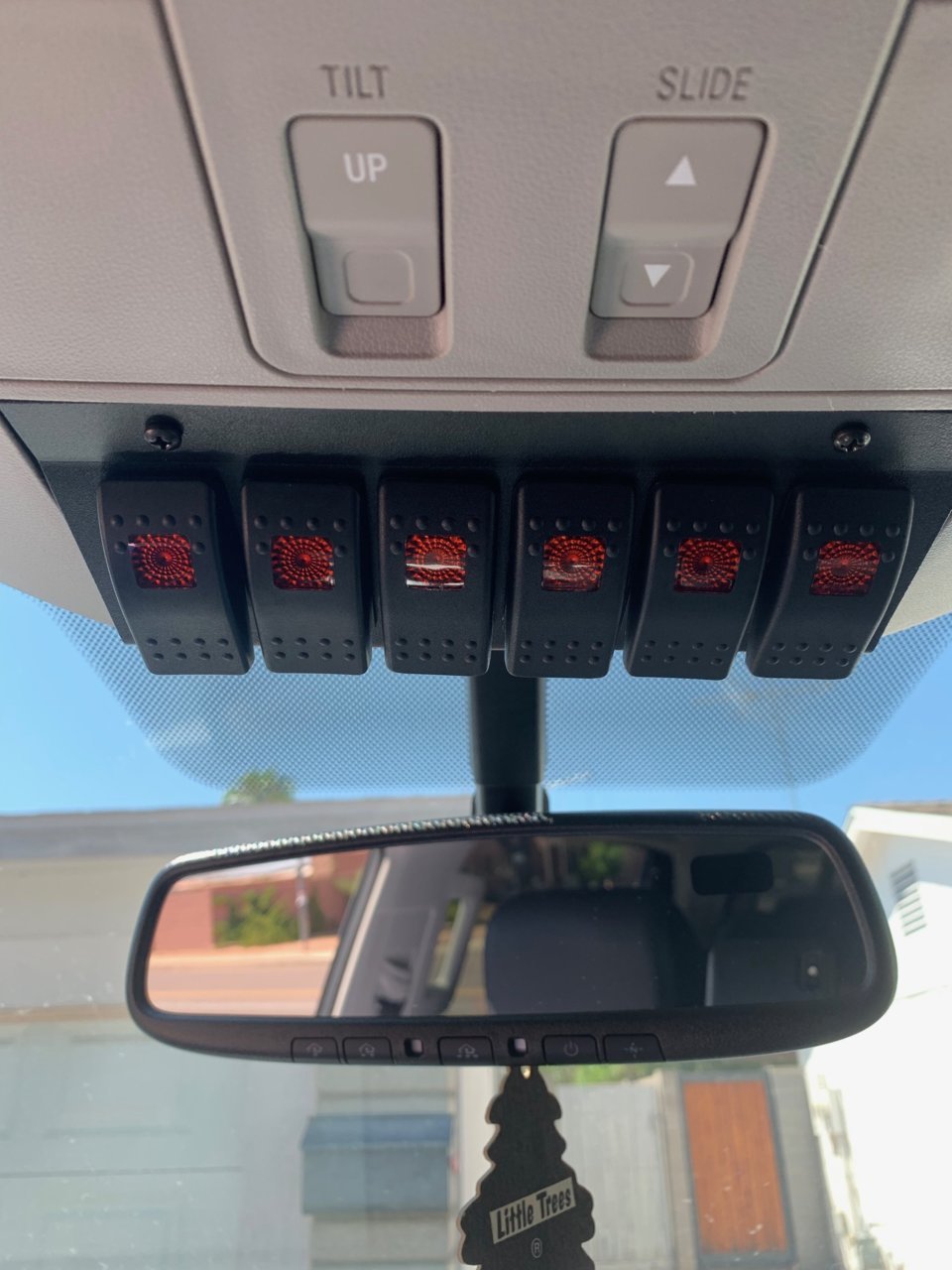

    can anyone help me identify this rocker panel switch.?

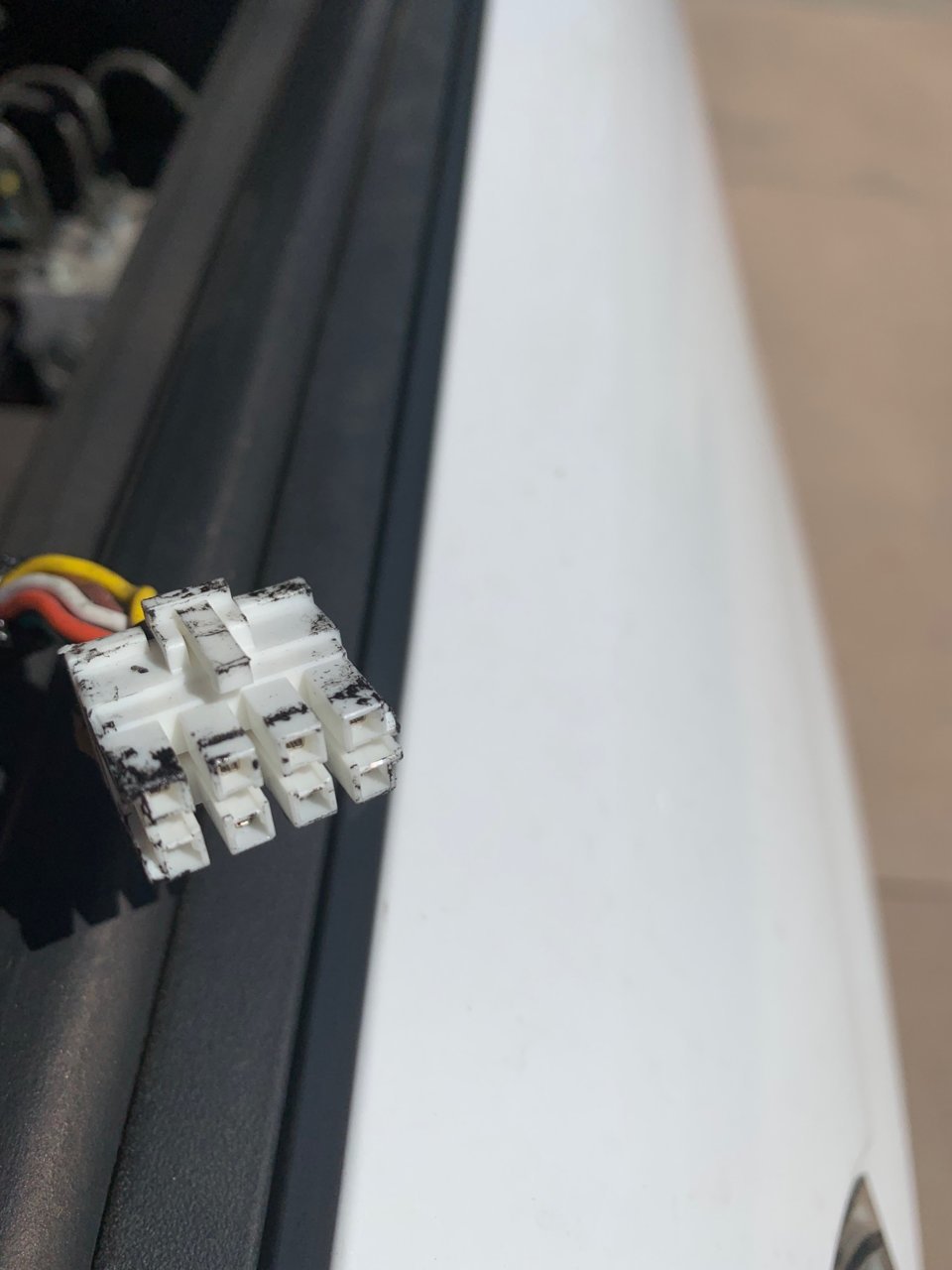

    bought my 2017 tundra used. it came with the shown rocker panel installed, but no fuse box/relay. it ends in the engine bay with the shown cable. i'd like to connect it to some lights, but can't figure out what relay it hooks in to.
    will this plug into an SPOD?


  2. Sep 15, 2019 at 1:54 PM
    #2
    JimboSlice413

    JimboSlice413 Super Nice Guy

    Joined:
    Jan 14, 2019
    Member:
    #24486
    Messages:
    1,114
    Gender:
    Male
    First Name:
    Jim
    Bakersfield
    Vehicle:
    2016 Limited 4x4, 2003 Sequoia
    Bilstein 5100/5160 Toyo at2 295/70r18 Ray10 GunMetal
    You don't need it to hook up directly to any particular relay, relays all have the same basic function no matter who makes them. They are switches operated by a control voltage, the control voltage is operated by your panel rocker switches, that's it. The rocker switches aren't rated for high loads and to avoid putting huge clunky wires and rocker switches in your console, we run them through a contactor/relay. How many wires are in stabbed into the back of that connector, I can't quite see them all

  3. Sep 15, 2019 at 2:12 PM
    #3
    WolfZ

    WolfZ [OP] New Member

    Joined:
    Sep 22, 2018
    Member:
    #19696
    Messages:
    8
    Gender:
    Male
    thanks for the help - that's great.

    Last edited: Sep 15, 2019
  4. Sep 15, 2019 at 2:23 PM
    #4
    JimboSlice413

    JimboSlice413 Super Nice Guy

    Joined:
    Jan 14, 2019
    Member:
    #24486
    Messages:
    1,114
    Gender:
    Male
    First Name:
    Jim
    Bakersfield
    Vehicle:
    2016 Limited 4x4, 2003 Sequoia
    Bilstein 5100/5160 Toyo at2 295/70r18 Ray10 GunMetal
    I looked there's up, looks like they run a low voltage cat6 cable in between their switch panel and relay, which makes it kind of a proprietary system. They sell a universal model that looks like it just switches line voltage, let me look into it a little more.
    https://www.4x4spod.com/universal_modular_6_switch_panel_w_36_inch_battery_cable

    Last edited: Sep 15, 2019
  5. Sep 15, 2019 at 2:30 PM
    #5
    WolfZ

    WolfZ [OP] New Member

    Joined:
    Sep 22, 2018
    Member:
    #19696
    Messages:
    8
    Gender:
    Male

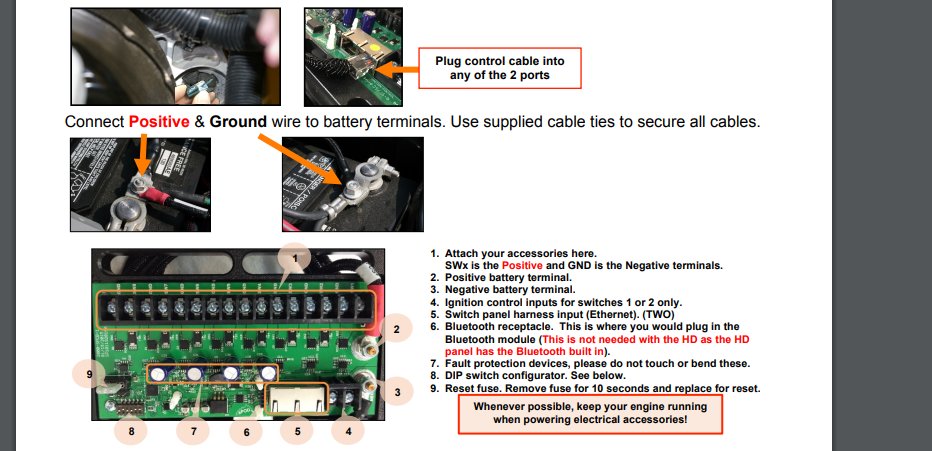

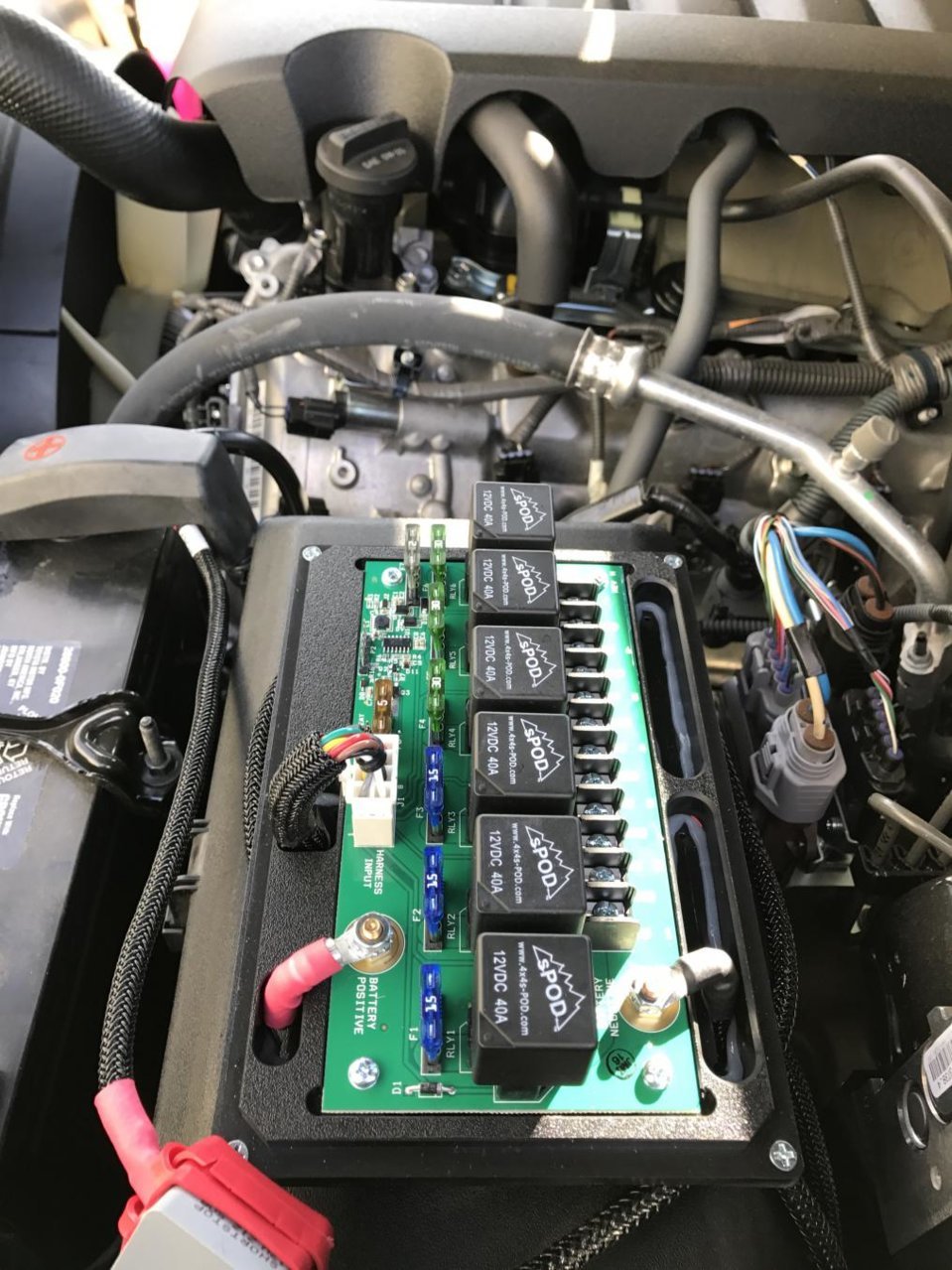

    found this picture on another forum. it looks like the harness input will be a direct plug in for my connector.
    thanks!


    JimboSlice413 likes this.
  6. Sep 15, 2019 at 2:38 PM
    #6
    JimboSlice413

    JimboSlice413 Super Nice Guy

    Joined:
    Jan 14, 2019
    Member:
    #24486
    Messages:
    1,114
    Gender:
    Male
    First Name:
    Jim
    Bakersfield
    Vehicle:
    2016 Limited 4x4, 2003 Sequoia
    Bilstein 5100/5160 Toyo at2 295/70r18 Ray10 GunMetal
    Nice, its hard to tell which models have the connector like your and which have the ethernet connector style, they cover half the board in their pictures. Looks like the universal model I linked has the connector you need, others do not.

  7. Sep 15, 2019 at 2:40 PM
    #7
    JimboSlice413

    JimboSlice413 Super Nice Guy

    Joined:
    Jan 14, 2019
    Member:
    #24486
    Messages:
    1,114
    Gender:
    Male
    First Name:
    Jim
    Bakersfield
    Vehicle:
    2016 Limited 4x4, 2003 Sequoia
    Bilstein 5100/5160 Toyo at2 295/70r18 Ray10 GunMetal
    Also, just because they fit does not mean they're wired the same. That 8 pin modex connector is very common, nothing a multimeter can't ring out though. Good luck

  8. Sep 15, 2019 at 3:19 PM
    #8
    WolfZ

    WolfZ [OP] New Member

    Joined:
    Sep 22, 2018
    Member:
    #19696
    Messages:
    8
    Gender:
    Male
    awesome - thanks again for the help!

    JimboSlice413 likes this.
