Reverse light- what wires to tap?

Discussion in '3rd Gen Tundras (2022+)' started by DexterL, Feb 18, 2023.

Post Reply

Feb 18, 2023 at 1:47 PM

#1

#1
DexterL [OP] New Member

Joined:

Oct 31, 2017

Member:

#10655

Messages:

2,592

Gender:

Male

Vehicle:

21 lunar rock TRD pro Seqouia

Was just installing my old vleds led reverse light on my truck (finally) and see 3 wires leaving the led reverse lights on the bumper- any guidance which one of these to tap my 2 wire light into?

DexterL, Feb 18, 2023

#1

Feb 18, 2023 at 2:16 PM

#2

#2
1lowlife Toxic prick and pavement princess..

Joined:

May 4, 2016

Member:

#3296

Messages:

10,661

First Name:

DADA

THE GREAT STATE OF TEXAS

Vehicle:

2014 MGM DC SR5

Ultimate TUNDRA Wiring Diagrams Collection | Toyota Tundra Forum (tundras.com)

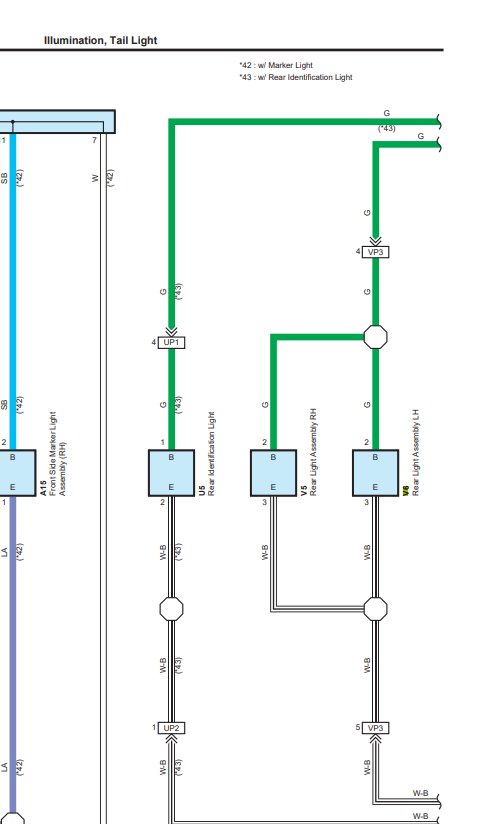

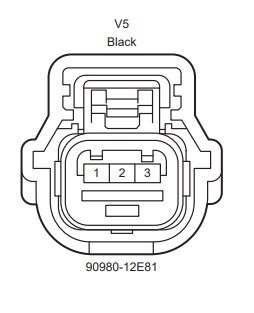

V5 and V6 is the connector in your pic.

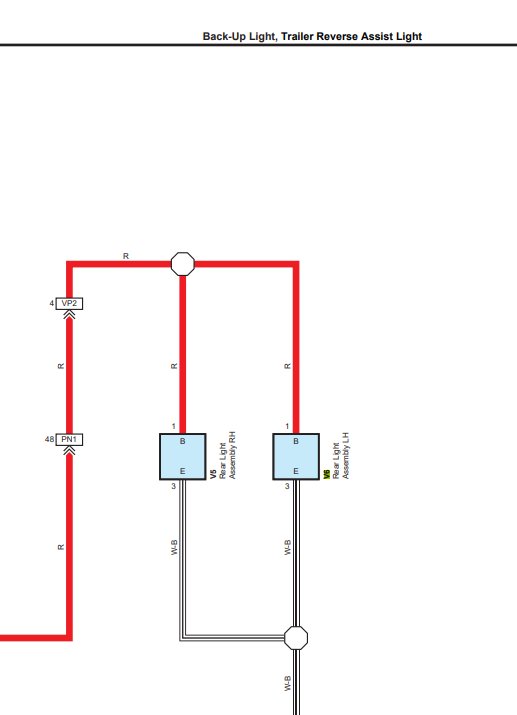

1. Red - reverse
2. Green - parking light
3. White w/ black stripe - ground

Last edited: Feb 18, 2023

1lowlife, Feb 18, 2023

#2

TampaRD Pro and TundraWorkHorse like this.

Feb 18, 2023 at 2:24 PM

#3

#3
1lowlife Toxic prick and pavement princess..

Joined:

May 4, 2016

Member:

#3296

Messages:

10,661

First Name:

DADA

THE GREAT STATE OF TEXAS

Vehicle:

2014 MGM DC SR5

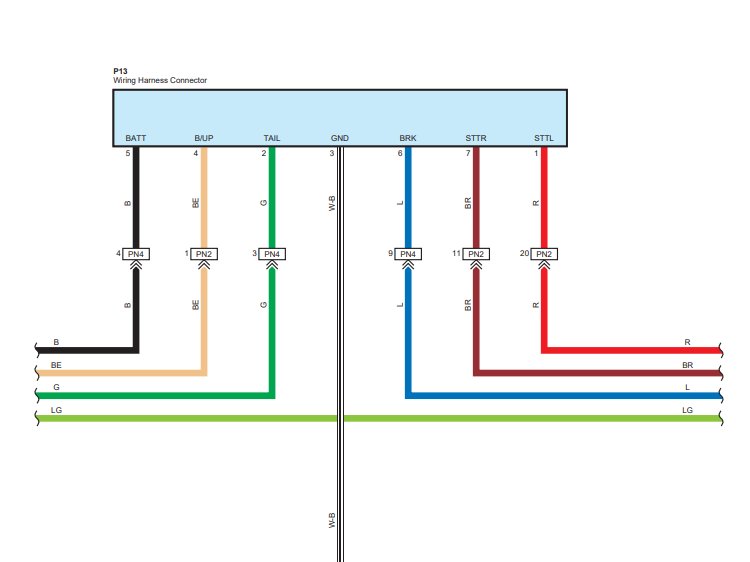

If it is easier you could also use your trailer light plug.
Pin 4 - beige in the middle is reverse
Pin 3 - white /black stripe is ground

Last edited: Feb 18, 2023

1lowlife, Feb 18, 2023

#3

Siblue and TundraWorkHorse like this.

Feb 18, 2023 at 3:50 PM

#4

#4
DexterL [OP] New Member

Joined:

Oct 31, 2017

Member:

#10655

Messages:

2,592

Gender:

Male

Vehicle:

21 lunar rock TRD pro Seqouia

Awesome thanks all!

DexterL, Feb 18, 2023

#4

1lowlife likes this.
