relay question

Discussion in 'Electrical' started by Rick B, Sep 18, 2022.

Post Reply

Sep 18, 2022 at 11:37 AM

#1

#1
Rick B [OP] New Member

Joined:

Aug 28, 2022

Member:

#82528

Messages:

1

Gender:

Male

First Name:

Rick B

Vehicle:

2012 Tundra TRD

Hello I'm new to this group, I have a 2012 Tundra and I'm wondering what the R9 and R17 relay's do in the engine power destitution box do? I can't find any schematic on them but are there and on several others I've seen also show them. under the cover says BACK P/W #1 and BACK P/W #2 which leads me to believe they're for the back window(s) any help would be great.
TIA

Rick B, Sep 18, 2022

#1

Sep 18, 2022 at 12:35 PM

#2

#2
JCBerb Semper Fi

Joined:

Mar 30, 2017

Member:

#7030

Messages:

391

Gender:

Male

First Name:

Joel

Vehicle:

2017 CM LImited

C4 Overland bumper, BD SAE fogs, Leitner Designs Rack, Rago Bed Channel Stiffiners, Warn Xeon 12S Plarinum, Bedslide, Front Runner Roof Rack, roof rack solar panels, RCI Full under carriage aluminum studs, RCI rear diff skid, Rago dash plate, Rago accessory panels, OEM LED headlights with wiring harness.

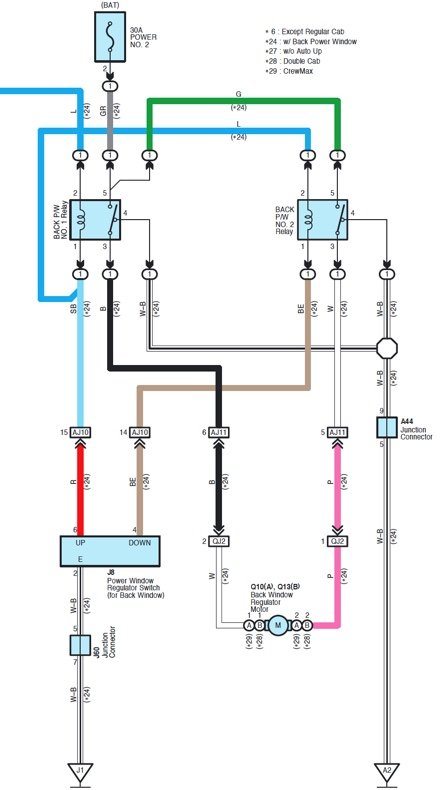

This schematic is for a 2.5gen but the layout for your gen is very similar. Power window regulator switch and regulator motor.

JCBerb, Sep 18, 2022

#2
