Re-geared to 4.10's & LSD rebuild/mod

Discussion in '1st Gen Tundras (2000-2006)' started by assassin10000, Dec 28, 2020.

  1. Feb 8, 2024 at 7:00 PM
    #31
    455h0le_dachshund

    455h0le_dachshund The older I get, I realize I'll never grow up.

    Joined:
    Nov 21, 2023
    Member:
    #107257
    Messages:
    4,435
    First Name:
    Dog
    TX...big surprise
    Vehicle:
    Dragstrip Rocketship
    What is the advantage of the solid pinion spacer?

    Now that's you've had the 4.10's for a while, are you 100% satisfied or do you sometimes wish you had gone for 4.30 gears?
    I'm back and forth between those two, because I have the 4 speed auto and non-vvti in my 03. I might drop down a tire size from 265/60r18 to 255/60r18 because my truck is lowered and rubs a little on the frame with hard turns.

    Plus if I'm completely honest,. I sometimes wish I had gone with 4.88 instead of 4.56 in my 06 on 33's.

    Last edited: Feb 8, 2024
    FrenchToasty likes this.
  2. Feb 8, 2024 at 7:07 PM
    #32
    assassin10000

    assassin10000 [OP] New Member

    Joined:
    Oct 27, 2020
    Member:
    #54157
    Messages:
    2,033
    First Name:
    Andrew
    Northern CA
    Vehicle:
    '05 SR5 AC
    Remote start alarm Removed keyless entry piezo Qi phone charger & dash mount Subaru underseat subwoofer Hopkins Easylift Steering wheel audio controls No-tenna mod 3/4 adhesive anti-rattle shim D/S door
    Solid pinion once setup means I can easily replace pinion seals or pinion flanges without having to worry about over torquing and crushing a crush sleeve which can lead to pinion bearing failure.

    It's also stouter and means if in a performance vehicle (4x4, drift, etc) I can hammer down without potential deflection. If on a 4x4, you can potentially catch the pinion flange on a rock and crush the sleeve a bit too (very rare, but possible).

  3. Feb 8, 2024 at 7:18 PM
    #33
    455h0le_dachshund

    455h0le_dachshund The older I get, I realize I'll never grow up.

    Joined:
    Nov 21, 2023
    Member:
    #107257
    Messages:
    4,435
    First Name:
    Dog
    TX...big surprise
    Vehicle:
    Dragstrip Rocketship
    So "no" to the 4.30 envy?

  4. Feb 8, 2024 at 7:58 PM
    #34
    assassin10000

    assassin10000 [OP] New Member

    Joined:
    Oct 27, 2020
    Member:
    #54157
    Messages:
    2,033
    First Name:
    Andrew
    Northern CA
    Vehicle:
    '05 SR5 AC
    Remote start alarm Removed keyless entry piezo Qi phone charger & dash mount Subaru underseat subwoofer Hopkins Easylift Steering wheel audio controls No-tenna mod 3/4 adhesive anti-rattle shim D/S door
    It's still in the back of my mind. But I think I'd be seeing worse MPG on the freeway.

    1st is already a big difference for me with the 5 speed.

  5. Apr 1, 2024 at 10:44 PM
    #35
    southof37

    southof37 New Member

    Joined:
    Nov 11, 2023
    Member:
    #106795
    Messages:
    103
    Gender:
    Male
    First Name:
    Geoff
    San Diego
    Vehicle:
    In Search Of 1GT
    A little late to the party but I just picked up a 2002 4wd AC with LSD and 4.56s. 265/70/16 with a speedo that’s off now due to gearing, but clocked next to my wife’s cruiser on the freeway at 70mph, my Speedo reads 80 @ about 2450rpm. I don’t know if I should yellow box it and move forward with some 255/75/17s or regear back to 4.10 with a mild upgrade in tire size. I definitely want to be capable on moderate trails when needed. Hmmm :confused:

    des2mtn and FrenchToasty like this.
  6. Apr 1, 2024 at 10:46 PM
    #36
    455h0le_dachshund

    455h0le_dachshund The older I get, I realize I'll never grow up.

    Joined:
    Nov 21, 2023
    Member:
    #107257
    Messages:
    4,435
    First Name:
    Dog
    TX...big surprise
    Vehicle:
    Dragstrip Rocketship
    255/75r17s and yellow box, 1000%

    shifty` and FrenchToasty like this.
  7. Apr 1, 2024 at 10:50 PM
    #37
    southof37

    southof37 New Member

    Joined:
    Nov 11, 2023
    Member:
    #106795
    Messages:
    103
    Gender:
    Male
    First Name:
    Geoff
    San Diego
    Vehicle:
    In Search Of 1GT
    Back to 4.10 and mild upgrade in tires, eh? Just curious about your rationale. Have you had experience with this same situation before?

  8. Apr 1, 2024 at 10:57 PM
    #38
    455h0le_dachshund

    455h0le_dachshund The older I get, I realize I'll never grow up.

    Joined:
    Nov 21, 2023
    Member:
    #107257
    Messages:
    4,435
    First Name:
    Dog
    TX...big surprise
    Vehicle:
    Dragstrip Rocketship
    I edited my post. I meant bigger tires! :p

    I love the 4.56 and 33's combo on my 06.
    I imagine 32's would be within the parameters of the 4.56

    FrenchToasty likes this.
  9. Apr 1, 2024 at 11:00 PM
    #39
    southof37

    southof37 New Member

    Joined:
    Nov 11, 2023
    Member:
    #106795
    Messages:
    103
    Gender:
    Male
    First Name:
    Geoff
    San Diego
    Vehicle:
    In Search Of 1GT
    Haha, okay. Either way, I better start saving and picking up extra call at work!

  10. Apr 2, 2024 at 1:19 AM
    #40
    assassin10000

    assassin10000 [OP] New Member

    Joined:
    Oct 27, 2020
    Member:
    #54157
    Messages:
    2,033
    First Name:
    Andrew
    Northern CA
    Vehicle:
    '05 SR5 AC
    Remote start alarm Removed keyless entry piezo Qi phone charger & dash mount Subaru underseat subwoofer Hopkins Easylift Steering wheel audio controls No-tenna mod 3/4 adhesive anti-rattle shim D/S door
    I'd stick with the 4.56's if you plan for bigger tires.

    Isn't the yellowbox programmable? (I never checked as the 05-06 can't use it.)


    Or if you have the time, you could possibly grab sequoia 3rd members and swap them for 4.10's until you get your lift/larger tires.

    des2mtn, FrenchToasty and southof37 like this.
  11. Apr 2, 2024 at 5:56 AM
    #41
    southof37

    southof37 New Member

    Joined:
    Nov 11, 2023
    Member:
    #106795
    Messages:
    103
    Gender:
    Male
    First Name:
    Geoff
    San Diego
    Vehicle:
    In Search Of 1GT

  12. Apr 2, 2024 at 6:46 AM
    #42
    whodatschrome

    whodatschrome New Member

    Joined:
    Sep 13, 2023
    Member:
    #103882
    Messages:
    1,225
    Gender:
    Male
    North of North Plains, Oregon
    Vehicle:
    2000 Tundra 4wd AC, 2004 Tundra AC 2wd to 4wd conversion no ABS
    lots of dents
    It's all going to come down to what you're planned use is for the truck. If you tow or haul a bunch of weight, then the 4.56 would be a perfect gear ratio with the optional stock sized 265/70-16 tires. I currently have larger 265/75-16 tires with swapped in 4.10 gears. I tow and haul very heavy loads of firewood quite often. I would definitely benefit going to a lower gear ratio, such as a 4.30 or 4.56. Keep in mind that the original sized tires on the early FGT were a smallish 245/70-16, while the 265/70-16 tires were an option. I also drive closer to 55mph everywhere, so my RPM isn't going to be as high as someone who cruising at 70mph+.

    For overall performance i do like the 4.10 gears matched up with a 265/75-16 tire. 4.56 does sound a bit low for the average driver if you're not towing heavy or laden your truck down with all sort of armor and amber colors LED lightbars. Obviously the larger the tire you end up choosing, the more modifications you'll have to contend with to make them fit. Plus you'll then get worse fuel economy and more wear and tear on the suspension and drivetrain components.

    "Moderate trails" can mean many different things to different people. I'm seen plenty of civics, Soobs, and prius on Back County Discovery routes. I've also seen built to the hilt way-over lander toyotas on the same exact trails...along with a stock early 90's F350 crewcab with a service bed and stock sizes tire...that were pumped up to 80psi. Most all BDR trails can easily be conquered by a FST with smallish 245/70-16 while in 2wd. Thow is in 4wd and you won't have any problems. If you want to have larger tires for the sake of larger tire, then that's a personal preference thing, and that will have to be your own decision, but the stock sized tires will get you most places, short of crawling rock ledges or tire swallowing mud holes.

    It would be kind of a shame to swap out your 4.56 gears when you could probably trade them with somebody else. You didn't mention what brand of LSD you have, so i assume it's stock tundra?

    des2mtn and FrenchToasty like this.
  13. Apr 2, 2024 at 6:55 AM
    #43
    des2mtn

    des2mtn Too full to swallow my pride

    Joined:
    Jul 1, 2020
    Member:
    #48721
    Messages:
    4,110
    SW
    Vehicle:
    2004 Black DC Limited 4x4
    Tonto cover
    I'm with the others here and think you should stick with the 4.56s, especially if you're going to do anything with the tires. If you ever go up to 285s/33's, you'll be a little underwhelmed with 4.10s.

    If you're dead-set on going to 4.10's, I'll be removing my stock differentials with 4.10s with an LSD in a few weeks and we could work out a deal. I'm also in SD.

  14. Apr 2, 2024 at 7:55 AM
    #44
    whodatschrome

    whodatschrome New Member

    Joined:
    Sep 13, 2023
    Member:
    #103882
    Messages:
    1,225
    Gender:
    Male
    North of North Plains, Oregon
    Vehicle:
    2000 Tundra 4wd AC, 2004 Tundra AC 2wd to 4wd conversion no ABS
    lots of dents
    Sounds like you two guys should get a room...and swap diffs

  15. Apr 2, 2024 at 9:31 AM
    #45
    southof37

    southof37 New Member

    Joined:
    Nov 11, 2023
    Member:
    #106795
    Messages:
    103
    Gender:
    Male
    First Name:
    Geoff
    San Diego
    Vehicle:
    In Search Of 1GT
    :rofl:

  16. Apr 2, 2024 at 9:37 AM
    #46
    EvilMilkshake

    EvilMilkshake New Member

    Joined:
    Apr 19, 2019
    Member:
    #29348
    Messages:
    97
    Vehicle:
    05 AC Limited 4x4
    Yes you can. I have one in mine. It required tapping into a single wire behind the gauge cluster + power. Easy.

    455h0le_dachshund likes this.
  17. Apr 2, 2024 at 6:58 PM
    #47
    southof37

    southof37 New Member

    Joined:
    Nov 11, 2023
    Member:
    #106795
    Messages:
    103
    Gender:
    Male
    First Name:
    Geoff
    San Diego
    Vehicle:
    In Search Of 1GT
    So, I’m not dead-set on changing but would 32s be a good compromise with 4.56 gearing? I’m thinking it might work and I’d have a little extra punch left over.

  18. Apr 2, 2024 at 7:05 PM
    #48
    southof37

    southof37 New Member

    Joined:
    Nov 11, 2023
    Member:
    #106795
    Messages:
    103
    Gender:
    Male
    First Name:
    Geoff
    San Diego
    Vehicle:
    In Search Of 1GT
    I would like to eventually get a small trailer like a Scamp or other fiberglass model to tow occasionally but that would be much later on my list of projects, so kinda looks like I’m talking myself into keeping the 4.56s. o_O

    455h0le_dachshund likes this.
  19. Apr 2, 2024 at 10:17 PM
    #49
    455h0le_dachshund

    455h0le_dachshund The older I get, I realize I'll never grow up.

    Joined:
    Nov 21, 2023
    Member:
    #107257
    Messages:
    4,435
    First Name:
    Dog
    TX...big surprise
    Vehicle:
    Dragstrip Rocketship
    That's what I'm thinking

  20. Apr 3, 2024 at 7:22 AM
    #50
    shifty`

    shifty` Yes, this is the third room

    Joined:
    Jun 20, 2020
    Member:
    #48239
    Messages:
    23,854
    ATL
    Vehicle:
    '06 AC Limited V8/4WD
    (see signature for truck info)
    @empty_lord posted details on how to get it to work with the '05-06. It's not plug-and-play, and requires intercepting a wire going to the cluster IIRC. We were shooting the shit w/ @daveeasa about a bypass harness to make it plug n play, but I don't recall where the conversation landed. If it were possible to make it plug n play (I hate slicing/splicing OEM harnesses) I'd do it. I'd love to get my numbers back in order, having my MPG app showing me down in the single-digits for fuel economy a couple fill-ups ago broke my heart a little bit.

  21. Apr 3, 2024 at 8:05 AM
    #51
    daveeasa

    daveeasa FBC Harness Solutions

    Joined:
    Dec 2, 2020
    Member:
    #55605
    Messages:
    4,084
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2002 Tundra SR5 RCLB 4x4, 2005 RC 5MT Prerunner, 2016 Tacoma OR DCSB 6MT
    Dan is very short on details, so far above my level as to be of limited value in terms of me understanding what the requirements are, unfortunately. Shifty might be able to translate into something digestible but I'm swamped / overloaded as it is and behind on all sorts of things so I wouldn't bank on me doing much to help on this. I still have to do my '05 Tacoma yellrbox at some point, since 4.56 I'm reading higher than actual.

    What I did for the tailgate lock (which was so crappy I've disconnected it) was depin and re-pin to 2 pos 090IIU connector then build a Y to feed the lock and the original OEM connector. So no cutting/splicing, just de-pin, re-route, and double-crimp to marry. I did something similar for my 3rd brake light to get the cargo signal accessible but haven't done anything with it yet, just have bare wire crimped together at the bottom of my B pillar to complete the circuit. Someday I'll get to that and use it to fire a relay to feed my shell / bed lighting plans.

  22. Apr 3, 2024 at 1:37 PM
    #52
    whodatschrome

    whodatschrome New Member

    Joined:
    Sep 13, 2023
    Member:
    #103882
    Messages:
    1,225
    Gender:
    Male
    North of North Plains, Oregon
    Vehicle:
    2000 Tundra 4wd AC, 2004 Tundra AC 2wd to 4wd conversion no ABS
    lots of dents
    Just how light of a trailer is it?

    I’m just going to say this...diesel brodozers are know for installing the largest tire they can on their pick’em up trucks so that they can tow their glamping trailers around...or toy haulers, or their excavators. I have a good friend who does hot shot transport for a living. I’ve been on many road trips with him taking turns hauling heavy 5th wheels, slide in campers, and bumper pull trailers. When you’re towing, keep the tires stock and it will rock. I personally think that bumping up your tire size to match your existing 4.56 gearing would be going backwards....UNLESS you want to have 32” tires. Keep in mind that the larger the tire, the worse the fuel economy.

    Different vehicle, but i used to have a jeep CJ7 (straight 6 engine) that had a 5 speed, 4.56, and 32x11.5x15 tires. The gearing was perfect for that jeep, and that jeep spent a genuine 50% of the time offroad being hammered on. If the jeep spent more time on the highway, then i would have kept the 4.10 gears in order to keep the rpm lower. I also have a second CJ7 that has a v8, 5 speed, 4.88 gears, 33” tires. With that low gearing it isn’t very pleasurable to drive on the road. I then also have a jeep YJ with the gutless 4cyl, 5speed, 32” tires, and the 5.13 gears are awesome for the highway.

    So what all does that mean? Well each engine will react different to gearing, but if you had 31”-ish tires on it, 4.10 would match up pretty well.

  23. Apr 3, 2024 at 1:46 PM
    #53
    southof37

    southof37 New Member

    Joined:
    Nov 11, 2023
    Member:
    #106795
    Messages:
    103
    Gender:
    Male
    First Name:
    Geoff
    San Diego
    Vehicle:
    In Search Of 1GT
    All understood. I would only tow a small trailer like a 13ft - 16ft and it wouldn’t be often. No toy hauler for me. My 32s would most likely be more of the pizza cutter variety of ~10” wide. I do not want to go overboard, just enough to give me a bit better clearance for the rocks now and then. This is not going to be my daily. I have time to figure it out since I need to save up for the suspension I want. I appreciate all the comments and suggestions.

    455h0le_dachshund likes this.
  24. Apr 3, 2024 at 8:36 PM
    #54
    empty_lord

    empty_lord They see me rollin'

    Joined:
    Feb 1, 2019
    Member:
    #25441
    Messages:
    10,084
    Gender:
    Male
    First Name:
    Dan
    Indiana, Chicagoland
    Vehicle:
    05 rollover special
    custom body work, Billies with taco ARB springs, Icon AAL, TRD FJ trail team wheels, 2019 Toyota 86 radio, Blacked out interior, Added factory power everything, heater mirrors, ETC
    Would need to source a PCB connector to make a T harness and intercept the SPD signal to the cluster. The output is from the ABS unit. Impossible to get that connector for a t harness.

    455h0le_dachshund likes this.
  25. Sep 11, 2024 at 10:02 PM
    #55
    assassin10000

    assassin10000 [OP] New Member

    Joined:
    Oct 27, 2020
    Member:
    #54157
    Messages:
    2,033
    First Name:
    Andrew
    Northern CA
    Vehicle:
    '05 SR5 AC
    Remote start alarm Removed keyless entry piezo Qi phone charger & dash mount Subaru underseat subwoofer Hopkins Easylift Steering wheel audio controls No-tenna mod 3/4 adhesive anti-rattle shim D/S door

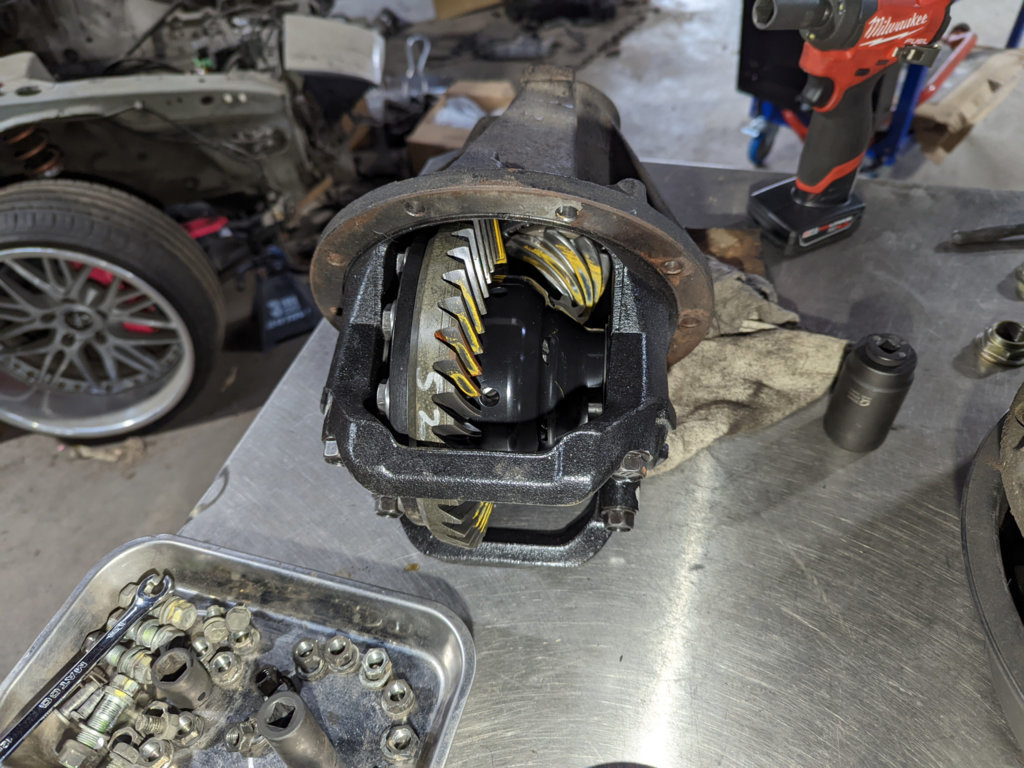

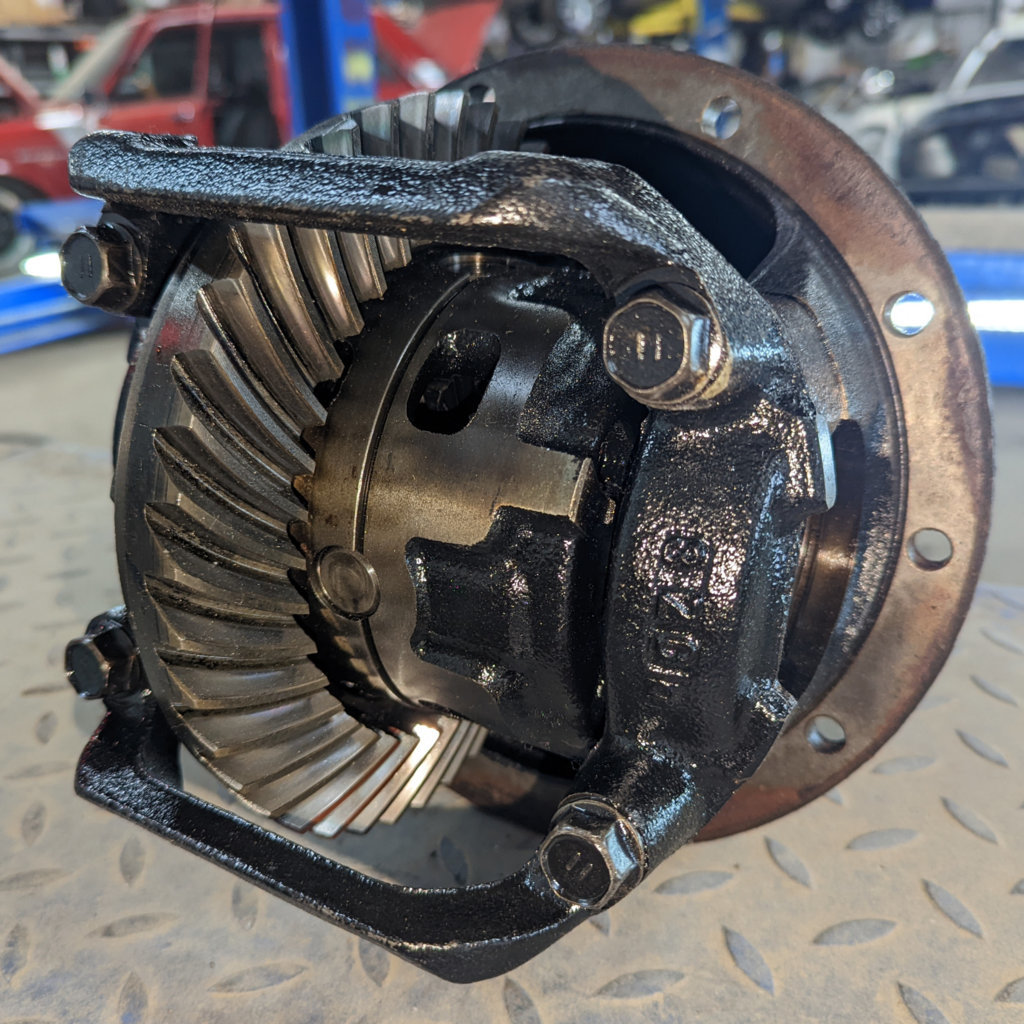

    So still on 4.10's but no longer running the OEM LSD in my truck. I picked up another 3rd member to install a powertrax grip pro (torsen) LSD.

    What's currently in my truck:


    Since the OEM LSD 3rd is out, and worn out. I've decided to rebuild it, before it gets re-homed. The diff/LSD in question:

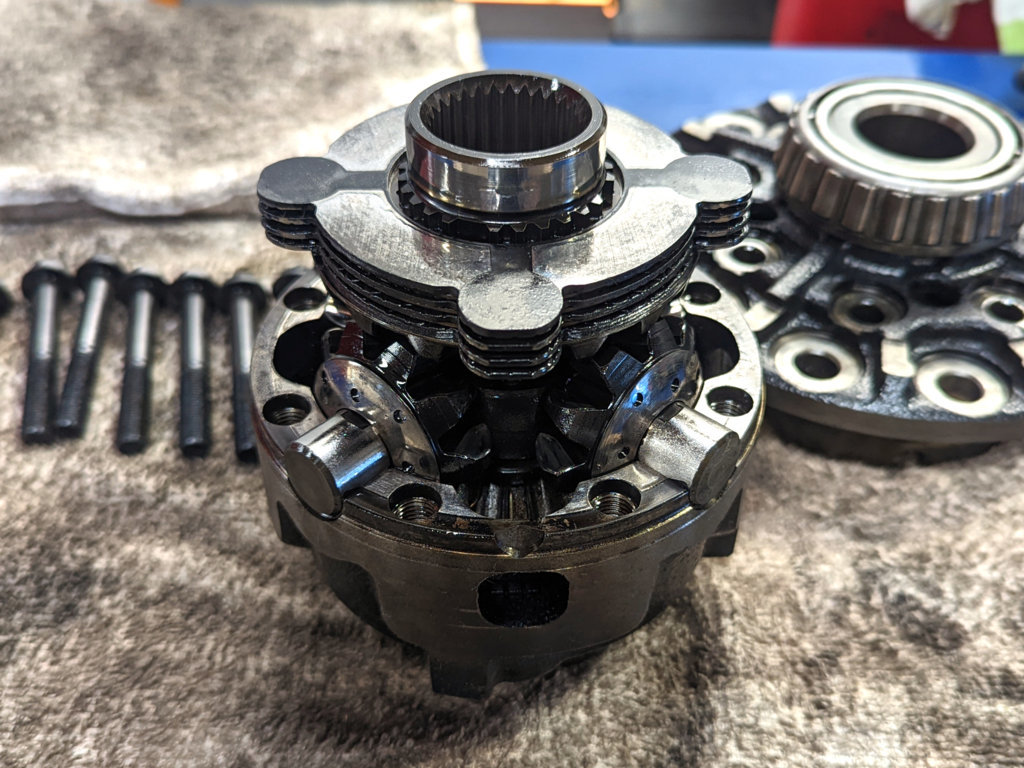

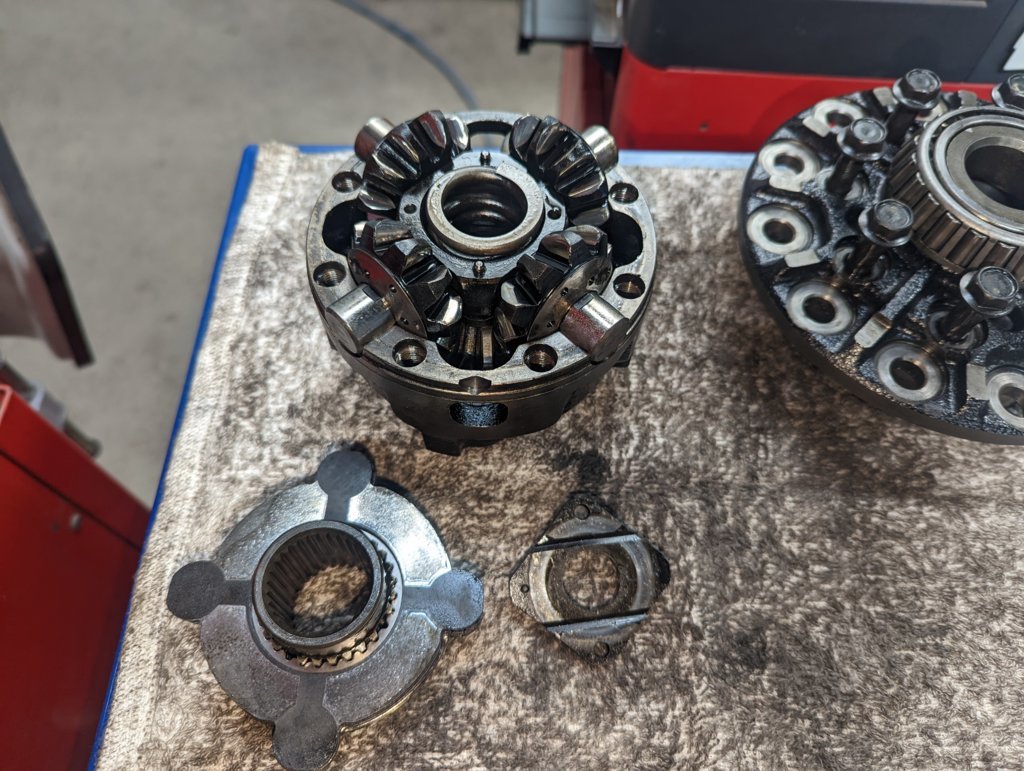

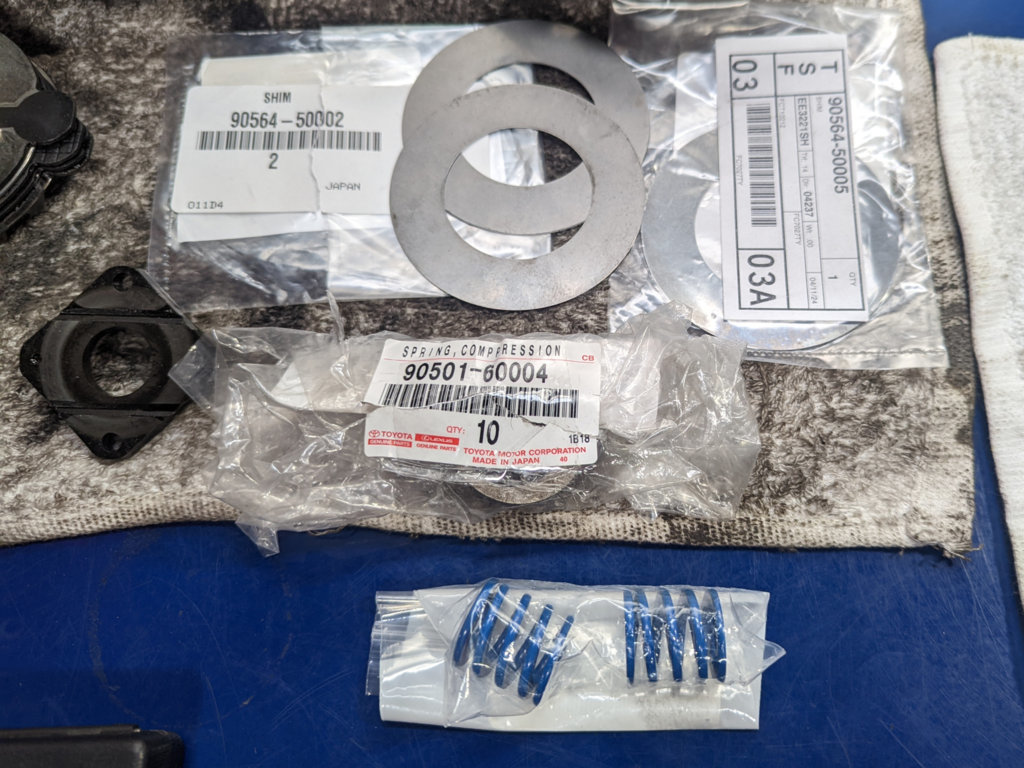

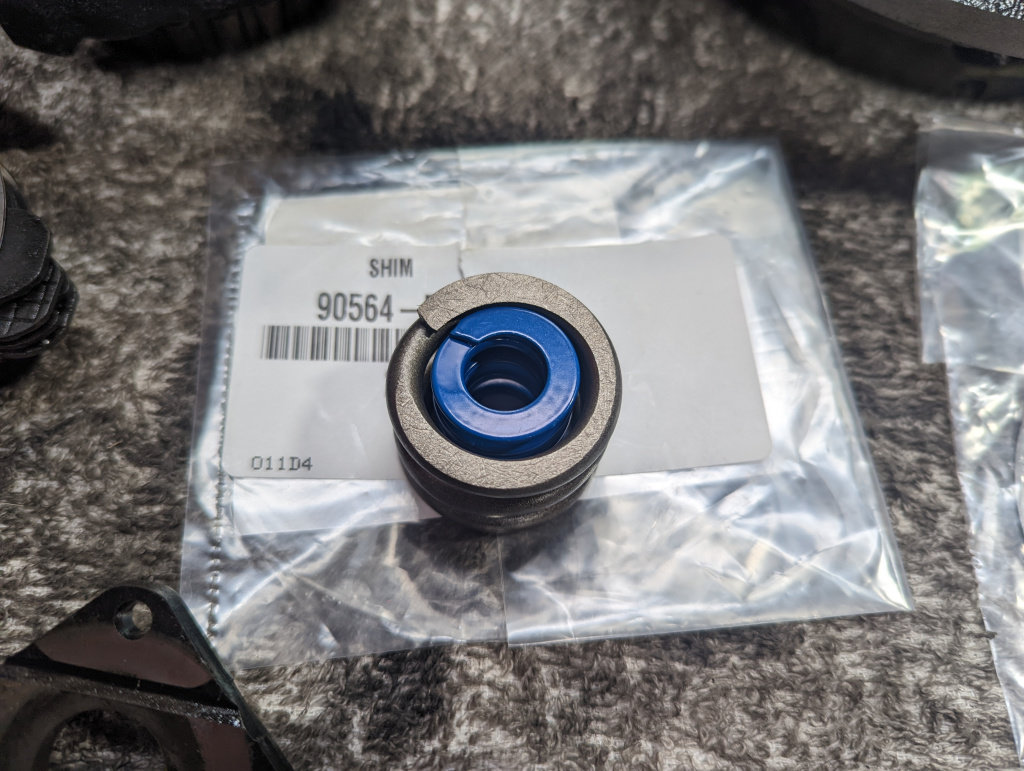

    Took it out, apart and measured it to order the shims and spring to rebuild it properly.


    Since I realized the design of these OEM LSD's is kind of 'weak' traction wise. I figured out a way to upgrade the lockup of the diff with an additional spring. As unlike other LSD units, the 1st gen LSD does NOT have a ramp system to apply extra pressure to the clutch plates as torque is applied. That means the lockup is wholly dependent on the friction generated by the internal spring against the clutch plates.


    To do this I made a SST out of some junkyard axles and a nut.


    Initial measurements of the rotational torque achieved thus far (no oil):

    22 ft-lbs - worn out OEM. No oil.
    150 ft-lbs - rebuilt OEM. No oil.

    At this point I realized I forgot to oil the plates after measuring for the rebuild. When I rechecked it after adding gear oil to the clutch plates, there was a massive drop:

    37 ft-lbs - rebuilt OEM, with oil.

    So a fresh OEM LSD or rebuilt OEM LSD will give jist under 40 ft-lbs of torque to the slipping wheel and tire. That's not much.



    I have 2 of 4 upgrades in hand, so I tested those while the others are still in the mail.

    50 ft-lbs - rebuilt, upgrade #1
    53 ft-lbs - rebuilt, upgrade #2


    Not too shabby now, the upgrade parts were very similar but one was a hair larger. Getting close to doubling the lockup. 75 ft-lbs is about what I'd expect from an OEM clutch type LSD on a sports or passenger car. So getting better.

    Last edited: Sep 30, 2024
  26. Sep 30, 2024 at 11:00 PM
    #56
    assassin10000

    assassin10000 [OP] New Member

    Joined:
    Oct 27, 2020
    Member:
    #54157
    Messages:
    2,033
    First Name:
    Andrew
    Northern CA
    Vehicle:
    '05 SR5 AC
    Remote start alarm Removed keyless entry piezo Qi phone charger & dash mount Subaru underseat subwoofer Hopkins Easylift Steering wheel audio controls No-tenna mod 3/4 adhesive anti-rattle shim D/S door

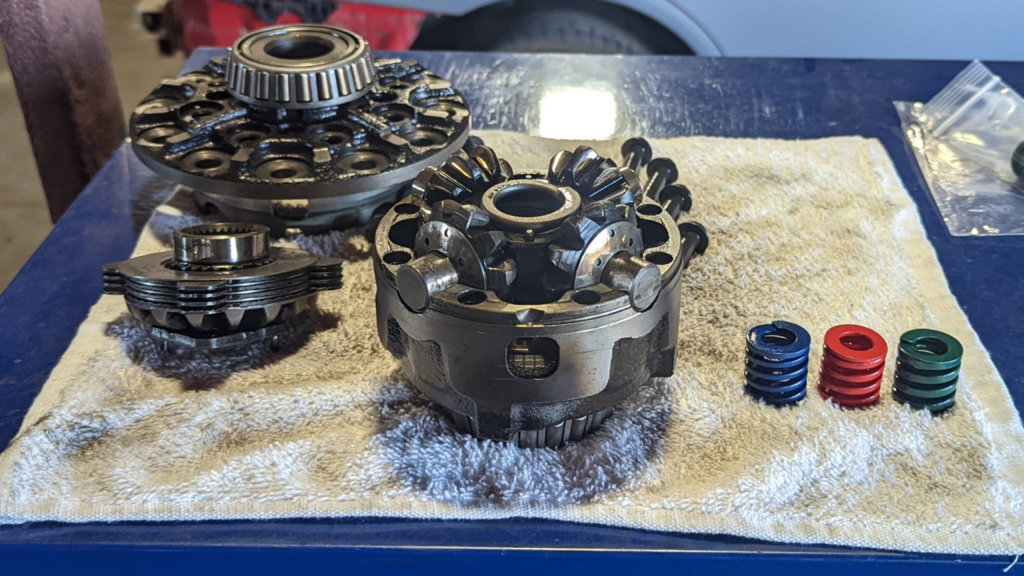

    Upgrades 3 & 4 arrived this weekend.


    60 ft-lbs and 82 ft-lbs approximately.



    If anyone here is interested in rebuilding/upgrading their OEM LSD lmk. I have 5 extra springs now, I could mail you one or rebuild just the LSD for you.

  27. Oct 1, 2024 at 9:04 AM
    #57
    455h0le_dachshund

    455h0le_dachshund The older I get, I realize I'll never grow up.

    Joined:
    Nov 21, 2023
    Member:
    #107257
    Messages:
    4,435
    First Name:
    Dog
    TX...big surprise
    Vehicle:
    Dragstrip Rocketship
    @The Black Mamba

    FrenchToasty likes this.
  28. Oct 1, 2024 at 9:34 AM
    #58
    BluegrapeVr6

    BluegrapeVr6 New Member

    Joined:
    Sep 1, 2022
    Member:
    #82757
    Messages:
    388
    Gender:
    Male
    First Name:
    J
    Vehicle:
    02 SR5 RC Desert Sand- ARB'd 4x4
    BOSS head Unit, Track Rack, Tint. MT Baja Legend EXP 16x9, Pro-Comp 69, Icon Titanium Rebound 17x8. Cant decide on Lift. ARB Rear. Bash Fab Sliders.

    I have found same thing. It would not be stange* to get the occassional 280 miles to a tank with ton of low speed mixed in. Since gears im more in 300- 340 range. Think i hit a honest 18 lmpg with regular driving. I could only get close to that with the factory gears doing 100% highway.

  29. Oct 2, 2024 at 11:44 AM
    #59
    BluegrapeVr6

    BluegrapeVr6 New Member

    Joined:
    Sep 1, 2022
    Member:
    #82757
    Messages:
    388
    Gender:
    Male
    First Name:
    J
    Vehicle:
    02 SR5 RC Desert Sand- ARB'd 4x4
    BOSS head Unit, Track Rack, Tint. MT Baja Legend EXP 16x9, Pro-Comp 69, Icon Titanium Rebound 17x8. Cant decide on Lift. ARB Rear. Bash Fab Sliders.
    I like the 32" tire on fgt becaise they bolt right up and dont rub, but accell and braking suffered. For 85/15% road off road ( im prob in mainly muddy hills more like 35% due to my work... following an A40 up hauling roads etc. Its easy to fall into their ruts) ..point is 32" and under 4.30 is sweet spot ( i forget my tire might be under 32) as im still under 3krpm at 75MPH. IF * i had desire to dump money into this platform ( i dont i think they are amazing med duty trucks...but, ultimately IFS) , i guess 4.56 could be super fun or lower. Us A340 guys need gears, after tires i think 1st gear went to 50mph or something wild. You 5 speed guys have it better.

  30. Oct 2, 2024 at 7:54 PM
    #60
    daveeasa

    daveeasa FBC Harness Solutions

    Joined:
    Dec 2, 2020
    Member:
    #55605
    Messages:
    4,084
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2002 Tundra SR5 RCLB 4x4, 2005 RC 5MT Prerunner, 2016 Tacoma OR DCSB 6MT
    I believe the 4 spd transmission has a slightly taller overdrive than the 5? Am I misremembering?

    My 4.56 feels so different than my ‘16 on 4.30 did before it went to 4.88. So much torque that I put it in neutral at stoplights.

    455h0le_dachshund likes this.

Products Discussed in

To Top
