Radio pin out

Discussion in '1st Gen Tundras (2000-2006)' started by Larryr914, Oct 5, 2021.

  1. Oct 5, 2021 at 8:15 AM
    #1
    Larryr914

    Larryr914 [OP] New Member

    Joined:
    May 4, 2019
    Member:
    #30084
    Messages:
    6
    Gender:
    Male
    First Name:
    Larry
    Hi All - I just swapped out my stock radio, with cassette and CD. Put in a new head unit with Bluetooth for music and hands free phone, etc. I just discovered I left a CD in the old radio :-( - and there is no way I want to pull the new unit to get at the harnesses and plug the old radio to power it up and rescue the CD - if I don't have to. Can anyone tell me which pin is the power in? I've searched online and haven't found one that looks like mine. I don't want to just start poking around with 12v and risk frying the radio. The radio still works great - just no Bluetooth.

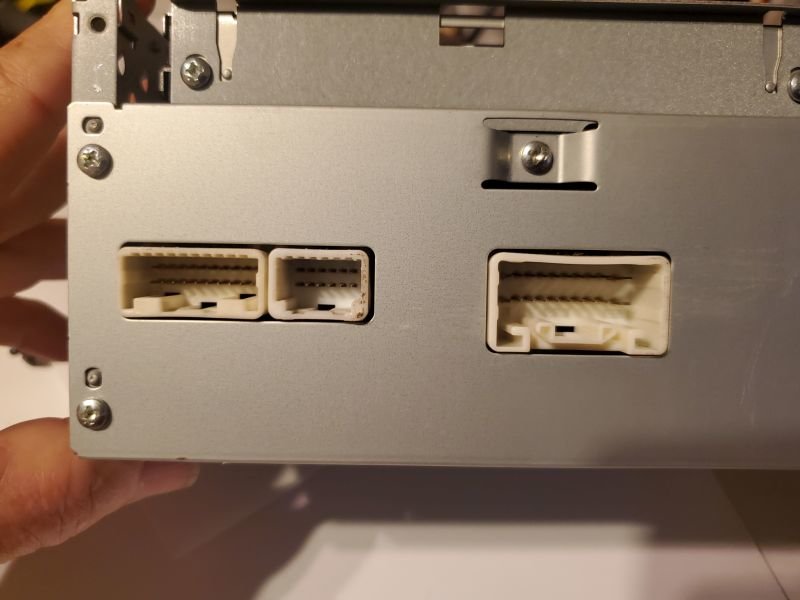

    I've attached photo to show my radio's plug config.
    TIAS Tundra ports 1.jpg

  2. Oct 5, 2021 at 8:58 AM
    #2
    BubbaW

    BubbaW Blessed 2 B above Ground

    Joined:
    Aug 19, 2019
    Member:
    #34845
    Messages:
    3,817
    First Name:
    Bubba
    Where Eagles Nest
    Vehicle:
    04 DC LTD 4X4 4.7 V8
    T150 Lover
    Since certain electronics/pin outs change on our 1st Gen, what year/model/trim do you have ?
    That is going to be awful close when applying 12v so closely to other pins. Might want to reconsider temporarily hooking it back up....IMHO !

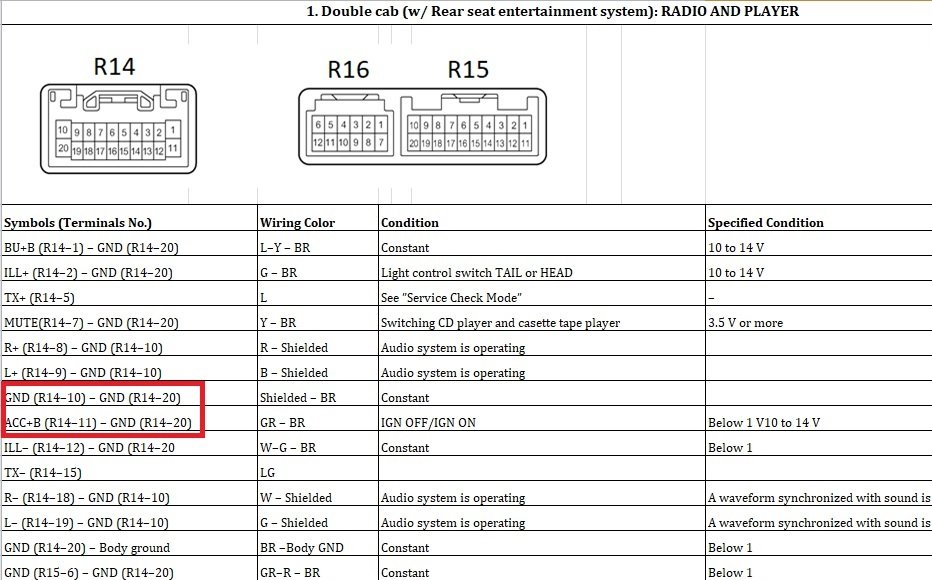

    While it may not be same as your MY, my JBL system with RSES, connector R14 are pin 10 and 11....gnd/12v respectfully ! Yours may be different according to what year


    Last edited: Oct 5, 2021
    shifty` and Darkness like this.
  3. Oct 5, 2021 at 9:20 AM
    #3
    Larryr914

    Larryr914 [OP] New Member

    Joined:
    May 4, 2019
    Member:
    #30084
    Messages:
    6
    Gender:
    Male
    First Name:
    Larry
    Thanks - I have the access cab and it's not a JBL - I believe pin #20 is the main 12v in, on my Fujitsu Ten/Toyota radio. The pin above is a ground so if I hit it, it may spark, but shouldn't fry any thing. Pulling the radio is not a huge job, but will do that if my try to "hot wire" the radio on the bench fails.
    Thanks again for the quick response!

  4. Oct 5, 2021 at 9:24 AM
    #4
    BubbaW

    BubbaW Blessed 2 B above Ground

    Joined:
    Aug 19, 2019
    Member:
    #34845
    Messages:
    3,817
    First Name:
    Bubba
    Where Eagles Nest
    Vehicle:
    04 DC LTD 4X4 4.7 V8
    T150 Lover
    What year.....with that, one can look at electrical drawings we have available on this site to find proper pinouts !

  5. Oct 5, 2021 at 11:41 AM
    #5
    Larryr914

    Larryr914 [OP] New Member

    Joined:
    May 4, 2019
    Member:
    #30084
    Messages:
    6
    Gender:
    Male
    First Name:
    Larry
    sorry - had to go run errands. 2003, I'll try a search. Thanks again.
