Overlandering/welding project build thread

Discussion in '2.5 Gen Builds (2014-2021)' started by helidave, Nov 1, 2022.

  1. Nov 1, 2022 at 12:09 PM
    #1
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights

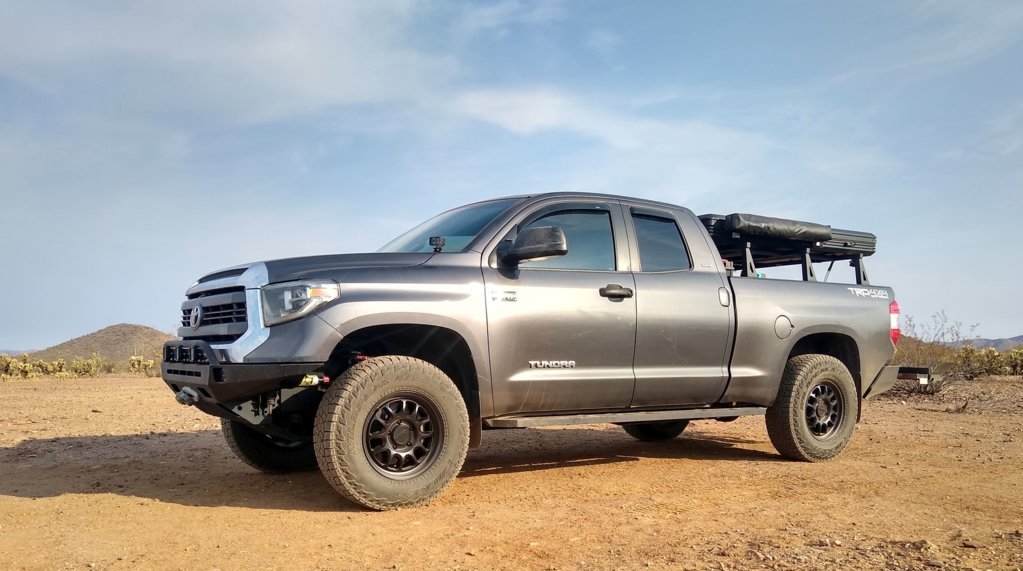

    2015 TRD Offroad 4x4, bought stock in 2018. Started pretty basic with a leveling kit, then snowballed from there.

    IMG_20240517_140050332_HDR.jpg IMG_20240517_140141357_HDR.jpg IMG_20240517_171102289.jpg


    Suspension:
    ADS 2.5 coilovers and rear shocks w/clickers
    MCM upper control arms
    Durobumps
    Icon RXT leaf on Option 2
    Airbags w/Daystar cradles
    1" Bora wheel spacers
    285/75-18 Falken Wildpeaks

    Exterior:
    RCI skidplates
    Coastal Offroad front bumper
    DIY rock sliders
    DIY rear bumper
    DIY bed rack
    DIY bed stiffeners
    Raptor Liner bedliner

    Lights:
    Diode Dynamics SS3 Sport SAE fog lights (in front bumper)
    Diode Dynamics SSC2 Pro ditch lights
    Diode Dynamics SSC1 Pro chase lights
    Diode Dynamics SS3 Max (3) (on front bumper)
    KC Cyclone rock lights
    Toyota 2019 LED headlights

    Powertrain:
    DD 8" exhaust
    Magnuson TVS2650 supercharger
    Sniv's Speed Shop tune
    Sniv's Speed Shop 76mm pulley
    Radium catch can
    SABM

    Other:
    Switch-Pros 9100

    Smittybilt X20 10k winch
    DIY CO2 tire inflator tank
    UV-5R w/ roof mount antenna
    Weboost cell phone booster
    SDHQ ABS sensor guards
    Powerstop pads and rotors
    Ultragauge MX OBD2 display

    Camping:
    23 Zero Breezeway tent
    Topoak Galaxy hardshell tent
    Tuff Stuff 270 awning
    Iceco JP 40 fridge
    Partial rear seat delete w/ fridge, power panel, and 100ah lithium battery

    To-do list:
    Gears & locker

    Last edited: May 20, 2024
    TRD VO, Wallygator, n0rth and 9 others like this.
  2. Nov 1, 2022 at 12:12 PM
    #2
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    V1
    Eibach +2" coilovers & shocks
    Bed tent
    ARB awning
    RB10 running boards
    275/70-18 Wildpeaks

    Last edited: May 14, 2023
  3. Nov 1, 2022 at 12:15 PM
    #3
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Build rock sliders. All 1.75" .120 wall tube and 3/16 mounting plates. They clamp around the inside lip of the frame similar to the SDHQ ones.
    IMG_20201227_160943343_HDR.jpg IMG_20201229_152440185_HDR.jpg IMG_20210519_135512025_HDR.jpg

    Last edited: Apr 18, 2023
    Wallygator, n0rth, Sunnier and 4 others like this.
  4. Nov 1, 2022 at 12:15 PM
    #4
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Built a bed rack for the RTT and awning (old awning, ARB 2000x2500)
    IMG_20210712_144137730_HDR.jpg IMG_20210725_123122999_HDR.jpg

    Trailer(sold):

    Last edited: Jun 5, 2023
  5. Nov 1, 2022 at 12:16 PM
    #5
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Removed the passenger side rear seat and built a tray to hold the fridge.
    IMG_20220405_090921085_HDR.jpg IMG_20220405_091237516_HDR.jpg

    Last edited: Apr 19, 2024
    Wallygator, PermaFrostTRD and TK1979 like this.
  6. Nov 1, 2022 at 12:17 PM
    #6
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Coastal Offroad bumper kit. Coated it with Raptor liner. Will add a winch at some point.
    IMG_20220614_111913423.jpg IMG_20220625_183539514.jpg IMG_20220708_184128823.jpghtddh.jpg

    Last edited: May 10, 2023
    Terndrerrr, Wallygator, n0rth and 9 others like this.
  7. Nov 1, 2022 at 12:25 PM
    #7
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Kept dragging my hitch on things. Didn't want to spend $2k on a rear bumper so I built my own. 3/16 steel with 1/4" on the mounting plates and hitch parts. Raised the hitch about 7.5" over stock. Had some of the brackets laser cut by Sendcutsend. <-- Awesome service


    Last edited: Apr 18, 2023
    TRD VO, Wallygator, n0rth and 8 others like this.
  8. Nov 1, 2022 at 12:33 PM
    #8
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Other odds and ends:
    Ammo can fire pit
    firecan1.jpg firecan4.jpg

    Mount for jack:
    IMG_20221019_115229666.jpg IMG_20221019_115404104.jpg

    3D printed switch panel, 3D printed Baofeng mount, 3D printed cupholder reducer, color matched some trim

    Last edited: Nov 4, 2022
  9. Nov 1, 2022 at 12:33 PM
    #9
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
  10. Nov 1, 2022 at 12:54 PM
    #10
    Cruzer

    Cruzer Wheeling Full Size

    Joined:
    Oct 12, 2020
    Member:
    #53461
    Messages:
    3,166
    Gender:
    Male
    First Name:
    Cruz
    Sunnyvale, CA
    Vehicle:
    Build Page: Cruzer's Re-Build for the Rubicon
    Damn Dave we seem to like similar things. I have an ammo can pit. I have the same jack, that I keep in the same spot. I've got that 3D printed switch thingy and a mount for my Baofeng.

  11. Nov 1, 2022 at 12:57 PM
    #11
    SD Surfer

    SD Surfer Globe Trotting Bon Vivant

    Joined:
    Oct 13, 2022
    Member:
    #84846
    Messages:
    1,178
    Gender:
    Male
    First Name:
    Bruce
    So Cal
    Vehicle:
    2019 SSM CM SR5 TRD OR 4X4 5.7
    Hell yeah!! Nice fab skills... functional and not bad looking. Well done.

    helidave[OP] likes this.
  12. Nov 1, 2022 at 12:59 PM
    #12
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights

  13. Nov 3, 2022 at 6:26 PM
    #13
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Diesel heater in a harbor freight case. love this thing

    IMG_20221103_150132843.jpg IMG_20221103_150149320.jpg IMG_20221103_150232555.jpg

    Wallygator, n0rth, 300BLK and 5 others like this.
  14. Nov 3, 2022 at 6:59 PM
    #14
    dittothat

    dittothat New Member

    Joined:
    Feb 23, 2019
    Member:
    #26579
    Messages:
    2,836
    First Name:
    Nick
    SD
    Vehicle:
    2016 MGM Platinum
    Do you have YouTube video that guided you on this build or did you just wing it. Looks sweet. On my future projects list but just a little further down..

  15. Nov 3, 2022 at 7:14 PM
    #15
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    There's a ton of videos where people put them in toolboxes and other cases to take ideas from, but there wasn't one specific setup I copied. I bought the case and the fuel tank and figured it out as I went. Really all you need for the basic setup is a holesaw for the ducts and some metal to make a bracket to mount the heater in place. I already had the heater so it was just a matter of transferring everything over.

    Parts from Amazon
    https://www.amazon.com/dp/B09H2RY6BT
    https://www.amazon.com/dp/B01N6RQRSE
    https://www.amazon.com/dp/B07VH4JY17

    @Sunnier

    Last edited: Apr 29, 2023
  16. Apr 18, 2023 at 12:01 PM
    #16
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Added a power panel and 100ah lithium battery to the fridge tray. There's a battery monitor and various power ports on there and it also runs the LEDs on the awning and tent. There is a DC-DC charger hidden underneath so the battery can charge off the truck while driving and I can plug in a portable solar panel when parked.

  17. Apr 18, 2023 at 12:06 PM
    #17
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Diode Dynamics SSC1 pro chase lights w/ wide amber lens.

    Wallygator, dittothat and Cruzer like this.
  18. Apr 18, 2023 at 12:17 PM
    #18
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Next on the "it's warm out, time to do work" list: install the winch that's been sitting here since Black Friday

    Last edited: Jun 5, 2023
  19. Apr 18, 2023 at 1:23 PM
    #19
    Fergie

    Fergie New Member

    Joined:
    Jan 14, 2019
    Member:
    #24519
    Messages:
    263
    Gender:
    Male
    Good winches. Running one right now, and on my FJ40. Previously had one on an 80 series. Saved my ass several times this winter w the snow.

    helidave[OP] likes this.
  20. Apr 18, 2023 at 1:43 PM
    #20
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Nice. They seems to have a good reputation. Do you run the stock hook on yours? Kinda looks like they cheaped out a little on that part

    FrenchToasty likes this.
  21. Apr 18, 2023 at 1:48 PM
    #21
    Fergie

    Fergie New Member

    Joined:
    Jan 14, 2019
    Member:
    #24519
    Messages:
    263
    Gender:
    Male
    On the 40, yes. On the Tundra, no. I swapped it out for a Factor 55 block.

    helidave[OP] likes this.
  22. Apr 21, 2023 at 1:19 PM
    #22
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Winch installed. Added an Agency 6 shackle.

    Had to remove the lightbar from the bumper for the winch to fit, which is pretty lame.

    Last edited: May 2, 2023
  23. Apr 22, 2023 at 6:18 AM
    #23
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Simple onboard water system. Runs to a quick connect by the left taillight to attach a spray nozzle. Need to add another strap to the tanks to hold them in place.

  24. Apr 24, 2023 at 5:27 PM
    #24
    Fergie

    Fergie New Member

    Joined:
    Jan 14, 2019
    Member:
    #24519
    Messages:
    263
    Gender:
    Male
  25. Apr 25, 2023 at 11:38 PM
    #25
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    @Fergie When I was running the winch today it was turning on and off randomly even though I was holding the IN button down constantly. Is that what yours did with the bad switch?

  26. Apr 25, 2023 at 11:57 PM
    #26
    joonbug

    joonbug °°°°°°°°°°

    Joined:
    Oct 13, 2015
    Member:
    #1948
    Messages:
    16,681
    Gender:
    Male
    First Name:
    Joon
    NorCal - Dublin
    Vehicle:
    2020 Long Travel DC
    Those water jugs fit pretty well in a milk crate. Much easier to strap down. But yours looks really clean.

  27. Apr 26, 2023 at 7:39 AM
    #27
    Fergie

    Fergie New Member

    Joined:
    Jan 14, 2019
    Member:
    #24519
    Messages:
    263
    Gender:
    Male
    Intermittently, and then when I went to switch it on and off once, the switch portion fell out entirely.

    helidave[QUOTED][OP] likes this.
  28. May 3, 2023 at 7:25 AM
    #28
    300BLK

    300BLK New Member

    Joined:
    Aug 1, 2019
    Member:
    #34022
    Messages:
    808
    Vehicle:
    2014 Tundra SR5 - Black
    Build looks great. Nice to see another Coastal bumper. Surprised you had to remove your lightbar from your bumper to fit a winch. I'm running an Engo 10k winch in mine with a Baja Designs S8 without any clearance issues. I had to relocate my power steering cooler, however, to fit the winch.

    Baja Designs and helidave[OP] like this.
  29. May 3, 2023 at 8:04 AM
    #29
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    It looked like it would fit but the back of the light hit the front crossbar of the winch about 3/4" before the winch holes lined up, even with the light as far forward as it would go.

    Last edited: May 10, 2023
    300BLK likes this.
  30. May 6, 2023 at 9:52 AM
    #30
    helidave

    helidave [OP] Hellacopter

    Joined:
    Oct 3, 2018
    Member:
    #20151
    Messages:
    972
    Gender:
    Male
    flagstaff
    Vehicle:
    2015 DC 4x4
    Magnuson 2650 w/76mm pulley, ADS suspension, 35's, misc overlanding doo-dads and lights
    Put 3 diode dynamics ss3 Max's on the bumper. More than makes up for the light bar I had to remove. Thanks to @memario1214 for the help demoing lights at T2S.

    Last edited: May 8, 2023
    Wallygator, alb1k and Vizsla like this.
