Need help with part numbers

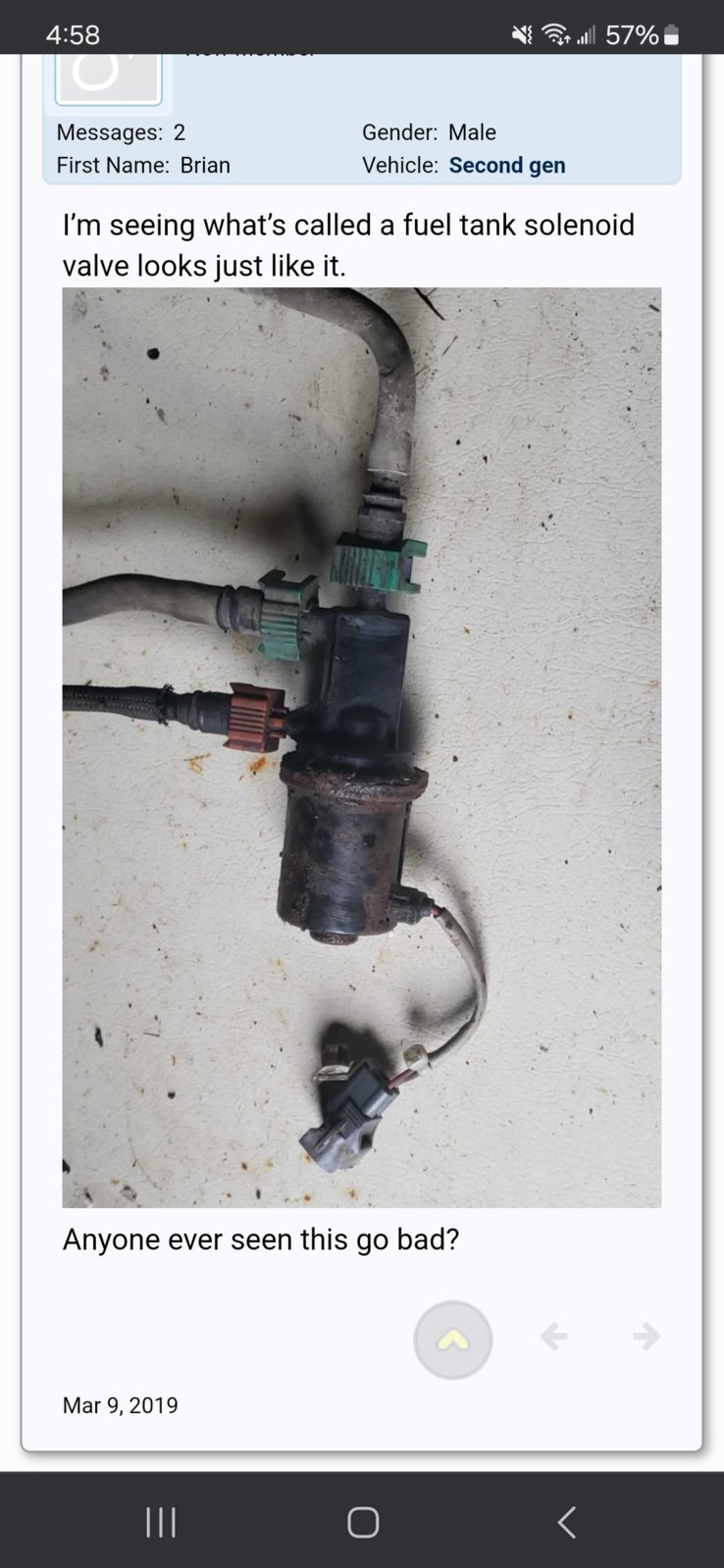

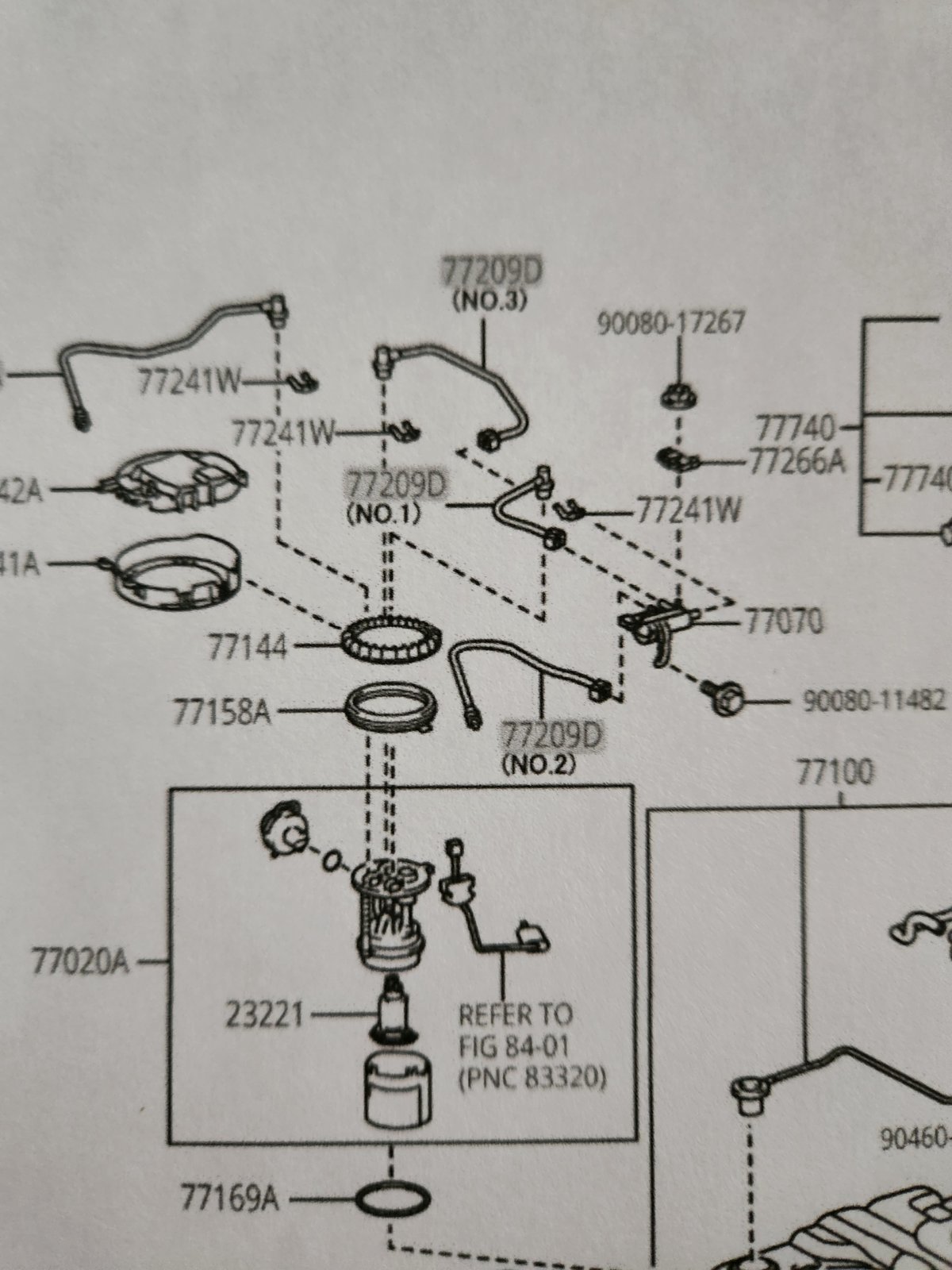

Changing fuel pump today and ran into hiccup. I broke some of my fuel lines on the tank thinking I had a dif style pump. I'll attach some pics. But I need part numbers for 77209d number 1 and 3. Maybe number 2 as well just so I can be certain I'm getting right stuff. Local dealership wants parts paid in advance and no returns. So I don't want to get the wrong parts. I'll attach the pictures of the schematic and the pictures of the lines on the actual solenoid. They will be the green clip lines. May take a bit on the pictures. Trying to upload from mobile and am technology impaired.



Try these:
#1 77209-OC120
#2 77209-OC120
#3 77209-OC130

Not familiar with the valve.



1 and 2 have same number? They are different lengths.



77204-0C070
77209-0C080
77209-0C120
77209-0C130
These are what I got from someone on Facebook. But I'd like to see a schematic that also showed the line numbers.

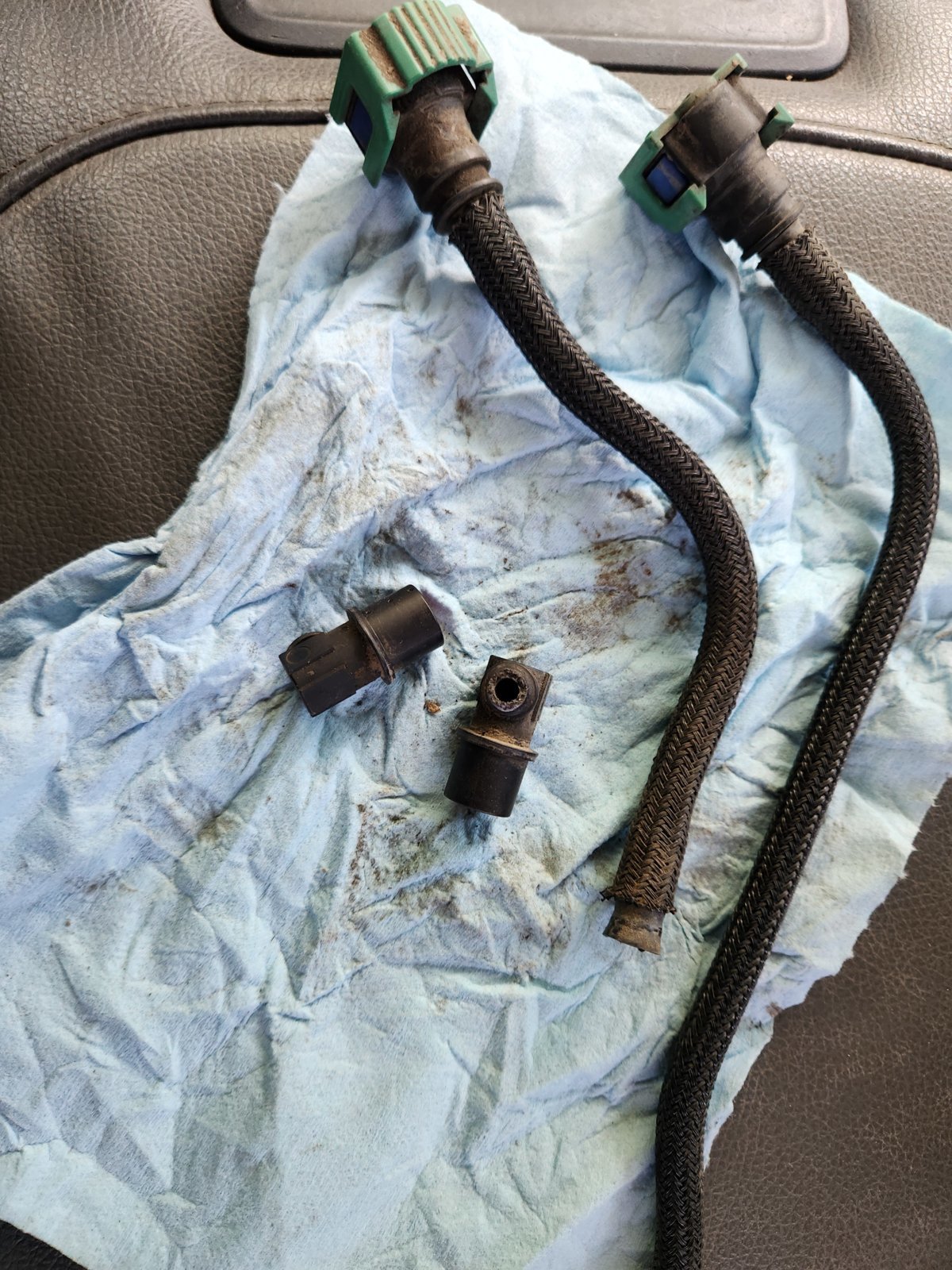

This is 1 and 3 after I broke them.



Sorry. Bad proof reading on my part.
#1 77209-OC120
#2 77209-OC080
#3 77209-OC130

From Toyota parts look up. Not having your VIN I used a VIN off of a 2014 listed for sale. By your parts diagram and valve pictured I assume you have a flex fuel vehicle, 3UR-FBE. Otherwise the non flex fuel, 3UR-FE diagram is different.

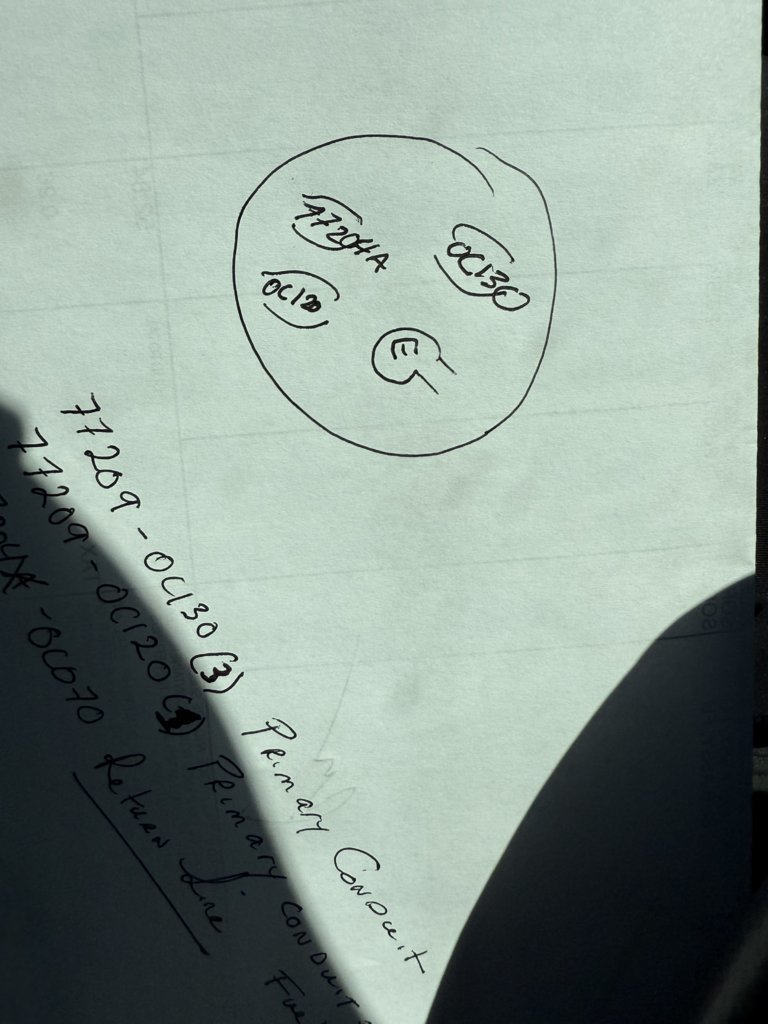

The 77204-OC070 is the return line. On your picture it is at top left with the number not visible, just the black drawn line. It is the tube the upper most 77241W clip is going into. In your picture of the valve the brown clip tube appears to be #2, the green clipped one next to it (just above in picture) is #1, and the green clipped one on the end of the valve is #3. You might google the P/N's and see if the parts look like what you have. Careful. I googled one of the P/N's and the picture is of an A/C line. Which is decidedly not the right picture used. I hope this helps.



Thank you so much sir. The truck is a 2010 flex fuel. But I suspect p/n are the same.



Your profile over to the side says 2014 cm tss is why I used 2014. Yes what I see '10 3UR-FBE have same P/N's



I need to change that. I now have 2010 flex fuel crew max limited.
