Main engine room wire.

Discussion in 'Electrical' started by shoggan, Jan 8, 2025.

Post Reply

Jan 8, 2025 at 10:17 AM

#1

#1
shoggan [OP] New Member

Joined:

Jan 17, 2023

Member:

#90421

Messages:

3

Gender:

Male

First Name:

Steven

Vehicle:

2020 cement grey Tundra

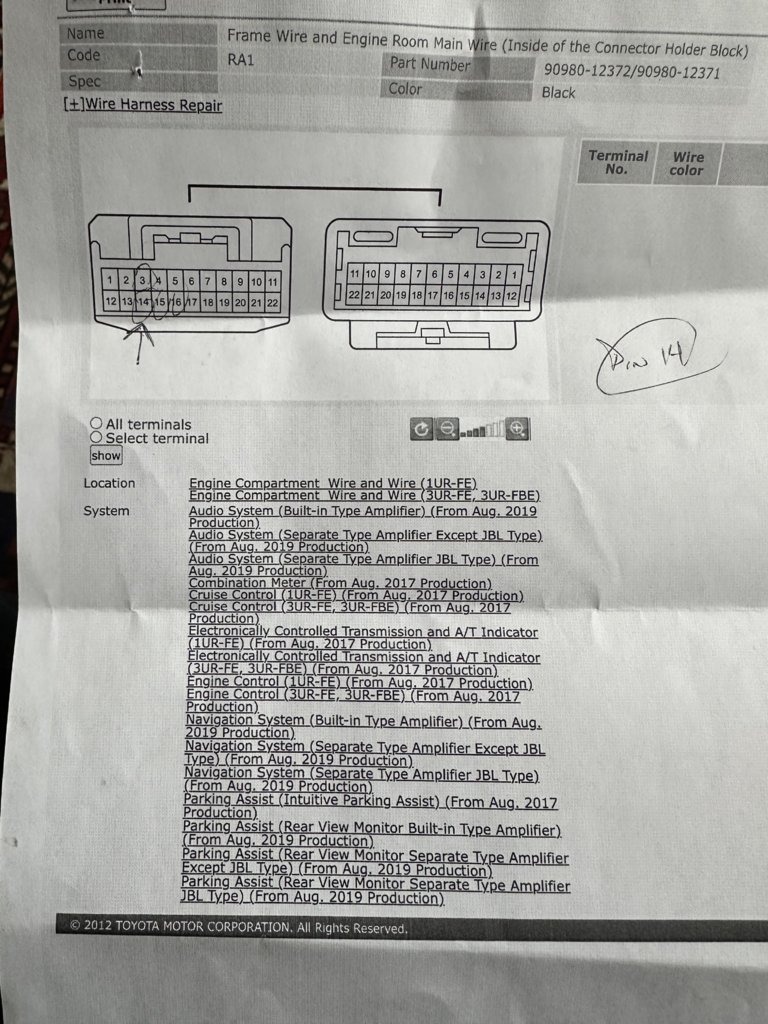

Does anyone know where this connection is located and what number the back up camera would be assigned?
I had trucking shop yesterday for vapour canister etc light reset and they said this was corroded, they cleaned it up but back up camera not working now.

shoggan, Jan 8, 2025
