Lock/unlock signal to rear doors - 2016 double Cab

Discussion in 'Lighting' started by 07RCSB, Sep 3, 2025 at 3:52 PM.

  1. Sep 3, 2025 at 3:52 PM
    #1
    07RCSB

    07RCSB [OP] New Member

    Joined:
    Mar 15, 2025
    Member:
    #131919
    Messages:
    23
    Gender:
    Male
    First Name:
    Bill
    Vehicle:
    2007 Tundra RCSB
    none yet

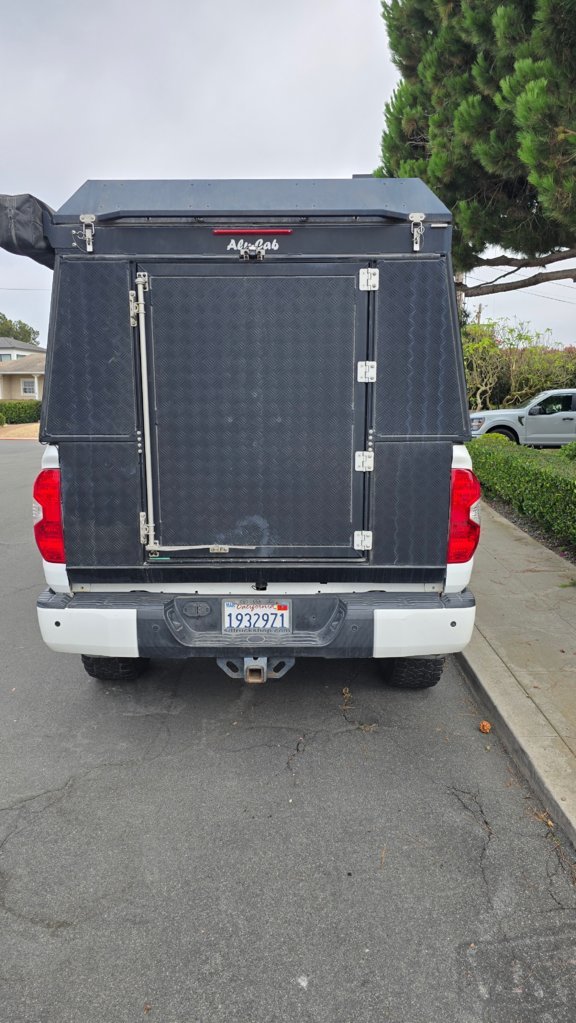

    I have an Alu Cab Alu-Cabin on the back of my 2016 double cab tundra. I purchased a used electronic lock for the Alu Cab for the back door that is made by 813 Fabrications. This electronic lock automatically actuates a bolt lock when I use the key fob to lock/unlock the doors of the vehicle. After speaking with 813 they said that I need to run a wire back to one of the back doors and find the Unlock/lock signal that tells the door lock actuator to lock and unlock. Hoping someone has an Electrical Wiring diagram that might be able to help me determine which wire I am looking for.

    Any help would be appreciated.


  2. Sep 4, 2025 at 5:46 AM
    #2
    BubbaW

    BubbaW Blessed 2 B above Ground

    Joined:
    Aug 19, 2019
    Member:
    #34845
    Messages:
    4,135
    First Name:
    Bubba
    Where Eagles Nest
    Vehicle:
    04 DC LTD 4X4 4.7 V8
    T150 Lover
    All Tundra EWD's can be found at the top of Electrical Forum....Ultimate TUNDRA Wiring Diagrams Collection | Toyota Tundra Forum

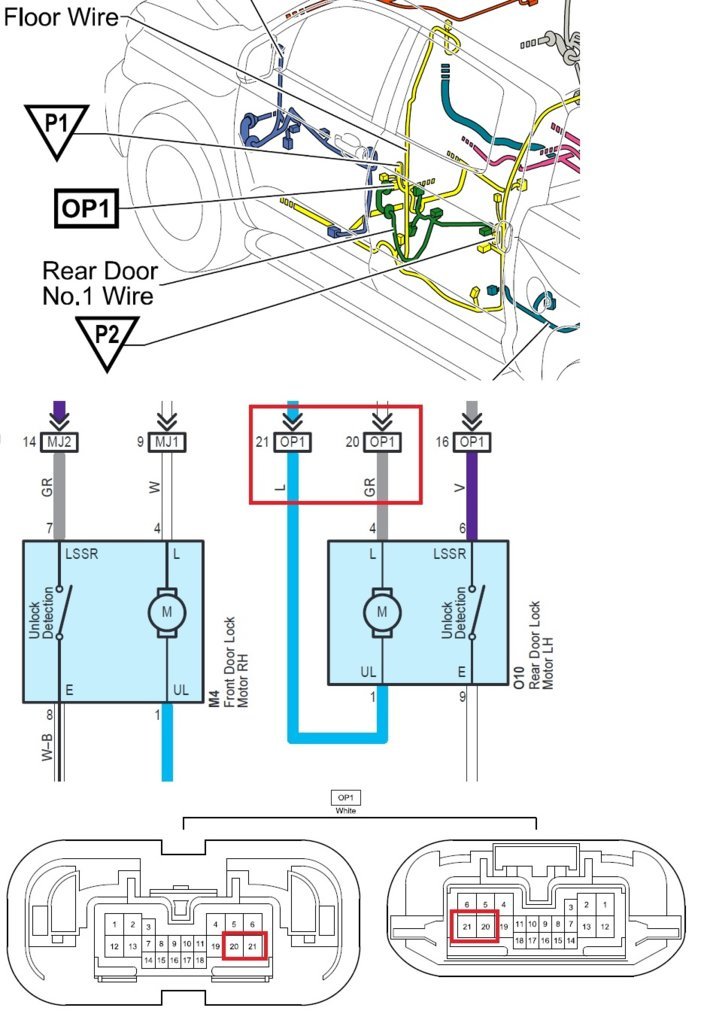

    I would consider connector behind B pillar....OP1 pin 20 Grey for Lock and pin 21 for UnLock.

    2016 DC OP1.jpg

  3. Sep 4, 2025 at 7:14 AM
    #3
    07RCSB

    07RCSB [OP] New Member

    Joined:
    Mar 15, 2025
    Member:
    #131919
    Messages:
    23
    Gender:
    Male
    First Name:
    Bill
    Vehicle:
    2007 Tundra RCSB
    none yet
    Holy hell!!! Wow truly appreciate the detailed response and good to know the EWD’s are available when I need one. I’ve been looking on EBay to buy the factory repair manuals and EWD’s and they just seem to be available like they are for my Lexus LX470.
